CV320

Compact Full HD camera IP & 3GSDI

Download Latest Firmware Download Images

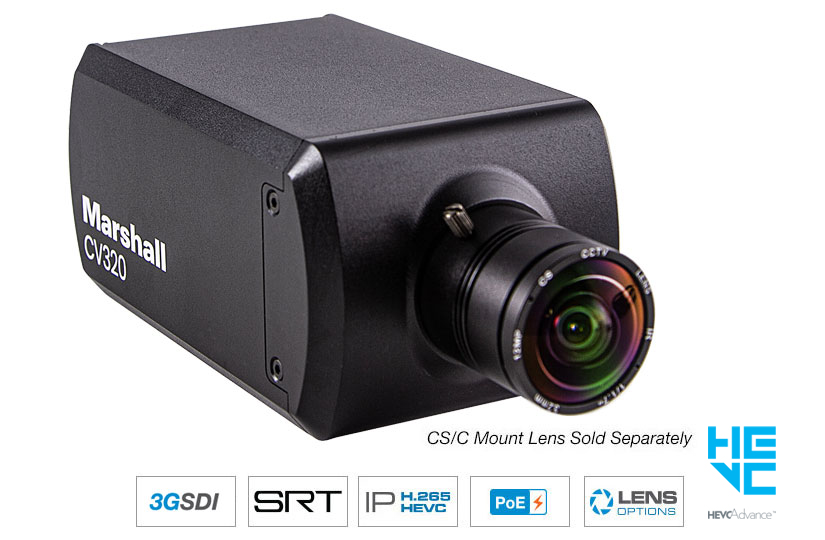

Marshall CV320 Compact Full HD camera IP and 3GSDI

The Marshall CV320 compact network streaming POV camera is built around a HD sensor with a CS/C lens mount suitable for longer shots. The compact CV320 delivers exceptional 10 bit 4:2:2 HD video performance via 3GSDI and ethernet IP interface supporting the ultra-efficient SRT, HEVC codecs from a durable aluminum alloy built with rear I/O protection wings. The HD sensor offers clear and rich color accurate video with improved low light sensitivity, refined remote adjust capability and flexible interchangeable CS lenses. * All pricing, features, functionality, and other product specifications are subject to change without notice or obligation.

OVERVIEW
SPECIFICATIONS
LENS OPTIONS
OPTIONAL ACCESSORIES
HOW TO VIDEOS

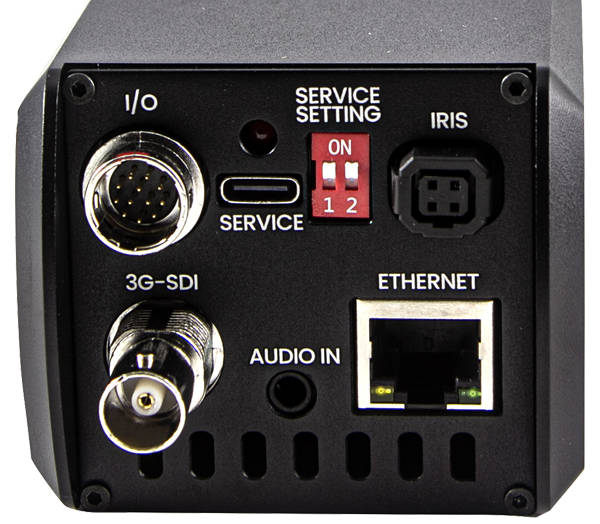

CV368 has global shutter CMOS technology

Premium, Efficient, and Low Latency

Featuring extremely efficient IP codecs providing low bandwidth AND low latency. This gives the CV320 camera a unique advantage while maintaining premium video quality. Simultaneous 3GSDI output and other streaming options such as SRT, RTSP, RTMP, HEVC and more.

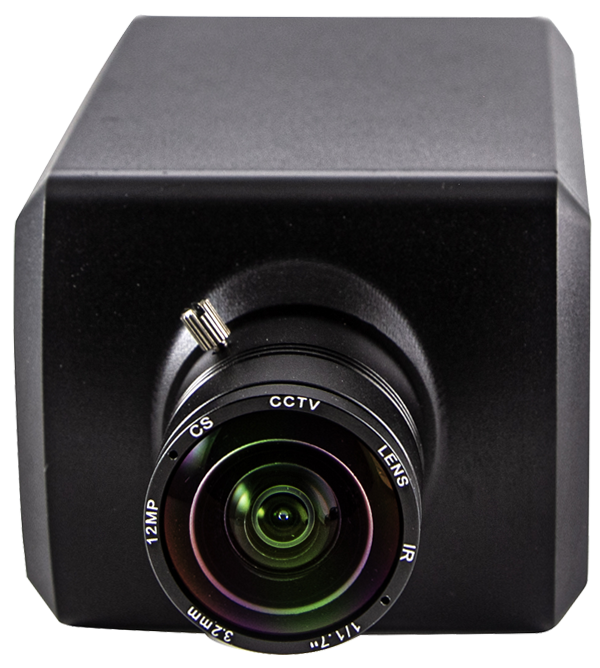

Flexible Interchangeable CS/C Mount Lenses

Marshall CV320 compact cameras are built with a CS/C lens mount and DC Iris power connector. Marshall offers a wide selection of high-quality CS and C mount prime and varifocal lenses to meet the individual needs of the production, project, or application. CV320 are perfectly setup for longer throws and telephoto lenses.

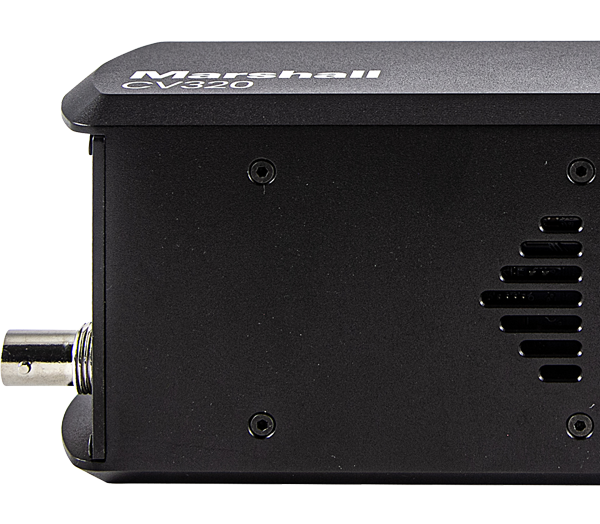

CV320 is Durable, Flexible, and Powerful

Durable, Flexible, Powerful

The compact CV320 body is chiseled from a block of aluminum alloy making it extremely durable in a discreet compact size with rear I/O protection. CV320 operates with exceptional low-light sensitivity, ensuring a clear picture in challenging lighting conditions with refined remote adjust & match capability over network or Visca over IP commands. Suitable for a variety of AV over IP network, cloud production, remote contribution, and 3GSDI workflows.

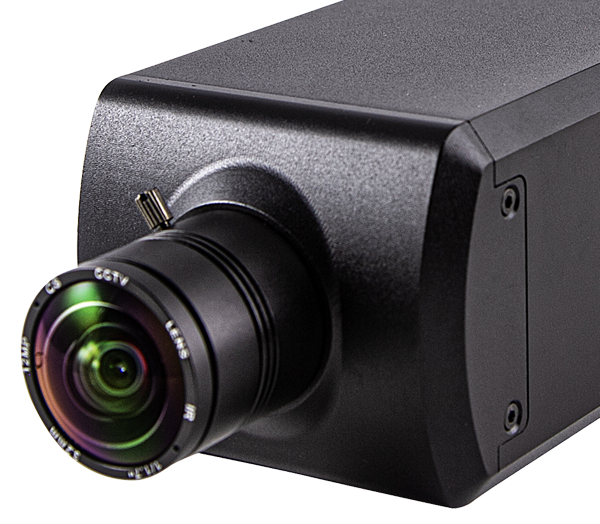

CV368 is a durable, flexible and powerful

Broadcast Performance

Marshall Camera Division continues to develop camera products to follow the heritage of Marshall broadcast quality incorporating reliability, durability, flexibility and most importantly affordability with feature sets that matter to our industry partners.

2.12 megapixel 1/2.86" FHD sensor
Flexible interchangeable CS & C lens mount – lens sold separately
Up to FHD 1920 x 1080p60 over 3G-SDI and IP simultaneously
Support multiple streaming protocols including RTSP, RTMP, SRT with H.264 and HEVC codecs
Audio input for embedding audio to video output (Audio only embeds to IP output)
A small joystick on the included breakout cable allows quick access to OSD Menus
Remote adjust & match via VISCA over RS485, VISCA over IP and camera web GUI
Powered with included 12VDC power supply or PoE over CAT cable
Easy firmware upgrade in the field
Industrial standard 1/4"-20 mount hole

Applications:

The Compact CV320 is suitable for use in AV over IP or 3GSDI workflows where image quality and versatility are of utmost concern, including live broadcast, productions, concerts, courtroom capture, corporate video, government assembly, sportscast, newscast, reality television, eSports, live performance, house of worship and many more.

CV320 Specifications
Sensor	Image Sensor	1/2.86” Progressive CMOS (Approx. 2.12 megapixels)
	Scanning System	16:9 Progressive
	Sync. System	Internal
	Effective Pixel	1920(H) x 1080(V)
	Min. Illumination	0.01Lux (Day), 0.005Lux (Night)
Optics	Lens	CS Mount Compatible (Lens purchased separately)
Functions	Back Light Compensation	WDR, BLC
	Exposure	Auto / Manual
	White Balance	AUTO / Manual / Indoor / Outdoor / One Push / AUTO Tracking(ATW)
	Day & Night System	Day / Night:TDN(ICR)
	Electronic Shutter	1/30~1/10000
	Functions	Image Mirror/Flip, 2D+3DNR, Anti Flicker
Ethernet	IP Protocols	SRT, RTMP, RTSP
Ethernet	Video encode format	H.264 / H.265 (Note: RTMP supports only H.264)
Video Output	Interfaces	3G-SDI, Ethernet
Output Resolutions	IP	1080p25/29.97/30/50/59.94/60, 720p25/29.97/30/50/59.94/60
Output Resolutions	3G-SDI	1080p23.98/24/25/29.97/30/50/59.94/60, 1080i50/59.94/60, 720p25/29.97/30/50/59.94/60
Audio Input	Line level	22.05kHz, 44.1kHz sample rates
Control	Network	Web GUI / VISCA over IP
Control	Terminal Block	VISCA over RS485
General	Operation Temperature	0°C ~ 50°C
	Power Input	12VDC (10V to 13.5VDC),
	Power consumption	12VDC: 3.12W, POE:TBD
	Dimensions	113.54mm(L) x 64mm(W) x 53mm(H) (without lens)
	Weight	0.85 lbs (without lens)

Lens Options

CS mount Varifocal Manual Focus Lens options for CV344, CV346, CV366, CV368, CV370, CV320
Part No.	Mount Type	Megapixel Rating	Focal Length	Horizontal AOV	Iris	F-Stop	M.O.D.
CS1150-8MP	CS Mount	8MP	11~50mm	45°~10°approx	DC Auto (4 pin)	F1.4~close	0.8m
CS-3816-8MP-V2	CS	8MP	3.8~16mm	68°~18° (1/2.8")	DC (4 pin)	F1.4 (W) ~ 1.6 (T)	0.5m~∞
C1670-8MP	C Mount	8MP	16~70mm	30°~7°approx	DC Auto (4 pin)	F1.4~close	0.8m
VS-M2812-4MP	CS	4MP	2.8mm~12mm	115°~32°	DC Auto (4pin)	F1.4	0.3m

Fixed Prime (CS mount) Lens options for CV344, CV343, CV346, CV345, CV365, CV366, CV368, CV370, CV320
Part No.	Megapixel Rating	Focal Length	Horizontal AOV	F-Stop	M.O.D.
V-555.0-5MP-VIS-IR 1/2	5MP	5.0mm	63° (1/3"), 75.5° (1/2.5"), 98° (1/1.7")	F2.0	0.8m - ∞
V-557.6-5MP-VIS-IR 1/2	5MP	7.6mm	40.4° (1/3"), 48° (1/2.5"), 60° (1/1.7")	F2.0	1.5m - ∞
