The AR-DM Series Digital Rack Mount Audio Monitors are ideal for TV facilities, studios, post production, VTR bays, mobile production vehicles, satellite links, and wherever multichannel audio monitoring is required. All models support 16 audio channels with four slots available for interchangeable input / output modules. The AR-DM series provides pristine audio quality and unrivaled flexibility with 100% digital processing.

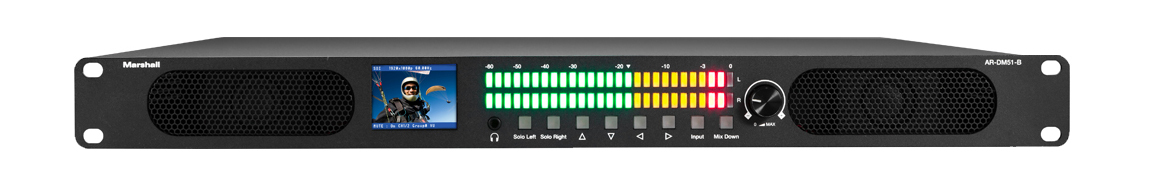

Marshall Rackmount Digital Audio Monitor with Dante ™

Marshall's AR-DM Series Rackmount Digital Audio Monitors are high quality, ultra-nearfield audio monitoring systems for space critical environments with interchangeable input / output modules and field-upgradeable firmware capability.

The AR-DM61 Series are sixth generation digital audio rack-mount monitors from Marshall, featuring improved audio quality and redesigned chassis. Each monitor has re-engineered speaker enclosures to maximize output power and new front digital panels that allow easier accessibility.

1RU Frame

AR-DM61-BT-64DT 64-Channel Digital Audio Monitor with Live Video Touchscreen Panel, 1RU Dante™, SDI, Analog, AES, and MADI
Optional Dolby™ card not included

$4,251.29*

AR-DM61-BT 64-Channel Digital Audio Monitor with Live Video Touchscreen Panel, 1RU SDI, Analog, AES, and MADI
Optional Dolby™ card not included

$3,461.33*

AR-DM51-B 16 Channel Digital Audio Monitor with built-in live video preview screen

$1088.00*

AR-AM4-BG-2 Analog Audio Monitor with 4 analog balanced XLR stereo inputs

$639.00*

OPTIONAL MODULES

ARDM-3GSDI

• 3G/HD/SD-SDI Input (up to 16 Audio Channel Inputs)
• Re-Clocked 3G/HD/SD-SDI Loop-Through Output
• HD-SDI Supports SMPTE 259-C, 292M, and SMPTE 424M, 425M with SMPTE 352M Payload
• Supports DOLBY Multi-Channel Decoding with Optional Module

$545.00*

ARDM-HDSDI

• Multi-Rate SDI/HD-SDI Video Input (Auto-Detect)
• Re-Clocked SDI/HD-SDI Loop-Through Output
• SDI: SMPTE 259M-C / HD-SDI: SMPTE 292M
• Supports 8 Stereo Embedded Channels or Dolby®
• Multi-Channel Decoding*

$539.00*

ARDM-AES-BNC

• 4 Unbalanced AES/EBU Inputs (BNC)
• 4 Passive Loop-Through Outputs (BNC)
• Supports 4 Stereo Channels or Dolby® Multi-Channel Decoding*

$545.00*

ARDM-AES-XLR

• 4 Balanced AES/EBU Stereo Inputs (DB-25)
• 4 Passive Loop-Through Outputs (DB-25)
• Break-Out Cable included (DB-25 to 8 XLR)
• Supports 4 Stereo Channels or Dolby® Multi-Channel Decoding*

$545.00*

ARDM-AA-8XLR

• 8 Balanced Analog Audio Inputs (DB-25)
• Nominal level: 0,+4,+6, or+8 dBu = -20dBFs
• Break-Out Cable included (DB-25 to XLR)

$545.00*

ARDM-AES-4OUT

• 4 Unbalanced AES/EBU Outputs (75Ω BNC)
• Capable of 4 AES/EBU Outputs
  De-embedded from HD-SDI or SD-SDI input
• Capable of 4 AES/EBU Outputs Decoded
  from Dolby® E / Dolby® Digital bitstream*

$545.00*
