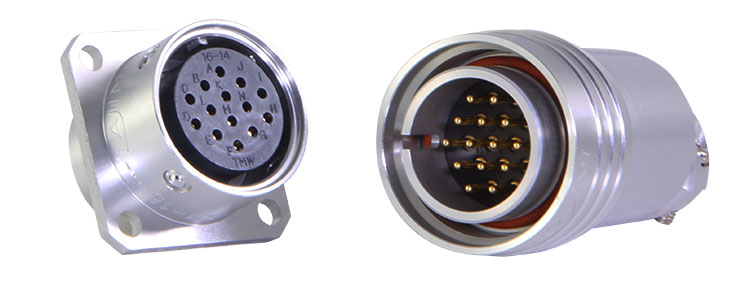

PRC Series (Push-pull circular connector)
PRC03, 04, 05, and 07 series are quick release, lightweight, miniature multipin connectors with audible click lock mechanism also free of vibration and impact problems.
Specifications:
No. of Contacts: 2 to 37
Vibration, Moisture and Corrosion Resistance: MIL-STD-202E
Temperature range: -25°C to +85°C
Water-proofing property: Withstand water pressure=2kg/cm² (atg)
Materials
| Principal Parts |
Materials |
Plating |
| 05 series |
03 series |
04 series |
05 series |
03 series |
04 series |
| Shell |
Brass |
Zinc Alloy |
Aluminum Alloy |
Nickel |
Nickel |
Anodic Oxidation Coatings |
| Male Contacts |
Brass |
Brass |
Brass |
Gold |
Gold |
Gold |
| Female Contacts |
Copper Alloy |
Copper Alloy |
Copper Alloy |
Gold |
Gold |
Gold |
| Insulation |
Synthetic Resin |
Synthetic Resin |
Synthetic Resin |
- |
- |
- |
Part Numbering System
PRC05 Series
PRC 05 - P 5 F
| PRC |
Push-Pull Circular Connector |
| 05 |
Series Designations |
| P |
Shell Style (P: Plug, R: Bulkhead Receptacle, RB: Flange
Mounting Receptacle, J: Jack) |
| 5 |
No. of Contacts |
| F |
Contact Type (M: Male, F: Female) |

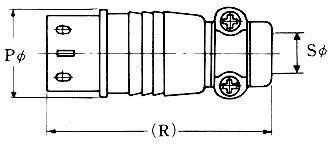

Dimensions
Plug
Flange Mounting Receptacle
Bulkhead Receptacle
Jack
| Series |
No. of Contacts |
A |
B |
C |
D |
E |
F |
G |
H |
J |
K |
L |
M |
N |
P |
R |
S |
| PRC03 |
2~7 |
21.0 |
46.0 |
10.5 |
12.5 |
26.5 |
15.0 |
16.0 |
21.0 |
2.9 |
12.5 |
26.5 |
M15P=1 |
19.0 |
19 |
46.0 |
10.5 |
| PRC04 |
8, 14 |
28.0 |
55.5 |
12.5 |
13.5 |
25.5 |
21.0 |
21.5 |
28.0 |
3.4 |
13.5 |
25.5 |
M21P=1 |
25.0 |
25 |
50.0 |
12.5 |
| 12, 19 |
34.0 |
63.5 |
14.5 |
14.0 |
26.0 |
26.0 |
26.0 |
33.0 |
3.9 |
14.0 |
26.0 |
M26P=1 |
32.0 |
32 |
58.5 |
14.5 |
| 21, 37 |
40.8 |
71.0 |
18.0 |
14.0 |
26.0 |
32.0 |
31.0 |
38.0 |
3.9 |
14.0 |
26.0 |
M32P=1 |
38.0 |
38 |
65.5 |
18.0 |
| PRC05 |
2, 3, 5 |
13.5 |
32.0 |
5.2 |
9.5 |
18.0 |
9.0 |
11.5 |
16.0 |
2.2 |
9.5 |
18.0 |
M9P=0.5 |
13.0 |
13 |
32.5 |
5.2 |
| 6, 8 |
16.7 |
34.0 |
6.2 |
9.5 |
18.0 |
12.0 |
13.5 |
18.0 |
2.2 |
9.5 |
18.0 |
M12P=0.8 |
16.0 |
16 |
34.5 |
6.2 |
| 12 |
21.0 |
39.0 |
11.0 |
9.5 |
18.0 |
16.0 |
17.0 |
22.5 |
2.8 |
9.5 |
18.0 |
M16P=1 |
20.0 |
20 |
39.0 |
11.0 |

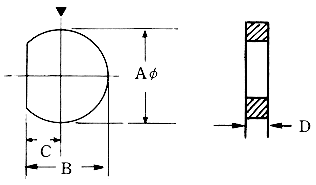

Mounting Hole Dimensions
Guide
Guide
 |
Guide
 |
| Series |
No. of Contacts |
A |
B |
C |
D |
E |
F |
G |
H |
J |
| PRC03 |
2~7 |
15.2 |
14.2 |
6.6 |
4.0 |
16.0 |
15.2 |
2.9 |
- |
- |
| PRC04 |
8, 14 |
21.2 |
20.2 |
9.6 |
3.4 |
21.5 |
21.3 |
3.4 |
- |
- |
| 12, 19 |
26.2 |
25.2 |
12.1 |
2.0 |
26.0 |
26.3 |
3.9 |
- |
- |
| 21, 37 |
32.2 |
31.2 |
15.1 |
2.0 |
31.0 |
32.3 |
3.9 |
- |
- |
| PRC05 |
2, 3, 5 |
- |
- |
- |
2.0 |
11.5 |
9.2 |
2.2 |
9.2 |
8.4 |
| 6, 8 |
- |
- |
- |
2.0 |
13.5 |
12.2 |
2.2 |
12.2 |
11.2 |
| 12 |
- |
- |
- |
2.0 |
17.0 |
16.2 |
2.8 |
16.2 |
14.7 |
Insert Arrangements (PRC03)
| Insert No. |
10 - 2 A |
10 - 3 A |
10 - 4 |
10 - 5 |
10 - 7 |
| No. of Contacts |
2 |
3 |
4 |
5 |
7 |
| Insert Arrangements |
 |
 |
 |
 |
 |
| Current Rating |
10A |
10A |
5A |
5A |
5A |
Voltage Rating
(AC. V. rms) |
600V |
350V |
400V |
350V |
350V |
Withstand Voltage
(AC. V. rms) |
1,800V |
1,000V |
1,200V |
1,000V |
1,000V |
| Contact Resistance |
DC3V 1A 5mW max. |
| Insulation Resistance |
DC500V 1,000mW min. |
| Applicable Wire |
A.W.G. # |
AWG #16 |
AWG #16 |
AWG #20 |
AWG #20 |
AWG #20 |
| Square |
1.4mm² max. |
1.4mm² max. |
0.5mm² max. |
0.5mm² max. |
0.5mm² max. |
| Wire Diameter |
1.6Ø max. |
1.6Ø max. |
1.0Ø max. |
1.0Ø max. |
1.0Ø max. |
Insert Arrangements (PRC04)
| Insert No. |
16 - 8 A |
16 - 14 |
20 S - 12 |
20 S - 19 |
| No. of Contacts |
8 |
14 |
12 |
19 |
| Insert Arrangements |
 |
 |
 |
 |
| Current Rating |
10A |
5A |
10A |
4A |
Voltage Rating
(AC. V. rms) |
400V |
350V |
400V |
400V |
Withstand Voltage
(AC. V. rms) |
1,200V |
1,000V |
1,200V |
1,200V |
| Contact Resistance |
DC3V 1A 5mW max. |
| Insulation Resistance |
DC500V 1,000mW min. |
| Applicable Wire |
A.W.G. # |
AWG #16 |
AWG #20 |
AWG #16 |
AWG #20 |
| Square |
1.4mm² max. |
0.5mm² max. |
1.4mm² max. |
0.5mm² max. |
| Wire Diameter |
1.6Ø max. |
1.0Ø max. |
1.6Ø max. |
1.0Ø max. |
| Insert No. |
26 S - 21 |
26 S - 37 |
| No. of Contacts |
21 |
37 |
| Insert Arrangements |
 |
 |
| Current Rating |
10A |
3A |
Voltage Rating
(AC. V. rms) |
400V |
400V |
Withstand Voltage
(AC. V. rms) |
1,200V |
1,200V |
| Contact Resistance |
DC3V 1A 5mW max. |
| Insulation Resistance |
DC500V 1,000mW min. |
| Applicable Wire |
A.W.G. # |
AWG #16 |
AWG #20 |
| Square |
1.4mm² max. |
0.5mm² max. |
| Wire Diameter |
1.6Ø max. |
1.0Ø max. |
Insert Arrangements (PRC05)
| Insert No. |
6 - 2 |
6 - 3 |
6 - 5 |
9 - 6 |
9 - 8 |
12 - 12 |
| No. of Contacts |
2 |
3 |
5 |
6 |
8 |
12 |
| Insert Arrangements |
 |
 |
 |
 |
 |
 |
| Current Rating |
2A |
2A |
2A |
2A |
2A |
2A |
Voltage Rating
(AC. V. rms) |
300V |
300V |
150V |
300V |
200V |
300V |
Withstand Voltage
(AC. V. rms) |
900V |
900V |
500V |
900V |
700V |
900V |
| Contact Resistance |
DC3V 1A 8mW max. |
| Insulation Resistance |
DC500V 1,000mW min. |
| Applicable Wire |
A.W.G. # |
AWG #24 |
AWG #24 |
AWG #24 |
AWG #24 |
AWG #24 |
AWG #24 |
| Square |
0.3mm² max. |
0.3mm² max. |
0.3mm² max. |
0.3mm² max. |
0.3mm² max. |
0.3mm² max. |
| Wire Diameter |
0.7Ø max. |
0.7Ø max. |
0.7Ø max. |
0.7Ø max. |
0.7Ø max. |
0.7Ø max. |
|
