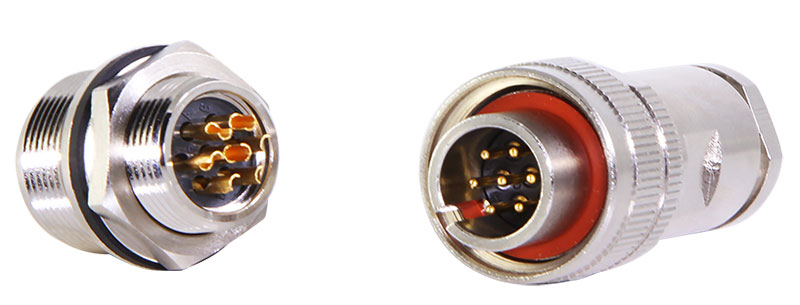

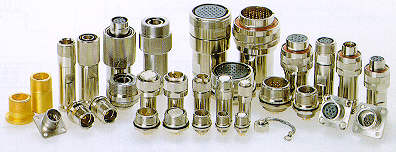

TC1108 Series
Tajimi TC1108 series connectors are waterproof up to 30 meters in depth.
(100 feet)
Economical and highly reliable construction also provides for applications
in high humidity conditions. TC1108 series include hermetically sealed
receptacles.
Specifications
No. of Contacts: 2 to 37
Vibration, Moisture and Corrosion Resistance: MIL-STD-202E
Temperature range: -25°C to +85°C
Water-proofing property: Withstand water pressure=3kg/cm² (atg)
Materials
| Principal Parts |
Materials |
Plating |
| Shell |
Brass |
Nickel |
| Contacts |
Copper Alloy |
Gold |
| Insulation |
Synthetic Resin |
|
Part Numbering System
TC1108 - 12A 10 - 4 F (8)
| TC1108 |
Series 23A: Bulkhead Receptacle, 32A: Standard
Jack,
32B: Standard Jack (with cable clamp), 35A: Long Shell Type Jack |
| 12A |
Shell Style 12A: Standard Plug, 12B: Standard
Plug (with cable clamp),
15A: Long Shell Type Plug, 21B: Flange Mount
Receptacle |
| 10 |
Shell Size (10, 16, 20, 26) |
| 4 |
No. of Contacts |
| F |
Contact Style (M: Pin Contact, F: Socket Contact) |
| (8) |
Inner Diameter of Clamping Nut
( )=Select the Most suitable size from the table of inner diameter
I.D of Clamping nut
for applicable size cable |
Dimensions
Plug
Plug (With Cable Clamp)

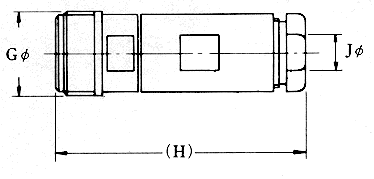

Jack
| Shell Size |
No. of Contacts |
A |
B |
C |
D |
E |
F |
G |
H |
J |
| 10 |
2 |
21.0 |
52.0
(62.0) |
5.0 8.6
6.3 9.3
7.0 10.0
8.0 10.5 |
21.0 |
60.0 |
8.3
9.5 |
M18
(P=1) |
52.0
(62.0) |
5.0 8.6
6.3 9.3
7.0 10.0
8.0 10.5 |
| 3 |
| 4 |
| 5 |
| 7 |
| 16 |
8 |
27.0 |
55.5
(65.5) |
11.1, 11.8, 13.5 |
27.0 |
63.0 |
11.8, 13.5 |
M24
(P=1) |
56.0
(66.0) |
11.1, 11.8, 13.5 |
| 14 |
| 20 |
12 |
34.0 |
61.0
(76.0) |
11.0, 14.3, 15.8 |
34.0 |
64.0 |
14.3 |
M30
(P=1) |
61.0
(76.5) |
11.0, 14.3, 15.8 |
| 19 |
| 26 |
21 |
40.0 |
65.0
(80.0) |
16.3 |
40.0 |
74.5 |
16.3 |
36.0
P=1 |
65.5
(80.0) |
16.3 |
| 37 |
NOTE: Indication in ( ) shows length of Long Shell Type
connector on the table above.
Bulkhead Receptacle
Flange Mount Receptacle
Mounting Hole Dimensions
| Shell Size |
No. of Contacts |
A |
B |
C |
D |
E |
F |
G |
H |
J |
K |
L |
M |
N |
P |
| 10 |
2 |
12.5 |
26.0 |
M15
(P=1) |
18.0 |
25.0 |
12.5 |
26.0 |
15.0 |
15.2 |
14.2 |
4.0 |
15.2 |
M3 |
18.0 |
| 3 |
| 4 |
| 5 |
| 7 |
| 16 |
8 |
12.5 |
26.0 |
21.0
P=1 |
23.0 |
30.0 |
12.5 |
26.0 |
21.0 |
21.2 |
20.2 |
4.0 |
21.2 |
M3 |
23.0 |
| 14 |
| 20 |
12 |
13.5 |
26.0 |
26.0
P=1 |
31.0 |
38.0 |
12.5 |
26.0 |
26.0 |
26.2 |
25.2 |
3.5 |
26.2 |
M3 |
31.0 |
| 19 |
| 26 |
21 |
13.5 |
26.0 |
32.0
P=1 |
35.0 |
43.0 |
12.5 |
26.0 |
32.0 |
32.2 |
31.2 |
3.5 |
32.2 |
M3 |
35.0 |
| 37 |
Hermetically Sealed Receptacle (Glass-to-metal
seals)
Glass-to-metal seal creates a bond with high sealing integrity. This maintains
rated electrical characteristics during continuous exposure to thermal
and mechanical shock. Application of these receptacles are for vacuum
pumps, inert gas tanks and oil pressured pumps. These receptacles can
be mated with other TC1108 series connectors.
Specifications
No. of Contacts: 2 to 14
Insulation Resistance: DC500V 1,000MW min.
Contact Resistance: DC1A 25mW max.
Vibration, Moisture and Corrosion Resistance: MIL-STD-202E
Temperature range: -25°C to +100°C
Hermetic Seal: Helium leak rate 1×10-9 atm cc/sec.
Sealing: High pressure of 25kg/cm² (atg) with air.
Materials
| Principal Parts |
Materials |
Plating |
| Shell |
Brass |
Nickel |
| Contacts |
Ferro-Nickel |
Nickel |
| Insulation |
Soda-Lime Glass |
|
Dimensions
Mounting Hole Dimensions
| Insert Size |
No. of Contacts |
Part Number |
Dimensions Millimeter |
| A |
B |
C |
D |
E |
F |
G |
H |
J |
| 10 |
2 |
1108-71B10-2AM |
18.0 |
25.0 |
M18
(P=1) |
3.0 |
16.4 |
23.5 |
14.8 |
M 3 |
18.0 |
| 3 |
1108-71B10-3AM |
| 4 |
1108-71B10-4M |
| 5 |
1108-71B10-5M |
| 7 |
1108-71B10-7M |
| 16 |
8 |
1108-71B16-8AM |
25.0 |
32.0 |
M24
(P=1) |
3.0 |
16.4 |
23.5 |
21.8 |
M 3 |
25.0 |
| 14 |
1108-71B16-14M |
Insert Arrangements
| Insert No. |
10 - 2 A |
10 - 3 A |
10 - 4 |
10 - 5 |
10 - 7 |
| No. of Contacts |
2 |
3 |
4 |
5 |
7 |
| Insert Arrangements |
 |
 |
 |
 |
 |
| Current Rating |
10A |
10A |
5A |
5A |
5A |
Voltage Rating
(AC. V. rms) |
600V |
350V |
400V |
350V |
350V |
Withstand Voltage
(AC. V. rms) |
1,800V |
1,000V |
1,200V |
1,000V |
1,000V |
| Contact Resistance |
DC3V 1A 5mW max. |
| Insulation Resistance |
DC500V 1,000mW min. |
| Applicable Wire |
A.W.G. # |
AWG #16 |
AWG #16 |
AWG #20 |
AWG #20 |
AWG #20 |
| Square |
1.4mm² max. |
1.4mm² max. |
0.5mm² max. |
0.5mm² max. |
0.5mm² max. |
| Wire Diameter |
1.6Ø max. |
1.6Ø max. |
1.0Ø max. |
1.0Ø max. |
1.0Ø max. |
| Insert No. |
16 - 8 A |
16 - 14 |
20 S - 12 |
20 S - 19 |
| No. of Contacts |
8 |
14 |
12 |
19 |
| Insert Arrangements |
 |
 |
 |
 |
| Current Rating |
10A |
5A |
10A |
4A |
Voltage Rating
(AC. V. rms) |
400V |
350V |
400V |
400V |
Withstand Voltage
(AC. V. rms) |
1,200V |
1,000V |
1,200V |
1,200V |
| Contact Resistance |
DC3V 1A 5mW max. |
| Insulation Resistance |
DC500V 1,000mW min. |
| Applicable Wire |
A.W.G. # |
AWG #16 |
AWG #20 |
AWG #16 |
AWG #20 |
| Square |
1.4mm² max. |
0.5mm² max. |
1.4mm² max. |
0.5mm² max. |
| Wire Diameter |
1.6Ø max. |
1.0Ø max. |
1.6Ø max. |
1.0Ø max. |
| Insert No. |
26 S - 21 |
26 S - 37 |
| No. of Contacts |
21 |
37 |
| Insert Arrangements |
 |
 |
| Current Rating |
10A |
3A |
Voltage Rating
(AC. V. rms) |
400V |
400V |
Withstand Voltage
(AC. V. rms) |
1,200V |
1,200V |
| Contact Resistance |
DC3V 1A 5mW max. |
| Insulation Resistance |
DC500V 1,000mW min. |
| Applicable Wire |
A.W.G. # |
AWG #16 |
AWG #20 |
| Square |
1.4mm² max. |
0.5mm² max. |
| Wire Diameter |
1.6Ø max. |
1.0Ø max. |
|
