Pro HD/4K Cameras

The Marshall CV370 camera delivers exceptional broadcast video quality with accurate color and clarity for network video applications in Streaming, Remote Contribution, AV over IP, Broadcast, Production, Sports, Live Events, POV, Reality Television, Assembly and Courtroom Capture, and any IP or NDI workflow requiring a miniature size and durable build.

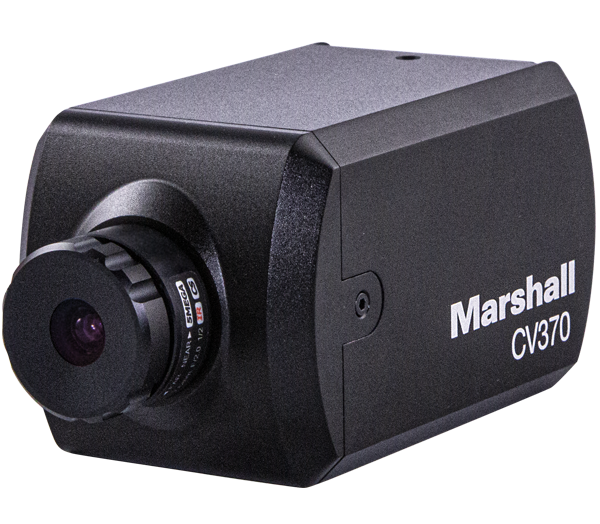

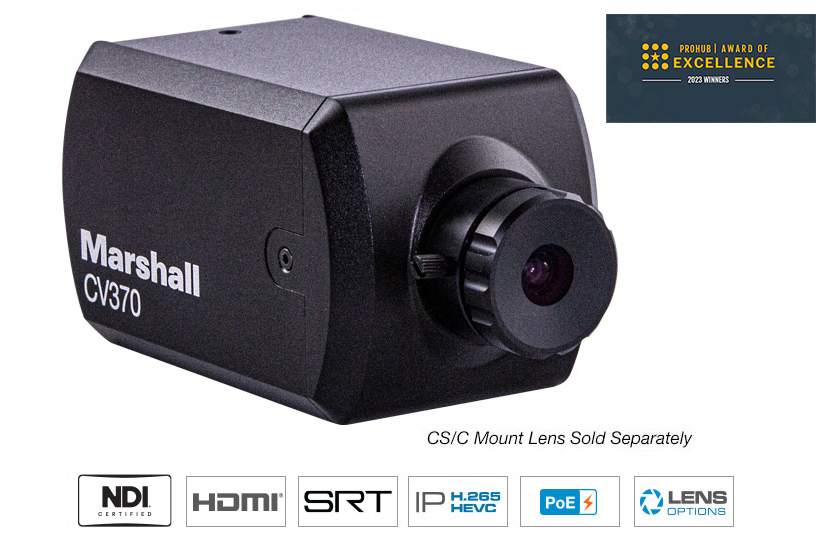

CV370

Compact POV Camera
NDI HX3 & HDMI

Owner's Manual Specsheet Download Download Images
NDI Certified
The Marshall CV370 compact network streaming POV camera is built around a Sony HD sensor with over 2.13 million pixels behind a CS/C lens mount suitable for longer shots. The compact CV370 delivers exceptional 10 bit 4:2:2 HD video performance via HDMI and ethernet IP interface supporting the ultra-efficient NDI HX3, SRT, HEVC codecs from a durable aluminum alloy build with rear I/O protection wings. The HD Sony sensor offers clear and rich color accurate video with improved low light sensitivity, refined remote adjust capability and flexible interchangeable CS lenses. * Pricing does not reflect freight costs and applicable taxes and duties.
* All pricing, features, functionality, and other product specifications are subject to change without notice or obligation.


CV368 has global shutter CMOS technology

NDI HX3 Premium, Efficient, Low Latency, Loss-less Streaming Codec

Featuring the extremely efficient NDI HX3 codecs gives the miniature CV370 camera a unique advantage over other streaming cameras with 100ms end-to-end of latency using less bandwidth and maintaining the premium video quality of the source. Simultaneous HDMI output and other streaming options such as SRT, RTSP, RTMP, HEVC and more.

CV368 Genlock Tri-level Sync

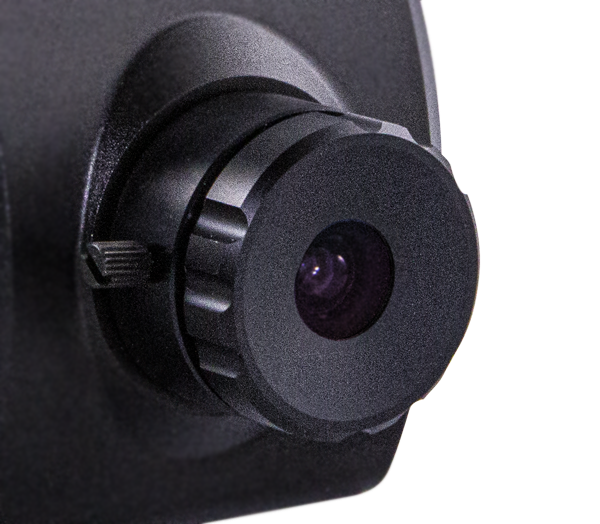

Flexible Interchangeable CS/C Mount Lenses

Marshall CV370 compact cameras are built with a CS/C lens mount with optional DC Auto Iris. Marshall offers a wide selection of high-quality CS and C mount prime and varifocal lenses to meet the individual needs of the production, project, or application. CV370 are perfectly setup for longer throws and telephoto lenses.

CV370 is Durable, Flexible, and Powerful

Durable, Flexible, Powerful

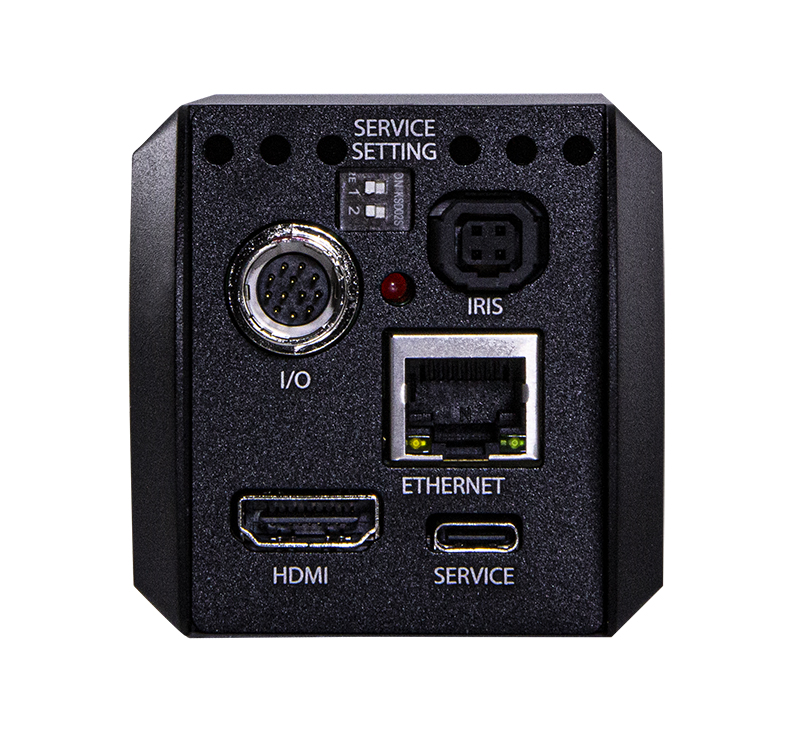

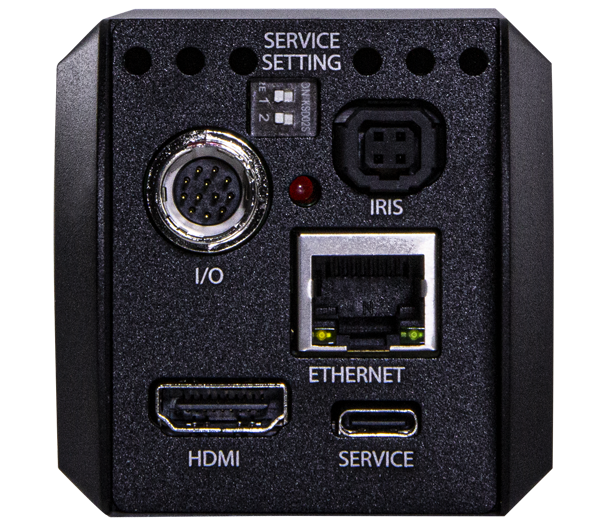

The compact CV370 body is chiseled from a block of aluminum alloy making it extremely durable in a discreet compact size with rear I/O protection. CV370 operates with exceptional low-light sensitivity, ensuring a clear picture in challenging lighting conditions with refined remote adjust & match capability over network or Visca over IP commands. Suitable for a variety of AV over IP network, cloud production, remote contribution, and HDMI workflows.

CV368 is a durable, flexible and powerful

Broadcast Performance

Marshall Camera Division continues to develop camera products to follow the heritage of Marshall broadcast quality incorporating reliability, durability, flexibility and most importantly affordability with feature sets that matter to our industry partners.

  • 2.13 Megapixel Sony sensor with larger pixels and square pixel array
  • Flexible interchangeable CS & C lens mount - lens sold separately
  • HDMI + network support for NDI HX3, RTSP, RTMP, SRT with H.264 and HEVC streaming codecs
  • One-cable to camera option for power (PoE), video, audio, and remote setting control
  • 1920x1080p, 1920x1080i & 1280x720p resolutions available
  • Framerates: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98fps
  • Remote adjust and match via Visca over IP, NDI|Tools, and camera control webpage
  • PoE over Cat cable or 12V power with included power supply


Applications:

The Compact CV370 is suitable for use in AV over IP or HDMI workflows where image quality and versatility are of utmost concern, including live broadcast, productions, concerts, courtroom capture, corporate video, government assembly, sportscast, newscast, reality television, eSports, live performance, house of worship and many more.

Lens Options

CS mount Varifocal Manual Focus Lens options for CV344, CV346, CV366, CV368, CV370
  Part No. Mount Type Megapixel Rating Focal Length Horizontal AOV Iris F-Stop M.O.D.
CS mount 3MP Varifocal Manual Focus Lens from FUJINON VS-M880-A C Mount 3MP 8~80mm 38°~3° (1/3")
50°~5° (1/2")
DC Auto
(4 pin)
F1.4 1.5m
CS1150-8MP 8MP CS mount focal length Iris F-stop focus range CS1150-8MP CS Mount 8MP 11~50mm 45°~10°approx DC Auto (4 pin) F1.4~close 0.8m
CS-3816-8MP CS-3816-8MP CS 8MP 3.8~16mm 113°~30° DC Auto Iris F1.4 0.2m~∞
CS3610-8MP CS3610-8MP CS Mount 8MP 3.6~10mm 107°~45.6° (1/8") DC Auto
(4 pin)
F1.5 0.3m~∞
C1670-8MP 8MP CS mount focal length Iris F-stop focus range C1670-8MP C Mount 8MP 16~70mm 30°~7°approx DC Auto (4 pin) F1.4~close 0.8m


Fixed Prime (CS mount) Lens options for CV344, CV343, CV346, CV345, CV365, CV366, CV368, CV370
  Part No. Megapixel Rating Focal Length Horizontal AOV F-Stop M.O.D.
Fixed Prime CS mount lens V-555.0-5MP-VIS-IR 1/2 5MP 5.0mm 63° (1/3"), 75.5° (1/2.5"), 98° (1/1.7") F2.0 0.8m - ∞
Fixed Prime CS mount lens V-557.6-5MP-VIS-IR 1/2 5MP 7.6mm 40.4° (1/3"), 48° (1/2.5"), 60° (1/1.7") F2.0 1.5m - ∞




Mini Camera Stands and Mounts accessories

1/4"-20 Mounts

1/4"-20 Compact Camera Stands & Mounts,
Clamps, Articulating arms and more...

Read more
Compact Weatherproof Camera Housing with Fan and Heater

CV-H20-HF

Compact Weatherproof Camera Housing with Fan & Heater

Read more

Click Here For Additional Accessories
