CV374

Compact 4K (UHD) Camera
NDI HX3 & HDMI

Owner's Manual Specsheet Download Cutsheet Download NDI Cameras Resolution Matrix Download Latest Firmware Download Images

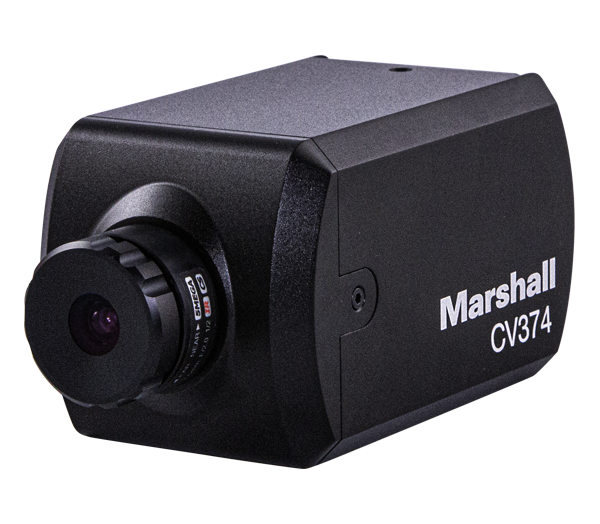

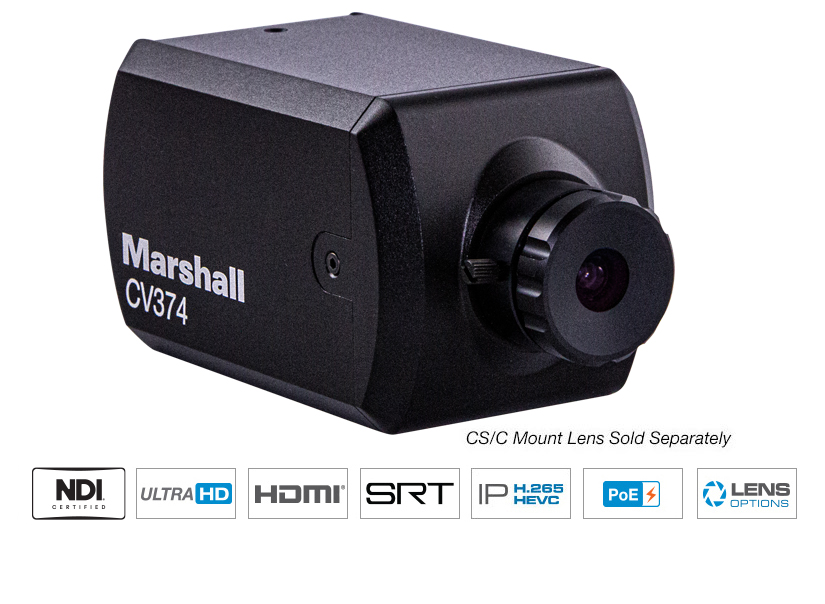

Marshall CV374 Compact 4K (UHD) Camera NDI HX3 and HDMI

The Marshall CV374 network streaming POV camera is built around a Sony UHD sensor with over 8.46 million pixels. The compact CV374 delivers exceptional 4K (UHD) video performance via HDMI and ethernet IP interface supporting the ultra-efficient NDI HX3, SRT, HEVC codecs from a durable aluminum alloy build with rear I/O protection wings. The Ultra-HD Sony sensor offers crystal clear and rich color accurate video with improved low light sensitivity, refined remote adjust capability and flexible interchangeable lenses. * All pricing, features, functionality, and other product specifications are subject to change without notice or obligation.

OVERVIEW
SPECIFICATIONS
LENS OPTIONS
OPTIONAL ACCESSORIES
HOW TO VIDEOS

CV368 has global shutter CMOS technology

NDI HX3 Premium, Efficient, Low Latency, Loss-less Streaming Codec

Featuring the extremely efficient NDI HX3 codecs gives the compact CV374 camera a unique advantage over other streaming cameras with 100ms end-to-end of latency using less bandwidth and maintaining the premium video quality of the source. Simultaneous HDMI output and other streaming options such as SRT, RTSP, RTMP, HEVC and more.

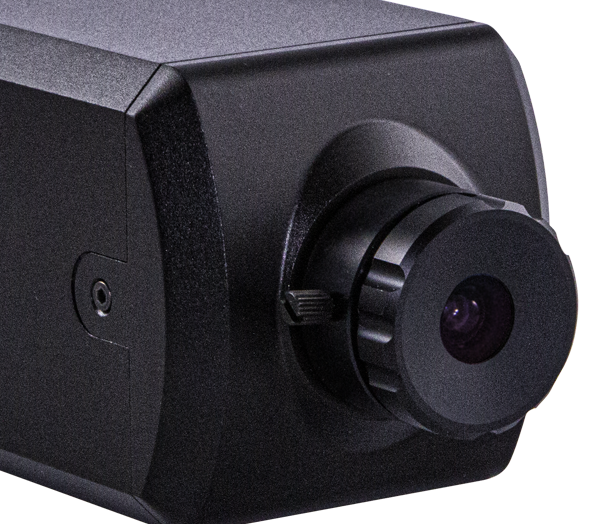

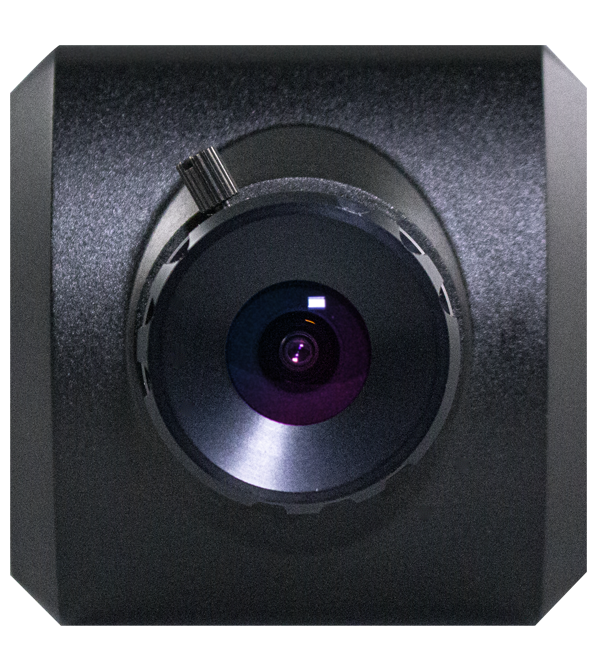

Flexible Interchangeable CS/C Mount Lenses

Marshall CV374 compact cameras are built with a CS/C lens mount with optional DC Auto Iris. Marshall offers a wide selection of high-quality CS and C mount prime and varifocal lenses to meet the individual needs of the production, project, or application. CV374 are perfectly setup for longer throws and telephoto lenses.

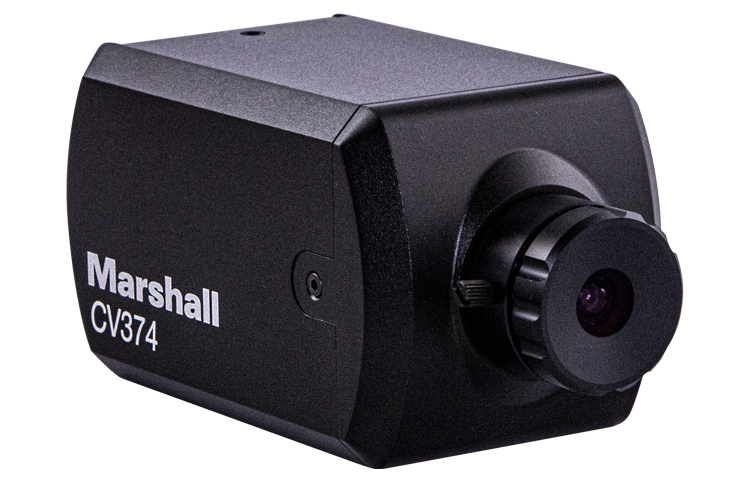

CV374 is Durable, Flexible, and Powerful

Durable, Flexible, Powerful

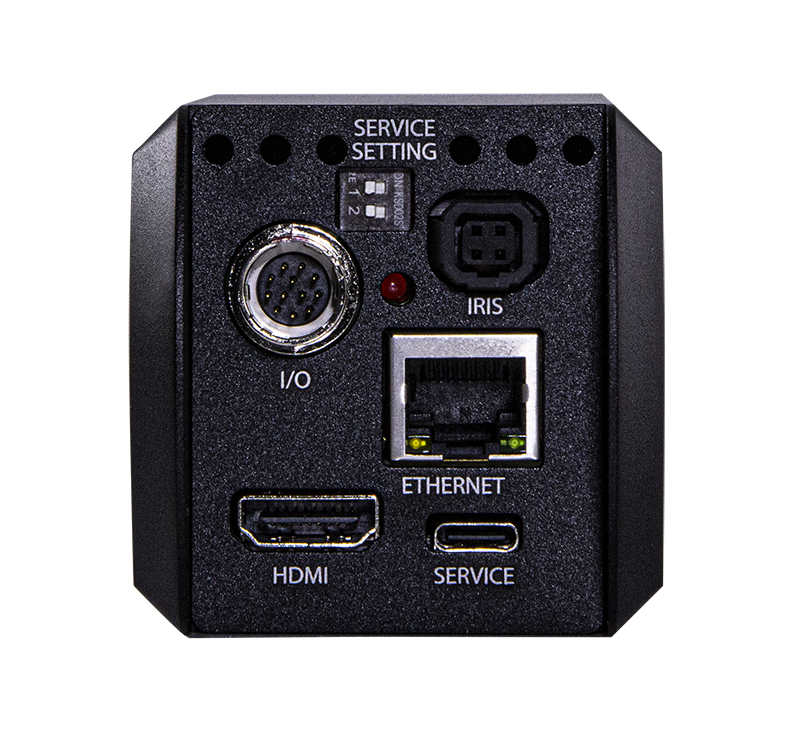

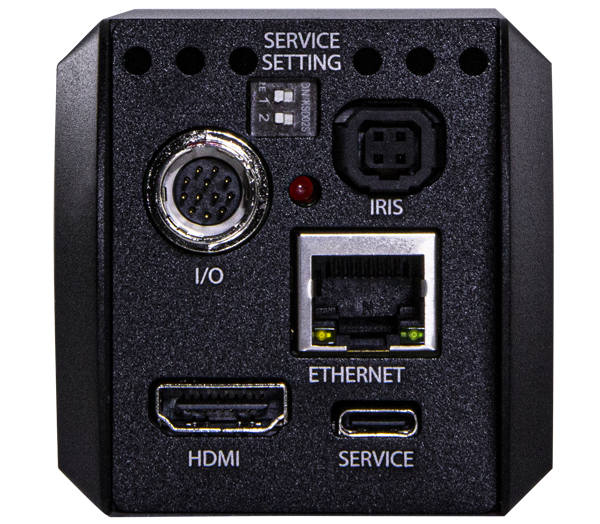

The compact CV374 body is chiseled from a block of aluminum alloy making it extremely durable in a discreet compact size with rear I/O protection. CV374 operates with exceptional low-light sensitivity, ensuring a clear picture in challenging lighting conditions with refined remote adjust & match capability over network or Visca over IP commands. Suitable for a variety of AV over IP network, cloud production, remote contribution, and HDMI workflows.

CV368 is a durable, flexible and powerful

Broadcast Performance

Marshall Camera Division continues to develop camera products to follow the heritage of Marshall broadcast quality incorporating reliability, durability, flexibility and most importantly affordability with feature sets that matter to our industry partners.

8.46 Megapixel 1/2.8" Sony UHD solid-state image sensor
Flexible interchangeable CS & C lens mount - lens sold separately
3840x2160p, 1920x1080p, 1920x1080i & 1280x720p resolutions available
Framerates: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98fps
HDMI + network support for NDI HX3, RTSP, RTMP, SRT with H.264 and HEVC streaming codecs
One-cable to camera option for power (PoE), video, audio, and remote setting control
Audio Line input does not provide power to the audio device. Mic will use Mic Bias 1.7V and up to 3mA max current
Remote adjust & match via Visca over IP, NDI|Tools, and camera control webpage
PoE over Cat cable or 12V power with included power supply

Applications:

The compact CV374 is suitable for use in AV over IP or HDMI workflows where image quality and versatility are of utmost concern, including live broadcast, productions, concerts, courtroom capture, corporate video, government assembly, sportscast, newscast, reality television, eSports, live performance, house of worship and many more.

CV374 Specifications
Sensor	Image Sensor	1/2.8” Progressive CMOS (Approx. 8.46 mega)
	Scanning System	16:9 Progressive
	Sync. System	Internal
	Effective Pixel	3840(H) x 2160(V)
	Min. Illumination	0.5Lux (Day), 0.01Lux (Night)
Optics	Lens	CS Mount Compatible
Functions	Back Light Compensation	WDR, BLC
	Exposure	Auto / Manual
	White Balance	AUTO / Manual / Indoor / Outdoor / One Push / AUTO Tracking(ATW)
	Day & Night System	Day / Night:TDN(ICR)
	Electronic Shutter	1/30~1/10000
	Functions	Image Mirror/Flip, 2D+3DNR, Anti Flicker
Ethernet	IP Protocols	NDI\|HX2, NDI\|HX3, SRT, RTMP, RTSP
Ethernet	Video encode format	H.264 / H.265 (Note: RTMP supports only H.264)
Video Output	Interfaces	HDMI, Ethernet
Output resolutions	HDMI	2160p25/29.97/30/50/59.94/60, 1080p23.98/24/25/29.97/30/50/59.94/60, 1080i50/59.94/60, 720p25/29.97/30/50/59.94/60
	IP	2160p25/29.97/30/50/59.94/60, 1080p23.98/24/25/29.97/30/50/59.94/60, 720p25/29.97/30/50/59.94/60
	NDI\|HX2	2160p25/29.97/30/50/59.94/60, 1080p23.98/24/25/29.97/30/50/59.94/60, 720p25/29.97/30/50/59.94/60
	NDI\|HX3	1080p50/60
Audio Input	Line level	16kHz, 32kHz, 48kHz sample rates
Control	Network	Web GUI / VISCA over IP
General	Operation Temperature	0℃ ~ 50℃
	Power Input	12VDC (10V to 13.5VDC)
	Power consumption	12VDC power: 5.625W, POE power: 6.7W
	Dimensions	99.08mm(L) x 56mm(W) x 56mm(H) (without lens)
	Weight	0.8 lbs (without lens)

Lens Options

CS mount Varifocal Manual Focus Lens options for CV344, CV346, CV366, CV368, CV374
Part No.	Mount Type	Megapixel Rating	Focal Length	Horizontal AOV	Iris	F-Stop	M.O.D.
CS1150-8MP	CS Mount	8MP	11~50mm	45°~10°approx	DC Auto (4 pin)	F1.4~close	0.8m
CS-3816-8MP-V2	CS	8MP	3.8~16mm	68°~18° (1/2.8")	DC (4 pin)	F1.4 (W) ~ 1.6 (T)	0.5m~∞
CS3610-8MP	CS Mount	8MP	3.6~10mm	107°~45.6° (1/8")	DC Auto (4 pin)	F1.5	0.3m~∞
C1670-8MP	C Mount	8MP	16~70mm	30°~7°approx	DC Auto (4 pin)	F1.4~close	0.8m

Fixed Prime (CS mount) Lens options for CV344, CV343, CV346, CV345, CV365, CV366, CV368, CV370, CV374
Part No.	Megapixel Rating	Focal Length	Horizontal AOV	F-Stop	M.O.D.
V-555.0-5MP-VIS-IR 1/2	5MP	5.0mm	63° (1/3"), 75.5° (1/2.5"), 98° (1/1.7")	F2.0	0.8m - ∞
V-557.6-5MP-VIS-IR 1/2	5MP	7.6mm	40.4° (1/3"), 48° (1/2.5"), 60° (1/1.7")	F2.0	1.5m - ∞
