CV376

Compact POV Camera NDI HX3 & HDMI

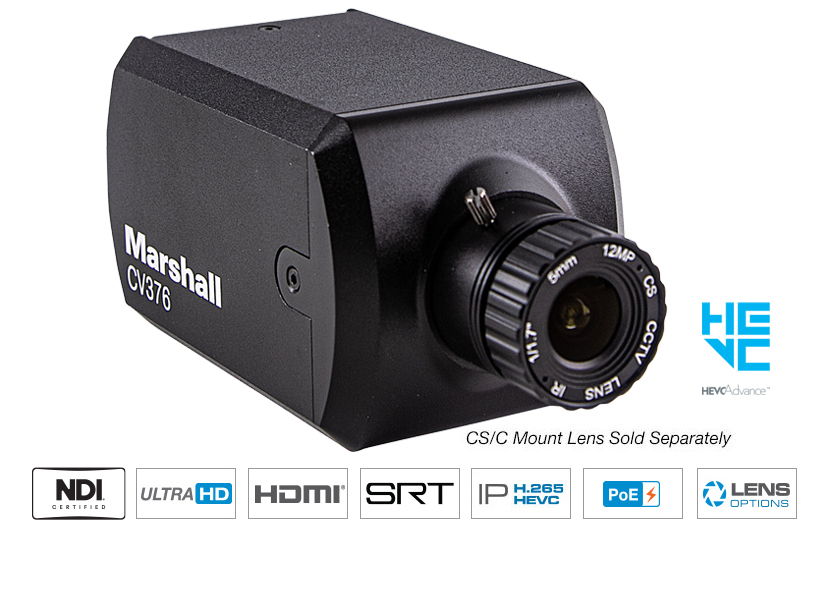

Marshall CV376 Compact Camera NDI HX3 and HDMI

The Marshall CV376 network streaming POV camera features a new sensor that delivers clear UHD video via IP streaming. This compact model provides exceptional video through HDMI and Ethernet IP interfaces, supporting efficient NDI HX3, SRT, and HEVC codecs. The durable aluminum alloy built with protected rear I/O wings ensures reliability. The sensor produces crystal-clear, color-accurate video, with improved low-light sensitivity, refined remote adjustment, and flexible lens options. * All pricing, features, functionality, and other product specifications are subject to change without notice or obligation.

OVERVIEW
SPECIFICATIONS
LENS OPTIONS
OPTIONAL ACCESSORIES
HOW TO VIDEOS

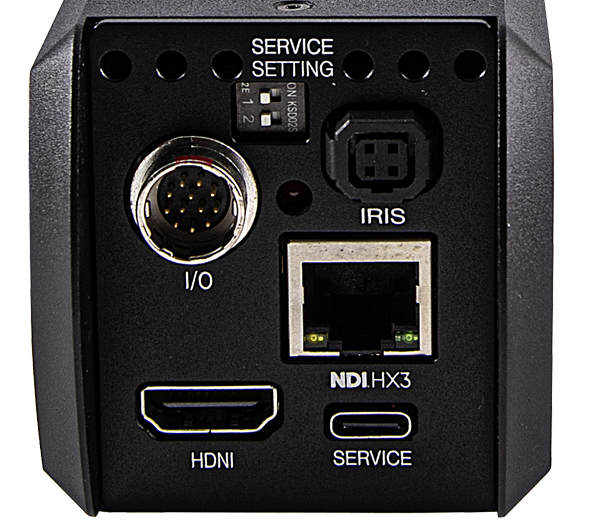

CV368 has global shutter CMOS technology

NDI HX3 Premium, Efficient, Low Latency, Loss-less Streaming Codec

Featuring the extremely efficient NDI HX3 codecs gives the compact CV376 camera a unique advantage over other streaming cameras with 100ms end-to-end of latency using less bandwidth and maintaining the premium video quality of the source. Simultaneous HDMI output and other streaming options such as SRT, RTSP, RTMP, HEVC and more.

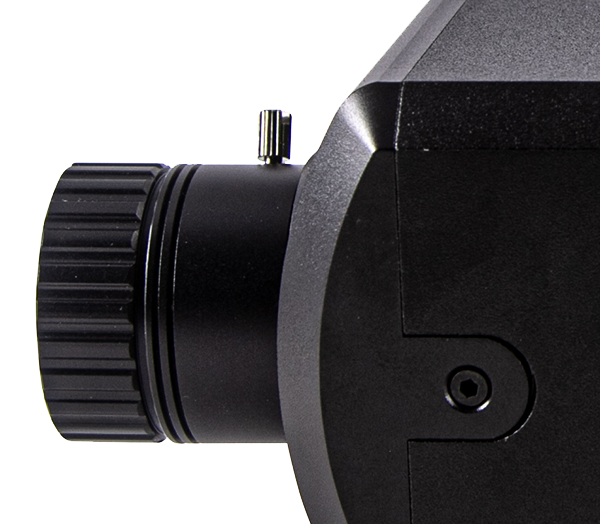

Flexible Interchangeable CS/C Mount Lenses

Marshall CV376 compact cameras are built with a CS/C lens mount and DC Iris power connector. Marshall offers a wide selection of high-quality CS and C mount prime using varifocal lenses to meet the individual needs of the production, project, or application. CV376 are perfectly setup for longer throws and telephoto lenses.

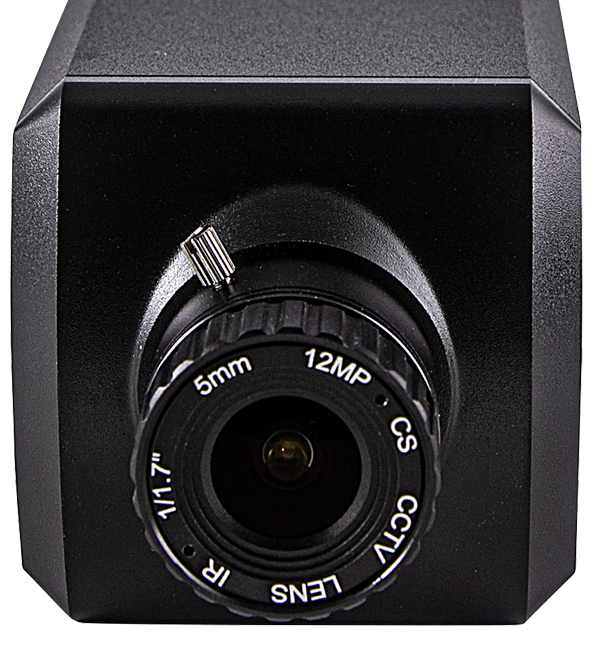

CV376 is Durable, Flexible, and Powerful

Durable, Flexible, Powerful

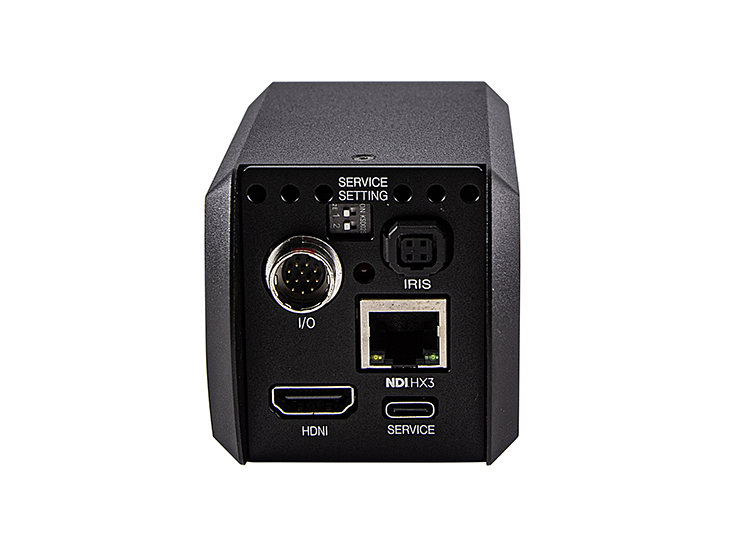

The compact CV376 body is chiseled from a block of aluminum alloy making it extremely durable in a discreet compact size with rear I/O protection. CV376 operates with exceptional low-light sensitivity, ensuring a clear picture in challenging lighting conditions with refined remote adjust & match capability over network or Visca over IP commands. Suitable for a variety of AV over IP network, cloud production, remote contribution, and HDMI workflows.

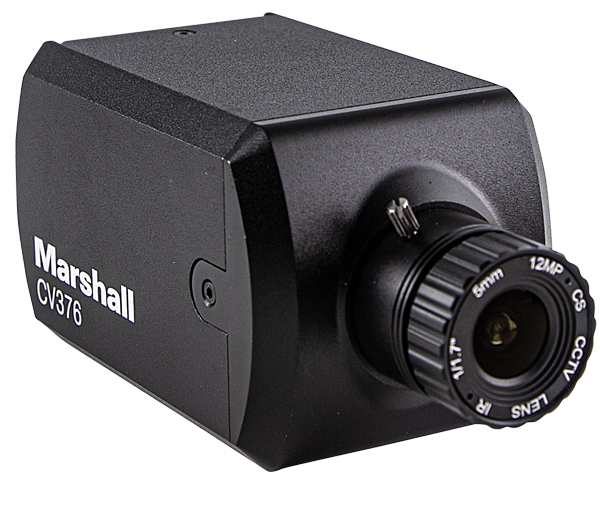

CV368 is a durable, flexible and powerful

Broadcast Performance

Marshall Camera Division continues to develop camera products to follow the heritage of Marshall broadcast quality incorporating reliability, durability, flexibility and most importantly affordability with feature sets that matter to our industry partners.

8.46 Megapixel 1/2.8" UHD sensor
Flexible interchangeable CS & C lens mount – lens sold separately
Up to UHD 3840 x 2160p60 video over HDMI and network simultaneously
(Note: NDI HX3 only supports 1080p50/60)
Support multiple streaming protocols including NDI HX3/HX2, RTSP, RTMP, SRT with H.264 and HEVC codecs
Audio input for embedding audio to video output
A small joystick on the included breakout cable allows quick access to OSD Menus
Remote adjust & match via VISCA over IP and camera web GUI
Powered with included 12VDC power supply or PoE over CAT cable
Easy firmware upgrade in the field
Industrial standard 1/4"-20 mount hole

Applications:

The compact CV376 is suitable for use in AV over IP or HDMI workflows where image quality and versatility are of utmost concern, including live broadcast, productions, concerts, courtroom capture, corporate video, government assembly, sportscast, newscast, reality television, eSports, live performance, house of worship and many more.

CV376 Specifications
Sensor	Image Sensor	1/2.8” Progressive CMOS (Approx. 8.46 mega)
	Scanning System	16:9 Progressive
	Sync. System	Internal
	Effective Pixel	3840(H) x 2160(V)
	Min. Illumination	0.5Lux (Day), 0.01Lux (Night)
Optics	Lens	CS Mount Compatible
Functions	Back Light Compensation	WDR, BLC
	Exposure	Auto / Manual
	White Balance	AUTO / Manual / Indoor / Outdoor / One Push / AUTO Tracking(ATW)
	Day & Night System	Day / Night:TDN(ICR)
	Electronic Shutter	1/30~1/10000
	Functions	Image Mirror/Flip, 2D+3DNR, Anti Flicker
Ethernet	IP Protocols	NDI\|HX2, NDI\|HX3, SRT, RTMP, RTSP
Ethernet	Video encode format	H.264 / H.265 (Note: RTMP supports only H.264)
Video Output	Interfaces	HDMI, Ethernet
Output resolutions	HDMI	2160p25/29.97/30/50/59.94/60, 1080p23.98/24/25/29.97/30/50/59.94/60, 1080i50/59.94/60, 720p25/29.97/30/50/59.94/60
	IP	2160p25/29.97/30/50/59.94/60, 1080p23.98/24/25/29.97/30/50/59.94/60, 720p25/29.97/30/50/59.94/60
	NDI\|HX2	2160p25/29.97/30/50/59.94/60, 1080p23.98/24/25/29.97/30/50/59.94/60, 720p25/29.97/30/50/59.94/60
	NDI\|HX3	1080p50/60
Audio Input	Line level	16kHz, 32kHz, 48kHz sample rates
Control	Network	Web GUI / VISCA over IP
General	Operation Temperature	0℃ ~ 50℃
	Power Input	12VDC (10V to 13.5VDC)
	Power consumption	12VDC power: 5.625W, POE power: 6.7W
	Dimensions	99.08mm(L) x 56mm(W) x 56mm(H) (without lens)
	Weight	0.8 lbs (without lens)

Lens Options

CS mount Varifocal Manual Focus Lens options for CV344, CV346, CV366, CV368, CV374, CV376
Part No.	Mount Type	Megapixel Rating	Focal Length	Horizontal AOV	Iris	F-Stop	M.O.D.
CS1150-8MP	CS Mount	8MP	11~50mm	45°~10°approx	DC Auto (4 pin)	F1.4~close	0.8m
CS-3816-8MP-V2	CS	8MP	3.8~16mm	68°~18° (1/2.8")	DC (4 pin)	F1.4 (W) ~ 1.6 (T)	0.5m~∞
C1670-8MP	C Mount	8MP	16~70mm	30°~7°approx	DC Auto (4 pin)	F1.4~close	0.8m
VS-M2812-4MP	CS	4MP	2.8mm~12mm	115°~32°	DC Auto (4pin)	F1.4	0.3m

Fixed Prime (CS mount) Lens options for CV344, CV343, CV346, CV345, CV365, CV366, CV368, CV370, CV374, CV376
Part No.	Megapixel Rating	Focal Length	Horizontal AOV	F-Stop	M.O.D.
V-555.0-5MP-VIS-IR 1/2	5MP	5.0mm	63° (1/3"), 75.5° (1/2.5"), 98° (1/1.7")	F2.0	0.8m - ∞
V-557.6-5MP-VIS-IR 1/2	5MP	7.6mm	40.4° (1/3"), 48° (1/2.5"), 60° (1/1.7")	F2.0	1.5m - ∞
