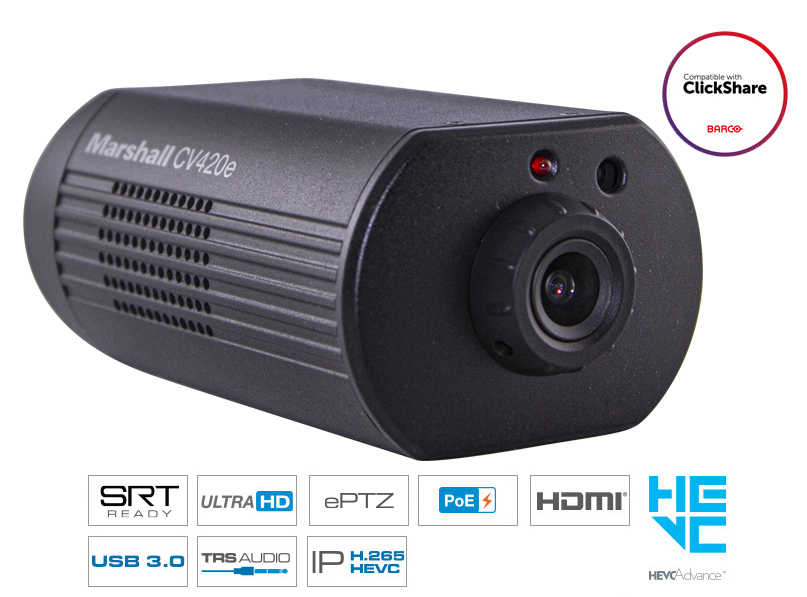

CV420e is a Broadcast quality streaming camera with crystal clear UHD images and wide angle 100-degree angle-of-view with no curvature encased in a compact durable body which makes it ideal for live streaming, remote video interviews, remote learning, courtroom, Podcast, and so many other remote production applications.


CV420e

Compact 4K60 Stream Camera
with IP, HDMI & USB

Download Manual Specsheet Download CV420e Spec and Visca Commands Multiple Control Setup Illustration Crestron IP Control Modules Download Latest Firmware Video Management Software Marshall Q-SYS Packaged Installation Marshall OBS Plugin and Dockable Controller Ver.2.0.8 Windows Marshall OBS Plugin and Dockable Controller Ver.2.0.8 Mac PC Windows Camera Control Software for USB & IP Mac iOS Camera Control Software for USB & IP CV420e/Ne Dimensions Download Images
Compact and durable streaming camera with a large 9.2 megapixel 1/1.8" sensor size and ultra-wide 100 degree angle-of-view lens with zero curvature. CV420e comes with a CVM-5 monitor mount, however, can be installed on any 1/4"-20 camera mount including tripods, fixed mounts, and many others. Crystal clear UHD and HD images through IP (HEVC) or USB outputs and HDMI for traditional workflows.

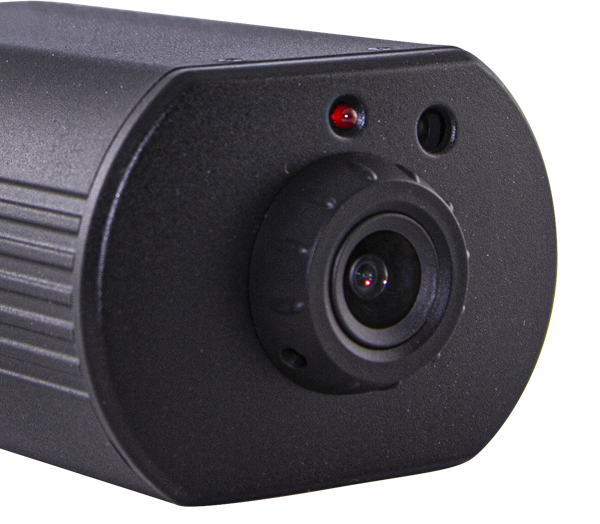

Crystal Clear 4K Images with wide AOV

Incorporating a 1/1.8" 4K sensor with over 9 million pixels delivers unparalleled clarity and performance even in challenging light conditions. Starting at a 100° angle-of-view CV420e delivers an ultra-wide perspective with no curvature.

CV605 - Flexible USB 3.0 + HDMI + IP options

Flexible Workflow Options

The flexibility to stream content over IP (HEVC) with an HDMI simultaneous output, or USB3.0 with a simultaneous HDMI output offers flexibility for media streaming and collaboration from one camera. Stream live to YouTube, Livestream, Facebook (Meta), or Twitch while capturing local HDMI content and workflow manipulation.

CV420e ePTZ with digital pan, tilt and zoom

ePTZ with digital pan, tilt and zoom

Utilizing a large Sony 1/1.8" 4K sensor opens optional ePTZ maneuverability of HD images within the 4K sensor space. Controllable remotely via VMS, GUI, or Visca over IP command from 3rd party control decks as well as UVC commands over USB. Hardware control from Marshall VS-PTC-IP controller via IP and locally by IR remote included in box.

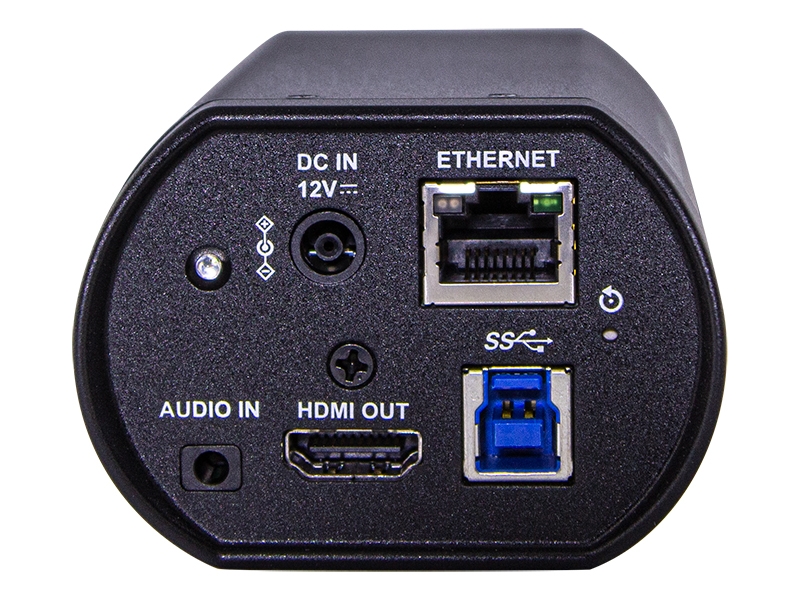

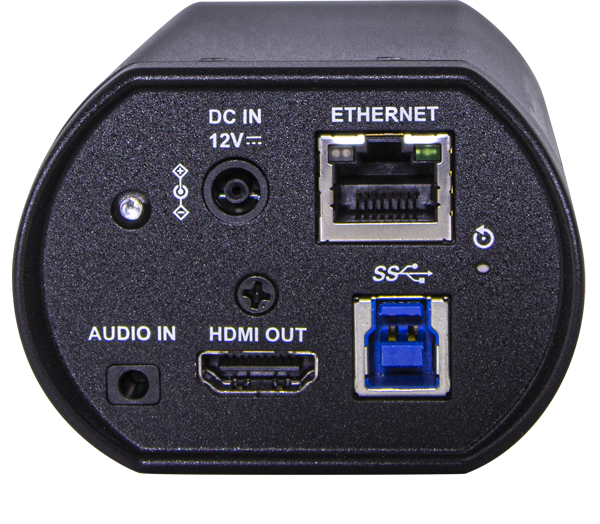

CV420e - one cable to camera

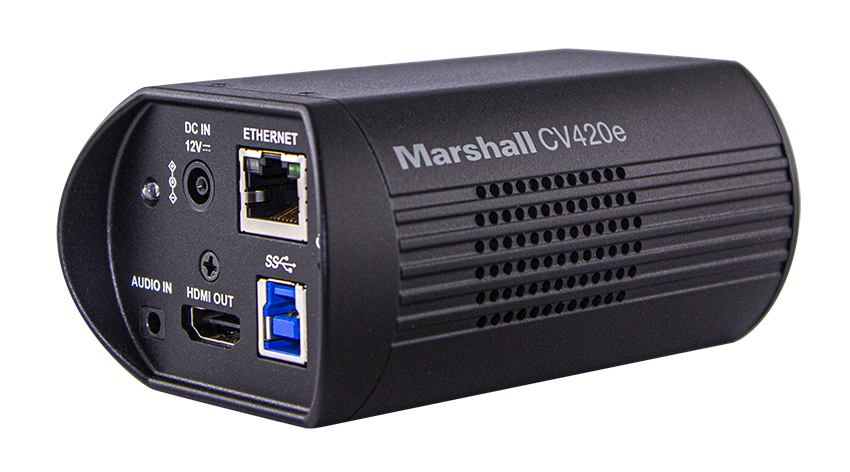

Durable, Flexible, Powerful

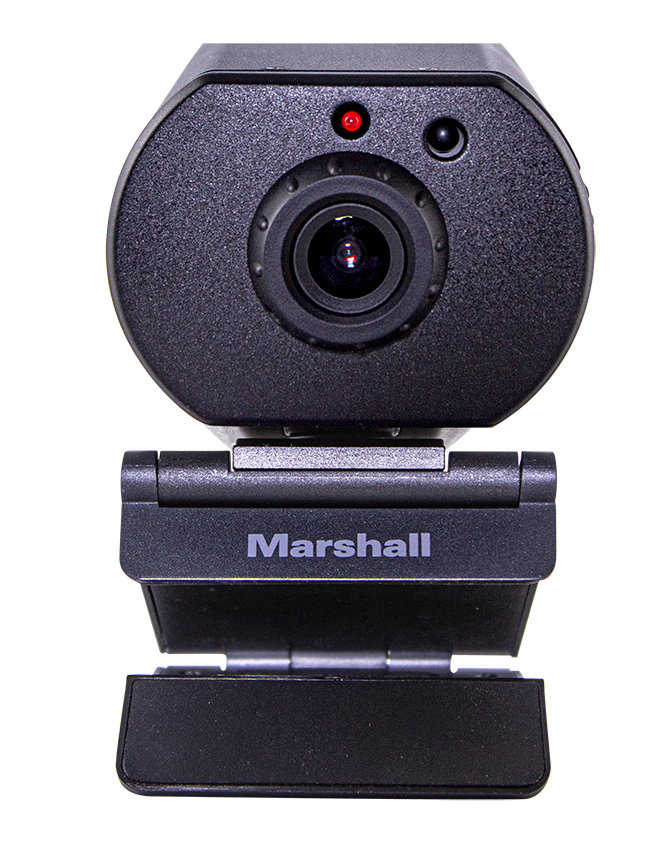

The CV420e is built into a compact and durable body with rear I/O protection wings. Marshall CVM-5 monitor mount and desktop stand is included (free) as well as IR remote for local setup and control. Compact, durable and powerful tool for a wide variety of streaming applications.

  • Sony 1/1.8" 4K sensor
  • 9.2 million pixels with large pixel size
  • 4.5mm lens with 100° H.AOV (no curvature) + 12x clear digital zoom
  • ePTZ maneuverable with HD images within UHD sensor for FOV adjustment
  • Control options: IR remote included, CGI commands, Visca over IP, UVC and ONVIF
  • Video output up to 3840x2160p at 60fps, 1080p, 1080i and 720p
  • Video output options of USB + HDMI or IP + HDMI
  • Multiple IP simultaneous streams (HEVC + 2x H.264)
  • Low Light sensitivity (0.05 Lux) and Wide Dynamic Range
  • 3.5mm Microphone & Line Level audio input for IP and HDMI streams
  • Environmental: operating 0°C ~ 40°C, storage -20°C ~ 60°C
  • Power Consumption: 11W via PoE, and 10W via DC (12V)
  • Minimum Object Distance (M.O.D.) – 30cm


Camera Applications:

Broadcast, Production, Sports, Racing, Newscast, Weathercast, Live Events, Streaming, Aerospace, House of Worship, Courtroom, Government, Education, eSports, Nature, Concert, Podcast, Studio, Stage, Science and Technology
CV420e Specifications
Sensor Sony IMX334LQR-C 1/1.8" 9.17 MP CMOS
Video Format Resultion : 4K/1080p/720p
Frame Rate : 59.94/50/29.97/25
Video Output (HD) Interface HDMI 2.0, Ethernet,
USB 3.0(USB 2.0 compatible)
Optical Zoom No
Horizontal Viewing Angle 102°(Horizontal) typical
Aperture F1.6
Focal Length 4.57mm typical
Shutter Speed 1 ~ 1/10,000 sec
Minimum Object Distance 30 cm  typical
Focus System Manual
Gain Control  Auto, manual
White Balance  Auto, manual
Exposure Control Auto, manual
WDR Yes
3D NR Yes
Image Flip Yes
Preset Positions 256
Control Interface Ethernet / USB
Control Protocol VISCA  over IP/  ONVIF/ UVC
Tally Light Yes
PoE PoE (IEEE802.3af)
Video Stream RTSP / RTMP / RTMPS / MPEG-TS / SRT
Video Compression HEVC / H.264 / MJPEG
Audio Input Line In/Mic In, Phone Jack 3.5mm x1
Audio Output HDMI 2.0, Ethernet, USB 3.0
IR Receiver Yes
IR Remote Control Yes
Power Consumption DC :  ≦11W ,PoE : ≦12W
Weight 350g typical
Dimensions  113 x 70 x 51  mm typical
Operating Temperature 0°C ~ 40°C
Storage Temperature -40°C ~ 60°C
