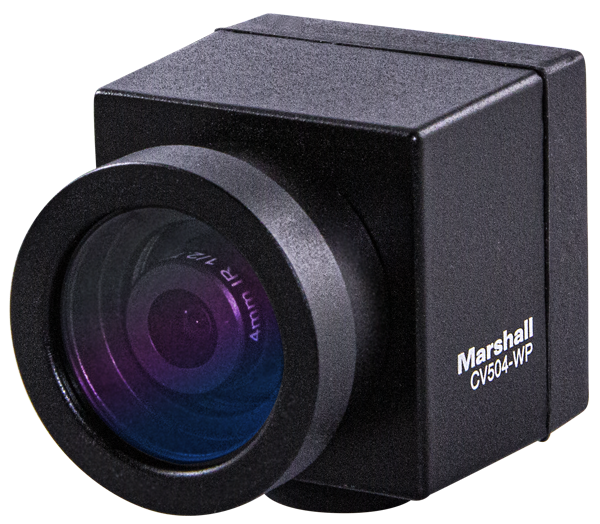

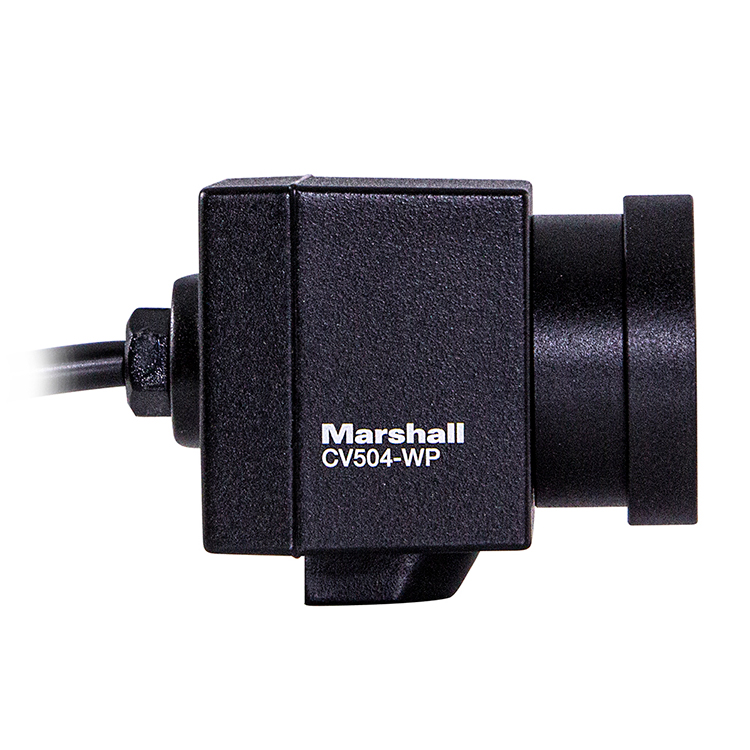

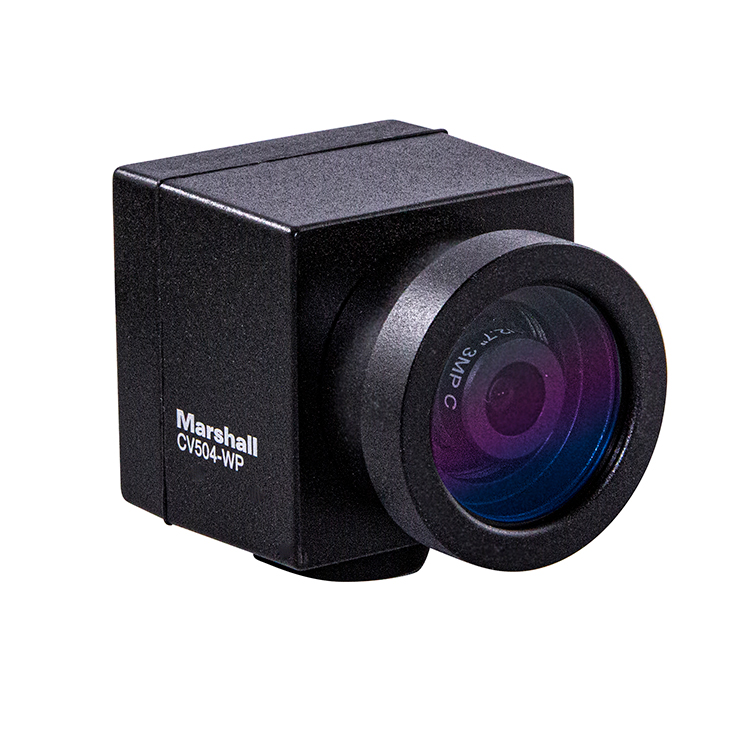

The Marshall All-Weather CV504-WP camera delivers exceptional broadcast video quality with accurate color and applications in outdoor Broadcast, Production, Sports, Live Events, POV, Reality Television, Assembly and Courtroom Capture, and any 3GSDI workflow in wet or dirty environments in miniature size and durable build.


CV504-WP

All-Weather Micro Camera (3GSDI)

Owner's Manual Camera Tips and Tricks Specsheet Download Download Latest Firmware Download Firmware Upload Tool Download Camera Control Software Hirose 12-pin Connector Pinout Download Images
The CV504-WP delivers exceptional 10 bit 4:2:2 video performance from a durable aluminum alloy body through weatherproof breakout cable and flexible interchangeable lenses. The new Sony sensors offer rich color accurate video with improved low light sensitivity and refined remote adjust and match capability.


CV504-WP - New Sony 1/2.8 inch Solid-State Image Sensors

New Sony 1/2.8" (6.46mm) Solid-State Image Sensors

The next generation Sony sensors provide clear HD images with rich accurate 10bit (4:2:2) color even in low-light (0.01Lux) and ability to switch to night mode (0.005Lux) where IR wavelengths can be captured in complete darkness.

CV504-WP Interchangeable M12 Lenses

Interchangeable M12 Lenses

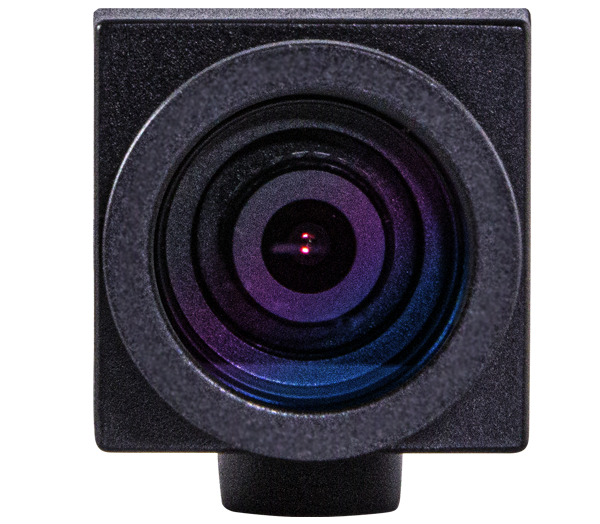

Marshall CV504 cameras come with a high-quality 4.0mm (85° H.AOV) prime lens which ensures focus from near contact to infinity. Marshall offers a wide selection of high quality M12 prime and varifocal lenses to meet the individual needs of the production, project, or application..

CV504-WP Durable, Flexible, Powerful

Durable, Flexible, Powerful

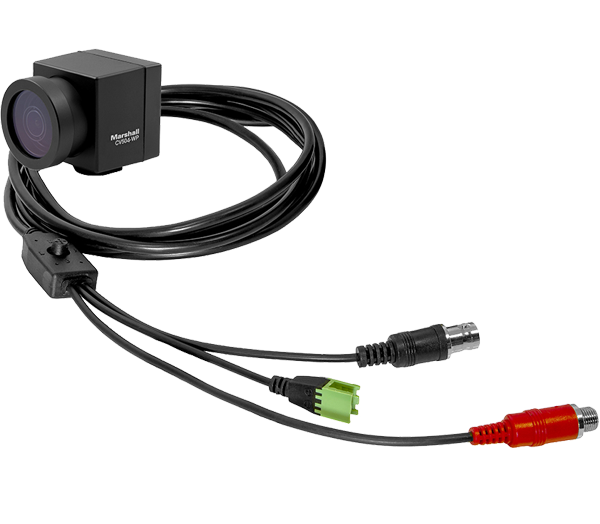

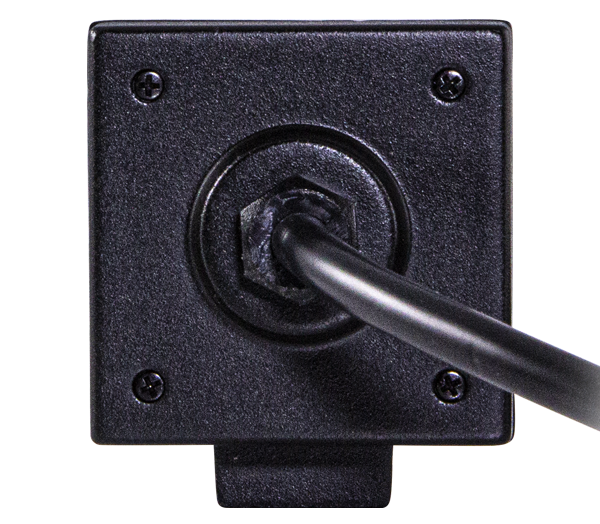

The durable all-weather CV504-WP body is chiseled from one block of aluminum alloy with 10-foot (3m) breakout cable. CV504-WP operates with exceptional low-light sensitivity, ensuring a clear picture in challenging lighting conditions with refined remote adjust & match capability.

CV504-WP Broadcast Performance

Broadcast Performance

Marshall Camera Division continues to develop camera products to follow the heritage of Marshall broadcast quality incorporating reliability, durability, flexibility and most importantly affordability with feature sets that matter to our industry partners.

  • 2.2 Megapixel Sony sensor with square pixel array and larger pixels
  • Interchangeable M12 lens mount, comes with 4.0mm - 85° H.AOV lens

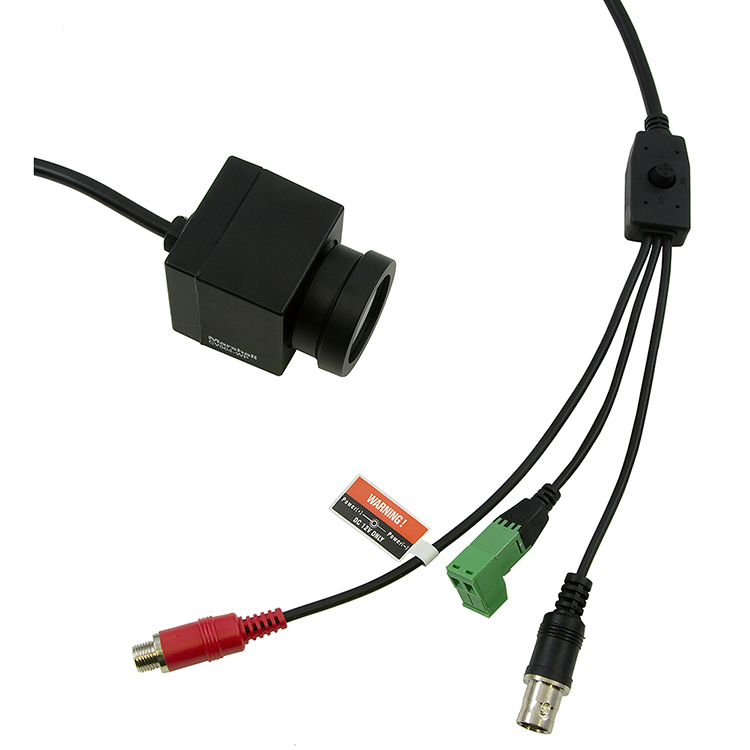

  • 10-foot (3 meter) weatherproof IP67 breakout cable to BNC, RS485, power
  • 3GSDI (10bit, 4:2:2, BT.709) reliability with remote adjust & match capability
  • 1920x1080p, 1920x1080i & 1280x720p resolutions available
  • Framerates: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98fps
  • Remote adjust & match via CV-RCP-V2, Camera Control Software and 3rd party sources
    such as Cyanview, Skaarhoj and more
  • Power Draw: 2.64W (max 6W) with 7~15V flexibility


Applications:

The Micro CV504-WP is suitable for use in outdoor 3GSDI workflows where image quality and versatility are of utmost concern, including live broadcast, productions, concerts, courtroom capture, corporate video, government assembly, sportscast, newscast, reality television, eSports, live performance, house of worship and many more.

Compatible HD Prime Lenses using stock LENS CAP

Part Number Description & Horizontal AOV
CV-4702.8-3MP-IR 2.8mm, F2.6 3MP M12 lens; Horiz AOV = 100°
CV-4704.0-3MP 4.0mm, F2.6 3MP M12 lens; Horizontal AOV = 85° (1/2.7)


Compatible 8MP Prime Lens Options (M12):

Part Number Description & Horizontal AOV
CV4804-8MP 4.0mm F1.8 8MP M12 Lens - 90° (1/2.5"), 85° (1/2.7"), 80° (1/3")
CV4808-8MP 8.0mm F1.8 8MP M12 Lens - 70° (1/2.5"), 62° (1/2.7"), 50° (1/3")
CV4812-8MP 12.0mm F1.8 8MP M12 Lens - 50° (1/2.5"), 42° (1/2.7"), 33° (1/3")


Compatible HD Prime Lenses that require longer
LENS CAP (part# CV502WP-CAPS-LG) sold seperately:

Part Number Description & Horizontal AOV in degrees
CV-4706-3MP-IR 6.0mm, F2.4 3MP M12 lens; Horiz AOV = 48°
CV-4708.0-3MP 8.0mm, F1.8 3MP M12 lens; Horiz AOV = 40°
CV-4712.0-3MP 12.0mm, F1.8 3MP M12 lens; Horiz AOV = 33°
CV-4716.0-2MP 16.0mm, F1.8 2MP M12 lens; Horiz AOV = 25°
*Horizontal Angle-of-View (AOV) in degrees are approximates.



CV503WP-NDF - ND Filter Cap (3-Pack) includes ND4, ND16, ND64

CV503WP-NDF

ND Filter Cap (3-Pack) includes ND4, ND16, ND64

Touchscreen RCP Camera Control

CV-RCP-V2

Touchscreen RCP Camera Control
Remote adjust & match cameras via RS485

Read more
Mini Camera Stands and Mounts accessories

1/4"-20 Mounts

1/4"-20 Compact Camera Stands & Mounts,
Clamps, Articulating arms and more...

Read more
Touchscreen RCP Camera Control

CV-USB-RS485

USB to RS485/422 Adapter for use with Marshall Windows Camera Control Software.

Call for Price

CV-PT-HEAD Micro Pan and Tilt Head

CV-PT-HEAD

Micro Pan/Tilt Head

Read more

Click Here For Additional Accessories

CV502/505-series Live from Las Vegas, Nevada

CV502/505-series Live from Las Vegas, Nevada

CV502 capture wide-shot at College Basketball game

CV502/500 mounted on Basketball Backboard

CV502/500 mounted on Volleyball Net


Camera Control Application

  1. Download Camera Control Software HERE
  2. Use USB to RS485/RS422 Converter (CV-USB-RS485)
  3. Use cat5 or 24AWG twisted-pair wire (sold separately)
  4. Connect cable from RS485(+) terminal on Camera to T/R (+) on USB/RS485 converter
  5. Connect cable from RS485(-) terminal on Camera to T/R (-) on USB/RS485 converter
  6. Plug USB cable from USB/RS485 converter into USB port on Laptop or Computer (note ComPort#)
  7. Open up CamControl Program and match Serial Port to corresponding ComPort# used
  8. Select Baudrate in CamControl Program and match it in Camera OSD Menu under DISPLAY CONTROL > BAUDRATE
  9. Select Camera Address in CamControl Program and match it in Camera OSD Menu under DISPLAY CONTROL > CAM ID
  10. Select Open in CamControl Program
  11. Test connection by pushing MENU in lower right of CamControl Program - OSD Menu should come up on video signal
  12. Commands can also be sent without using OSD Menu
Camera Control Software display
