The Marshall CV566 camera delivers exceptional full-HD video with true-color and offers the unique ability to sync cameras via Tri-Level (Genlock) Sync. The Tri-Level Sync method runs at higher frequency which makes transition faster and more seamless.


CV566

Micro Genlock Camera (3GSDI/HDMI)

Owner's Manual Hirose 12-pin Connector Pinout Download Images
The Marshall Micro CV566 Genlock Camera is built around a next generation Sony 1/2.8" solid-state sensor with 2.2 Megapixels and Tri-Level (Genlock) Sync feature. CV566 delivers exceptional video performance from a micro-size body through 3GSDI & HDMI with true-color even in low-light (0.01Lux). Choose HD resolutions up to 1920x1080p (progressive), 1280x720p (progressive) & 1920x1080i (interlaced) with a wide selection of framerates including 23.98, 24, 25, 29.97, 30, 50, 59.94, and 60fps serving a variety of applications.

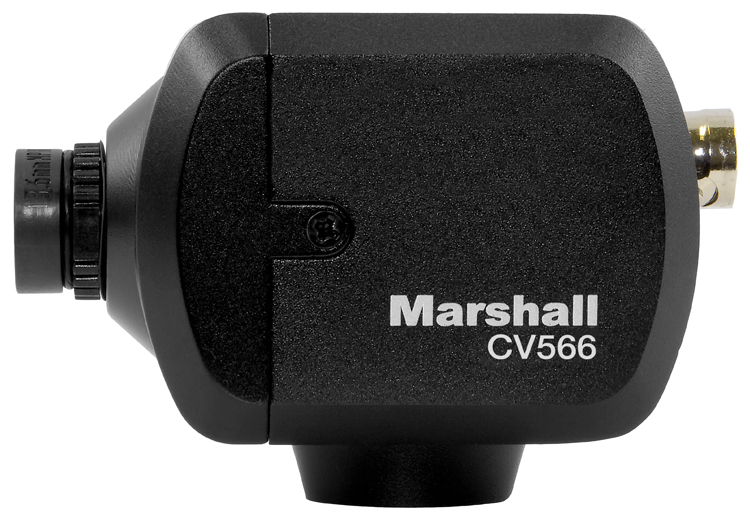

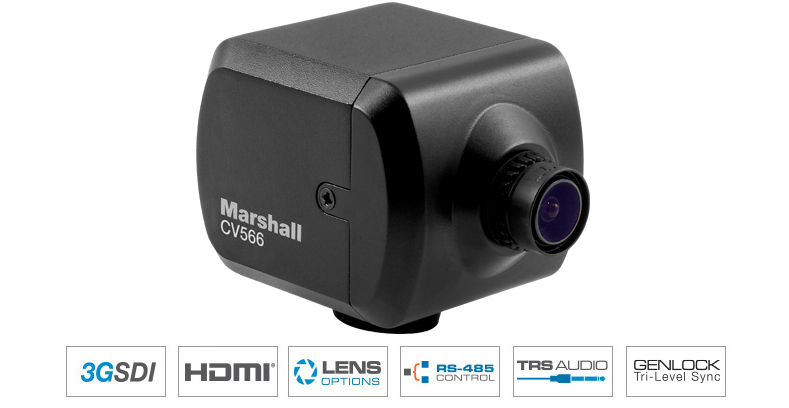

CV566 camera with Genlock Tri-Level Sync Feature

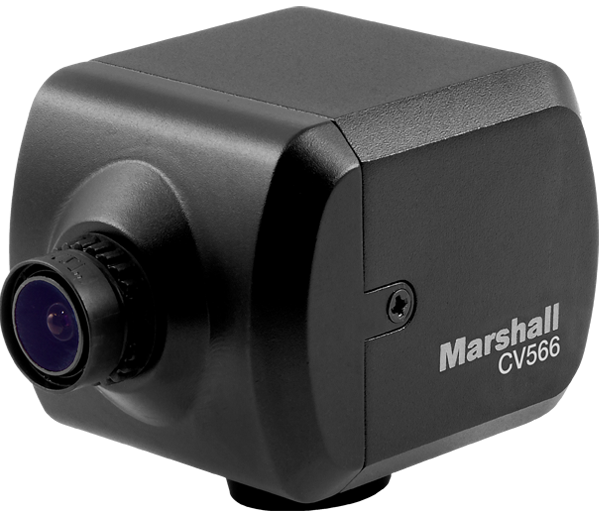

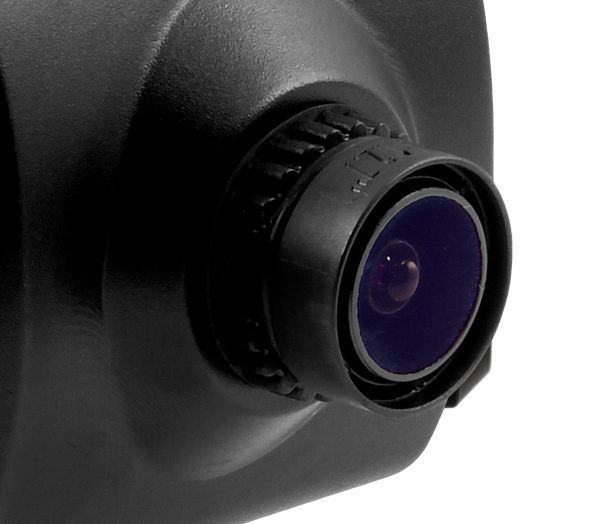

New Sony 1/2.8" (6.46mm) CMOS Solid-Sate Image Sensors

The next generation Sony Exmor sensors provide clear HD images with true color even in low-light (0.01Lux) and ability to switch to night mode (0.005Lux) where IR light wavelengths can be captured.

CV566 camera with Genlock Tri-Level Sync Feature

Genlock Tri-Level Sync Feature

Tri-level sync runs at higher frequency which allows multiple cameras to be plugged into HD workflows already in sync (genlock) with much less latency when switched and more seamless transitions.

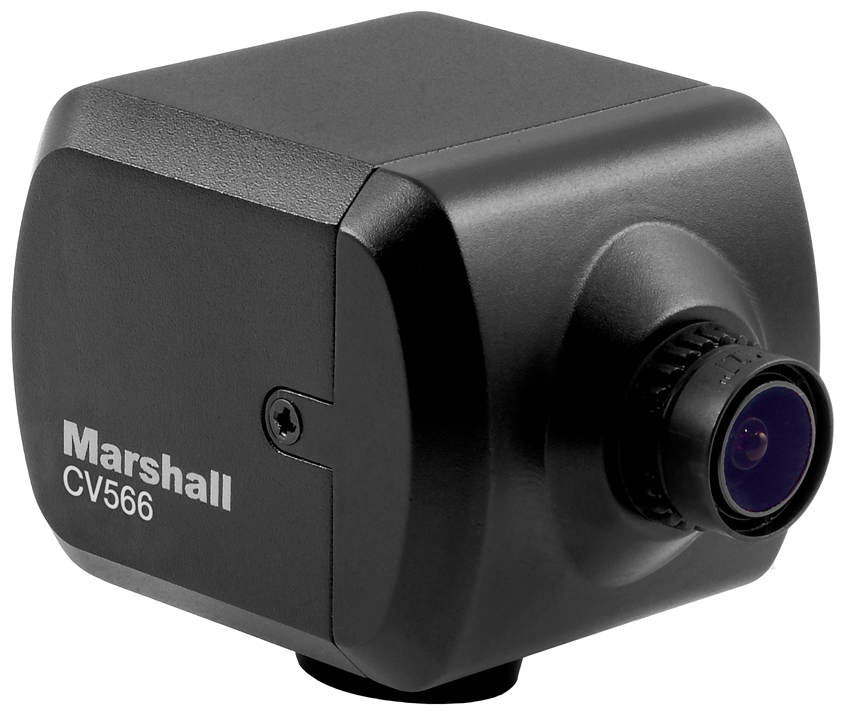

CV566 Durable, Flexible, Powerful

Durable, Flexible, Powerful, Performance

The durable CV500-series cameras are chiseled from one block of aluminum alloy with rear panel protection, which enable them to be used in rough environments and continue to produce clean reliable signals.

CV566 Broadcast Performance

Broadcast Performance

Marshall Camera Division continues to develop camera products to follow the heritage of Marshall broadcast quality incorporating reliability, durability, flexibility and most importantly affordability with feature sets that matter.

  • 2.2 Megapixel (1/2.8") 16:9 HD
  • Durable Body with interchangeable M12 lens mount (sold with 3.6mm)
  • 3GSDI (SMPTE 292M & 424M) + HDMI simultaneous outputs
  • Tri-Level Genlock Sync for faster more seamless switching via 3GSDI
  • Full-HD Resolutions: 1920x1080p, 1280x720p and 1920x1080i
  • Framerates Supported: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98fps
  • Remote adjust & match via Camera Control Software, CV-RCP-V2 (CCU) or 3rd party sources
  • Micro-USB port for firmware upgrades in the field (downloadable from website)

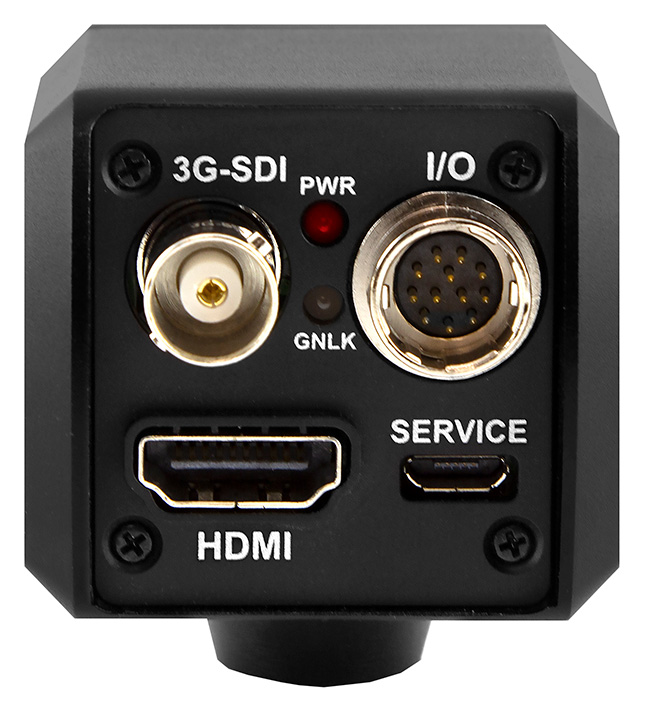

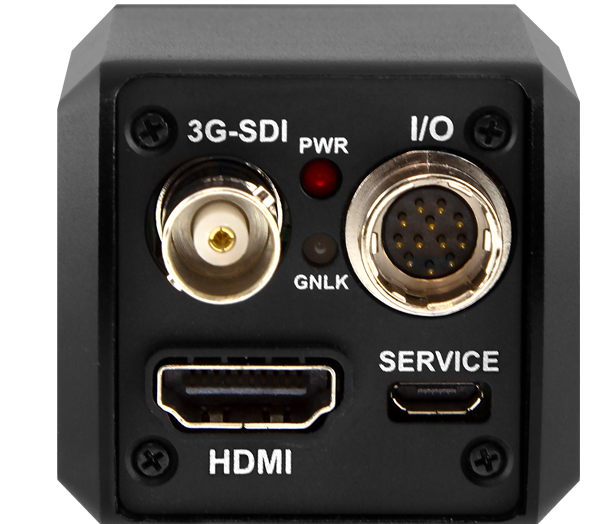

  • Locking Hirose Cable: Genlock (I/O), RS485 control, Audio (stereo) and 12V Power
  • Power Draw: 6W (12V) with wide 7~15V range for alternative power sources


Applications:

The 566 is suitable for use in 3GSDI as well as HDMI workflows where image quality and versatility are of utmost concern, including live broadcast productions, courtroom capture, corporate video, government assembly, sportscast, newscast, reality television, eSports, concerts, house of worship and many more.

Compatible HD Prime Lens Options (M12):

Part Number Description & Horizontal AOV
CV-4702.3-3MP 2.3mm, F2.2 3MP M12 lens; Horiz AOV = 126°
CV-4702.8-3MP-IR 2.8mm, F2.6 3MP M12 lens; Horiz AOV = 100°
CV-4703.6-3MP 3.6mm, F2.0 3MP M12 lens (stock); Horiz AOV = 72°
CV-4804.4-12MP 4.4mm, F2.7 12MP M12 Lens; Horiz AOV = 100° (1/1.8"), 70° (1/2.8")
CV-4706-3MP-IR 6.0mm, F2.4 3MP M12 lens; Horiz AOV = 48°
CV-4708.0-3MP 8.0mm, F1.8 3MP M12 lens; Horiz AOV = 40°
CV-4712.0-3MP 12.0mm, F1.8 3MP M12 lens; Horiz AOV = 33°
CV-4716.0-2MP 16.0mm, F1.8 2MP M12 lens; Horiz AOV = 25°


Compatible 5MP Prime Lens Options (M12):

Part Number Description & Horizontal AOV
V-553.9-5MP-VIS-IR M12 3.9mm F2.0 5MP M12 Lens - 80° (1/3"), 96° (1/2.5"), 125° (1/1.7")
V-555.0-5MP-VIS-IR M12 5.0mm F2.0 5MP M12 Lens - 63° (1/3"), 75.5° (1/2.5"), 98° (1/1.7")
V-557.6-5MP-VIS-IR M12 7.6mm F2.0 5MP M12 Lens 40.4° (1/3"), 48° (1/2.5"), 60° (1/1.7")


Compatible HD Varifocal Lens Options (M12):

Part Number Description & Horizontal AOV
CV-2812-3MP 2.8~12mm, F1.4 3MP Varifocal M12 lens; Horiz AOV = 108~30°
CV-0622-5MP 6.0~22mm, F1.6 5MP Varifocal M12 lens; Horiz AOV = 46~16°
*Horizontal Angle-of-View (AOV) in degrees are approximate and vary according to exact sensor size and design.
**If camera model contains IP67 weatherproof cap, there may be some limitation as to which lenses will allow cap to fit back on camera.
