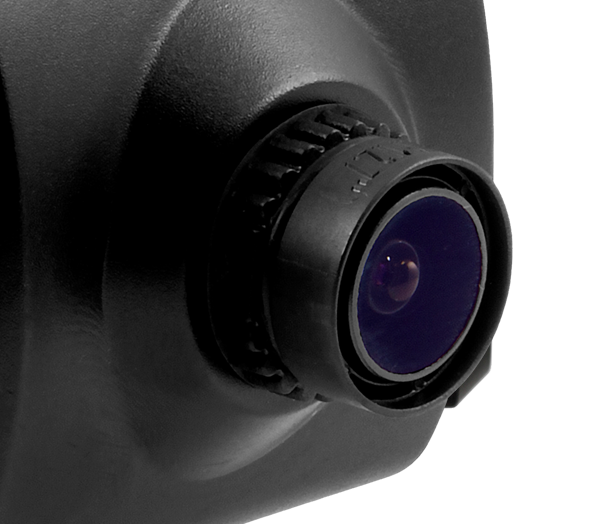

New Global Shutter CMOS Technology
Global Shutter camera sensors are nothing new to the broadcast proAV industry, however when users are challenged to capture ultra-fast motion within the field-of-view, motion anomalies become more of a challenge - Sony Global Shutter sensors perform better in these conditions as all pixels are exposed (start to finish) simultaneously.
Genlock Tri-Level Sync Feature
Tri-level sync allows multiple cameras to be plugged into HD workflows already in sync (genlock) which allows for seamless transitions between cameras with minimal amount of delay. Tri-level runs at higher frequency which makes the HD60 signal sync more accurate and more seamless.
25% Larger Pixel Size
Larger physical pixel sizes allow for greater accuracy of color and clarity even in low-light applications. The CV568 utilizes a Sony Exmor 1/1.8" sensor with larger physical pixels to deliver step-up broadcast quality images from a miniature camera size.
Durable, Flexible, Powerful
Marshall Miniature Cameras are cut from individual aluminum alloy blocks, designed with rear I/O connector protection, solid 1/4"-20 mount type, and flexible interchangeable lenses. Ability to remotely adjust and match a POV camera from a control room that is installed hundreds or thousands of feet away is a powerful tool and comes standard with every Marshall Camera.
- Large 1/1.8" Global Shutter Sensor
- 3.2 Megapixels with 25% larger pixel size
- Simultaneous 3GSDI & HDMI outputs
- Mic/Line Level (2.5V bias), AUDIO stereo embedding up to 48kHz
- Audio Line input does not provide power to the audio device. Mic will use Mic Bias 1.7V and up to 3mA max current
- Flexible Interchangeable Lenses – 12MP 4.4mm (100° AOV) comes standard
- Tri-Level Sync (Genlock) for faster, more accurate camera switching
- SMPTE 424M (2.97Gbps) - 3GSDI:
- 1920x1080p @ 50, 59.94, 60fps
- SMPTE 292M (1.485Gbps) - HDSDI:
- 1920x1080p @ 23.97, 24, 25, 29.97, 30fps
- 1920x1080i @ 50, 59.94, 60fps
- 1280x720p @ 50, 59.94, 60fps
- Image Mirror/Flip, Digital Zoom, Digital Image Stabilizer
- Microphone/Line Level input with 2.5V Mic bias
- Color Matrix control: Style, Master level/phase, Color level/phase
- Environmental: -10°C ~ 50°C
- Includes 12v power supply, can operate 12V+/-10% with a 6 watt draw
Applications:
Broadcast, Production, Sports, Racing, Newscast, Weathercast, Live Events, Aerospace, House of Worship, Courtroom, Government, Education, eSports, Nature, Live Concert, Podcast, Studio, Stage, Science and Technology
Compatible HD Prime Lens Options (M12):
| Part Number |
Description & Horizontal AOV |
| CV-4804.4-12MP |
4.4mm, F2.7 12MP M12 Lens; Horiz AOV = 100° (1/1.8"), 70° (1/2.8") |
| CV-4712.0-3MP |
12.0mm, F1.8 3MP M12 lens; Horiz AOV = 33° |
| CV-4716.0-2MP |
16.0mm, F1.8 2MP M12 lens; Horiz AOV = 25° |
Compatible 8MP Prime Lens Options (M12):
| Part Number |
Description & Horizontal AOV |
| CV4804-8MP |
4.0mm F1.8 8MP M12 Lens - 90° (1/2.5"), 85° (1/2.7"), 80° (1/3") |
| CV4808-8MP |
8.0mm F1.8 8MP M12 Lens - 70° (1/2.5"), 62° (1/2.7"), 50° (1/3") |
| CV4812-8MP |
12.0mm F1.8 8MP M12 Lens - 50° (1/2.5"), 42° (1/2.7"), 33° (1/3") |
Compatible 5MP Prime Lens Options (M12):
| Part Number |
Description & Horizontal AOV |
| V-555.0-5MP-VIS-IR M12 |
5.0mm F2.0 5MP M12 Lens - 63° (1/3"), 75.5° (1/2.5"), 98° (1/1.7") |
| V-557.6-5MP-VIS-IR M12 |
7.6mm F2.0 5MP M12 Lens 40.4° (1/3"), 48° (1/2.5"), 60° (1/1.7") |
Compatible HD Varifocal Lens Options (M12):
| Part Number |
Description & Horizontal AOV |
| CV-0622-5MP |
6.0~22mm, F1.6 5MP Varifocal M12 lens; Horiz AOV = 46~16° |
Actual viewing angle may vary depends on image sensor specs and camera design.
*Horizontal Angle-of-View (AOV) in
degrees are approximate and vary according to exact sensor size and design.
**If camera model contains
IP67 weatherproof cap, there may be some limitation as to which lenses will allow cap to fit back on camera.
