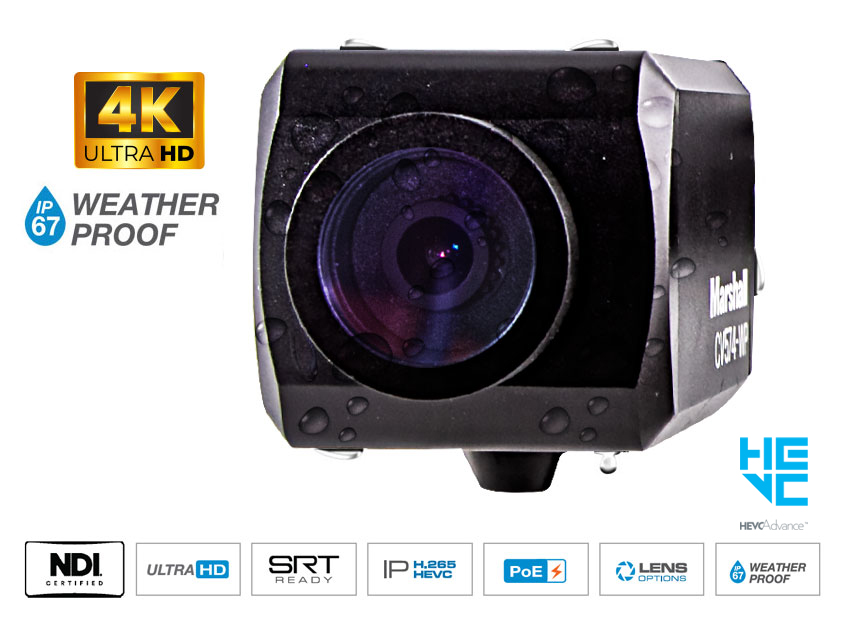

4K Stream
In Any Environment
This next generation all weather proof camera can stream clear UHD images with rich accurate color even in low-light and the ability to switch to night mode where IR wavelengths can be captured in complete darkness.

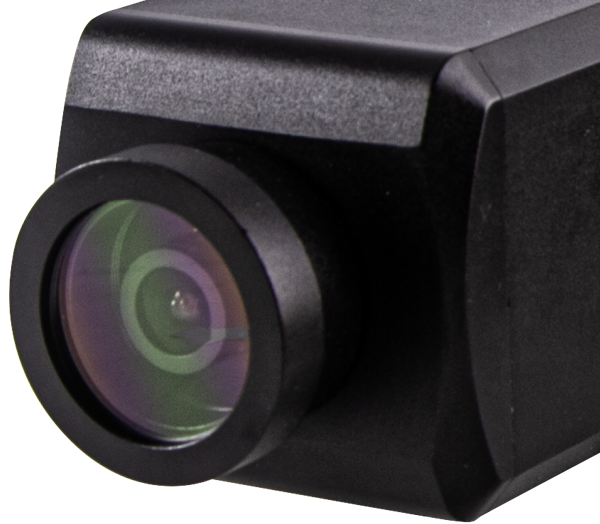

Interchangeable M12 Lenses
Marshall CV574 cameras come with a high-quality 4.0mm prime lens, protected by an all-weatherproof lens cover that maintains focus in any weather condition. Marshall offers a wide selection of high-quality M12 prime lenses that meet the specific needs of production, projects, or applications.

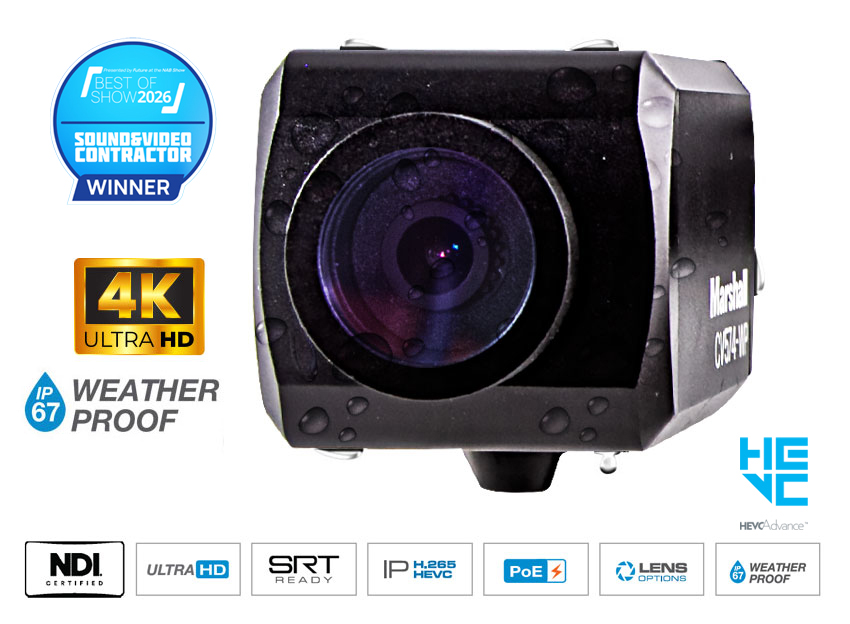

Secure, Durable, Flexible

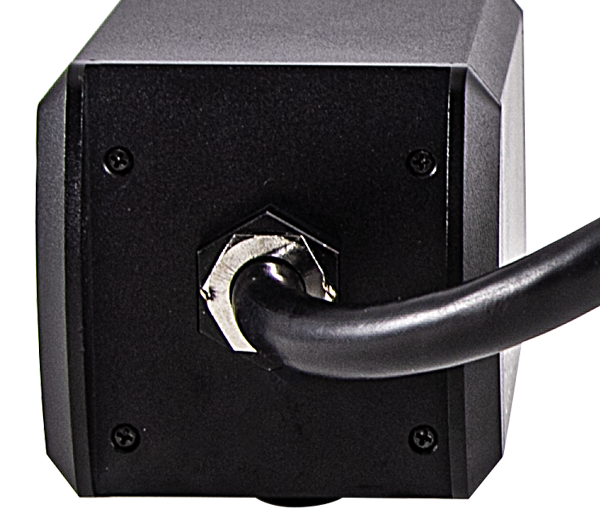

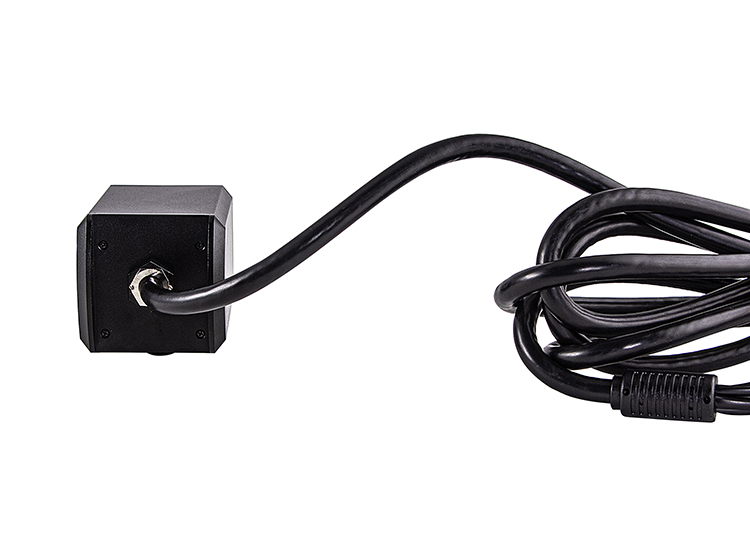

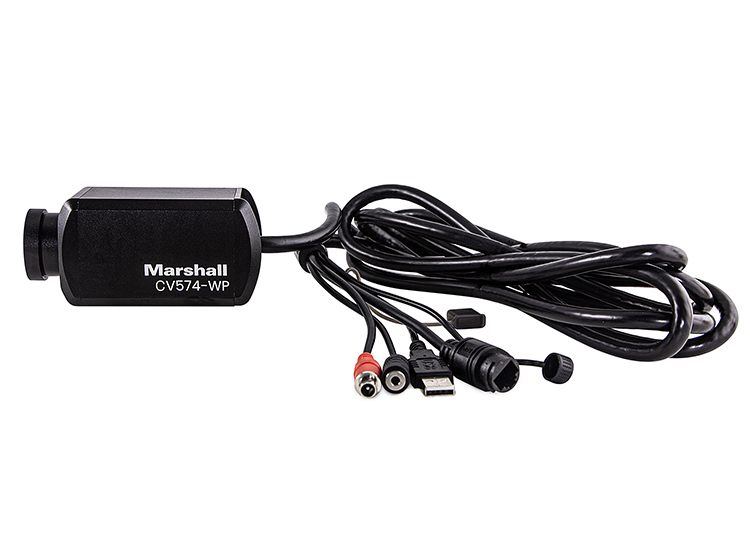

The durable all-weather CV574-WP body is chiseled from one block of aluminum alloy with a 10-foot (3m) breakout cable for secure connectivity in any conditions. Body has industrial-standard 1/4”-20 mount hole that ensures simple and secure mounting for any application.
Secure Connectivity

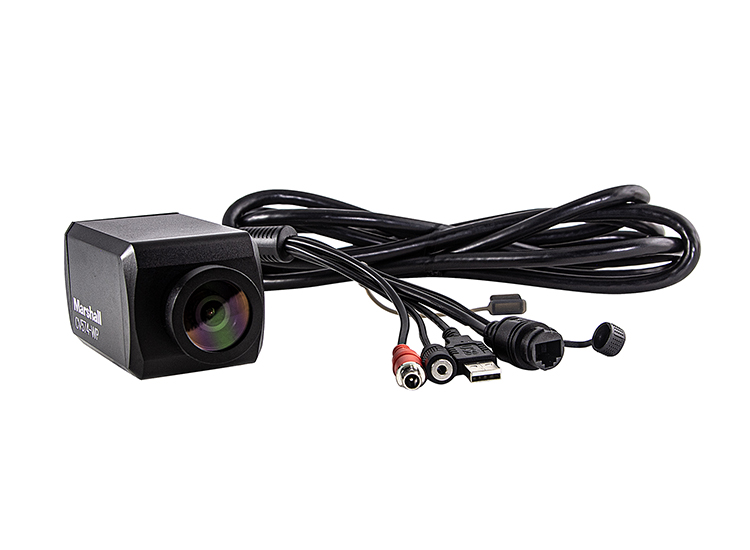

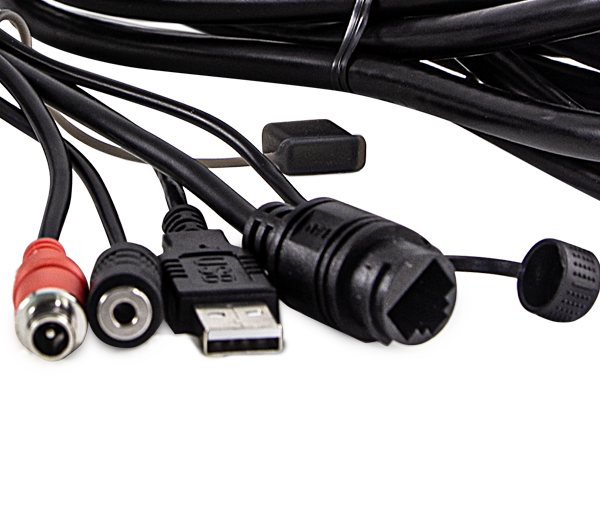

An integrated audio input enables embedding audio directly into the video output for streamlined production workflows. The camera supports remote adjustment and matching options via VISCA over IP, as well as through the intuitive web-based GUI. It can be powered using the included 12V DC power supply or conveniently via PoE (Power over Ethernet) over a single CAT cable, simplifying installation.
- 8.46 Megapixel 1/2.8" UHD sensor
- IP67 rating for weather-proof
- Interchangeable M12 lens mount comes with a high-quality 4.0mm lens with 77° horizontal AOV
- Up to UHD 3840 x 2160p60 video output over IP
(Note: NDI HX3 only supports 1080p50/60)
- Support multiple streaming protocols including NDI HX3/HX2, RTSP, RTMP, SRT with H.264 and HEVC codecs
- Audio input for embedding audio to video output
- Remote adjust & match via VISCA over IP and camera web GUI
- Powered with included 12VDC power supply or PoE over CAT cable
- Easy firmware upgrade in the field

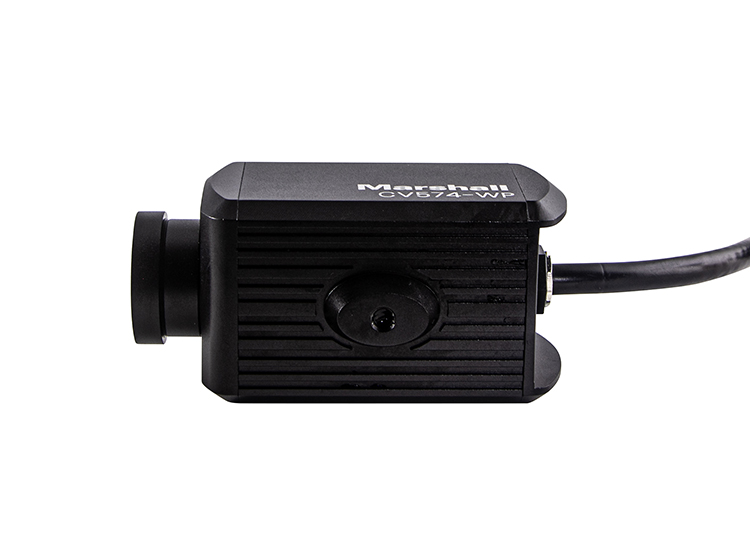

- Industrial standard 1/4"-20 mount hole
Applications:
The Micro CV574-WP is suitable for use in outdoor streaming network workflows where image quality and versatility are of utmost concern, including live broadcast, productions, concerts, courtroom capture, corporate video, government assembly, sportscast, newscast, reality television, eSports, live performance, all in difficult weather conditions.
Compatible HD Prime Lenses using stock LENS CAP
| Part Number |
Description & Horizontal AOV |
| CV-4702.8-3MP-IR |
2.8mm, F2.6 3MP M12 lens; Horiz AOV = 102.7° | additional purchase of CV-M12-RING-SET is required |
Compatible 8MP Prime Lens Options (M12):
| Part Number |
Description & Horizontal AOV |
| CV4804-8MP |
4.0mm F1.8 8MP M12 Lens - 74.1° |
| CV4808-8MP |
8.0mm F1.8 8MP M12 Lens - 37.8° |
| CV4812-8MP |
12.0mm F1.8 8MP M12 Lens - 25.3° |
*Horizontal Angle-of-View (AOV) in degrees are approximates.
