Marshall Broadcast Professional Universal Distribution Amplifiers. 12G Universal Distribution Amplifier provide reclocking distribution of an SDI video input signal to four SDI outputs. The input type, whether SDI, HD SDI or 3G SDI is auto detected and displayed via LED indicators.

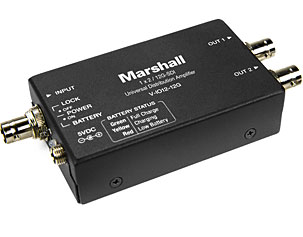

V-IO12-12G
12G Universal Distribution Amplifier / Line Extender

• Provides two SDI outputs from one SDI signal source
• "Universal" Supporting all SDI, HDSDI types up to 12GSDI
• Compliant with SMPTE ST 259, 292, 344, 424, 2081 and 2082
• 12GSDI carries full 4k video on single cable
• Highest quality reclocking and cable equalization
• Perfect solution to extend high data rate 12G signals
• Built-in battery backup prevents accidental signal loss
• LED indicators for signal lock and battery status
• 5 volt power supply included
