Cross Converters

The Marshall VAC-23SHU3 easily connects professional video and audio sources to USB devices for live streaming, video conferencing, and video production applications. Simple to use plug-and-play design seamlessly integrates professional video sources to your choice of computer-based applications.

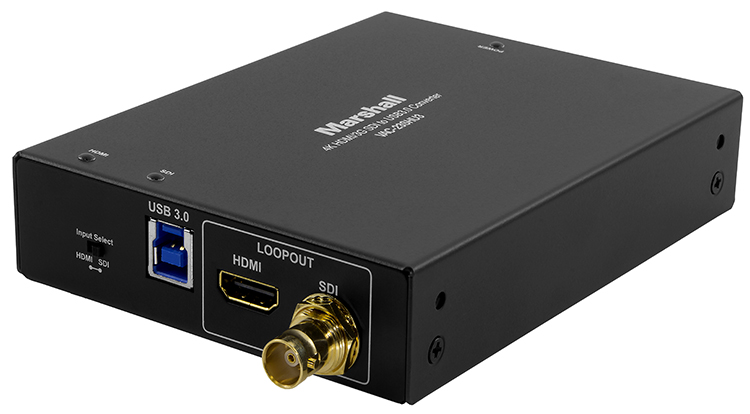

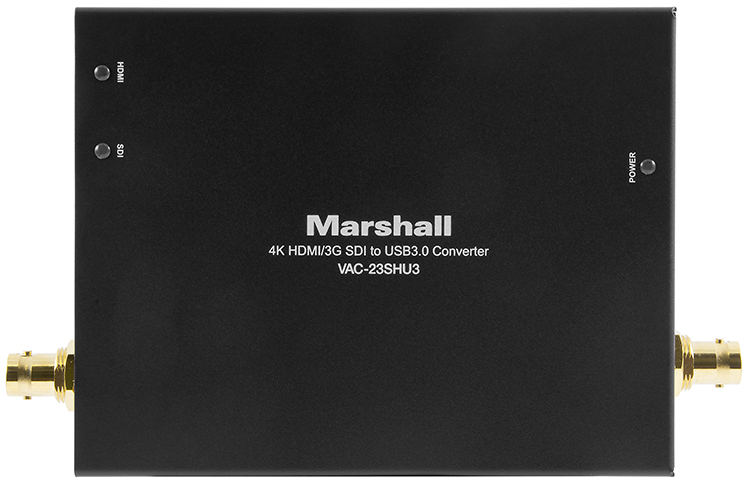

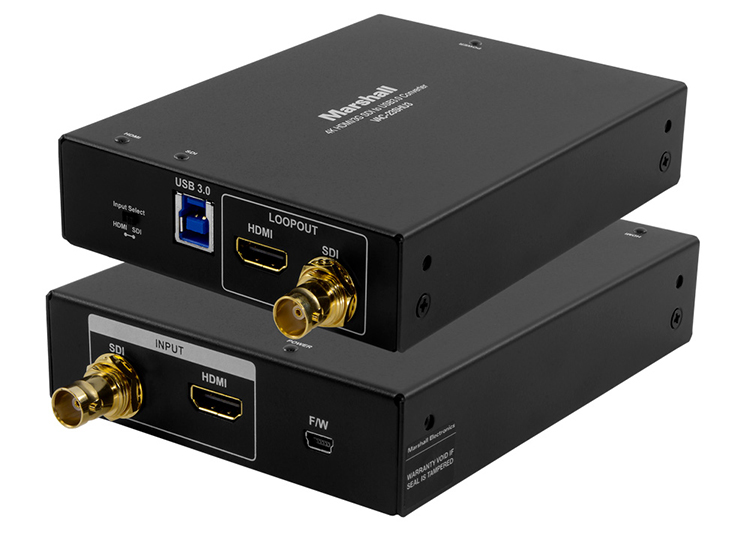

Marshall VAC-23SHU3

HDMI/SDI to USB Converter

Owner's Manual Download Images

Keep more of what you have
10-bit input sampling makes a visible difference

The VAC-23SHU3 converts either HDMI 2.0 or 3G SDI input to USB 3.0 high quality output. HDMI and SDI inputs have active loop-throughs allowing the original full-quality source to be routed to monitors or other equipment. Common applications include live screen capture, video conferencing and other PC-based applications. Power is supplied by the USB connection to the host computer reducing clutter and eliminating the need for an external power supply. The rugged and compact design makes for easy portability.

The VAC-23SHU3's simple plug-and-play design uses UVC protocol to present itself as a Camera Device. UVC protocol allows the host computer to set the parameters for the USB stream such as resolution, frame rate and aspect ratio.

  • 3G/HDSDI input with active loop-through output supports formats up to 1080p50/60
  • HDMI 2.0 input with active loop-through output
  • USB 3.0 output is YUY2 format (equivalent to SDI 4:2:2 sampling). USB 2.0 mode is MP4.
  • USB output audio sampling rate is 44.1 KHz (not rate converted)
  • All power derived from USB port
  • 10 Bit input sampling for improved image processing.
  • Plug-and-Play operation. No special drivers required
  • Compatible with popular applications including Zoom, Skype, OBS Studio, and many more

Marshall VAC-23SHU3 Applications:

The VAC-23SHU3 is suitable for use in live broadcast, streaming, and professional AV workflows including podcasting, web conferencing, video production, and screen capture.

* Pricing does not reflect freight costs and applicable taxes and duties
* Pricing, specification and features are subject to change
