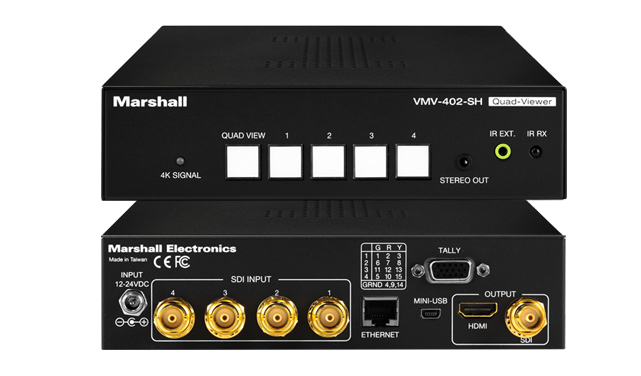

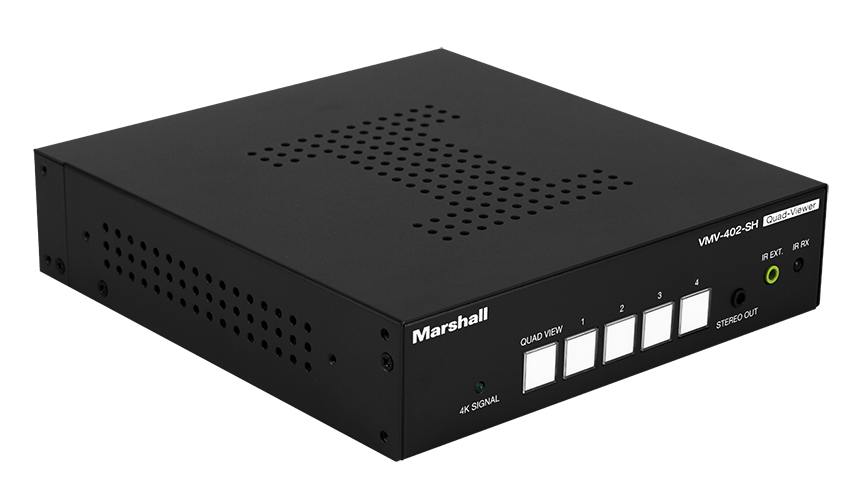

VMV-402-SH
4-Input 3G SDI Switcher with Quad Mode and Ethernet Control
Owner's Manual (PDF) VMV-402-SH Control App & Firmware Updated February 2023 Remote Control Protocols (PDF) Special Note for Crestron Users Download Images
* All pricing, features, functionality, and other product specifications are subject to change without notice or obligation.
The Marshall VMV-402-SH is ideal for presentation systems, control rooms, and remote productions by providing seamless switching between four selectable inputs. Inputs can be a combination of mixed formats and frame rates. Simultaneous output is provided via 3G SDI and HDMI. The SDI output supports up to 1080p while the HDMI output may be scaled up to UHD. The Robust design makes the 402 at home on any rack mount or "throw-down box" application.
The internal scaler accepts a wide range of input formats and frame rates and conforms them to the selected broadcast output format/frame rate. Additionally video levels may be adjusted remotely.
- Four 3G/HD/SD-SDI inputs
- One 3G/HD/SD-SDI output - Supports up to 1080p50/60
- One HDMI output - Scales up to UHD (3840x2160) 50/60
- Switching controllable via front panel, Ethernet, USB or IR
- Configure with downloadable Windows App
- Quad mode output has tallies, titles and borders or choose clean display
- Full screen output has selectable audio bars overlay
- Front panel headphone jack to monitor embedded audio
- Output video levels adjustable via Ethernet or USB
- Field upgradeable via USB
- Rack mount ears and power supply included
- Control protocol API allows use with automation
-
Suggested applications:
- 4 x 1 switcher for remote productions or AV applications
- Format "fixer/converter". Accepts mixed formats and conforms to a selected output format
- Monitor four sources in 'quad' mode. Take any quadrant "full" instantly.
- Use HDMI Output for local monitoring while SDI output transmits images up to 100 meters.
- Use as Mini Multi-viewer with active tallies. Tallies triggerable by GPI.
| Video Inputs | 4x BNC (SDI) |
| Input Formats Supported | (3G) 1080p @50/59.94/60Hz (4:2:2), (HD) 720p @50/59.94/60Hz, 1080i @50/59.94/60Hz, 1080p @24/30/60Hz, (SD) NTSC @59.94Hz, PAL @50Hz |
| Embedded Audio support | Embedded surround sound (up to 7.1ch) or stereo digital audio |
| Video Outputs (Program) | 1x HDMI + 1x BNC (SDI) |
| Video Output (Preview) | 1 x HDMI |
| Housing | Metal enclosure |
| Dimensions [L x W x H] | 190 x 180 x 44mm [6.5 x 2.8 x 1"] |
| Weight | 1kg [2.2 lbs] |
| Mounting | 1U rack-mounting case with ears |
| Power supply | 24V 5A DC |
| Power consumption | 25 Watts Nominal |
| Operation Temperature | 0~40°C [32~104°F] |
| Storage Temperature | -20~60°C [-4~140*°F] |
| Relative Humidity | 20~90% RH [no condensation] |
