VS-104-3GSDI
1080p/60 Full HD Video Encoder/Decoder with Stereo Embedded or Analog Audio. Supports: 3GSDI, HDSDI, SDI, HDMI and CVBS formats; Powered by PoE+ or 12VDC; Duplex RJ45 ports.
Manual Download Datasheet DownloadDownload ImagesDownload Firmware
- Max. 60fps at 1920 x 1080
- Quad Streaming (H.264/H.264, H.264/MJPEG)
- MPEG2-TS Supported
- Two Way Audio Communication (G.711, AAC)
- 3GSDI, HDSDI, SDI, HDMI, and CVBS I/O Supported
- Embedded Audio is supported in 3GSDI, HDSDI, SDI and HDMI, Stereo Analog is also provided
- Over 30 Types of PTZ Protocol Supported
- The VS-104-3GSDI can be used as either a Encoder or Decoder (User Selectable)
INCLUDES POWER SUPPLY*
*required for applications not utililizing PoE
• PoE+ (Power Over Ethernet 802.3af)
• USB Recording
• Watchdog for System Recovery
• RS-232, RS-422/485 Communication
• Motion Detection
• 2CH Sensor Input / 2CH Alarm Output
• Adjustable Video Bitrate: 32Kbps ~ 16Mbps for Primary Stream, 32Kbps ~ 4Mbps for Secondary Stream (3 available)
• Adjustable Video Data Bandwidth: 2,400bps ~ 115,200bps
• Adjustable Serial Data I/O, 2,400bps~115,200bps supplied
• Various Protocols:
TCP/IP, Multicast, UDP, HTTP, SMTP, FTP, DHCP, DNS, Dynamic DNS, RTP, RTSP, SNMP
• SDK & API available on request

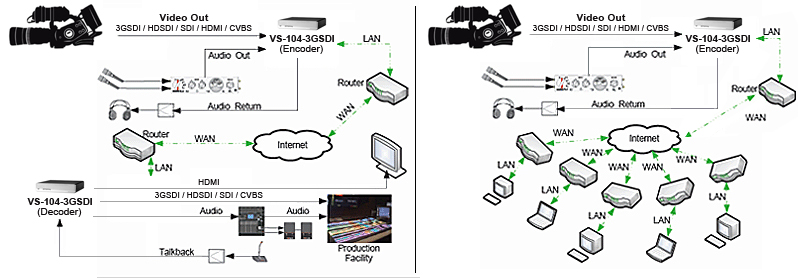

Application 1
Single camera with stereo audio point-to-point Encoder (source) to Decoder (monitoring) over LAN/WAN or WEB.
Application 2
Single camera with stereo audio from Encoder to multiple computers or monitors with audio talkback over LAN/WAN or WEB.
Server Connection Diagram
| Point-to-Point (Unicast) | One-to-Many (Multicast) |
 |
|
| System | System Mode | Encoder / Decoder |
| Network | ||
| Interface | 2 x Ethernet 10/100/1000Base-T (RJ-45) | |
| Protocol | IPv4/v6, TCP, UDP, IGMP(Multicast), ICMP, DHCP, HTTP, HTTPS, RTP, RTSP, FTP, SNMP, SMTP, UPnP, WS-Discovery, Zero Configuration, NTP, DDNS | |
| Security | Password protection, IP address filtering, HTTPS encryption | |
| Application Programming Interface | MEI Protocol/SDK, ONVIF, PSIA | |
| Video | Compression | H.264, MJPEG |
| Framerate | Max 60fps @ 1920x1080 | |
| Bitrate | Primary: 32Kbps ~ 16Mbps, Secondary: 32Kbps ~ 4Mbps | |
| Resolution | 352x240 ~ 1920x1080 | |
| Streaming | Primary: H.264, Secondary x 3: H.264/MJPEG | |
| Burn-in OSD | Multi-lingual | |
| Input/Output | 1 x HDMI (Type A), Input/Output configurable 1 x Composite (BNC), Input/Output configurable 1 x 3G-SDI (BNC), Input/Output configurable |
|
| Audio | Compression | G.711 / AAC |
| Sample Rate | G.711: 8KHz, AAC: 32/44.1/48KHz | |
| Bitrate | G.711: 64Kbps, AAC: 64Kbps/128Kbps | |
| Streaming | Full duplex | |
| Input | 1 x Line-In (stereo, mini-stereo type) | |
| Output | 1 x Line-Out (stereo, mini-stereo type) | |
| General | Event sources | Motion, Sensor input, Video loss, Client disconnection |
| Event actions | Notification (E-mail), FTP, PTZ preset, Alarm control, Recording | |
| Housing | Aluminum | |
| Certifications | CE, FCC, KC, ROHS | |
| External devices | 2 x Sensor-In (dry contact, NO/NC) 2 x Alarm-Out (dry contact, NO) 1 x RS-232 port 1 x RS-422/485 port 1 x Buzzer (88dB min) |
|
| Edge storage | 2 x USB 2.0 port | |
| Power supply | Min DC12V 5A, PoE+ (Power over Ethernet): 802.3at | |
| Power Consumption | DC12V/PoE+ / Max:13.4V | |
| Operating Temp. | -10°C ~ 50°C / 14°F ~ 122°F | |
| Dimension | 215mm(W) x 184.2mm(L) x 44mm(H) | |
| Weight | 940g |
