Audio Monitors

The AR-AM4-BG is a 4-channel stereo analog audio monitoring system with DSP and Peak Meters. 4 Analog Stereo Balanced XLR Inputs with 1 Passive Stereo Balanced XLR Output


High Quality 1RU Rack Mountable Analog 4-Channel Audio Monitor with Digital Signal Processing

Owner's Manual (PDF)
High Quality 1RU Rack Mountable Analog 4-Channel Audio Monitor Digital Signal Processing

  • Fits 1RU rack space
  • High Fidelity Miniature Speakers
  • Volume and Balance controls
  • Channel Selector
  • High Quality DSP Processing
  • 4 Analog Stereo-Balanced XLR Inputs
  • 1 Passive Stereo-Balanced XLR Output
  • 1/4" Stereo Headphone Jack on front panel
  • CE approved / RoHS compliant
  • FREE pair of Marshall Master Series
    10' XLR Cables included (M10)

The AR-AM series is the newest addition to Marshall's existing line of Audio Monitors. This new series establishes a benchmark for high-quality, low cost, rack-mount, near-field audio monitoring. They feature high fidelity speakers and DSP audio processing, with a variety of configurations. These new analog audio racks are ideal for TV facilities, studios, post production, VTR bays, mobile production vehicles, satellite links, and wherever audsio monitoring is required.

The AR-AM4 is a 4-channel stereo analog audio monitoring system. It features stereo loudspeakers in a compact 1RU form factor, with analog amplification and digital processing. At only 6.0" deep, the AR-AM4 can be installed in many shallow rack cases or placed on any level surface. This unit is enhanced with four balanced XLR inputs, along with a balanced XLR output for interfacing to downstream equipment.  Controls include separate headphone and speaker volume with master balance.  A powerful DSP-controlled EQ (coupled with a limiting compressor) provides unparalleled, pristine sound and speaker protection.

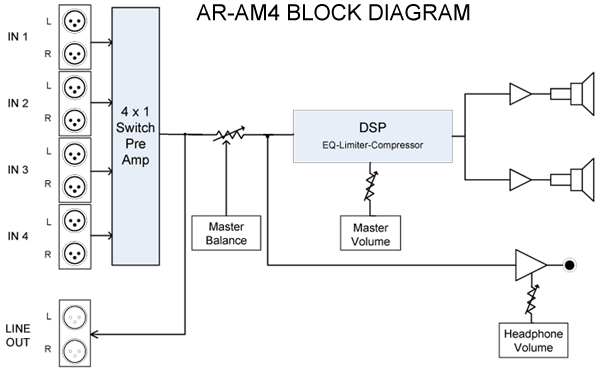

AR-AM4 Block Diagram

AR-AM4 specifications
Speaker Specs 1/4" Headphone Jack Yes
4 Analog Stereo-Balanced XLR Inputs Yes
1 Passive Stereo-Balanced XLR Output Yes
Internal Speakers yes
Speaker Power Output: 4 Ohms: 3W RMS, 5W Peak
Peak Acoustic Output 99 dB SPL @ .1m
Headphone Power Output 150 mW
Control Featurs Volume Control Yes
Channel Selector Yes
Balance Control Yes
Controls on front Panel Yes
Handles Yes
Power Voltage 29VDC
Consumption 40W
Connector 4Pin XLR
Dimensions Rack Unit dimensions 18.94" W x 1.75" H x 6.0" D
Weight (Main Body) 4.55 lbs
