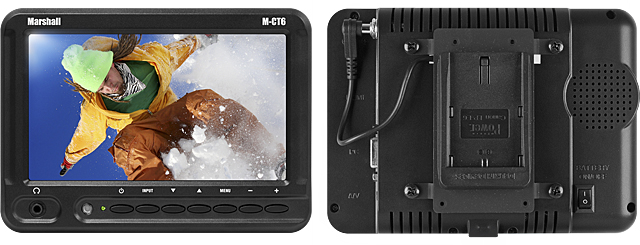

M-CT6
6.2" Portable Camera-Top Field Monitor
Owner's Manual M-CT6 Monitors Battery Assemblies Monitor Power Supply Chart
* All pricing, features, functionality, and other product specifications are subject to change without notice or obligation.

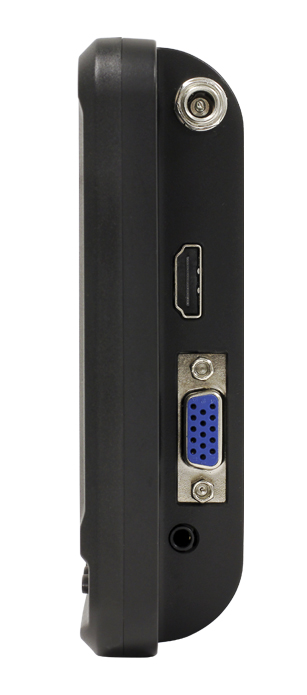

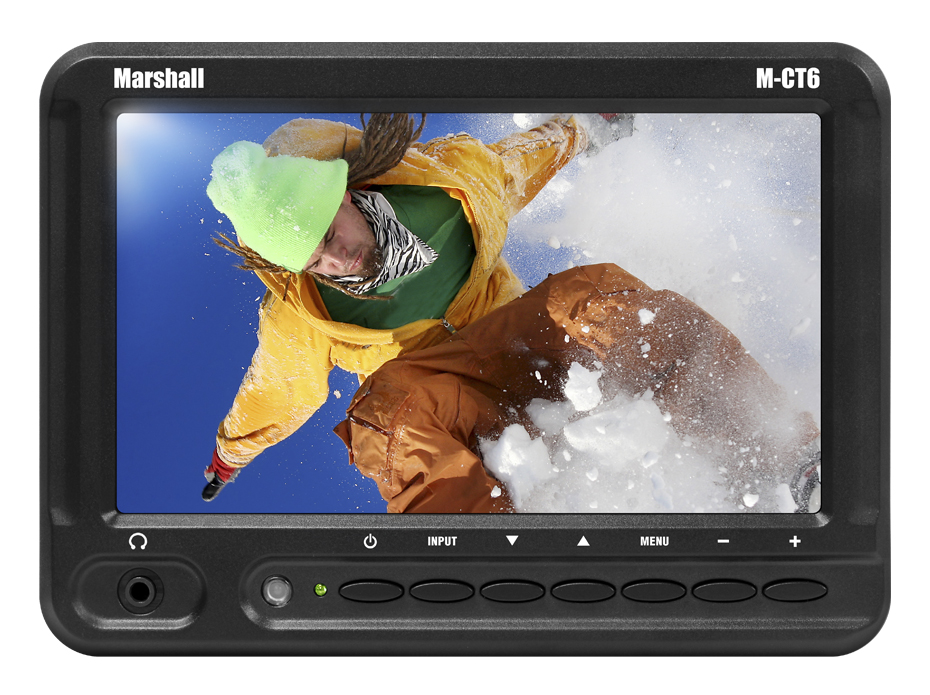

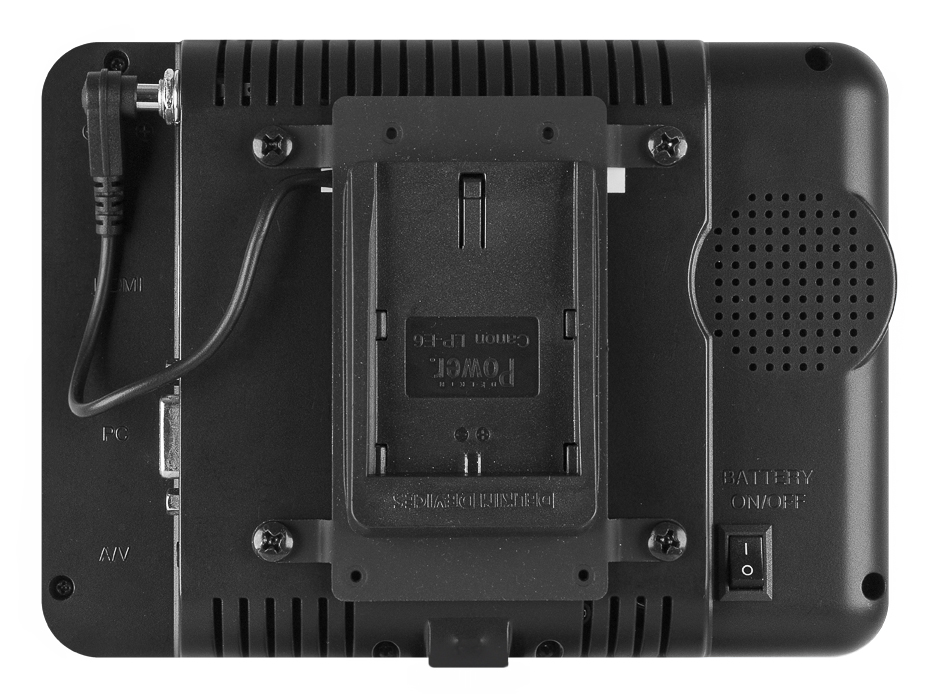

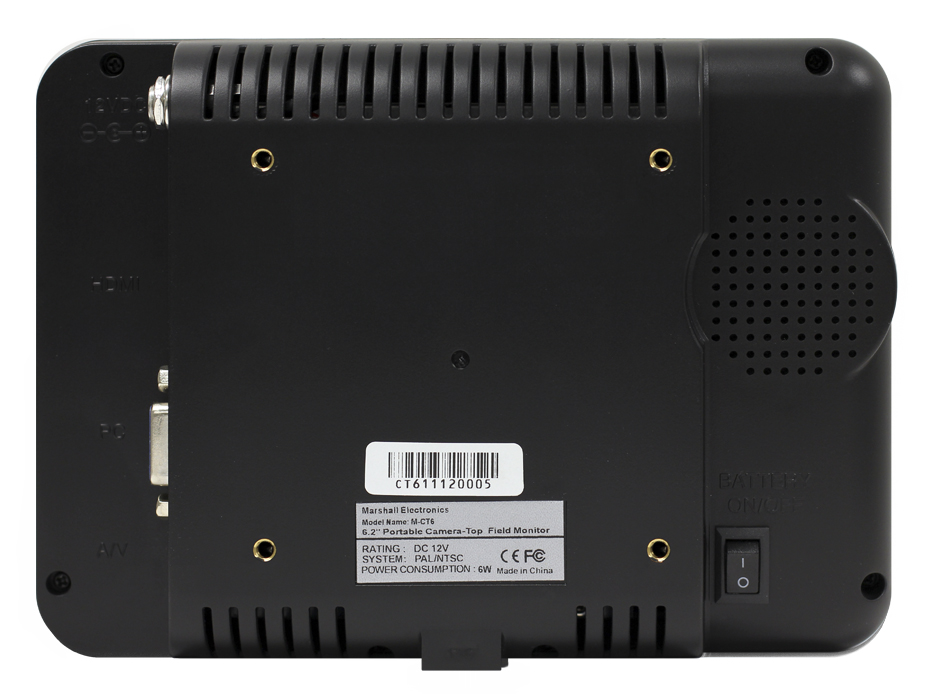

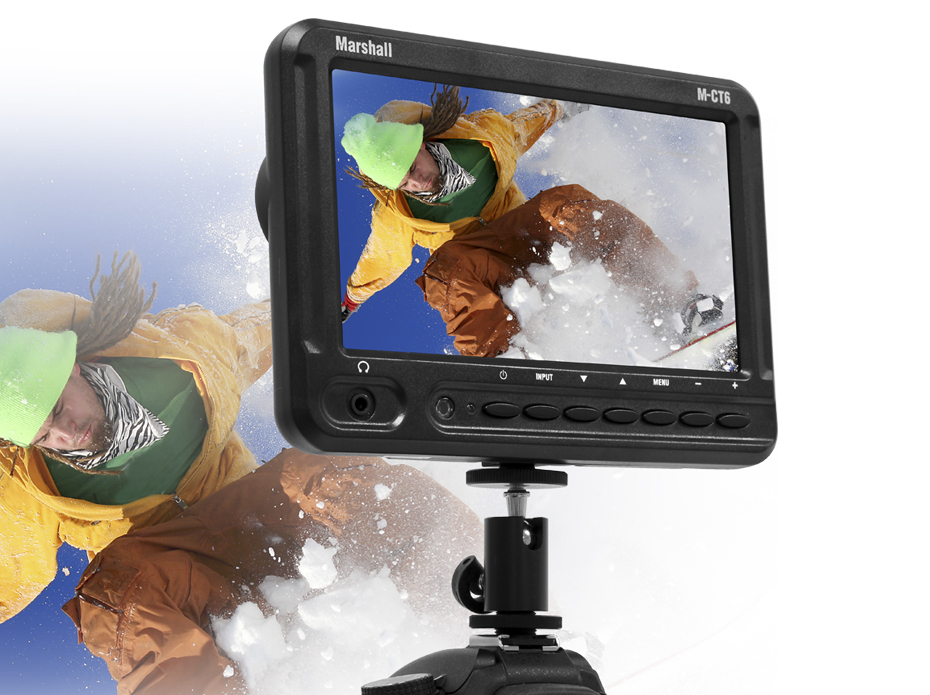

The M-CT6 monitor kit provides a lightweight 6.2" 800 x 480 LCD monitor with HDMI that is perfect for photographers and videographers looking for a simple, inexpensive monitoring solution. This unit offers two composite video inputs and one audio input, along with HDMI and VGA (PC) connectivity. A variety of features include a 3.5mm Stereo Headphone Jack, Rear Speaker for audio monitoring, Auto Aspect Ratio Detect, Zoom, Image Flip/Flop and full Color Adjustment, and Battery saver switch. Users also have the ability to power this monitor using a standard DSLR battery*. This feature allows the monitor to be powered using an existing DSLR battery for mobile on-the-go monitoring.
Accessories provided include a mini-HDMI to HDMI cable, standard HDMI cable, A/V cable, cigarette lighter adapter, hot shoe camera mount adapter, battery plate*, DSLR battery* and battery charger.*
* User may configure their kit by choosing one of the following battery adapters that are currently being offered:
• Nikon EN-EL3e (M-CT6-NEL3)
Optional Battery Adapters:
Canon BP-970G / JVC BN-V438U / Panasonic CGA-D54 / Panasonic VW-VBG6 / Sony NP-QM91 / Sony NP-F970
| M-CT6-NEL3 | 6.2" TFT LCD HDMI LED Backlight Camera-Top Monitor w Nikon EN-E3e Battery Assembly |
$319.00*
|
| Viewable Area / Type | 6.2" TFT LCD |
| Resolution (Pixels) | Up to 1920(H) x 1440(V) |
| Pixels | 800 x 480 |
| Aspect Ratio | 16:9 |
| Brightness (cd/m²) | 400 |
| Contrast Ratio | 500:1 |
| Viewing Angle | 75°/75° (L/R), 70°/70° (U/D) |
| Audio Output | 2W Speaker, 3.5mm Stereo Jack |
| Input Signal | AV1, AV2, HDMI, VGA |
| Backlight | LED |
| Voltage | 7V - 16V |
| Operating Temperature | -4°F-131°F / -10°C-75°C |
| Power Consumption | 7W |
| Dimensions | 6.7"W x 4.84"H x 1.36"D |
| Weight (w/o battery) | 10.5oz / 300g |
Included Accessories:
- Standard Mini HDMI to HDMI cable
- HDMI to HDMI cable
- A/V Cable
- Power Supply
- Microfiber Pouch
- Remote Control
- Hot shoe mount
- LP-E6 Canon equivalent battery
- Battery Charger
- User manual
* Pricing does not reflect freight costs and applicable taxes and duties
* Pricing, specification and features are subject to change
