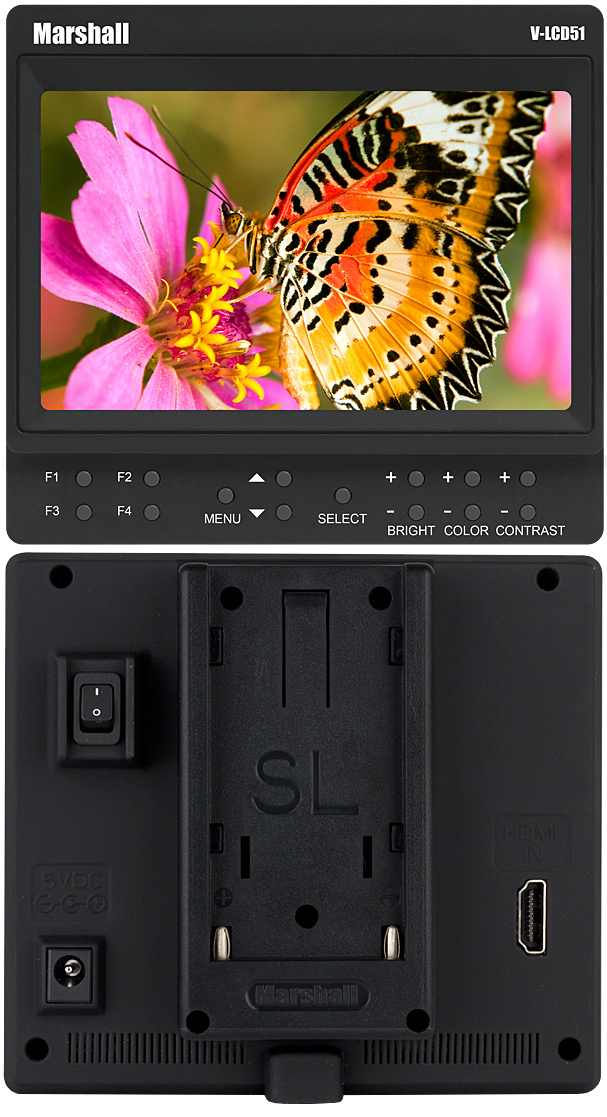

V-LCD51
5" Small 800 x 480 Camera-Top / Portable Field Monitor with HDMI
Owner's Manual (PDF)Spec Sheet (PDF)The V-LCD51 5-inch monitor is packed with features found in more expensive models. This compact LED-backlit confidence monitor offers amazing picture performance and excellent viewing angles for users simply looking for a portable, yet versatile monitoring solution. The V-LCD51 offers standard features including a wide variety of formats and markers, 4 user-configurable front panel function buttons, RGB Check Field / Field Detect, RGB gain and bias control. Major features include Marshall's industry leading FALSE COLOR and PEAKING Filters, along with Image Flip, Freeze Frame, and HDMI Auto Color Space and HDMI Auto Color Space.
The portable V-LCD51 is the perfect solution for DSLR and video professionals seeking to capture their best shots. Don't be fooled by higher screen resolution or sizes. Our picture performance, feature set, customer service, and experience is why the industry's leading photographers, videographers, and camera operators prefer Marshall over the competition.
This unit is battery-powered in the field using any one of 9 different available battery adapters for great flexibility and portability. An AC power supply is also included. The bottom 1/4"-20 mount allows this lightweight unit to be mounted to most DSLRs, cranes, and jibs.
AVAILABLE BATTERY ADAPTERS
The V-LCD51 monitor is powered by your choice of 9 different prosumer and DSLR batteries or the included power supply.BATTERY TYPE | RECOMMENDED BATTERY / VOLTAGE | PRICE |
V-LCD51-BP511 | 5" Monitor Pre-Installed Canon BP-511 Battery Adaptor |
$519.00*
|
V-LCD51-BP511-BK | 5" Monitor Pre-installed w/ Canon BP-511 Battery Kit |
$539.00*
|
V-LCD51-CM | 5" Monitor Pre-Installed Canon BP-970G Battery Adaptor |
$519.00*
|
V-LCD51-JM | 5" Monitor Pre-Installed JVC BN-V438U Battery Adaptor |
$519.00*
|
V-LCD51-LPE6 | 5" Monitor Pre-Installed Canon LP-E6 Battery Adaptor |
$519.00*
|
V-LCD51-LPE6-BK | 5" Monitor Pre-Installed w/ Canon LP-E6 Battery Kit |
$539.00*
|
V-LCD51-NEL3 | 5" Monitor Pre-Installed Nikon EN-EL3 Battery Adaptor |
$519.00*
|
V-LCD51-NEL3-BK | 5" Monitor Pre-Installed w/ Nikon EN-EL3 Battery Kit |
$539.00*
|
V-LCD51-PM | 5" Monitor Pre-Installed Panasonic CGA-D54 Battery Adaptor |
$519.00*
|
V-LCD51-PV | 5" Monitor Pre-Installed Panasonic VM-VBG6 Battery Adaptor |
$519.00*
|
V-LCD51-SL | 5" Monitor Pre-Installed Sony NP-F970 Battery Adaptor |
$519.00*
|
V-LCD51-SM | 5" Monitor Pre-Installed Sony NP-QM91 Battery Adaptor |
$519.00*
|
Kits Include:
- V-LCD51 Monitor
- Power Supply
- Hot Shoe Mount
- Pre-Installed Battery Mount
- Rechargeable Battery
- Battery Charger
- V-H50 Hood and DSLR Bracket
Canon DSLR #1 | Canon LP-E6 / 7.2V |
Canon DSLR #2 | Canon BP-511 / 7.4V |
Nikon DSLR | Nikon EN-EL3 / 7.4V |
False Color Filter
The False Color filter is used to aid in the setting of camera exposure.
As the camera Iris is adjusted, elements of the image will change color based on the luminance or brightness values. This enables proper exposure to be achieved without the use of costly, complicated external test equipment.
To best utilize this feature, you must understand the color chart and have a basic understanding of camera exposure. Normally, when shooting subjects like people, it is common practice to set exposure of faces to the equivalent of approximately 56 IRE. The False Color filter will show this area as the color PINK on the monitor. Therefore, as you increase exposure (open the IRIS), your subject will change color as indicated on the chart: PINK, then GREY, then a few shades of YELLOW. Overexposed subjects (above 101 IRE) on the monitor will be shown as RED. In addition, underexposed subjects will show as DEEP-BLUE to DARK-BLUE, with clipped-blacks indicated with a FUCHSIA-like color. Lastly, the color GREEN is used to indicate elements of the image that are approximately 45 IRE. This represents a "neutral" or "mid-level" exposure commonly used for objects (not people).
Overexposed objects will display as RED
Underexposed objects show as
DEEP-BLUE to DARK-BLUE
Properly exposed objects will display elements of GREEN and PINK
Peaking Filter
The Peaking Filter is used to aid the camera operator in obtaining the sharpest possible picture. When activated, all color will be removed from the display and a black-and-white image will remain. The internal processor will display RED color on the screen where sharp edges appear. When the camera operator adjusts (or "racks") the focus control (on the camera lens), different parts of the image will have RED colored edges. This indicates that this portion of the image is sharp or in focus. Final focus is achieved by racking the camera lens focus control back and forth until the desired portion of the image has RED colored edges. Please note that this feature is most effective when the subject is properly exposed and contains enough contrast to be processed.
Screen Size (Display Area) | 5-inch Diagonal |
Resolution (Pixels) | 800 x 480 |
Viewing Angle | L+R: 170° / U+D: 170° |
Brightness (in cd/m²) | 300 |
Contrast Ratio | 600:1 |
Inputs | HDMI x 1 |
Dimensions | 4.86"W x 4.40"H x 1.84"D |
Power Consumption | 1.25 Amp @ 5VDC |
Weight | 0.55 lbs. (250g) |
* Pricing does not reflect freight costs and applicable taxes and duties
* Pricing, specification and features are subject to change
