The V-R104DP-2SDI is a 10.4" high definition LCD monitor featuring our completely digital TFT-MegaPixel™ active matrix LCD platform. Emulation of SMPTE-C/EBU color and adjustable color temperature enable the most precise color representation possible. Our proprietary digital signal processing features 10-bit A/D conversion of all analog signals, with 4X over-sampling and 5-line super-adaptive 2D comb filtering of composite signals. De-interlacing is performed using our HyperProcess™ algorithm with motion adaptive interpolation. Multi-format compatibility accommodates virtually all video formats including 480i/p, 720p, and 1080i standards. VGA and DVI inputs accept VESA standards allowing the display to be used as a computer monitor. Advanced features include aspect ratio settings, a variety of screen markers, underscan mode, blue-only mode, monochrome mode, H/V delay, and Pixel-to-Pixel™ mode.

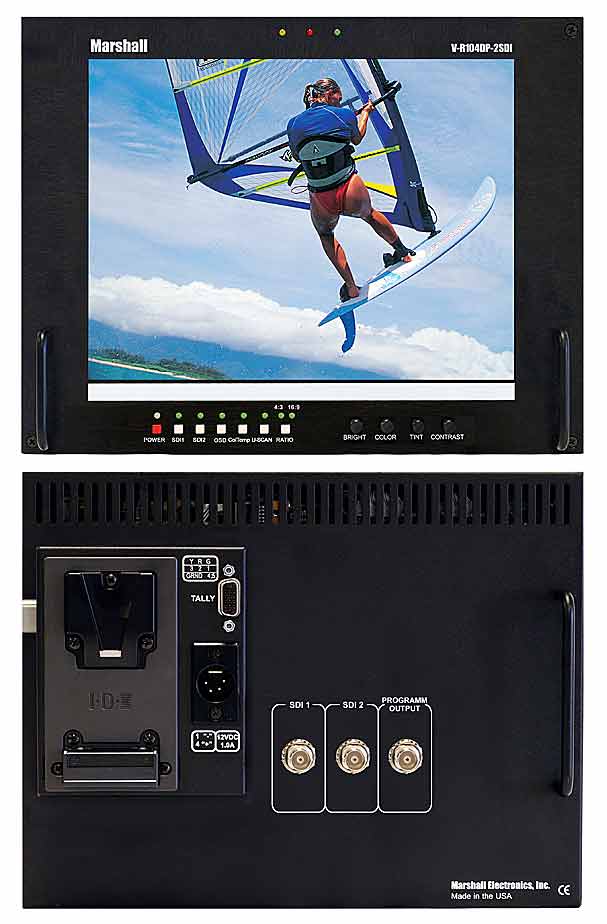

TFT-MegaPixel 10.4-Inch Field Monitor with 2 SDI Inputs

TFT-MegaPixel 10.4-Inch Field Monitor with 2 SDI Inputs

  • Large 10.4-inch screen
  • 800 x 600 Dots (1.44 million RGB pixels)
  • Hyper Process for Interlace Images
  • Match Color Conversion
  • 100% digital processing
  • 5 Year /50,000 backlight life
  • 10 bit Analog to Digital conversion
  • Wide viewing radius - 130°
  • 600 (cd/m²) luminance
  • 500:1 contrast ratio
  • Response rates less than 25 ms
  • 4:3 and 16:9 screen aspect ratios
  • Direct access for all adjustments
  • Three color tally indicators
  • On Screen Display (OSD)
  • Blue Screen for color adjustment
  • Color Temperature adjustment
  • Adjustment Settings Memory
  • Durable metal enclosure
  • Configurable ¼ 20 Mounting
  • "V" Mount for Battery included
  • Runs 4 to 6 hours on optional battery
  • Power Supply Included
  • Optical grade polycarbonate screen cover
  • Standard Inputs/Outputs:

  • 2 SDI (ITU-BR601/SMPTE-259M)
  • SDI Output of displayed signal

With 20% more display in a smaller package, our low cost V-R104DP-2SDI is the perfect alternative to 8 and 9-inch CRTs used in broadcast, professional video and multimedia applications. This model includes our Award Wining Digital TFT-Megapixel system with 1.44 million pixels.

Inputs are provided for a single HD-SDI/SDI source. An output is available repeating the input data as a re-clocked and re-shaped signal.

Our Hyper Process for motion compensation is employed to provide smooth motion of interlace images. The image format is scaled to fit on screen in the highest resolution using our proprietary program and state of the art LSI with Match Color Conversion to emulate SMPTE-C phosphor of a CRT.

Standard features include V-Mount battery adapter, 4 pin XLR power jack, and optical grade polycarbonate screen protection.

Display (Viewing Area) 10.4 Inch diagonal (211.2mm w x 158.4mm h)
Resolution (Pixels) 800 Wide x 600 High (1.44 Million RGB Pixels)(262,000 colors)
Dot Pitch .264mm square pixel
Brightness (in cd/m²) 600
Contrast Ratio 500:1
Inputs 2 SDI
Dimensions 10.25"w x 8.5" h x 2.5" d (260.4mm x 215.9mm x 38.1mm)
Approx. Weight 4 lbs (1.8 kg)
Power Consumption App. 50 Watt (5 Amp 12 VDC Class 2 power supply included)
