CV200-MB / M
Lipstick Weatherproof 2.1MP
Full-HD Full-HD Broadcast HD-SDI POV Camera •
1920x1080p60/59.94/50/30/29.97/25
• 1920x1080i60/59.94/50fps
• 1280x720p60/59.94/50/30/29.97/25fps
Owner's Manual 1/4"-20 Stands and Mounts

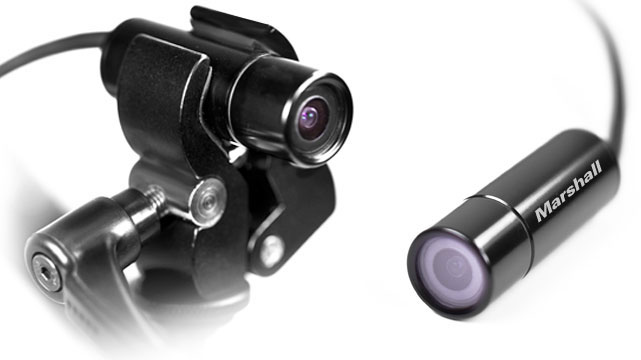

* Shown with CVM-12 - Heavy Duty C-Clamp (1/4-inch-20 & 3/8-inch female). Sold separately.
1/3-inch 2.1 Megapixel CMOS Sensor

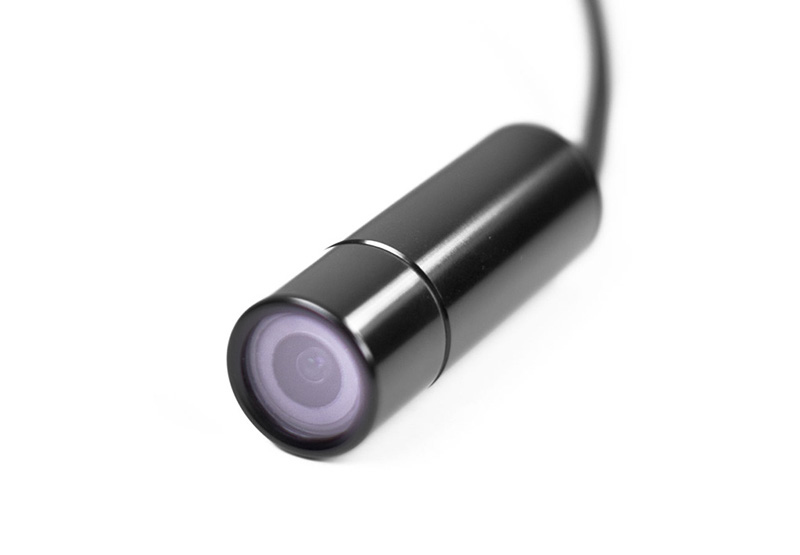

3.6mm 3MP M12 Mount Lens - interchangeable
IP67 weatherproof camera enclosure
19mm diameter (0.75-inch) cylinder
CV200-MB: 1080i59.94, 1080p59.94/29.97, 720p59.94/29.97
CV200-M: 1080i60/50, 1080p60/50/30/25, 720p60/50
HD-SDI/3G-SDI (BNC) & CVBS (BNC)
0.1Lux (F1.2, 50IRE, AGC MAX) / DSD x 4:0.01Lux
Auto/Manual White Balance, Exposure, Gamma, Red/Blue Gain
Wide Dynamic Range (ACCE), DNR (2D+3D), Digital Defog, HLC
Privacy Masking, Motion Detection, Automatic White Balance
19 x 19 x 60mm, 22grams (0.05lb)
OSD Joystick on Cable assembly
CV200-MB Applications:
• Broadcast Television • Professional Sports • College Sports • OB Vans/Trucks • Concert & Studio Music Video • Reality TV • Performing Arts • Culinary Shows • Car TV Shows • Hidden Camera Shows • International Racing Circuits • Off-road Racing • Horse Racing • House of Worship • POV Video Shots
CV200-MB / M specifications
Imaging Sensor
2.1 Megapixel 1/3” Pansonic CMOS Sensor
Total Pixels
2010(H) x 1108(V) / 2,227,080 (Pixels)
Active Pixels
1944(H) x 1092(V) / 2,122,848 (Pixels)
Scanning System
Progressive Scan (Internal Sync System)
Video Output
HD-SDI, 3G-SDI, CVBS
CV200-M version res/FR
1920x1080p60,50,30,25fps - 1920x1080i60,50,30,25 - 1280x720p60,50,30,25
CV200-MB version res/FR
1920x1080i59.94 - 1920x1080p59.94/29.97 - 1280x720p59.94/29.97
Horizontal TV
More than 1000 TVL
Lens Mount
3.6mm F2.0 M12 Mount - interchangeable w/o cap
Electric Shutter
Manual (1/30 or 1/25~1/30,000 sec)
Auto White Balance
AUTO/AUTO EXT/ PRESET / Manual (Red-Gain, Blue-Gain)
Digital Noise Reduction
DNR (OFF/LOW/MIDDLE/HIGH)
Wide Dynamic Range
WDR (OFF/LOW/MIDDLE/HIGH)
Mirror Image
Mirror, Horizontal or Vertical Flip
Operating / Storage Temp
-10°C~50°C (-20 °F~70°F)
Operating Humidity
IP67 rated; ability to submerge in water up to 10 minutes at a time
Power Supply
12V DC 1.0A
Power
12V DC 150mA, 1.8W
Dimensions
19(W) x 19(H) x 60(D)mm
Weight
22g

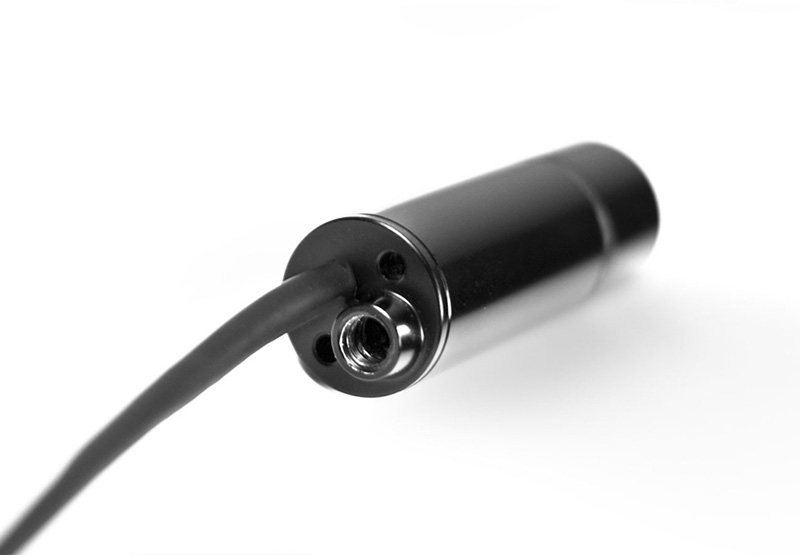

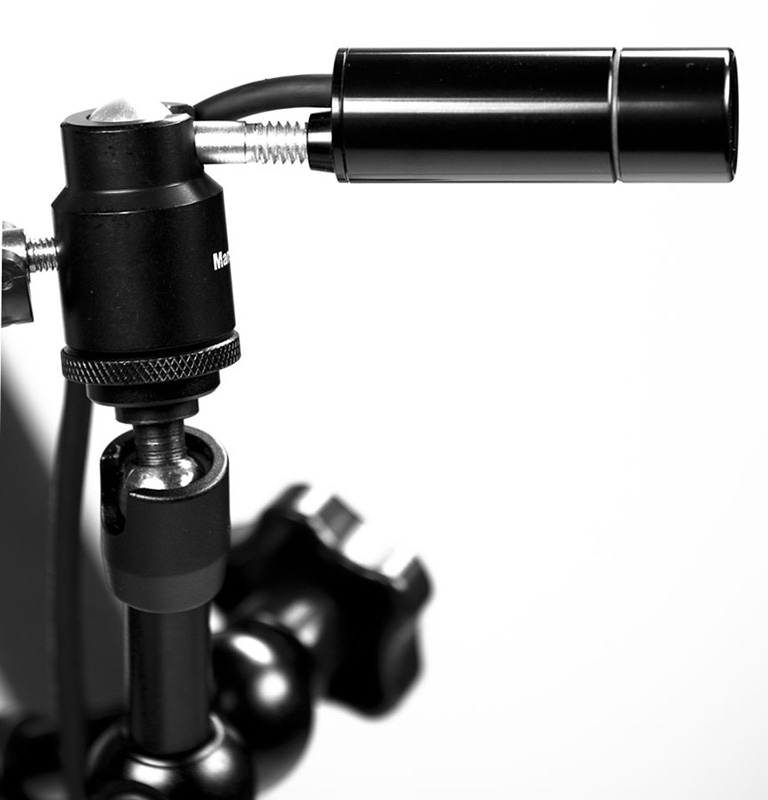

1/4"-20 Mounts
1/4"-20 Compact Camera Stands & Mounts,
Clamps, Articulating arms and more...
CV200-150-OSDCBLE
10' OSD Joystick Cable Extender for CV200/CV150
CV200-GLSTIP
Replacement IP67 Cap for CV200
CV200 POV Glass-Mounted by Aqueti for REF Cams
