Marshall
CV225-MB
(59.94/29.97 fps)
CV225-M
(50/60/25/30 fps)
Lipstick IP67 HD Camera
(3G/HD-SDI) + Remote Adjust
via RS485 (Visca)
Operation Manual
Quick Start Guide
Download Camera Control Software
1/4"-20 Stands and Mounts
Download Images
- Models:
CV225-MB: 1080i59.94, 1080p59.94/29.97, 720p59.94/29.97 fps
CV225-M: 1080i60/50, 1080p60/50/30/25, 720p60/50/30/25 fps - 1/3-inch 2.5 Megapixel CMOS Sensor 16:9
- 3.6mm MP M12 Mount Lens - interchangeable
- IP67 weatherproof camera enclosure w/ 1/4"-20 mount (rear panel)
- 118 inch (3m) Breakout Cable includes 12V power (2.1mm-center pin +) connector,
RS485 phoenix connector, and 3G/HD-SDI (BNC) - 111 inch (2.8m) to OSD Joystick - RS485 (Visca) adjustable - CV-RCP-100 compatible
- 19.5mm diameter (0.76-inch) cylinder
- 3GSDI / HDSDI (BNC)
- 0.2Lux (COLOR-Day) / 0.1Lux (B/W-Night), 0.005Lux (DSS on)
- Auto/Manual White Balance, Exposure, Gamma, Red/Blue Gain, Black Levels (Pedastal)
- Wide Dynamic Range (ACCE), Digital Noise Reduction (DNR), Digital Defog, HLC
- 19.5 x 62.5mm, Approx. 195g/0.42Lbs
- OSD Joystick on Cable assembly
- Includes 12V power supply in box
Capture stunning Full-HD video in a versatile, durable and discrete package with the new CV225 IP67 Lipstick Camera from Marshall. The CV225 utilizes the latest sensor technology in a compact and sleek weatherproof design while maintaining broadcast standards. The CV225 is ideal for professional broadcast television applications including professional sporting events, reality television, live music events, broadcast trucks, weather vehicles and house of worship installations.
Marshall worked closely with professional video and systems integrators to improve the popular 1st generation CV200 Lipstick Camera. The 2nd generation CV225 IP67 Lipstick Camera incorporates those improvements to offer greater image clarity, enriched true colors, enhanced low light performance, and added ability to remotely adjust without reliance on screen display (OSD) menus.
The CV225 utilizes a state of the art 1/3-inch high-speed 2.5 Megapixel sensor to pack 2,476,296 pixels of clear, crisp color images through a single full-sized BNC (3G/HD-SDI) output in 1920x1080i, 1920x1080p, 1280x720p resolutions @ 60/59.94/50/30/29.97/25 fps.
New proprietary pixel technology enables the CV225-MB/M to produce the lowest noise ratio on the market today, resulting in sharp, vivid color images, even in very low light condition. Industry leading low power consumption draws very low power in full 3G SMPTE 424M (2.97 Gbps) 1080p60/59.94/50 modes.
The CV225 offers two models depending on region of use:
- CV225-MB supports 59.94/29.97fps for usage in U.S. Broadcast applications
- CV225-M supports 50/60/25/30fps for all other applications including PAL Broadcast regions
The CV225 IP67 Weatherproof design and convenient 1/4"-20 mount allows for versatile mounting options in any outdoor or hidden location, and can withstand dust, sand, or full submersion up to 1m for 30 minutes.

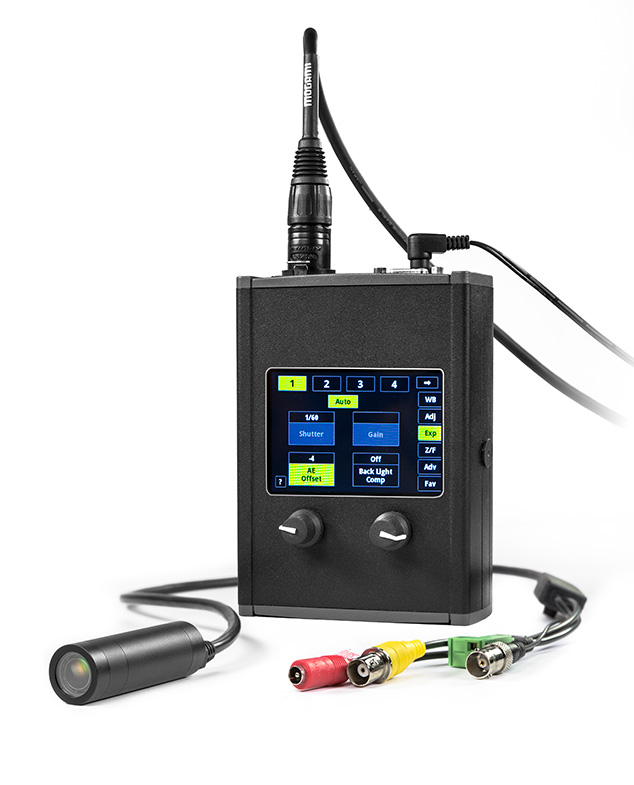

The CV225 can be controlled and adjusted remotely via SONY VISCA over RS485 twisted-pair wire, and is compatible with the Marshall CV-RCP-V2 Touchscreen RCP Unit using 3-pin XLR cable.
CV225-MB/M Applications:
• Broadcast Television • Professional Sports • College Sports • OB Vans/Trucks • Concert & Studio Music Video • Reality TV • Performing Arts • Culinary Shows • Car TV Shows • Hidden Camera Shows • International Racing Circuits • Off-road Racing • Horse Racing • House of Worship • POV Video Shots
Compatible HD Prime Lens Options (M12):
| Part Number | Description & Horizontal AOV |
| CV-4702.3-3MP | 2.3mm, F2.2 3MP M12 lens; Horiz AOV = 126° |
| CV-4702.8-3MP-IR | 2.8mm, F2.6 3MP M12 lens; Horiz AOV = 100° |
| CV-4704.0-3MP | 4.0mm, F2.6 3MP M12 lens; Horizontal AOV = 85° (1/2.7) |
| CV-4804.4-12MP | 4.4mm, F2.7 12MP M12 Lens; Horiz AOV = 100° (1/1.8"), 70° (1/2.8") |
| CV-4706-3MP-IR | 6.0mm, F2.4 3MP M12 lens; Horiz AOV = 48° |
| CV-4708.0-3MP | 8.0mm, F1.8 3MP M12 lens; Horiz AOV = 40° |
| CV-4712.0-3MP | 12.0mm, F1.8 3MP M12 lens; Horiz AOV = 33° |
| CV-4716.0-2MP | 16.0mm, F1.8 2MP M12 lens; Horiz AOV = 25° |
Compatible 5MP Prime Lens Options (M12):
| Part Number | Description & Horizontal AOV |
| V-555.0-5MP-VIS-IR M12 | 5.0mm F2.0 5MP M12 Lens - 63° (1/3"), 75.5° (1/2.5"), 98° (1/1.7") |
| V-557.6-5MP-VIS-IR M12 | 7.6mm F2.0 5MP M12 Lens 40.4° (1/3"), 48° (1/2.5"), 60° (1/1.7") |
Compatible HD Varifocal Lens Options (M12):
| Part Number | Description & Horizontal AOV |
| CV-2812-3MP | 2.8~12mm, F1.4 3MP Varifocal M12 lens; Horiz AOV = 32° ~ 100° (1/2.7") |
| CV-0622-5MP | 6.0~22mm, F1.6 5MP Varifocal M12 lens; Horiz AOV = 46~16° |
Actual viewing angle may vary depends on image sensor specs and camera design. *Horizontal Angle-of-View (AOV) in degrees are approximate and vary according to exact sensor size and design.
**If camera model contains IP67 weatherproof cap, there may be some limitation as to which lenses will allow cap to fit back on camera.
| Imaging Sensor | 2.5 Megapixel 1/3” CMOS Sensor |
| Total Pixels | 1956 (H) x 1266 (V) / 2,476,296 (Pixels) |
| Active Pixels | 1944 (H) x 1092 (V) / 2,122,848 (Pixels) |
| Scanning System | 16:9 Progressive Scan |
| Video Output | 3GSDI & HDSDI |
| CV225-M version res/FR | 1920x1080p60,50,30,25fps - 1920x1080i60,50,30,25 - 1280x720p60,50,30,25 |
| CV225-MB version res/FR | 1920x1080p59.94/29.97, 1920x1080i59.94 & 1280x720p59.94/29.97fps |
| Horizontal TV | More than 1000 TVL |
| Lens Mount | 3.6mm F2.0 M12 Mount - interchangeable w/o cap |
| Electric Shutter | Manual (1/30 or 1/25~1/30,000 sec) |
| Auto White Balance | AUTO/AUTO EXT/ PRESET / Manual (Red-Gain, Blue-Gain) |
| Digital Noise Reduction | DNR (OFF/LOW/MIDDLE/HIGH) |
| Wide Dynamic Range | WDR (OFF/LOW/MIDDLE/HIGH) |
| Mirror Image | Mirror, Horizontal or Vertical Flip |
| Operating / Storage Temp | -10°C~50°C (-20 °F~70°F) |
| Operating Humidity | IP67 rated; ability to submerge in water up to 45 minutes at a time |
| Power Supply | 12V DC 1.0A |
| Power | 12V DC (7VDC to 15VDC) Max 6W |
| Dimensions | 19.5 (W) x 19.5 (H) x 62.5 (D)mm |
| Weight | Approx. 195g/0.42Lbs with cable |
1/4"-20 Mounts
1/4"-20 Compact Camera Stands & Mounts, Clamps, Articulating arms and more... Read more
CV-USB-RS485
USB to RS485/422 Adapter for use with Marshall Windows Camera Control Software.Call for Price
Click Here For Additional Accessories
Camera Control Application
- Download Camera Control Software HERE
- Use USB to RS485/RS422 Converter (CV-USB-RS485)
- Use cat5 or 24AWG twisted-pair wire (sold separately)
- Connect cable from RS485(+) terminal on Camera to T/R (+) on USB/RS485 converter
- Connect cable from RS485(-) terminal on Camera to T/R (-) on USB/RS485 converter
- Plug USB cable from USB/RS485 converter into USB port on Laptop or Computer (note ComPort#)
- Open up CamControl Program and match Serial Port to corresponding ComPort# used
- Select Baudrate in CamControl Program and match it in Camera OSD Menu under DISPLAY CONTROL > BAUDRATE
- Select Camera Address in CamControl Program and match it in Camera OSD Menu under DISPLAY CONTROL > CAM ID
- Select Open in CamControl Program
- Test connection by pushing MENU in lower right of CamControl Program - OSD Menu should come up on video signal
- Commands can also be sent without using OSD Menu
