CV342-CSB/CS HD-SDI Compact Tube Camera is an HD camera for high resolution video for Broadcast applications. The CV340-CSB has full HD 1080p60/59.94/50/30, 1080i60/59.94, 720p60/59.94/30/25 720p59.94/50 video for filming all types of Broadcast projects such as Reality TV, Courtroom, News Van Dash-Cams, Car Stunts, Documentaries


CV342-CSB / CS

2.2MP Full-HD Compact Broadcast HD-SDI Camera
• 1920x1080p60/59.94/50/30/25fps
• 1920x1080i60/59.94/50fps
• 1280x720p60/59.94/50/30/25fps

Owner's Manual (PDF) Specsheet Download (PDF)1/4"-20 Stands and Mounts (PDF)Download Images
2MP HD-SDI Broadcast Full HD Compact Tube Camera with CS mount and Auto-Iris

CV342-CSB footage / 3~9mm / F1.2

  • 1/3-inch 2.2 Megapixel CMOS Sensor
  • CS/C Mount with Auto-Iris, lens sold separately
  • CV342-CSB: 1080i59.94, 1080p59.94, 720p59.94
    CV342-CS: 1080i60/50, 1080p60/50/30/25, 720p60/50
  • HD-SDI/3G-SDI (BNC) & CVBS (BNC)
  • 1.0Lux (Color), 0.5Lux (B/W), 0.02Lux (Sens-up 30x)
  • Auto/Manual White Balance, Exposure, Gamma, Red/Blue Gain
  • Wide Dynamic Range (ACCE), DNR (2D+3D), Digital Defog, HLC
  • Privacy Masking, Motion Detection, Automatic White Balance
  • 58 x 60 x 45mm, 159grams (0.35lb)
  • OSD Joystick, RS-485

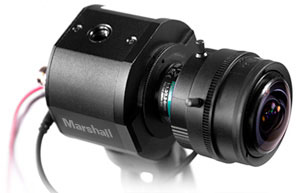

POV camera with VS-M226-A Fujinon CS Varifocal Lens
CV342-CSB camera with
VS-M226-A Fujinon CS Vari-Focal Lens
MORE LENS OPTIONS

Marshall Electronics's upgraded CV342-CSB (59.94) & CV340-CS (60/50fps) Compact HD-SDI Broadcast Cameras produce clear, crisp images from a larger CS mount MP lens. As the workhorse of the Marshall Broadcast Camera line, CV342 changes video production expectations from a very affordable price point. These compact HD cameras are Full-HD 1920x1080 Cameras able to produce 1080i59.94, 1080p59.94 (3G), and 720p59.94 (NTSC/PAL) resolutions for Sportscast, Broadcast, Newscast, Reality-TV, Culinary, Stunt Filming, and a variety of other demanding Broadcast applications. These cameras are built around a high performing 1/3" CMOS Sensor generating 2 MegaPixels of HD quality video. Marshall Electronics offers a variety of CS mount Megapixel lenses to frame the perfect shot on set. Enhancement features include Double-shutter Wide Dynamic Range, Auto White Balance, Gamma/Gain Control, Red/Blue Adjustments, Exposure Control, Pixel Correction, Low light sensitivity, Digital Noise Reduction, Digital Defog, and Digital Zoom offer effective tools for broadcast quality video.

CV342-CSB Applications:

• Broadcast Television • Professional Sports • College Sports • OB Vans/Trucks • Concert & Studio Music Video • Reality TV • Performing Arts • Culinary Shows • Car TV Shows • Hidden Camera Shows • International Racing Circuits • Off-road Racing • Horse Racing • House of Worship • POV Video Shots


CV342-CSB / CS specifications
Imaging Sensor 2.2 Megapixel 1/3" Panasonic CMOS Sensor
Scanning System Progressive Scan
Number of Active Pixels 1944 (H) x 1092 (V) = 2,122,848 (pixel)
Number of effective Pixels 2010 (H) x 1108 (V) = 2,227,080 (pixel)
S/N Ratio More than 50dB
Video Output Mode  1920x1080i59.94, 1920x1080p59.94/30, 1280x720p59.94/30
Video Output Level HD-SDI / 1.0Vp-p (75Ω, Composite) NTSC/PAL (selectable)
Min. Illumination 1.0Lux (Color), 0.5Lux (B/W), 0.02Lux (Sens-up x30)
Lens C & CS mount lenses (Lens sold seperately)
Electronic Shutter Speed Auto/Flk/ 1/30sec~1/50,000sec/ x2~30/sec
White Balance AWB/AWC-Set/Manual/Indoor/Outdoor
Backlight Compensation BLC/HSBLC/Off
D-WDR/ACCE Low/Middle/High/Off
AGC Low/Middle/High
Adjust Sharpness/Monitor/LSC/NTSC/PAL
Language English, Japanese, Chinese, Korean, German, French, Italian, Spanish, Polish, Russian, Portuguese, Dutch, Turkish, Hebrew, Arabic
Day & Night Auto/BW/Color/EXT (Selectable)
2D/3D-NR 2DNR/3DNR/SMART NR
Digital Zoom/PIP ON/Off (x2~x64)
Privacy Masking On/Off (8 Zone Selectable)
Motion Detection On/Off (3 Zone Selectable)
Defect LIVE Dead Pixel Correction / STATIC Dead Pixel Correction
Sens-Up On (X2~x30) / Off
D-EFFECT Freeze/Mirror/D-Zoom/NEG.IMAGE
IR LED -
Construction Aluminum Die-Casting Case
Operating Temp -10°C~50°C (14 °F~122°F)
Storage Temp -20°C~60°C (-4°F~140°F)
Humidity 0% to 90%
Supplied Voltage DC12V 10% ±10%
Power Consumption Max.150mA
Dimensions (WxHxD) 60 x 57 x 45mm (H x W x D)
Weight 0.4lbs (181.4grams) w/o lens
Certification CE, FCC, RoHS, KCE
Camera PTZ On-Screen Display Menu Mini Joystick Controller

VS-PTC-50

Camera PTZ / On-Screen Display
Menu Mini Joystick Controller

Mini Camera Stands and Mounts accessories

1/4"-20 Mounts

1/4"-20 Compact Camera Stands & Mounts,
Clamps, Articulating arms and more...


Additional Lens Options for CV342-CSB / CV342-CS


FUJINON - 3 Megapixel Day and Night Vari-Focal 1/3”, DC Auto Iris
Part No. MegaPixel Focal Length F-Stop Mount
Type
Sensor Size 1/3” Sensor AOV Range Hor. x Vert., Widest / Tele Filters
FUJINON
VS-M226-A
3MP 2.2~6mm F1.3 CS mount w/ DC Auto-Iris 1/3” Wide:
131°(H) x 75°(V), Tele:
49°(H) x 28°(V)
Neutral Density
FUJINON
VS-M1550-A
3MP 15~50mm F1.5 Wide:
18°(H) x 13°(V), Tele:
5°(H) x 4°(V)

CS Mount Varifocal Lenses with DC Auto Iris
Part No. Focal Length Relative Aperture Auto-Iris Sensor Size Mount AOV(H)
VS-M246-2 2.4~6mm F1.6 YES 1/3” CS 90°~45°
VS-M309A 3.0~9mm F1.4 YES 1/3” CS 80°~30°
VS-M550-4 5.0~50mm F1.4 YES 1/3” CS 50°~5.5°
V-4604-CS-IRC 4.0mm F2.0 NO 1/3” CS 62°
V-4606-CS-IRC 6.0mm F2.0 NO 1/3” CS 44°
V-4608-CS-IRC 8.0mm F2.0 NO 1/3” CS 34°
V-4612-CS-IRC 12mm F2.0 NO 1/3” CS 25°

CV342-CSB footage / 3~9mm / F1.2

Live streaming event broadcasted with CV342-CSB

CV342-CSB mounted on the goal post
at the High School Football Stadium /2.8~12 / F1.4
