Marshall
CV350-10XB
(59.94/29.97 fps)
CV350-10X
(50/60/25/30 fps)

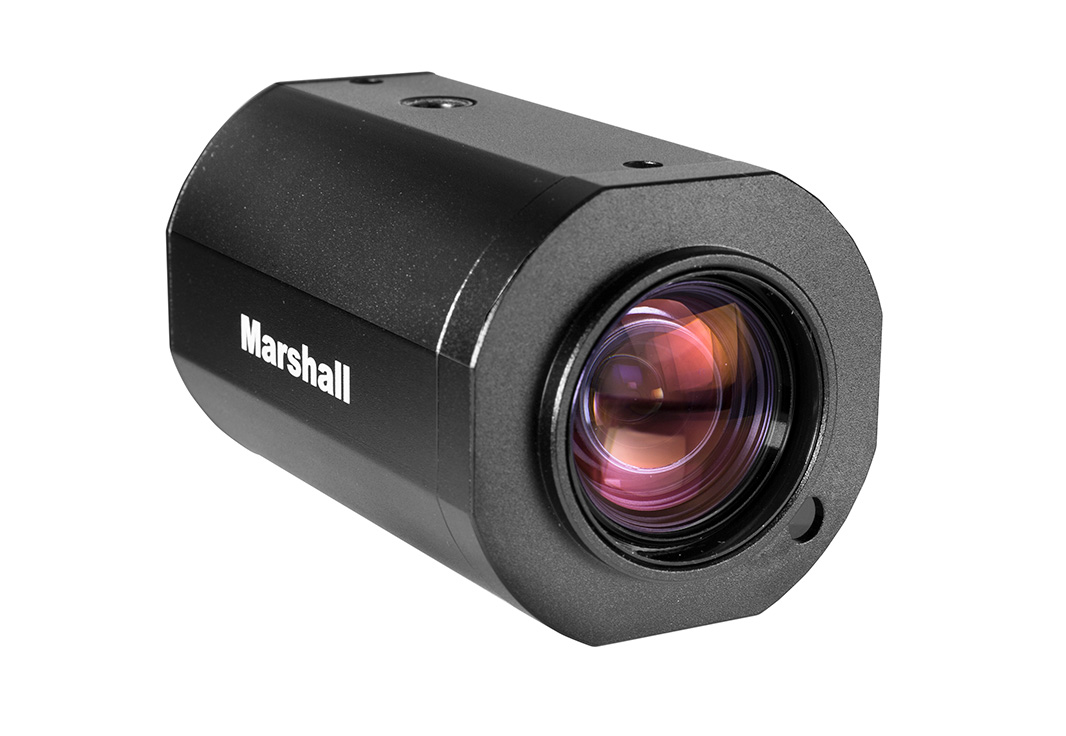

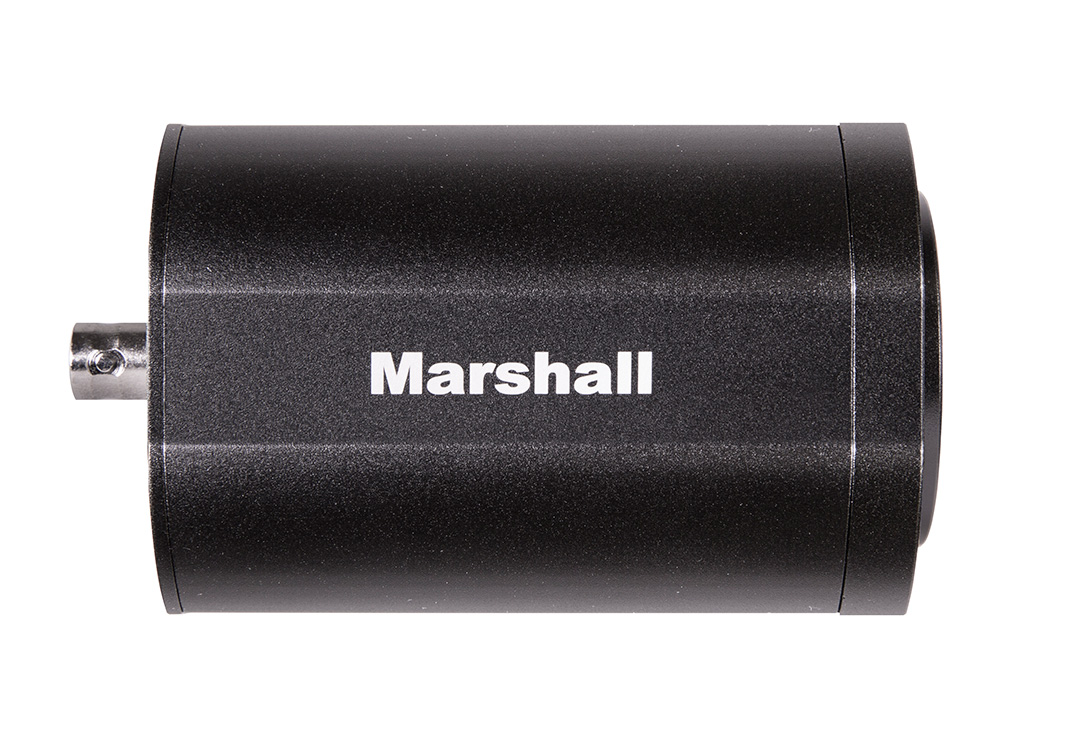

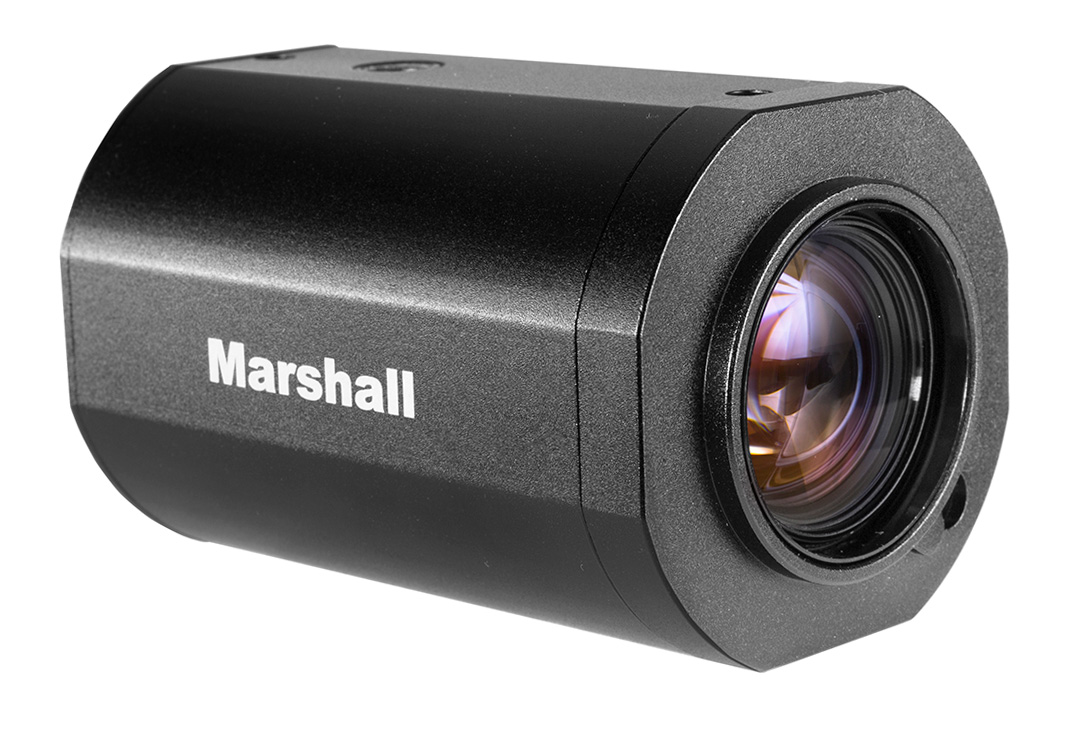

Compact 10X Camera (Full-HD)
Quick Reference Manual Operations ManualDownload Camera Control SoftwareDownload Images1/4"-20 Stands and Mounts
|
Marshall's next generation Compact 10x Zoom Camera promises twice the zoom range as previous version at 10x optical (4.7~47mm), easily controllable & adjustable from long runs, and versatile HDMI & 3G/HD-SDI outputs to service a wide variety of applications. Delivering vibrant Broadcast quality HD images up to 1920x1080p @ 60/59.94/50fps (3G) makes this camera capable of handling almost any application requiring clear, crisp images. CV350-10XB Applications:• Courtroom • Assembly Meetings • Broadcast Multimedia • Unified Comunications • Concert & Studio Music Video • Performing Arts • Front of House • House of Worship • POV Video Shots |
Camera Control Software
Imaging Sensor | Image Sensor | 1/3” Progressive 2.1 Megapixel CMOS |
Scanning System | 16:9 Progressive | |
Sync. System | Internal | |
Effective Pixel | 1920(H) x 1080(V) | |
Min. Illumination | 0.2Lux (Day), 0.1Lux (Night), 0.005Lux(DSS on) | |
Horizontal Resolution | 1000TVL | |

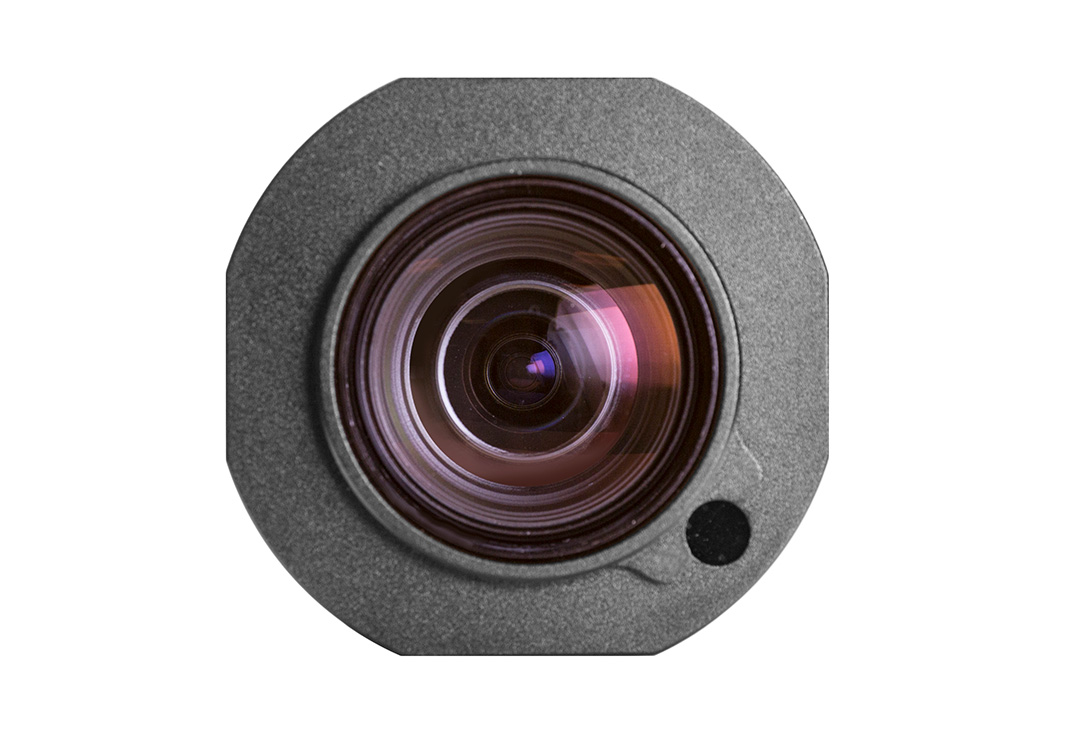

Optics | Lens | 10x Optical Zoom, f=4.7~47mm, F1.6 ~ F3.0 |
Zoom | 10x optical zoom / 12x digital zoom | |
Focus | Near/Far, Auto/Manual/One Push | |
Angle of View (H) | 57.7 degrees (WIDE), 6.4 degrees (TELE) | |
Functions | Back Light Compensation | WDR/BLC, HLC (High Light compensation) |
Exposure | Auto / Manual | |
White Balance | Auto (3,000°K~8,000°K) / ATW (1,900°K~11,000°K) / Manual | |
Day & Night System | AGC / TDN (ICR) | |
Electronic Shutter | NTSC: 1/30~1/30000, PAL: 1/25~1/30000, DSS( ~ 1/1sec) | |
Functions | White Balance, Privacy Mask, Image Mirror, 3DNR, Flicker-less, Sharpness, Defog, Digital Image stabilizer, Exposure, Freeze, B&W, Black Level, WDR | |
Video Outputs | Digital Output (LVDS) | 1920x1080p@25,30,50,60 1920x1080i@50,60 1280x720p@25,30,50,60 |
HDSDI Output | SMPTE 292M(1.485Gbps): 1080p@25,30 1080i@50,60 720p@25,30,50,60 |
|
3GSDI Output | SMPTE 424M(2.97Gbps): 1080p@50,60 800mVp-p, 75Ώ, unbalanced generator (single-ended) |
|
Control Interface | UART(5V level) | SONY-VISCA protocol |
8bits data, 1 stop bit, no parity, 2400~115200bps | ||
General | Operation Temperature | -20°C ~ 60°C |
Power Input | 12VDC (7V to 15VDC) | |
Power consumption | Max 6W (4.8W Lens inactive, 5.5W Lens active) | |
Mass | Approx. 375g | |
Dimensions | 95.0 x 60.5 x 58mm (3.74" x 2.38" x 2.28") |
1/4"-20 Mounts
1/4"-20 Compact Camera Stands & Mounts,Clamps, Articulating arms and more... Read more
CV-USB-RS485
USB to RS485/422 Adapter for use with Marshall Windows Camera Control Software.Call for Price
Click Here For Additional Accessories
Camera Control Application
- Download Camera Control Software HERE
- Use USB to RS485/RS422 Converter (CV-USB-RS485)
- Use cat5 or 24AWG twisted-pair wire (sold separately)

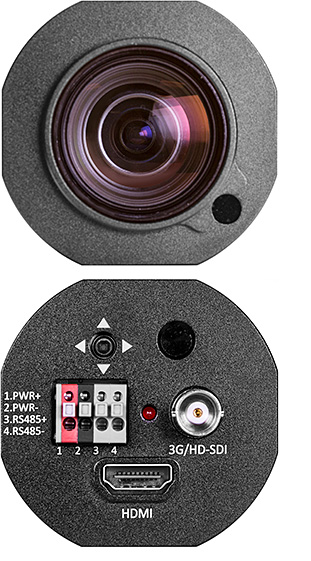

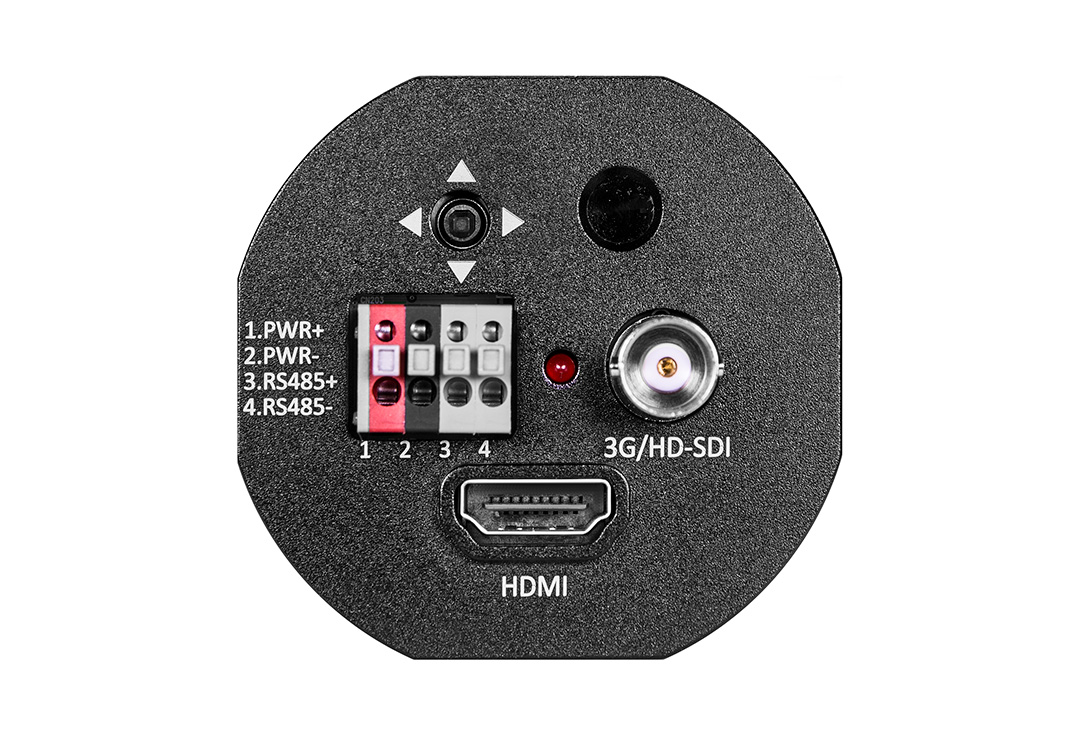

- Connect cable from RS485(+) terminal on Camera to T/R (+) on USB/RS485 converter
- Connect cable from RS485(-) terminal on Camera to T/R (-) on USB/RS485 converter
- Plug USB cable from USB/RS485 converter into USB port on Laptop or Computer (note ComPort#)
- Open up CamControl Program and match Serial Port to corresponding ComPort# used
- Select Baudrate in CamControl Program and match it in Camera OSD Menu under DISPLAY CONTROL > BAUDRATE
- Select Camera Address in CamControl Program and match it in Camera OSD Menu under DISPLAY CONTROL > CAM ID
- Select Open in CamControl Program
- Test connection by pushing MENU in lower right of CamControl Program - OSD Menu should come up on video signal
- Commands can also be sent without using OSD Menu
