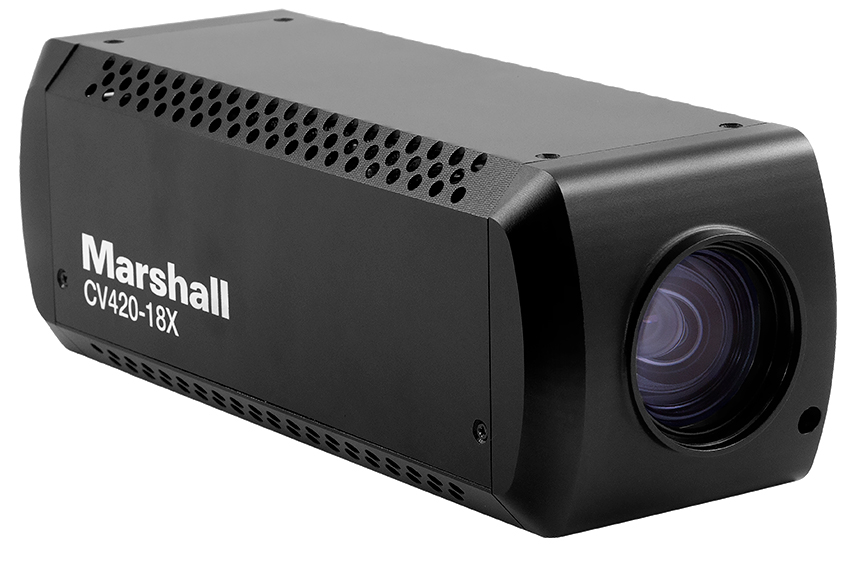

Marshall CV420-18X is high performing 4K camera with remote zoom and a suite of adjustable broadcast settings including Iris, White Balance, Exposure, Pedestal, and many more.


CV420-18X

18X Zoom True-4K60 12GSDI Camera

Spec Sheet Download Manual Camera Tips and Tricks Download Firmware Instructions Download Firmware Update Tool Download Latest Firmware Download Camera Control Software Visca Command List Hirose 12-pin Connector Pinout Download Images

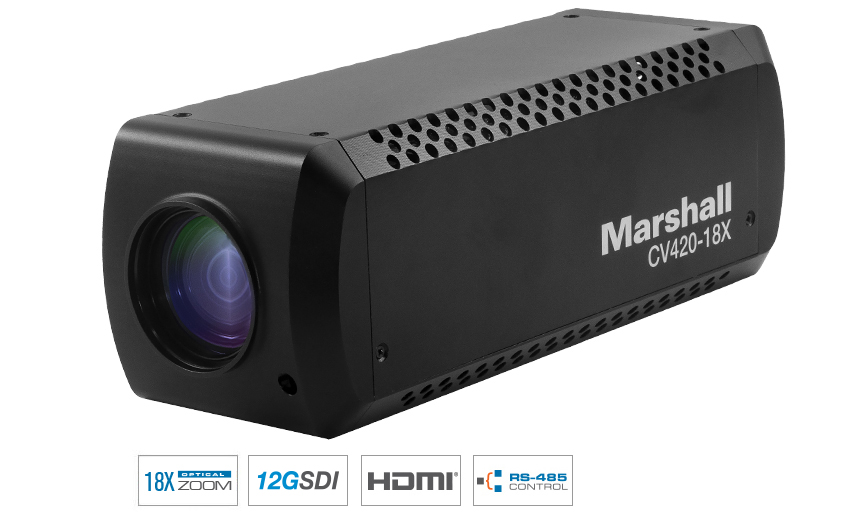

Marshall CV420-18X features 18x optical (3x digital) zoom block and flexible 12GSDI/HDMI simultaneous outputs with crystal clear 4K images up to 4096x2160p at 60fps. Remote adjust and match settings include Iris, Zoom, WB, Exposure, Pedestal, and many more over long distances or during setup with capable Auto settings that track environmental fluctuations.


CV355-10X delivers crystal-clear HD images up to 1920x1080p with all usable framerates on one model

Unmatched Versatility

Featuring 12G/6G/3G-SDI and HDMI2.0 simultaneous outputs, remote adjustable optical zoom range, and stereo audio embedding ability. CV420-18X delivers crystal-clear 4K images up to 4096x2160p with all usable framerates on one model with ultra-low light ability and industry leading low noise performance.

CV630-IP is a versatile camera with a 30x optical zoom

Durable Build Construction

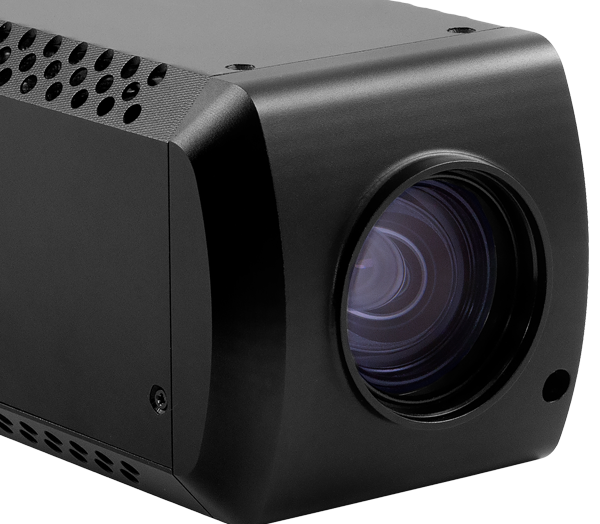

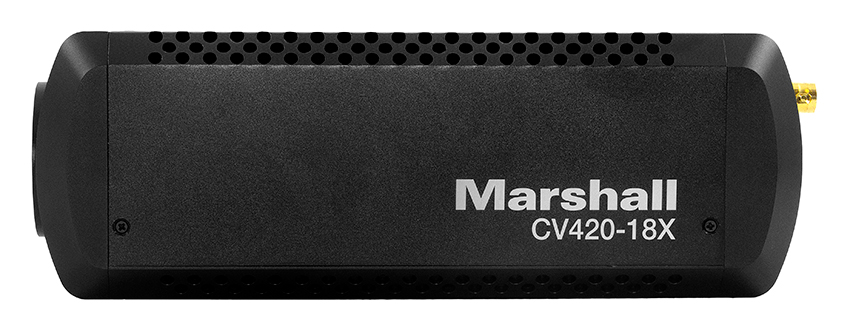

Constructed with a durable aluminum alloy body, full-sized BNC and HDMI connections, locking I/O cable carrying RS485/Audio/Power, and side impact protection panels to secure cable connections.

CV420-18X featuring a wide range of 4K, UHD and HD selections in 4096x2160p, 3840x2160p, 1920x1080p, 1280x720p progressive and 1920x1080i interlaced

Universal Use Cases

Featuring a wide range of 4K, UHD and HD selections in 4096x2160p, 3840x2160p, 1920x1080p, 1280x720p (progressive) and 1920x1080i (interlaced). Choose between 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 frame-rates to capture any workflow or application in every region of the world.

VS-PTC-IP is a PTZ camera controller for CV630-IP camera

Broadcast Performance

Marshall Camera Division continues to develop cutting edge camera products to follow the heritage of Marshall broadcast quality incorporating reliability, durability, flexibility and most importantly affordability with feature sets that matter to our industry partners.

  • 12.5 Megapixel 4K Sensor (1/1.7")
  • 18x Optical zoom (6.8mm~120mm) starting at 55° H.AOV - 3x Digital
  • 12G/6G/3G-SDI, and HDMI2.0 simultaneous outputs
  • 4096x2160p, 3840x2160p, 1920x1080p, 1920x1080i and 1280x720p
  • 60, 59.94, 50, 30, 29.97, 25, 24 and 23.98fps
  • 3.5mm TRS Stereo Audio over I/O cable (Mic/Line)
  • 12V Power cable included (7V~15V, 25.2W max)


Applications:

The CV420-18X is suitable for use in Cinema, Film, Broadcast, Production, Live Events, Sportscast, Government, Courtroom, House of Worship, College/University, Front of Stage, Confidence, Observation.
CV420-18X Specifications
Imaging Sensor Image Sensor 1/1.7” Progressive (Approx. 12.4 Megapixel)
Effective Pixel 4096(H) x 2160(V)
Pixel Size 1.85(μm) x 1.85(μm)
Min. Illumination Day: Full Auto (0.8Lux), AE Manual Iris Open (0.4Lux)
Night: Full Auto (0.04Lux), AE Manual Iris Open (0.02Lux)
Optics Lens 18x Optical Zoom, f=6.8~120 mm, F1.61 ~ F4.13
Zoom 18x optical zoom + 3x digital zoom = 54x
Angle of View (H) 55 degrees (wide end) to 3.4 degrees (tele end)
Minimum Working Distance 150 mm (wide open), 1500 mm (tele end)
Functions Focus Auto/ Manual
Exposure Auto / Shutter Priority/ Iris Priority/ AGC Priority/ Manual/ Bright
White Balance AWB (3,000°K~8,000°K) / ATW (1,900°K~11,000°K) / INDOOR / OUTDOOR / ONE PUSH / Manual
Light Modes DAY (color), NIGHT (b/w), AUTO switch
Electronic Shutter NTSC: 1/60~1/10000, PAL: 1/50~1/10000, SENS UP : OFF~X15
Adjustable Features Pedestal (Black Level), White Level, Privacy Mask, Image Mirror/Flip, Image Freeze, 2D/3D Noise Reduction, Edge Enhance, Defog, DIS (Digital Image stabilizer), Gamma Correct
Video Outputs HDMI 4096 x 2160p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98
3840 x 2160p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98
1920 x 1080p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98
1920 x 1080i: 60, 59.94, 50
1280 x 720p: 60, 59.94, 50
12G/6G/3G/HD-SDI 4096 x 2160p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98
3840 x 2160p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98
1920 x 1080p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98
1920 x 1080i: 60, 59.94, 50
1280 x 720p: 60, 59.94, 50
Audio Input 3.5mm TRS Stereo Audio Jack over I/O Cable (Mic and Line)
Sample Rate 16/24/32 Bits
Control Interface RS485 SONY-VISCA protocols, PELCO-P/D
General Operation Temperature -10°C ~ 50°C
Power Input 12VDC (7V to 15VDC)
Power consumption Max 25.2W
Mass 1.95 lbs (camera only), 2.18 lbs (with breakout cable)
Dimensions 232 (D) x 86 (W) x 80 (H) mm
Touchscreen RCP Camera Control

CV-RCP-V2

Touchscreen RCP Camera Control
Remote adjust & match cameras via RS485

Read more
Compact Weatherproof Extended Camera Housing with Fan and Heater

CV-H20-HFL

Compact Weatherproof Extended Camera Housing with Fan & Heater

Read more
Mini Camera Stands and Mounts accessories

1/4"-20 Mounts

1/4"-20 Compact Camera Stands & Mounts,
Clamps, Articulating arms and more...

Read more
Touchscreen RCP Camera Control

CV-USB-RS485

USB to RS485/422 Adapter for use with Marshall Windows Camera Control Software.

Call for Price


Click Here For Additional Accessories

Camera Control Application

  1. Download Camera Control Software HERE
  2. Use USB to RS485/RS422 Converter (CV-USB-RS485)
  3. Use cat5 or 24AWG twisted-pair wire (sold separately)
  4. Connect cable from RS485(+) terminal on Camera to T/R (+) on USB/RS485 converter
  5. Connect cable from RS485(-) terminal on Camera to T/R (-) on USB/RS485 converter
  6. Plug USB cable from USB/RS485 converter into USB port on Laptop or Computer (note ComPort#)
  7. Open up CamControl Program and match Serial Port to corresponding ComPort# used
  8. Select Baudrate in CamControl Program and match it in Camera OSD Menu under DISPLAY CONTROL > BAUDRATE
  9. Select Camera Address in CamControl Program and match it in Camera OSD Menu under DISPLAY CONTROL > CAM ID
  10. Select Open in CamControl Program
  11. Test connection by pushing MENU in lower right of CamControl Program - OSD Menu should come up on video signal
  12. Commands can also be sent without using OSD Menu
Camera Control Software display
