Pro HD/4K Cameras

The Marshall CV506 captures Full-HD 1920x1080p video at up to 60 fps in a sturdy, durable form factor, and straightforward design. The CV506 is suitable for use in full-HD broadcast and Pro AV workflows including live broadcast productions, sportscast, newscast, reality television, concerts, corporate, government, courtroom, house of worship, and many more.

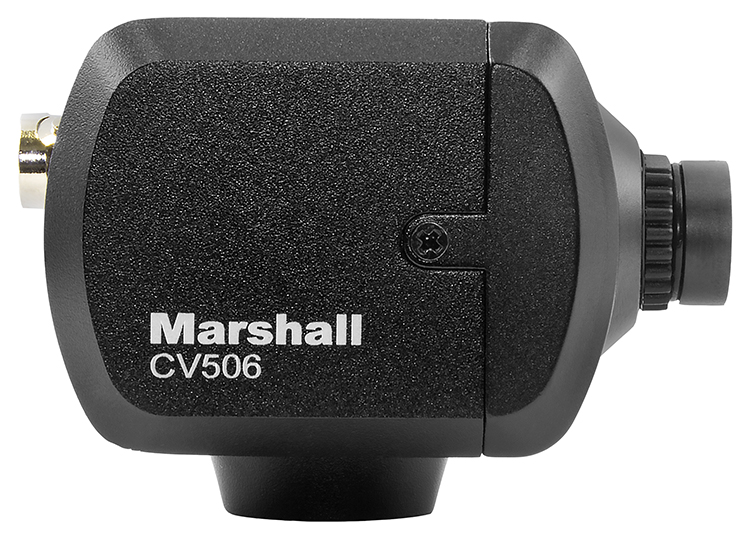

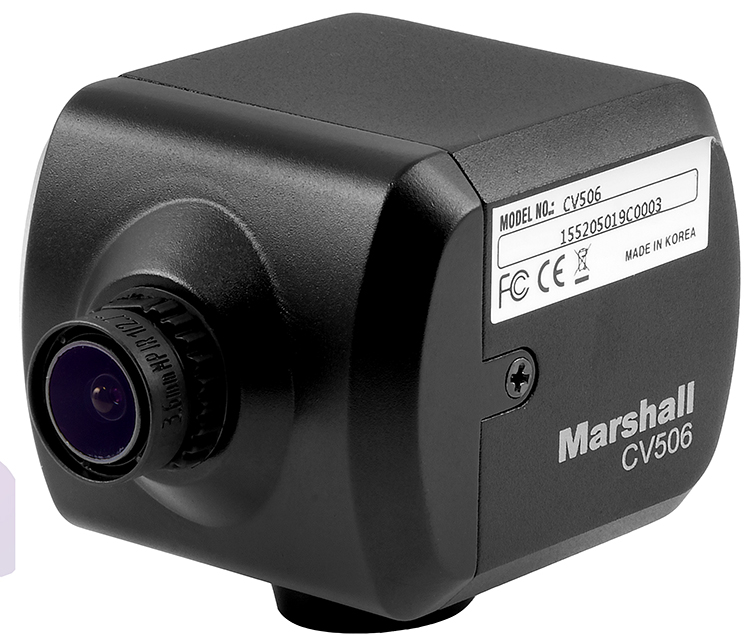

Marshall CV506

Miniature Full-HD Camera (3G/HDSDI & HDMI)



Owner's Manual Camera Tips and Tricks Specsheet Download Firmware Update Instructions Download Firmware Upload Tool Download Latest Firmware Download Camera Control Software Visca Command List Hirose 12-pin Connector Pinout Download Images


  • 3G/HDSDI and HDMI simultaneous outputs
  • 2.5 Megapixel (1/2.86") sensor (4:2:2 color)
  • Interchangeable M12 lens mount (includes stock 4.0mm lens 85°H. AOV)
  • Full-HD resolutions: 1920 x 1080p, 1920 x 1080i, and 1280 x 720p
  • Frame rates: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 fps
  • Remote adjust through RS485 (Visca) or OSD menu joystick
  • Wide range of picture adjustment settings including paint (red/blue), white balance, gain control, pedestal (blacks), white clip, exposure, gamma, and more
  • Compatible with Marshall RCP Control Unit, p/n: CV-RCP-V2
  • Includes 12v power supply, can operate 12V+/-10% with a 6 watt draw

The Marshall CV506 Full-HD Miniature Camera with HDMI offers performance, flexibility, and value in a tiny form factor. Built around a next generation 2.5-Megapixel, 1/2.86-inch sensor, the CV506 delivers ultra-crisp, clear progressive Full-HD video up to 1920x1080p at 60/59/50fps and interlaced 1920x1080i at 60/59/50fps.

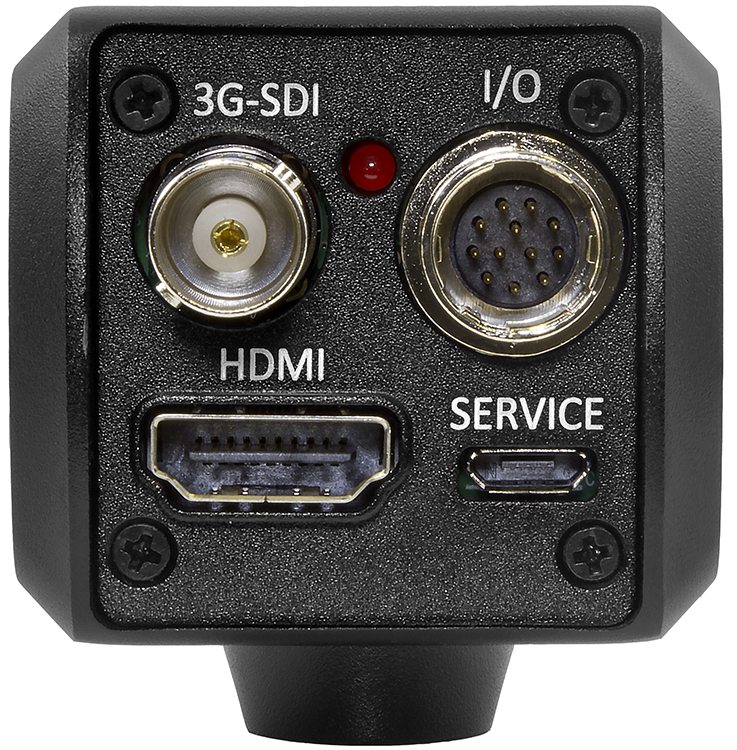

The CV506 utilizes full-sized BNC (3G/HDSDI) and HDMI outputs on rear panel and locking I/O connection for power, control, and stereo audio input (embedded on 3G-SDI output). The CV506's threaded M12 lens mount offers a wide range of prime and varifocal lens options.

The CV506 can capture detailed shots while maintaining an ultra-discreet miniature point-of-view perspective without sacrificing versatility or convenience. Remote adjustment and picture settings commands are delivered via common RS485 (Visca) or OSD menu joystick on locking breakout cable. A wide range of picture adjustment settings are available and adjustable from a distance including paint (red/blue), white balance, exposure, gain control, pedestal (blacks), white clip, gamma, and more.


Hirose Breakout Cable (included with camera)

Hirose Breakout Cable
  • 1. RS-485 wire (+/-) Input
  • 2. 12V Power 2.1 mm Plug (Center Contact)
  • 3. Hirose connector plugs into camera
  • 4. OSD Menu Control
  • 5. TRS Audio Mic/Line-level input


CV506 Applications:

The CV506 is suitable for use in Full-HD broadcast and Pro AV workflows including live broadcast productions, sportscast, newscast, reality television, concerts, corporate, government, courtroom, house of worship, and many more.

Compatible HD Prime Lens Options (M12):

Part Number Description & Horizontal AOV
CV-4702.3-3MP 2.3mm, F2.2 3MP M12 lens; Horiz AOV = 126°
CV-4702.8-3MP-IR 2.8mm, F2.6 3MP M12 lens; Horiz AOV = 100°
CV-4704.0-3MP 4.0mm, F2.6 3MP M12 lens; Horizontal AOV = 85° (1/2.7)
CV-4804.4-12MP 4.4mm, F2.7 12MP M12 Lens; Horiz AOV = 100° (1/1.8"), 70° (1/2.8")
CV-4706-3MP-IR 6.0mm, F2.4 3MP M12 lens; Horiz AOV = 48°
CV-4708.0-3MP 8.0mm, F1.8 3MP M12 lens; Horiz AOV = 40°
CV-4712.0-3MP 12.0mm, F1.8 3MP M12 lens; Horiz AOV = 33°
CV-4716.0-2MP 16.0mm, F1.8 2MP M12 lens; Horiz AOV = 25°


Compatible 8MP Prime Lens Options (M12):

Part Number Description & Horizontal AOV
CV4804-8MP 4.0mm F1.8 8MP M12 Lens - 90° (1/2.5"), 85° (1/2.7"), 80° (1/3")
CV4808-8MP 8.0mm F1.8 8MP M12 Lens - 70° (1/2.5"), 62° (1/2.7"), 50° (1/3")
CV4812-8MP 12.0mm F1.8 8MP M12 Lens - 50° (1/2.5"), 42° (1/2.7"), 33° (1/3")


Compatible 5MP Prime Lens Options (M12):

Part Number Description & Horizontal AOV
V-553.9-5MP-VIS-IR M12 3.9mm F2.0 5MP M12 Lens - 80° (1/3"), 96° (1/2.5"), 125° (1/1.7")
V-555.0-5MP-VIS-IR M12 5.0mm F2.0 5MP M12 Lens - 63° (1/3"), 75.5° (1/2.5"), 98° (1/1.7")
V-557.6-5MP-VIS-IR M12 7.6mm F2.0 5MP M12 Lens 40.4° (1/3"), 48° (1/2.5"), 60° (1/1.7")


Compatible HD Varifocal Lens Options (M12):

Part Number Description & Horizontal AOV
CV-2812-3MP 2.8~12mm, F1.4 3MP Varifocal M12 lens; Horiz AOV = 32~100° (1/2.7")
CV-0622-5MP 6.0~22mm, F1.6 5MP Varifocal M12 lens; Horiz AOV = 46~16°
*Horizontal Angle-of-View (AOV) in degrees are approximate and vary according to exact sensor size and design.
**If camera model contains IP67 weatherproof cap, there may be some limitation as to which lenses will allow cap to fit back on camera.
Actual viewing angle may vary depends on image sensor specs and camera design.
Touchscreen RCP Camera Control

CV-RCP-V2

Touchscreen RCP Camera Control
Remote adjust & match cameras via RS485

Read more
Mini Camera Stands and Mounts accessories

1/4"-20 Mounts

1/4"-20 Compact Camera Stands & Mounts,
Clamps, Articulating arms and more...

Read more
10 feet Hirose Breakout Cable

CV-BSE-10FT

10 foot (3.05m) Hirose Breakout Replacement Cable for
CV Series Cameras

Read more
Touchscreen RCP Camera Control

CV-USB-RS485

USB to RS485/422 Adapter for use with Marshall Windows Camera Control Software.

Call for Price

CV-PT-HEAD Micro Pan and Tilt Head

CV-PT-HEAD

Micro Pan/Tilt Head

Read more

Click Here For Additional Accessories


CV502/505-series Live from Las Vegas, Nevada

CV502/505-series Live from Las Vegas, Nevada

CV502/500 mounted on Hockey Helmet

CV502 capture wide-shot at College Basketball game

CV502/500 mounted on Basketball Backboard

CV502/500 mounted on Volleyball Net


Camera Control Application

  1. Download Camera Control Software HERE
  2. Use USB to RS485/RS422 Converter (CV-USB-RS485)
  3. Use cat5 or 24AWG twisted-pair wire (sold separately)
  4. Connect cable from RS485(+) terminal on Camera to T/R (+) on USB/RS485 converter
  5. Connect cable from RS485(-) terminal on Camera to T/R (-) on USB/RS485 converter
  6. Plug USB cable from USB/RS485 converter into USB port on Laptop or Computer (note ComPort#)
  7. Open up CamControl Program and match Serial Port to corresponding ComPort# used
  8. Select Baudrate in CamControl Program and match it in Camera OSD Menu under DISPLAY CONTROL > BAUDRATE
  9. Select Camera Address in CamControl Program and match it in Camera OSD Menu under DISPLAY CONTROL > CAM ID
  10. Select Open in CamControl Program
  11. Test connection by pushing MENU in lower right of CamControl Program - OSD Menu should come up on video signal
  12. Commands can also be sent without using OSD Menu
Camera Control Software display
