The Marshall CV610-U3-V2 is an HD, USB-powered PTZ camera with a wide Angle-of-View (AOV), compact footprint, and control through common control protocols as well as RS232/485.


Marshall
CV610-U3-V2 (Black/Silver)

10x HD60 USB/HDI PTZ Camera

Specsheet Download Download Manual Quick Installation Guide Download Images

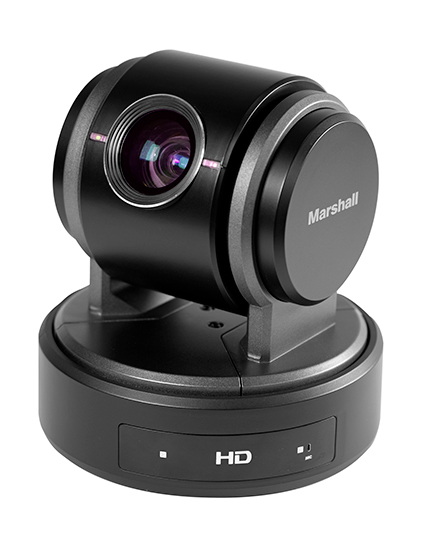

Full HD Teleconference PTZ USB3.0-2.0 Camera

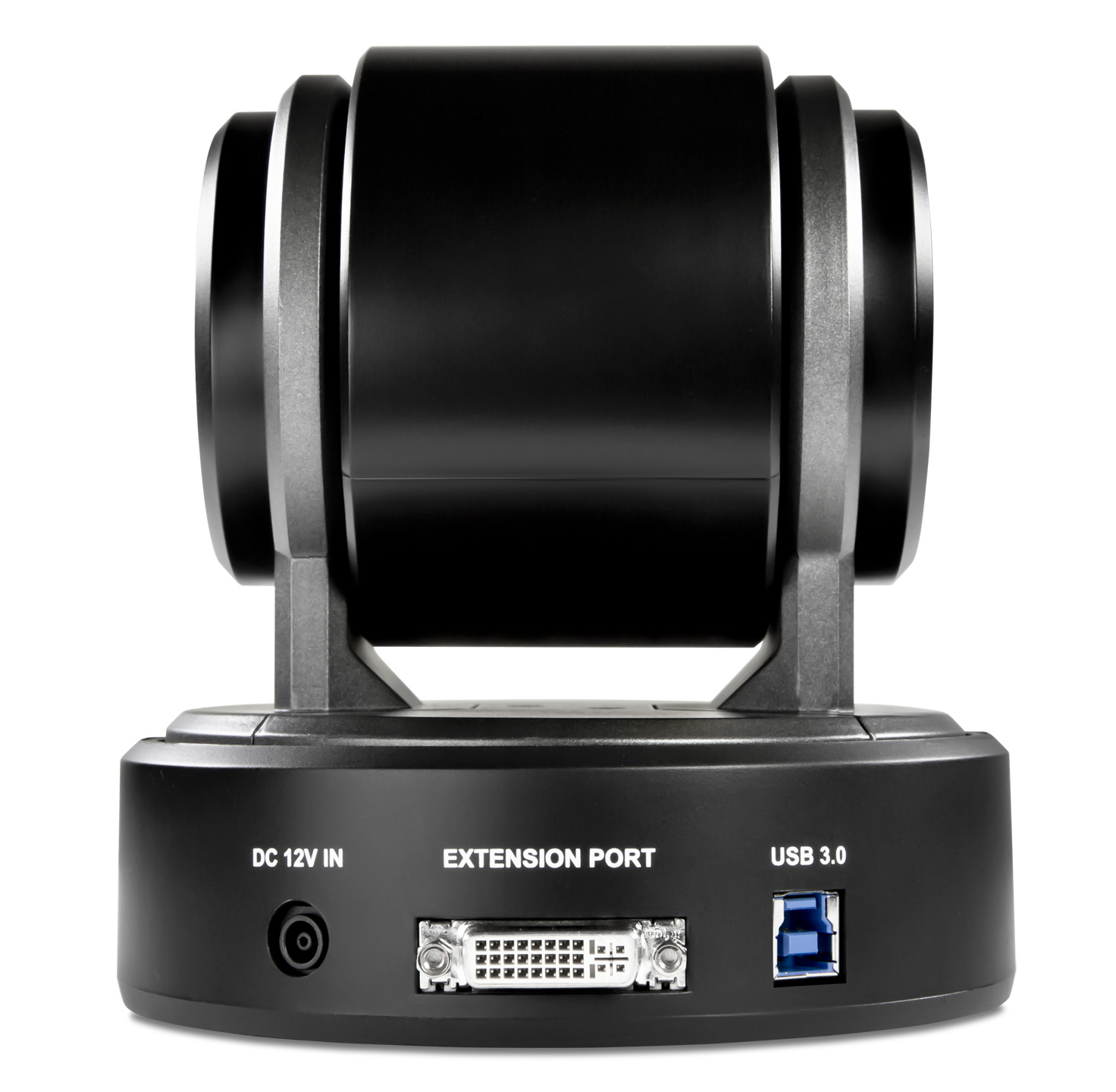

Full HD Teleconference PTZ USB3.0 2.0 Camera rear view
  • 2-Megapixel HD Sensor
  • 10x Optical Zoom: 62.5°~6.4°Horizontal AOV (12x Digital Zoom)
  • Compact overall footprint (approx.): 145mm diameter, 112mm head diameter, 155mm height
  • USB 3.0/2.0 (uncompressed) output with simultaneous HDMI output
  • Full-HD resolutions: 1920x1080p, 1280x720p
  • Frame rates: 60, 50, 30, 25 fps
  • HDMI output resolution can be set independently of USB output resolutions
  • Onboard audio microphone & 3.5mm TRS audio input (embeds on USB, not HDMI)
  • Pan-Tilt Range: 350° Horizontal Pan Range / 120° Tilt Range
  • Up to 128 presets with quiet, smooth transitions
  • Control via common software UVC codecs, IR Remote, RS232, RS485, and USB 3.0/2.0
  • Breakout Cable, USB 3.0/2.0 cable, and 12V Power Cord included with camera


CV610-U3-V2 remote

VS-PTC-IP Preferred Controller for Marshall PTZ Cameras

VS-PTC-IP

Preferred Controller
for Marshall PTZ Cameras
Marshall's new second-generation CV610-U3-V2 is a compact USB PTZ camera with backwards compatibility (USB 3.0/2.0), a wider horizontal Angle-of-View (AOV) at 63°, and simultaneous HDMI livestream output. The CV610-U3-V2 has a compact footprint and uses common control protocols over USB (UVC 1.5 and UAV 2.0) making it a versatile and easy-to-use PTZ camera that can be integrated with a variety of different software codecs. The CV610-U3-V2 was developed to deliver next-level performance for any UCC, teleconference, Pro A/V, or livestreaming applications with HD video output in 1920x1080p at 60/50/30/25 fps, and 1280x720 at 60/50/30/25 fps.
CV610-U3 Cable

    CV610-U3 Cable (included with camera)

  • 1. Camera Port (connect to rear of camera)
  • 2. CVBS (non active)
  • 3. RS232 Control Port: RX(1), TX(2), GND(3), NC(4)
  • 4. Audio line IN (3.5mm jack)
  • 5. HDMI video output
  • 6. RS422/485 Control Port: GND(1), T+(2), T-(3), R+(4), R-(5)

CV610-U3-V2 Applications:

Teleconference • Pro A/V • Computer Capture • Machine Vision • UCC • Education • Livestreaming
PTZ IP Camera Controller

VS-PTC-IP

PTZ IP/RS232/RS422 Controller
Full featured controller for CV355-30X, CV420-30X, CV605, CV610, CV612, CV620, CV630, CV730 cameras. Read more
PTZ Keyboard Controller Preferred Controller for CV620 PTZ Cameras

VS-PTC-200

PTZ Keyboard Controller.
Compatible with CV355-30X, CV420-30X, CV605, CV610, CV612, CV620, CV630, CV730 cameras.
Read more
CV610-U3-CABLE - Replacement pigtail cable

CV610-U3-CABLE

Replacement pigtail cable includes HDMI output, RS-232, RS-485, and line-in audio input.
Ceiling Mount Plate and Wall Mount Plate for PTZ camera

CV610-U3-WM

Wall Mount Plate for CV610 camera

CV610-U3-CM

Ceiling Mount Plate for CV610 camera

Click Here For Additional Accessories
