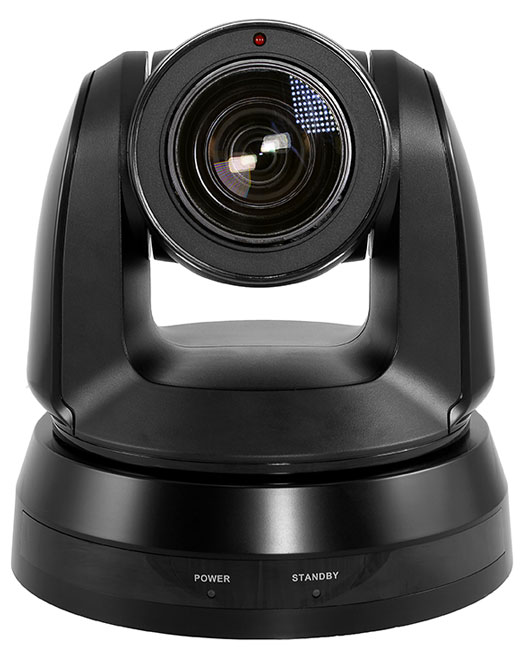

CV612HT-4K
12x UHD30 HDI/HDBT PTZ Camera
Spec Sheet Quick Installation GuideDownload ManualQuick Setup of VS-PTC-200 controller with CV612HT PTZ camera RS232 to CAT Cable ConnectorsRS-232/422 Wire DiagramsWall Mount InstallationCrestron Control ModulesExtron Control DriversDownload Images
- 1/2.3" 9MP UHD Sensor
- 4K/UHD/HD: 3840x2160p(UHD), 1920x1080p(HD),
1920x1080i(HD) & 1280x720p - High Speed: 59.94, 50, 29.97, 25fps (NTSC/PAL)
- Clear Image Zoom: 1.67x (4K:20x), 2.0x (1080p24x), 12x optical - 12x digital
- Wide Angle-of-View @ 3.9mm - 74° Panoramic AOV
- Pan Range: -170° ~ +170°, Tilt Range: -30° ~ +90°
- 128 preset locations with variable transition speeds
- Quiet, smooth, durable PAN-TILT-ZOOM motor allows for quality transitions
- HDBaseT (uncompressed), HDMI outputs
- RS422/RS232 Remote Control Interface at High Comm Speeds
- Mountable via table, wall or ceiling. Ceiling mount included in box; wall mounts CV6XX-WM (Black) or CV6XX-WMW (White) sold separately.
- Compatible with integrated video conferencing systems (VISCA/PELCO)
- PoE (IEEE802.3af) over HDBaseT (Cat5e/6) - one Cat5e/6 hookup to camera
- Tally Light on front camera panel
VS-PTC-IP
Preferred Controllerfor Marshall PTZ Cameras

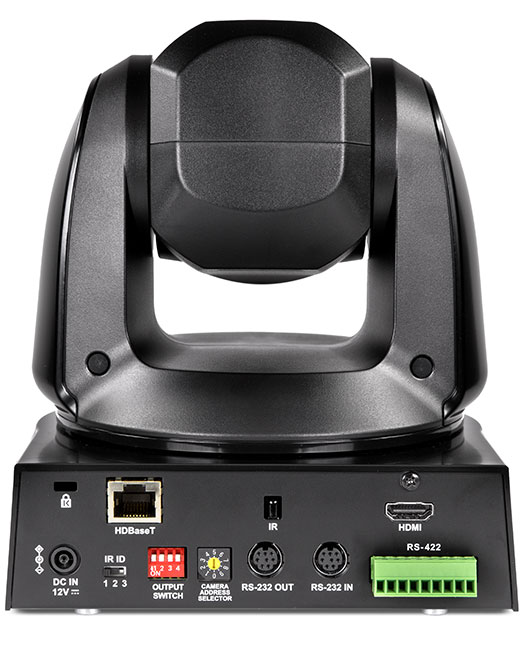

REAR OUTPUTS:
- 1. Kensington Lock Port
- 2. HDBase T
- 3. HDMI Output
- 4. DC 12V Input
- 5. IR Select
- 6. Output Switch
- 7. Camera Address Selector
- 8. RS232 Output
- 9. RS232 Input
- 10. RS422
Marshall Electronics Broadcast ProAV 4K PTZ HDBaseT/HDMI Camera is built around a 4K UHD 9 Megapixel 1/2.8-inch sensor with durable and smooth simultaneous Pan-Tilt-Zoom operation. One Cat5e/6 cable carries PoE (48V), uncompressed 4K video, and command control to camera. Remote operation and control using common protocols make it compatible with most integrated control systems. Broadcast adjustable settings such as White Balance, Exposure, Iris, Gamma, Gain, Black Level and other operational adjustments create tremendous flexibility of use.
CV612HT-4K Applications:
Corporate • Courtroom • Education • Worship • Healthcare • Medical • Government • Entertainment • Music and a variety of Broadcast studio work-flows| Sensor | 1/2.3” 9MP CMOS |
| Video Output | 3840 x 2160p @ 29.97 / 25 fps 1920 x 1080p @ 59.94 / 50 fps 1920 x 1080i @ 59.94 / 50 fps 1280 x 720p @ 59.94 / 50 fps NTSC / PAL |
| Optical Zoom | 12x |
| Clear Image Zoom | 1.67x (4K:20x) 2.0x (1080P:24x) |
| Digital Zoom | 12x |
| Video Output Interface | HDBaseT, HDMI simultaneous |
| Horizontal Viewing Angle | 74° at widest |
| Panning Angle | -170° ~ +170° |
| Tilting Angle | -30° ~ +90° |
| Preset Positions | 128 savable |
| Panning Speed | 300°/sec |
| Tilting Speed | 300°/sec |
| Video S/N Ratio | > 50dB |
| Shutter Speed | 1/1 ~ 1/10,000 sec |
| Focal Length | f = 3.9mm~46.8mm |
| Aperture | F1.8~F2.0 |
| Tally Light | Yes |
| PoH (PoE over Cat6e) |
Yes (IEEE802.3af) |
| Camera Control Interface | RS-232/ RS-422 |
| Camera Control Protocol | VISCA, PELCO D |
| Minimum Illumination | 3.0 lux (F1.8, 50 IRE, 30 fps) |
| Minimum Object Distance (MOD) | 10mm (Wide) ~ 1500 mm (Tele) |
| Gain Control | Auto, Manual |
| White Balance | Auto, Indoor, Outdoor, One-Push, Manual |
| Exposure Control | Auto, Manual |
| Focus System | Auto, Manual |
| Image Flip / Joystick Flip | Yes |
| 3D NR | Yes |
| Weight | 2.0kg (4.4 lbs) |
| Dimension: (WxD) | 186.8mm (H) x 174.0mm (W) |
CV620-CABLE-06
Controller Cable Connector RS232 to Cat (RJ45) - VS-PTC-200 (only)CV620-CABLE-07
Camera Cable Connector RS232 to Cat5/6 (RJ45) - Camera Side
VS-PTC-IP
PTZ IP/RS232/RS422 ControllerFull featured controller for CV355-30X, CV420-30X, CV605, CV610, CV612, CV620, CV630, CV730 cameras. Read more
VS-PTC-200
PTZ Keyboard Controller.Compatible with CV355-30X, CV420-30X, CV605, CV610, CV612, CV620, CV630, CV730 cameras.
Read more
CV-PTZ-WM (Black)
CV-PTZ-WMW (White)
Wall mount with wire conceal.Quick Wall Mount Installation Guide
CV-PTZ-BOX
Wall Installation Mount for PTZ Cameras(Camera not included)
CV-PTZ-DCM
Drop Ceiling Mount for Marshall PTZ CamerasClick Here For Additional Accessories
Video Software Control
- Download Video Software Control User Guide (PDF) HERE
- Download Video Software Control Application HERE
CV620-CABLE-07 Extender Connection
CV620-CABLE-06 Extender Connection
* The CV620-CABLE-06 cannot be connected with a Computer and a VS-PTC-200 Controller at the same time
