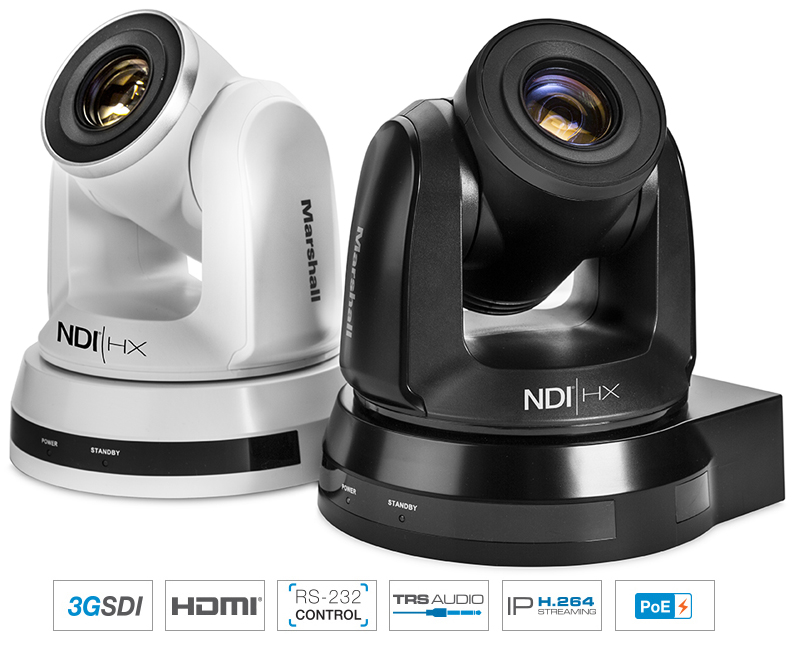

Full HD Broadcast PTZ Conference Camera with multiple outputs: HDSDI (3G), HDMI, DVI, Composite Outputs


Marshall

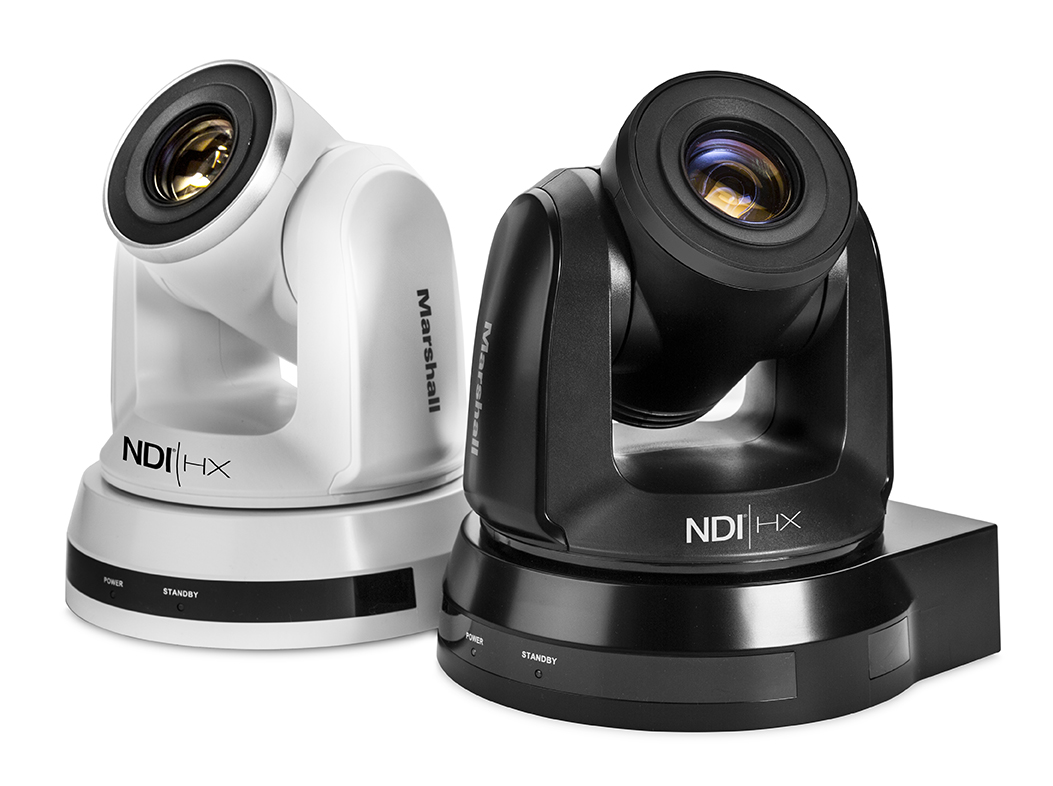

CV620-NDI (Black)
CV620-NDIW (White)

Full-HD PTZ Camera
NDI HX


Quick Installation Guide Download Manual Specsheet Download Quick Setup of VS-PTC-200 controller with CV620 PTZ camera RS232 to CAT Cable ConnectorsRS-232/422 Wire DiagramsRS232 Command ListWall Mount InstallationCrestron Control ModulesExtron Control Drivers Download Latest FirmwareVideo Management Software Download Images

Full HD PTZ Conference IP Camera Rear view
  • 2-Megapixel 1/2.8-inch Sensor
  • Full-HD: 1920x1080i, 1920x1080p, 1280x720p
  • High Speed: 60, 59.94, 50, 30, 29.97, 25 fps
  • 20X Optical Zoom 4.7~94mm (F1.6~3.5) with 12x Digital
  • Wide Pan-Tilt Range: 340-degree Horizontal Pan - 120-degree Vertical Tilt
  • TRS Audio Line/Mic level select (2.5V to mic)
  • Quiet, smooth, stable, synchronous PAN-TILT-ZOOM motor
  • Mountable via table, wall or ceiling. Ceiling mount included in box; wall mounts CV6XX-WM (Black) or CV6XX-WMW (White) sold separately.
  • 3G/HD-SDI, HDMI, and NDI simultaneous outputs with support for
    PoE+ (802.3af) Power over Ethernet
  • REAR OUTPUTS:

  • 1. USB port for FW updates
  • 2. 12V Power input
  • 3. NDI NETWORK Ethernet (PoE/H.264/Control)
  • 4. HDMI Type-A Output
  • 5. 3G/HD-SDI Output
  • 6. OUTPUT Selection Switch
  • 7. IR SELECT
  • 8. TRS Audio In
  • 9. RS-232 loop-through OUT
  • 10. RS-232 INPUT port
  • 11. RS-422 port
VS-PTC-IP Preferred Controller for Marshall PTZ Cameras

VS-PTC-IP

Preferred Controller
for Marshall PTZ Cameras

The Marshall CV620-NDI Full-HD PTZ Camera combines the performance and versatility of the popular Marshall CV620 PTZ Camera with NewTek's NDI|HX technology for use with NDI compatible systems. The CV620-NDI is built around a professional grade 2-Megapixel 1/2.8-inch sensor with 20x optical zoom, 340-degree horizontal pan, and 120-degree vertical tilt for complete crisp video coverage of meeting rooms, connected classrooms, control rooms, live events, and more.

In addition to 3G/HD-SDI and HDMI outputs, the CV620-NDI's NDI capability enables this camera to be easily integrated, controlled, and managed using a range of NDI-enabled equipment for seamless IP-based workflows.

  • RS422/RS232 Remote Control Interface at High Comm Speeds
  • Mountable via table, wall, ceiling mounts included for use with built-in image flip setting
  • Compatible with integrated video conferencing systems and NDI-enabled networks


CV620-NDI Applications:

Broadcast, house of worship, live television, live production, production/broadcast trucks, e-sports
CV620-NDI specifications
Sensor 1/2.8" 2MP CMOS
Video Output 1920 x 1080p @ 60, 59.94, 50, 30, 29.97, 25fps
1920 x 1080i @ 60, 59.94, 50fps
1280 x 720p @ 60, 59.94, 50fps
Optical Zoom 20x
Panning Angle -170° ~ +170°
Tilting Angle -30° ~ +90°
Preset Positions 128
Video Output (HD) Interface HDMI, 3G-SDI, Ethernet
Network Interface ONVIF / RTSP Streaming / RTMP Streaming
PoE+ 802.3at
Camera Control Interface/Protocol RS-232 / RS-422 / Ethernet
Video S/N Ratio > 50dB
Shutter Speed 1/1 ~ 1/10,000 sec
Focal Length f = 4.7 ~ 94 mm
3DNR Yes
Horizontal Viewing Angle 63°
Aperture F1.6 ~ F3.5
Minimum Illumination 1.0 lux (F1.6, 50IRE, 30fps)
Minimum Object Distance 300mm (Wide) ~ 1500mm (Tele)
Gain Control Auto, Manual
White Balance Auto, Indoor, Outdoor, One-Push, Manual
Exposure Control Auto, Manual
Focus System Auto, Manual
Image Flip Yes
Video Compression MJPEG, H.264 / SVC
Weight 2 kg (4.4 lbs)
PTZ IP Camera Controller

VS-PTC-IP

PTZ IP/RS232/RS422 Controller
Step-up Controller for CV605, CV610, CV612, CV620, CV630, CV730 Cameras Read more
PTZ Keyboard Controller Preferred Controller for CV620 PTZ Cameras

VS-PTC-200

PTZ Keyboard Controller.
Compatible with CV355-30X, CV420-30X, CV605, CV610, CV12, CV620, CV630, CV730 cameras.
Read more
Wall mount with wire conceal

CV6XX-WM (Black)
CV6XX-WMW (White)

Wall mount with wire conceal.
Quick Wall Mount Installation Guide
26-port POE Switch for IP Cameras, Encoders and Decoders

VS-SW-100

24 port 10/100/1000Mbps PSE with
2 port Gigabit SFP Switch
Read more

Click Here For Additional Accessories

CV620-CABLE-07 Extender Connection

RS232 to CAT5 Cable Connectors

CV620-CABLE-06 Extender Connection

RS232 to CAT5 Cable Extender Connection
* The CV620-CABLE-06 cannot be connected with a Computer and a VS-PTC-200 Controller at the same time


* Pricing, specification and features are subject to change
