Marshall

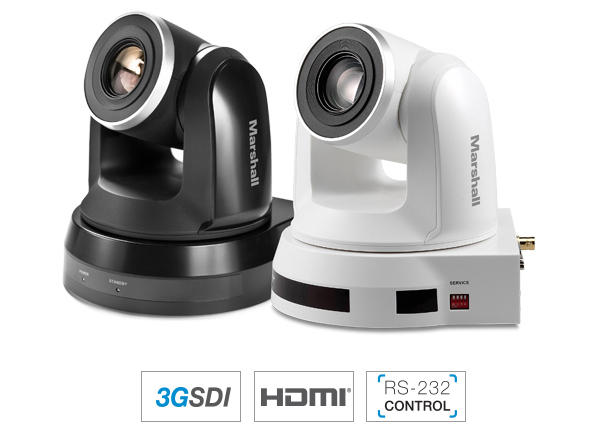

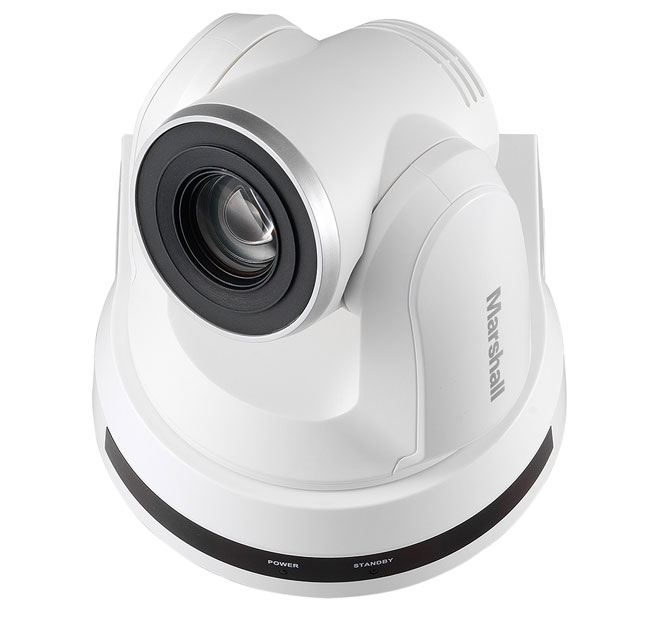

CV620-WH (White)

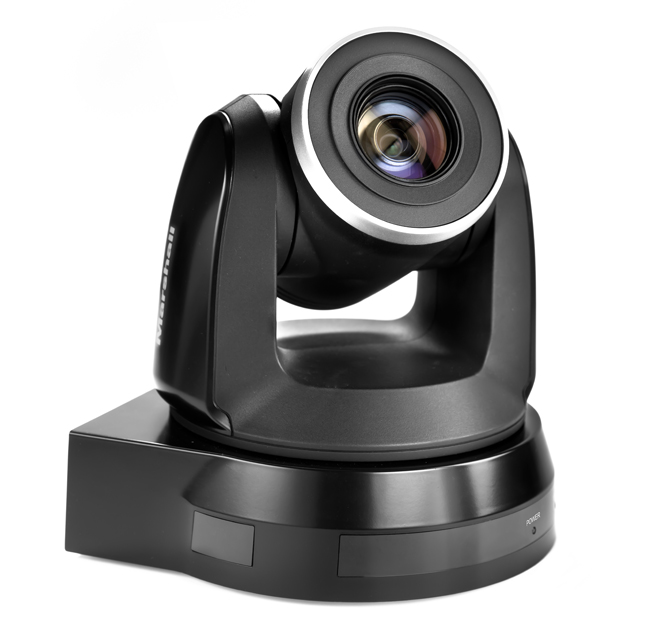

CV620-BK (Black)
HD PTZ Cameras with
3G/HD-SDI, DVI (HDMI) and VGA (Component)
Specsheet Download Download Manual Quick Installation GuideCrestron Control ModulesExtron Control DriversWall Mount InstallationQuick Setup of VS-PTC-200 controller with CV620 PTZ cameraRS232 to CAT5/6 Cable Connectors
RS232 / RS422 Connection Download Images
- 2 Megapixel 1/2.8-inch Sensor
- Full-HD: 1920x1080i, 1920x1080p, 1280x720p
- High Speed: 60, 59.94, 50, 30, 29.97, 25 fps
- 20X Optical Zoom 4.7~94mm (F1.6~3.5) with 12x Digital
- Pan-Tilt Range: 340 degree Horizontal Pan - 120 degree Vertical Tilt
- Quiet, smooth, stable PANTILT-ZOOM motor allows for quality transitions
- HD-SDI (3G)-BNC, Component-VGA, DVI (HD), Composite Video
- RS422/RS232 Remote Control Interface at High Comm Speeds
- Mountable via table, wall, ceiling mounts included with flippable images
- Compatible with integrated video conferencing systems

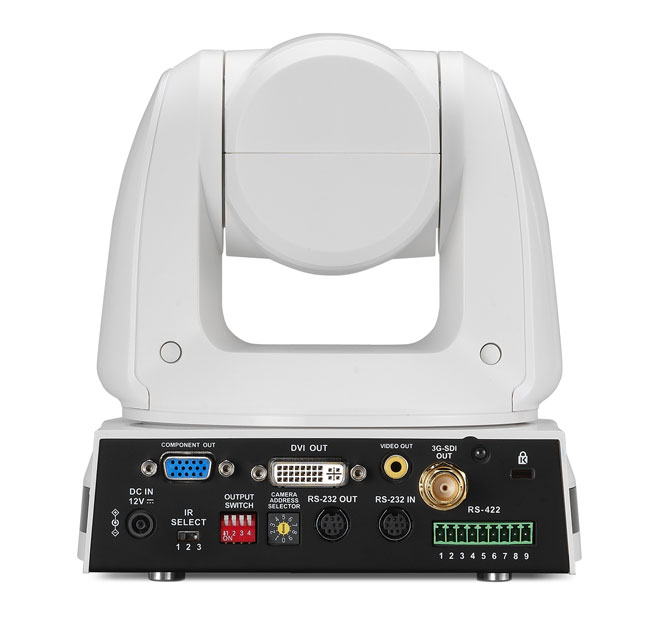

REAR OUTPUTS:
- 1. 12 V Power Input
- 2. Kensington Lock Port
- 3. 3G/HD-SDI (BNC) output
- 4. RS-422 com port
- 5. DVI outport
- 6. RS-232 OUT (loop-thru)
- 7. RS-232 IN
- 8. Video Resolution & Framerate select-dial
- 9. IR remote Select
VS-PTC-IP
Preferred Controllerfor Marshall PTZ Cameras
Marshall Electronics Broadcast ProAV HD PTZ Camera is built around a professional grade 2 Megapixel 1/2.8-inch sensor with a smooth 20x Optical Zoom (4.7~94mm) block. Versatile outputs such as HD-SDI (3G), Component-VGA, DVI (HD), and Composite outputs. Remote operation and control via RS232 over Ethernet or RS422 over twisted pair using common protocols make it compatible with most integrated control systems. Broadcast adjustable settings such as White Balance, Exposure, Iris, Gamma, Gain, Black Level and other operational adjustments create tremendous flexibility of use. Applications served would include Corporate, ProAV, Education, Worship, Healthcare, Medical, Government, Courtroom, Entertainment, Music and a variety of Broadcast studio workflows.
CV620 Applications:
Broadcast Multimedia • Teleconference • Corporate Boardroom • House of Worship • Courtroom • Healthcare • Government • Concert & Studio Music Video
CV6XX-WM (Black)
CV6XX-WMW (White)
Wall mount with wire conceal.Quick Wall Mount Installation Guide
Click Here For Additional Accessories
Video Software Control
- Download Video Software Control User Guide (PDF) HERE
- Download Video Software Control Application HERE
CV620-CABLE-07 Extender Connection
CV620-CABLE-06 Extender Connection
* The CV620-CABLE-06 cannot be connected with a Computer and a VS-PTC-200 Controller at the same time
* Pricing, specification and features are subject to change
