Marshall

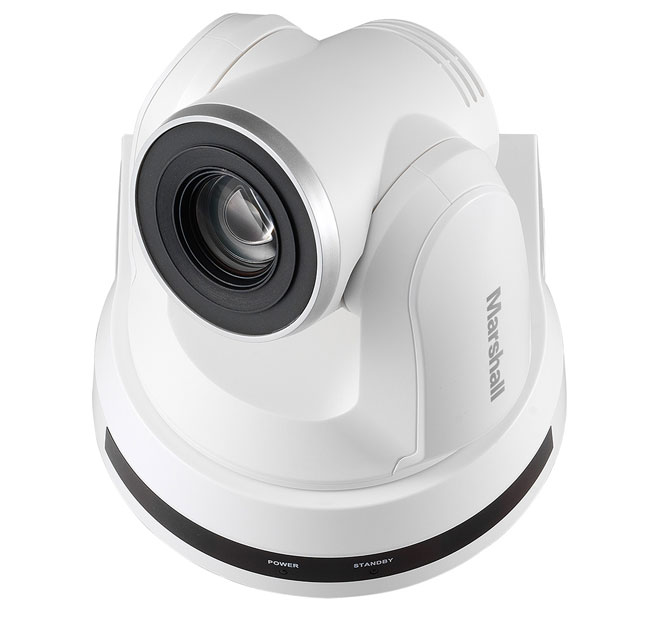

CV620-WH2 (White)

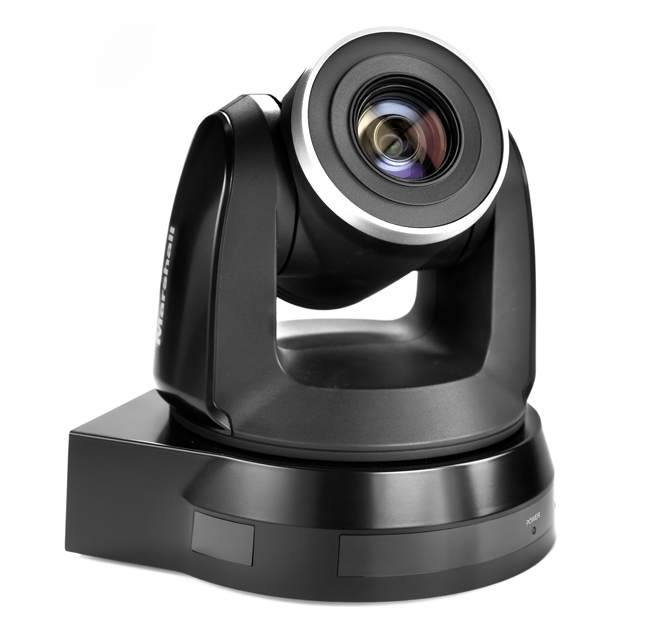

CV620-BK2 (Black)
HD PTZ Cameras with
3G/HD-SDI, DVI (HDMI)
Quick Installation GuideDownload ManualQuick Setup of VS-PTC-200 controller with CV620 PTZ camera
RS232 to CAT Cable ConnectorsRS-232/422 Wire DiagramsRS232 Command ListWall Mount InstallationCrestron Control ModulesExtron Control Drivers Download Images
- 2 Megapixel 1/2.8-inch HD sensor
- Full-HD: 1920x1080i, 1920x1080p, 1280x720p
- High Speed: 60, 59.94, 50, 30, 29.97, 25 fps
- 20X Optical Zoom 4.7~94mm (F1.6~3.5) with 12x Digital
- Pan-Tilt Range: 340 degree Horizontal Pan - 120 degree Vertical Tilt
- Quiet, smooth, stable PAN, TILT, ZOOM motor allows for
quality transitions - Simultaneous 4D Control for Pan, Tilt, Zoom, and Focus
- Variable Transition Speeds: 5~300° per second with optional Motionless Transition
- HD-SDI/3G-SDI (BNC) and DVI video outputs
- RS232/RS422 Remote Control Interface at High Comm Speeds
- Mountable via table, wall or ceiling. Ceiling mount included in box; wall mounts CV6XX-WM (Black) or CV6XX-WMW (White) sold separately.
- Compatible with most integrated video management systems

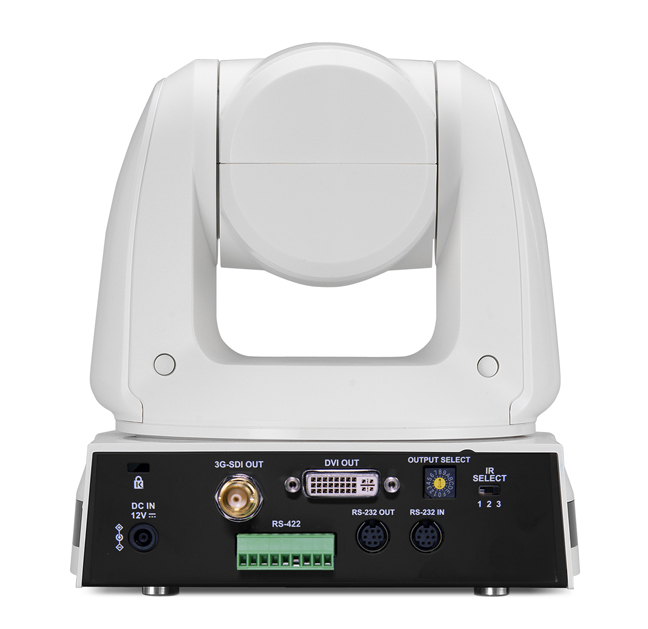

REAR OUTPUTS:
- 1. 12 V Power Input
- 2. Kensington Lock Port
- 3. 3G/HD-SDI (BNC) output
- 4. RS-422 com port
- 5. DVI output
- 6. RS-232 OUT (loop-thru)
- 7. RS-232 IN
- 8. Video Resolution & Framerate select-dial
- 9. IR remote Select
VS-PTC-IP
Preferred Controllerfor Marshall PTZ Cameras
Marshall Electronics' Broadcast Pro AV High-Definition PTZ Camera is built around a professional-grade, 2-Megapixel 1/2.8-inch sensor, with a smooth 20x Optical Zoom (4.7~94mm) block. The camera can be controlled remotely via RS-232 over Ethernet cable, or RS-422 over twisted pair, and uses common protocols to make it compatible with most integrated control systems. It has versatile outputs such as HD-SDI (3G) and HDMI (DVI), and includes a number of broadcast adjustable settings such as White Balance, Exposure, Iris, Gamma, Black Level, and more for tremendous flexibility of use. Applications served include corporate, Pro AV, education, worship, healthcare, medical, government, courtroom, entertainment, music, and a variety of broadcast studio workflows.
CV620-WH2 and CV620-BK2 Applications:
Broadcast Multimedia • Teleconference • Corporate Boardroom • House of Worship • Courtroom • Healthcare • Government • Concert & Studio Music Video
VS-PTC-IP
PTZ IP Camera ControllerCompatible Controller for all CV620 series, CV612 series, and CV610 series cameras.
Preferred Controller for CV620 PTZ Cameras. Read more
CV6XX-WM (Black)
CV6XX-WMW (White)
Wall mount with wire conceal.Quick Wall Mount Installation Guide
Video Software Control
- Download Video Software Control User Guide (PDF) HERE
- Download Video Software Control Application HERE
CV620-CABLE-07 Extender Connection
CV620-CABLE-06 Extender Connection
* The CV620-CABLE-06 cannot be connected with a Computer and a VS-PTC-200 Controller at the same time
* Pricing, specification and features are subject to change
