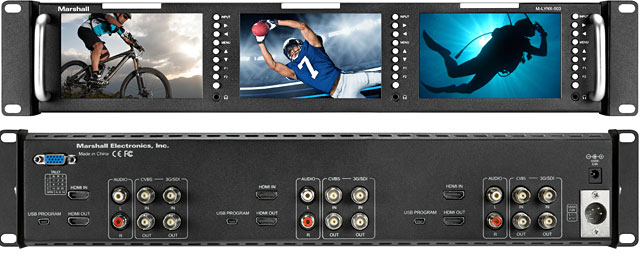

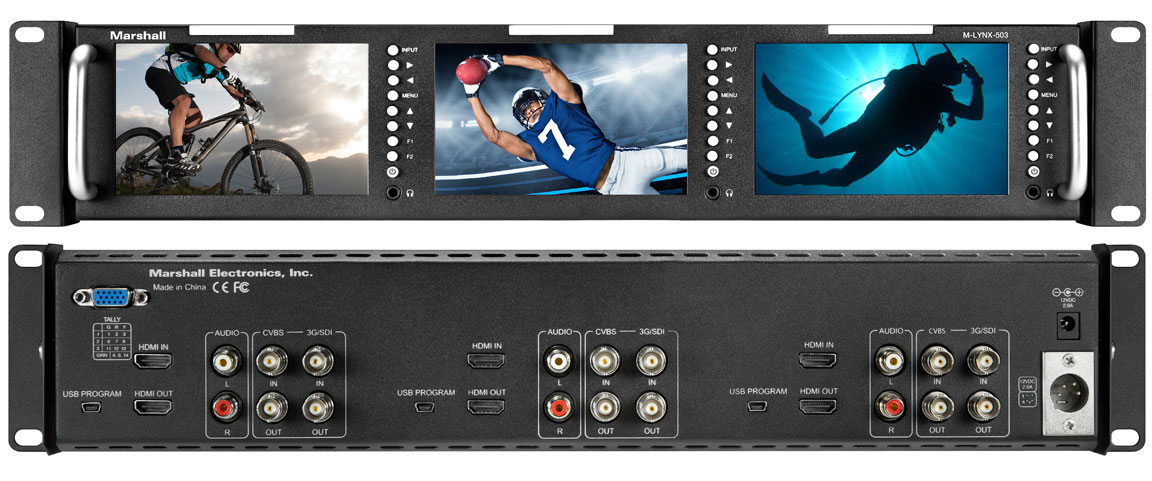

M-LYNX-503
Triple 5" Rackmountable Monitor with HDMI, 3G-SDI and Composite Inputs
Owner's Manual Monitor Power Supply Chart Download Images
- Three screens, great picture, great price
- Wide aspect, 5-inch diagonal x 3
- Perfect for flypacks, control rooms, news vans
- Front panel controls give access to all functions
- Three color tally lights (Red, Green, Yellow)
- Multiple inputs, all with loop-through connections: 3GSDI (HDSDI, SDI), HDMI, Composite
- Safe area and center markers
- Two user Function buttons

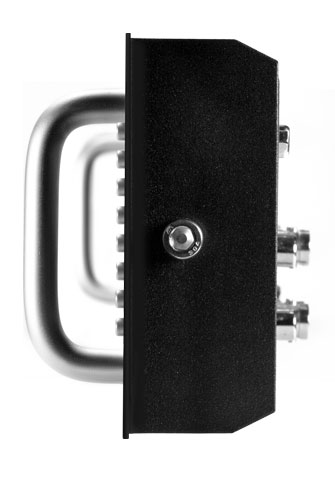

- Tilting mount. Adjust for optimum viewing
- Headphone jack to monitor embedded stereo audio
- Firmware update via USB port
$1470.00*
| Panel | Number of Panels | 3 |
| Panel Size | 5-inch | |
| Resolution | 800 x R.G.B. x 480 | |
| Aspect Ratio | 16:10 | |
| Brightness (in cd/m²) | 350 | |
| Contrast | 500 : 1 | |
| Viewing Angles (CR>=10) | 70°/70°/50°/70° | |
| Backlight type | LED | |
| Backlight Life | 20,000 hrs (typ.) | |
| Features | Video Formats via SDI Input | 1080p 50/59.94/60 1080p 29.97/25/24/23.98 1080PsF 24/23.98 1080i/ 50/59.94/60 720p 50/59.94/60 576i 50, 480i 59.94 |
| Video Formats via HDMI Input | 1080p 50/59.94/60 1080p 29.97/25/24/23.98 1080i 50/59.94/60 720p 50/59.94 576i 50, 480i 59.94 |
|
| Video Formats via CVBS Composite Input | PAL 50, NTSC 59.94 | |
| Front panel controls | Yes | |
| Three color tally | 9-pin D-Sub connector | |
| On-screen markers | Safe area and center mark | |
| Tilting Mount | Yes | |
| Focus Assist | Yes (Red) | |
| Image Flip | Yes: H, V & HV | |
| User Function Buttons | Yes: 2 | |
| Pathological Signal Test | Pass | |
| Video Input Connectors |
3GSDI with loop-through | 1 per screen |
| HDMI with loop-through | 1 per screen | |
| CVBS composite with loop-through | 1 per screen | |
| Audio Inputs | De-Embedded from SDI | Yes |
| De-Embedded from HDMI | Yes | |
| RCA x 2 (for composite video input) | Yes | |
| Audio Outputs | Headphone jack, 3.5mm mini-phone | 3 |
| Power | Input | 12 Volts DC 2 Amps |
| Connectors (two types) | 5.5mm coaxial and 12-pin XLR | |
| Power Supply Included | Yes | |
| Mechanical | Front Panel Power Switch | Yes - Momentary button |
| Weight (Main body) | 3.25 lbs, 1.48 Kg | |
| Size (including connectors) | 19.12" W x 5.14" H x 1.75" D / 485.6mm W x 88mm H x 44.5mm D | |
| Rack Ears | Included - adjustable tilt |
* Pricing does not reflect freight costs and applicable taxes and duties
* Pricing, specification and features are subject to change
