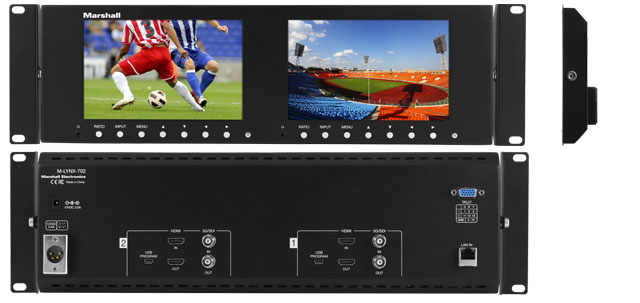

M-LYNX-702 V.3
7" Rackmountable 1280 x 800 LCD Display
Owner's Manual Specsheet Download Download Software Download Images
- High resolution 1280 x 800, bright, colorful display with no-compromise input selections for each screen
- Digital inputs: HDMI, 3GSDI with loop-through (auto selects HDSDI/SDI)
- Special features: Selectable markers, 1:1 pixel mapping, Over scan and H/V delay modes, View individual colors
- Audio de-embedding and monitoring via front panel headphone jacks
- Red, Green, Yellow in-screen Tally borders
- Slim design and 3RU size
- Power via 4-pin XLR jack or use included 12-volt universal supply
- Selectable English and Spanish on-screen displays
The M-LYNX-702 V.3 Dual 7" LCD display is a feature-packed, economical solution perfect for fly-packs, control rooms, routing rooms and countless other video system applications. Dual looping video inputs set this product apart from similar-looking products. With the M-LYNX-702 V.3, you are not limited to the single SDI connector you may find on competitor models. Standard power and tally connections as well as a logical menu structure make this display an easy choice for flexible system designs.
| Display (Viewing Area) | Dual 7-inch Diagonal, 3RU high |
| Resolution (Pixels) | 1280 x 800 |
| Viewing Angle | 178° |
| Active Area | 153.6 (W) mm x 90.0 (H) mm |
| Brightness (in cd/m²) | 250 |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 800:1 |

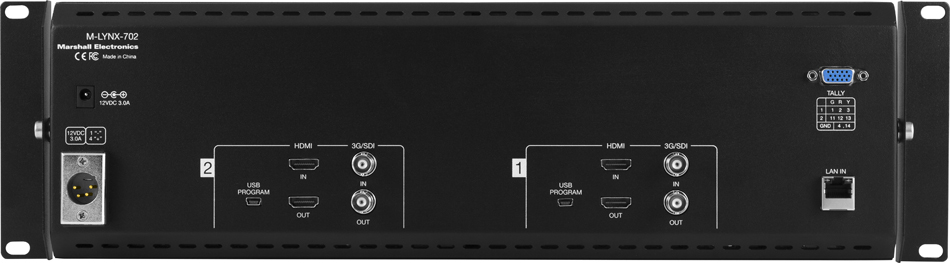

| Digital Video Inputs | 3GSDI x 1 (conforms to SMPTE-292M, 259M, 424M) HDMI x 1 (with loop-out) |
| Compatible Input Formats | SDI / HDSDI:SDI input formatsSD: 480i 59.94 / 576i 50 HD: 720p 25, 29.97, 30, 50, 59.94, 60 / 1080p 23.98, 23.98sF, 24, 24sF, 25, 29.97, 30/ 1080i 50, 59.94, 60 3G-Level A: 1080p 50, 59.94, 60 HDMI input formats SD: 480i 59.94/480p 59.94/576i 50/576p 50 HD: 720p 25, 29.97, 30, 50, 59.94, 60 1080i 50, 59.94, 60 |
| Compliance | FCC-Class A, CE, RoHS |
| Audio Inputs | Accepts HDMI and SDI embedded audio |
| Audio Outputs | Front panel 3.5mm stereo headphone jack |
| Control Inputs | Ethernet remote control port Tally 9-pin D-Sub port for GPI input Mini USB Service Port |
| Dimensions | 19" W x 5.2" H x 1" D / 482.6mm x 132mm x 25.4mm |
| Approx. Weight | 4 lbs / 1.85 Kg |
| Power Consumption | 11 to 17 volts DC, 12-volts typical via 5.5mm jack or 4-pin XLR |
