ML-454

Quad 4.5" Screens Rackmountable Monitor with HDMI, 3G-SDI, and Composite Inputs

Owner's Manual (PDF) Cut Sheet Monitor Power Supply Chart Download Images
The Marshall ML-454 Quad 4.5" Screens LCD Display is a feature-packed, economical solution perfect for fly-packs, control rooms, routing rooms and countless other video system applications. Looping video inputs set this product apart from similar-looking products. With the ML-454, you are not limited to the single SDI connector you may find on competitor models. Standard power and tally connections as well as a logical menu structure make this display an easy choice for flexible system designs.

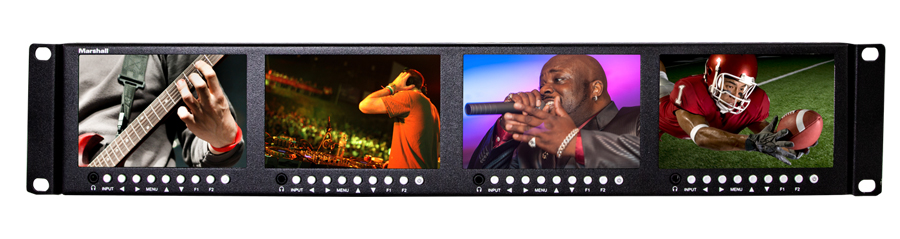

Four 4.5" HD Screens

Four high compliance 3G panels provide full time viewing access to multiple production sources with very accurate rendition. The panels are easily matched and and maintain calibration almost indefinitely.
ML-454 4 panels with full time viewing access

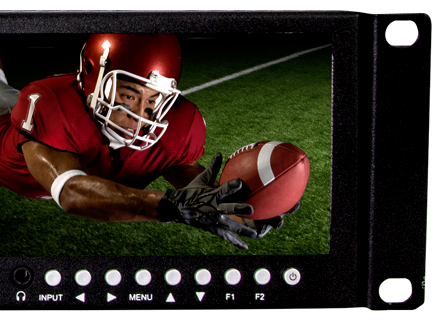

On-Screen 3 Color Tallies

Easily visible border tallies provide instantaneous process control feedback to the operator.
On-Screen 3 Color Tallies - Easily visible border tallies provide instantaneous process control feedback to the operator

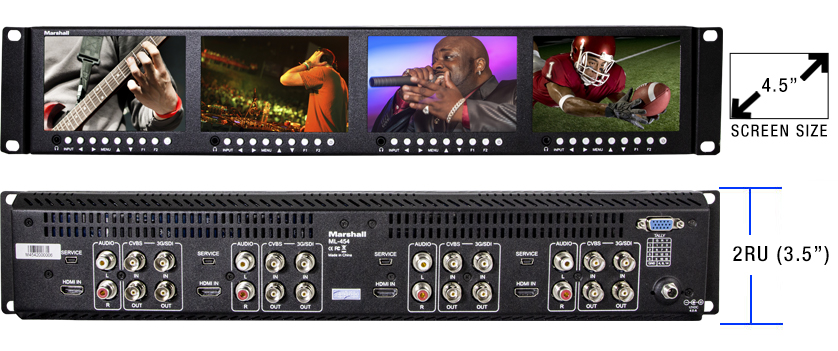

Compact Panel
2RU (3.5") Height

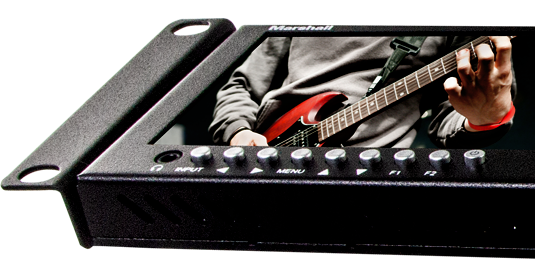

Rugged, all metal construction makes the ML-454 at home in any rack mount or standalone application.
Rugged, all metal construction makes the ML-454 at home in any rack mount or standalone application

Great Off-Axis Performance

Excellent angle of viewing allows the user to position the rack in any number of physical locations.
ML-454 has excellent angle of viewing allows the user to position the rack in any in any number of physical locations




ML-454 specifications
Number of Panels 4
Panel Size 4.5" Screen, rack mount, 2RU (3.5") High
Resolution (Pixels) 1280 x 800
Aspect Ratio non-standard 16:10 - aspect ratio allows for reduced letter-boxing when viewing 2.35:1 cinematic material
Backlight Adjustable LED Backlight
Viewing Angle 80°/80°(L/R), 80°/80°(U/D) - excellent off-axis color and brightness
Brightness (in cd/m2) 470
Contrast Ratio 900:1
Video Inputs 3G-SDI x 4, HDMI x 4, CVBS x 4
Video Loopout 3G-SDI x 4, CVBS x 4
Audio Inputs Accepts HDMI and SDI embedded audio
Audio Outputs Front panel 3.5mm stereo headphone jack
Tally Connector 15-pin D-Sub port for Tally control
Power 25 Watts typical at 12 volts via 5.5mm jack
Compliance FCC-Class A, CE
Dimensions 19.0"W x 3.3"H x 1.4"D (482.5mm W x 84mm H x 35.8mm D)
Weight 3.80lbs (1.72kg)
