The ORCHID® OR-181-3GSDI is a fully-featured 18.5 inch rack mount or desktop production monitor with a 1366 x 768 display. This Broadcast Production Monitor includes built-in waveform, vectorscope, histogram, and 3D monitoring functions along with robust audio analysis tools. The OR-185-3GSDI can de-embed and display up to 16 channels of audio across sixteen 64-segment tri-color meters with user-adjustable reference levels. The audio level meter display can also provide numerical indicators, peak hold, and channel-loss warning alerts.


Orchid Logo

OR-185-3GSDI

18.5"Master Confidence Broadcast Monitor with
Digital inputs

Download Images
  • Full-HD 1920x1080 display
  • Waveform display
  • Color vectorscope display
  • Clipguide color gamut monitor
  • 16-channel audio level meters
  • 3G-SDI inputs with active loop-through
  • Red/blue/green/mono channel view
  • Stereo speakers (2x3w)
  • User-definable function buttons
  • Tri-color tally

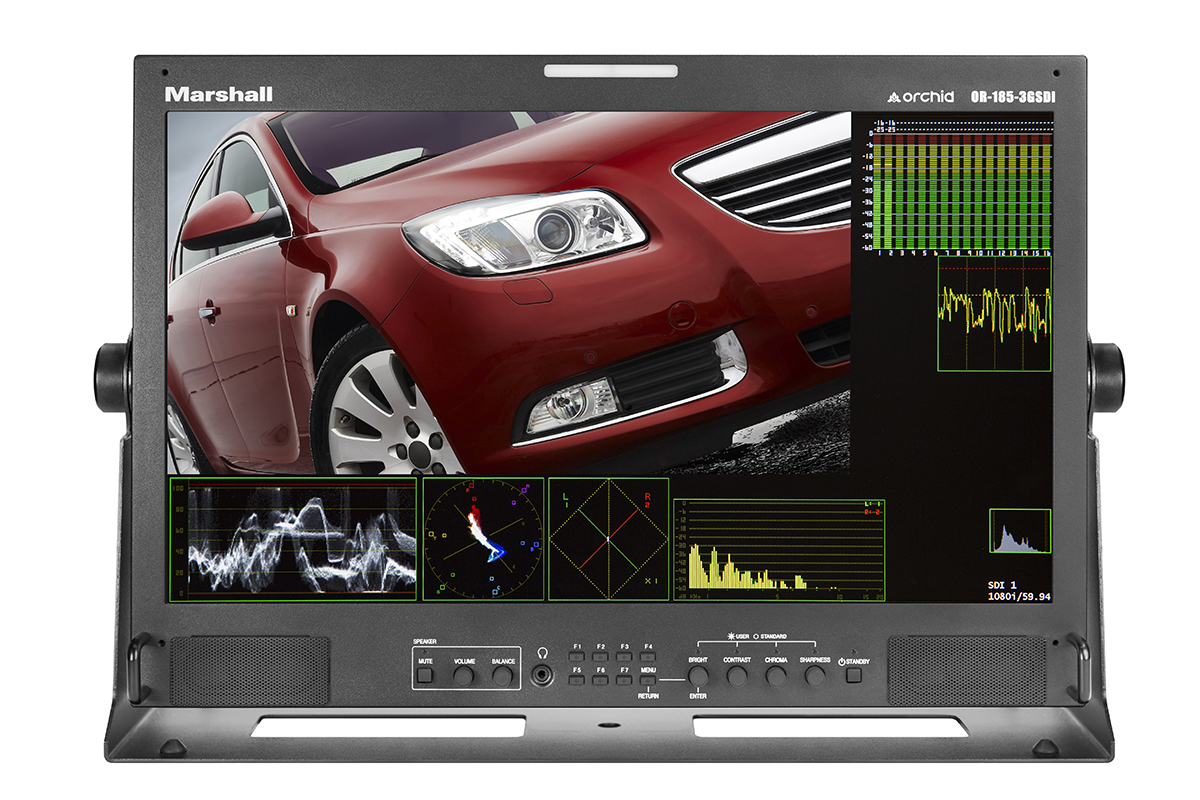

The Marshall OR-185-3GSDI is a master confidence monitor for broadcast control rooms, transfer facilities, and production editing areas, that has a range of professional production analysis tools packed into an 18.5-inch, best-of-breed IPS panel. The OR-185-3GSDI has been designed to offer the features and reliability required for mission-critical applications; all day, every day.

The latest offering of the premier Marshall ORCHID® Series monitors, the OR-185-3GSDI builds upon a legacy of unmatched reliability, versatility, and after-sales support that goes above and beyond similarly priced products in the market.

The OR-185-3GSDI includes built-in waveform, vectorscope, histogram, and 3D monitoring functions along with robust audio analysis tools. The OR-185-3GSDI can de-embed and display up to 16 channels of audio across sixteen 64-segment tri-color meters with user-adjustable reference levels. The audio level meter display can also provide numerical indicators, peak hold, and channel-loss warning alerts.

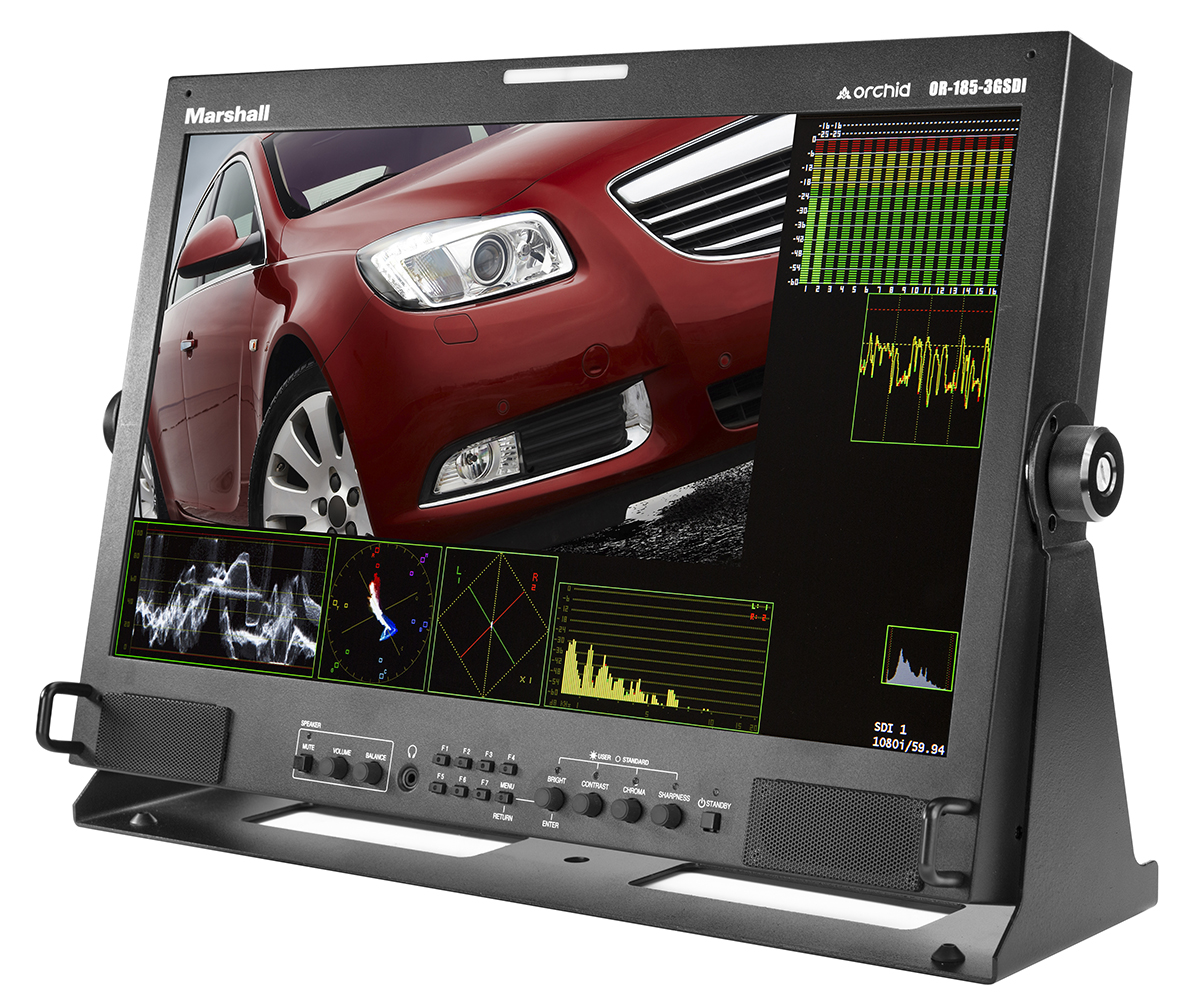

The OR-185-3GSDI comes standard with two auto-sensing 3G-SDI inputs. This unit can be used as a portable stand-alone monitor equipped with front panel stereo speakers, integrated carrying handle, and desktop stand. An optional rack mount kit with tilt capability is also available.

The OR-185-3GSDI incorporates convenient front-facing controls, including seven user-assignable function keys and four rotary knobs for simple access to various monitor settings and functions. Analysis functions and measured data graphics are displayed as overlays to maintain original footage. Additional display options include full screen views of the waveform, vectorscope and audio metering data.

Other advanced features include 3D review, anaglyph 3D views, side-by-side 3D, false color mapping, clipguide, color peaking filter, and more.


FEATURE EXPLANATION

WAVEFORM MONITOR

3D Side-by-Side Input


WAVEFORM MONITOR

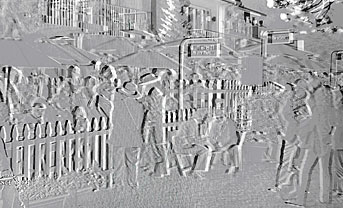

3D Luminance Difference


WAVEFORM MONITOR

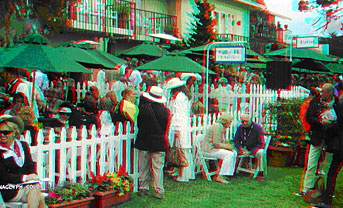

3D Color Anaglyph View


WAVEFORM MONITOR

WAVEFORM MONITOR

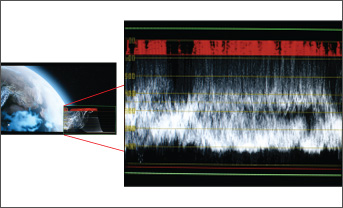

The built-in waveform monitor (which includes adjustable White and Black clip level indicators) can be displayed in various aspect ratios, positions, and transparency options. The Waveform Monitor not only monitors luminance, but can also warn the user for out-of-range conditions such as overexposure or "blacker-than-black" errors with fully user-adjustable warning limits.

REAL-TIME COLOR VECTORSCOPE

REAL-TIME COLOR VECTORSCOPE

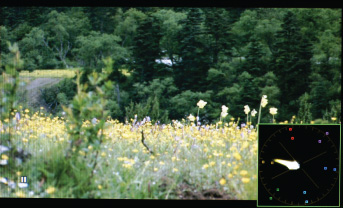

The built-in Vectorscope allows users to monitor color gamut range in real time. It displays in full color and can also be displayed in various sizes, positions, and transparency options. The Vectorscope has adjustable gain from 1x to 5x.

CLIP GUIDE

CLIP GUIDE

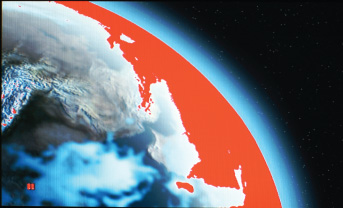

The Clip Guide function operates with both the Waveform display and Monochrome/Color picture display. Both the upper and lower Clip Guide levels are user-adjustable in order to accurately display over-and-under exposures during different shooting conditions. For example, the upper Clip Guide limit may be set to 85 IRE and the lower limit to 10 IRE. With these settings, any exposures over the set limit of 85 IRE will display red on both the Waveform and picture (if selected). The same will be true for blacks under 10 IRE.

PRECISION GAMMA

PRECISION GAMMA

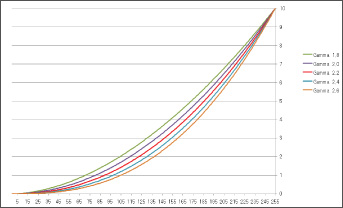

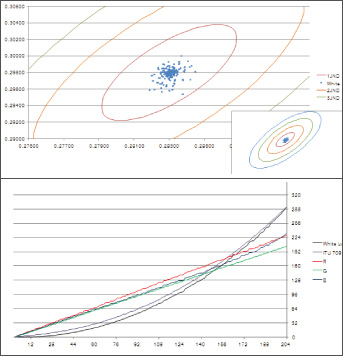

It is important that LCD monitors match the color and gamma characteristics of a CRT monitor. To emulate CRT gamma, the non-linear curves are corrected by software algorithms. This process is complicated because the three non-linear colors (RGB) should be corrected simultaneously. The ORCHID gamma correction overcomes this problem and ensures correct matching between panels and channels.

AUDIO LEVEL METERS

AUDIO LEVEL METERS

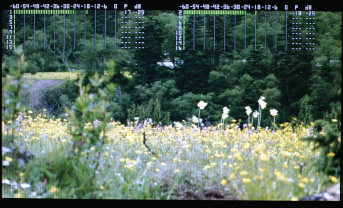

De-embeds and displays up to 16 channels of audio using sixteen 64-segment tri-color Audio Meters with user-adjustable reference levels. The Audio Level Meters provide numerical indicators and headroom levels, as well as peak hold function. Audio Channel Loss Warning prevents errors during monitoring.

FRONT AND REAR PANEL AUDIO OUTPUT

FRONT AND REAR PANEL AUDIO OUTPUT

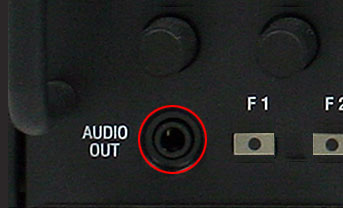

Monitor any two channels at once through the front audio output jack or rear line output jack.

EXTENSIVE MENU SYSTEM

EXTENSIVE MENU SYSTEM

7 user-assignable function keys with Rotomenu system.

WHITE BALANCE

WHITE BALANCE

White balance adjustment is essential in order to render colors correctly. To display colors correctly, gray scale should maintain identical color temperature. The white balance for ORCHID monitors defaults to D65 (6500K) so the user typically does not need to adjust white balance. All Orchid Series LCD panels are calibrated at the factory to ensure color conformity between screens.

OR-185-3GSDI SPECIFICATIONS
Panel Type     TFT-LCD
Display Area     408.96 x 230.4, 18.5" (Diagonally)
Pixels     1920(H) x 1080(V), Full HD
Pixel Pitch (mm)     0.213 (H) x 0.213 (V)
Color Depth     16.7M (8bit), true color
Brightness (cd/m²)     300 (cd/m²)
Contrast Ratio     1000:1
INPUT SDI SMPTE-424M 3G (2.97 GB/s) 2 x BNC
SMPTE-292 HD (1.485 GB/s)
SMPTE-259M SD (270 MB/s)
OUTPUT SDI SMPTE-424M 3G (2.97 GB/s) 1 x BNC (Loop-through)
SMPTE-292 HD (1.485 GB/s)
SMPTE-259M SD (270 MB/s)
Supported Formats SDI SMPTE 425M-AB YCBCR, 4:2:2, 10-bit 1080p (60/59.94/50)
YCBCR, 4:2:2, 12-bit 1080p (30/29.97/25/24/23.98)
1080i (60/59.94/50)
1080PsF (30/29.97/25/24/23.98)
YCBCR(RGB) 4:4:4, 10-bit 1080p (30/29.97/25/24/23.98)
1080i (60/59.94/50)
1080PsF (30/29.97/25/24/23.98)
720p (60/59.94/50/30/29.97/25/24/23.98)
YCBCR(RGB) 4:4:4, 12-bit 1080p (30/29.97/2524/23.98)
1080i (60/59.94/50)
1080PsF (30/29.97/25/24/23.98)
2048x1080p24, 2048x1080PsF24
YCBCR(RGBA) 4:4:4:4, 10-bit 1080p (30/29.97/25/24/23.98)
1080i (60/59.94/50)
1080PsF (30/29.97/25/24/23.98)
720p (60/59.94/50p/30/29.97/25/24/23.98)
SMPTE 274M YCBCR, 4:2:2, 10-bit 1080i (60/59.94/50)
1080p (30/29.97/25/24/23.98)
1080PsF (30/29.97/25/24/23.98)
SMPTE 296M YCBCR, 4:2:2, 10-bit 720p (60/59.94/50/30/29.97/25/24/23.98)
SMPTE 125M   525i (NTSC, 480i60)
ITU-R BT.601   625i (PAL, 575i50)
General Power     100~240VAC@50~60Hz Or DC 24V
Power Consumption     Approx. 40W(24V, 1.5A)
Operating Temperature (°C)   0°C~40°C
Humidity (%)   30%~85% (Non-Condensing)
Storage Temperature (°C)   -20°C~60°C
Humidity (%)   0%~90%
Weight     33 lbs.
Dimensions (WxDxH, mm)     442 x 307 x 80
Audio INPUT   3.5mm stereo jack 1 (Rear)
OUTPUT +4dBu(1.228mVrms) 3.5mm stereo jack 1 (Rear)
+4dBu(1.228mVrms) 3P XLR N/A
Headphone 3.5mm stereo jack 1 (Front)
6.3ø stereo jack N/A
Speaker     Built-in (3W+3W Stereo Speaker)
