The OR-901-3GSDI is a full featured camera top and field LCD monitor with dual 3G-SDI inputs. The OR-901-3GSDI has multiple analysis utilities such as Waveform Monitor, Vector Scope, Audio Level Meters and Audio Phase display to assist the videographer without the expense of multiple test instruments. Additionally the OR-901-3GSDI includes multiple modes to assist in the production of 3D content. The 960 x 540 resolution panel was chosen to allow monitoring of HD 1920 x 1080 video formats without scaling artifacts. The OR-901-3GSDI comes with a large external tally when used in view finder applications. The Light weight and slim profile provide great portability and ease of use.


Orchid Logo

OR-901-3GSDI

Fully Featured 9" Rack Mountable / Camera-Top / Portable LCD Field Monitor with 3D Anaglyph monitoring

Quick Reference GuideSpec Sheet ORCHID Firmware Update
Rack Mountable / Camera-Top / Portable LCD Field Monitor with 3D SBSH Anaglyph monitoring
  • Real-Time Waveform Monitor
  • Adjustable Clipping Indicator
  • Real-Time Color Vectorscope
  • Five 3D Production Views
  • Four Anaglyph 3D Displays
  • Auto White Balance Calibration
  • Sixteen 64-segment Tri-color Audio Meters
  • On-Screen Time Code
  • 7 assignable GPI inputs
  • Adjustable Color Temperature
  • Precision Gamma Settings
  • Adjustable Color Temperature
  • False Color Mapping with two modes
  • Histogram / Audio Log Graph
  • Auto-Sensing Rear Unbalanced Stereo Output
  • Auto-Sensing Front Panel Headphone Jack
  • Built-in Front Panel Speaker
  • Auto-Sensing Rear Unbalanced Stereo Output
  • Audio Phase Display
  • Variety of Safety Markers
  • Adjustable User Marker
  • Tri-Color Tally Indicator
  • Large "On Air" Tally for Talent
  • 3G-SDI inputs with re-clocked output
  • Supports 3 different Battery Adapters
  • Adjustable / Detachable Stand with top handle
  • User Replaceable Protective Screen
  • Automatic Color Calibration with ORCHID Color Probe

The OR-901-3GSDI, 9" ORCHID® rack mountable / portable field monitor has all the features that customers have asked for and more. The OR-901-3GSDI is 4RU and has 9 user-assignable function keys as well as a rotary menu system. The ORCHID series includes a variety of 3D production tools and Anaglyph views. The built-in waveform monitor (which includes adjustable White and Black clip level indicators) can be displayed in three different aspect ratios including Full Screen. The built-in Vectorscope displays in full color and can also be displayed in three different ratios. The Vectorscope has adjustable gain from 1x to 5x. The OR-901-3GSDI will de-embed and display up to 16 channels of audio and allow the user to monitor any two channels at once through the headphone jack or rear line output jack. Also includes built-in front panel speaker and rear panel stereo input for audio monitoring. The 64-segment tri-color bar graph meters have user-adjustable reference levels. The OR-901-3GSDI comes standard with auto-sensing 3G-SDI inputs and re-clocked output. This unit can be used in a rack, on a desktop, in the field, or mounted to a camera. The new G-Marker displays a grid that corresponds to the horizon to help accurately level the camera and monitor.

3D PRODUCTION TOOLS:

The ORCHID series now includes 3D production tools including four Anaglyph 3D modes as well as five 3D analytic views. In order to make use of this feature, the source can be formatted as a single Side-by-Side Half Horizontal input.

FEATURE EXPLANATION

3D PRODUCTION TOOL

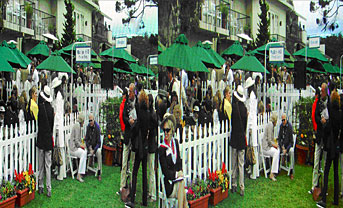

3D Side by Side Input


3D Luminance Difference

3D Luminance Difference


3D Color Anaglyph View

3D Color Anaglyph View


WAVEFORM MONITOR

WAVEFORM MONITOR

The built-in waveform monitor (which includes adjustable White and Black clip level indicators) can be displayed in various aspect ratios, positions, and transparency options. The Waveform Monitor not only monitors luminance, but can also warn the user for out-of-range conditions such as overexposure or "blacker-than-black" errors with fully user-adjustable warning limits.

REAL-TIME COLOR VECTORSCOPE

REAL-TIME COLOR VECTORSCOPE

The built-in Vectorscope allows users to monitor color gamut range in real time. It displays in full color and can also be displayed in various sizes, positions, and transparency options. The Vectorscope has adjustable gain from 1x to 5x.

CLIP GUIDE

CLIP GUIDE


PRECISION GAMMA

PRECISION GAMMA

It is important that LCD monitors match the color and gamma characteristics of a CRT monitor. To emulate CRT gamma, the non-linear curves are corrected by software algorithms. This process is complicated because the three non-linear colors (RGB) should be corrected simultaneously. The ORCHID gamma correction overcomes this problem and ensures correct matching between panels and channels.

AUDIO LEVEL METERS

AUDIO LEVEL METERS

De-embeds and displays up to 16 channels of audio using sixteen 64-segment tri-color Audio Meters with user-adjustable reference levels. The Audio Level Meters provide numerical indicators and headroom levels, as well as peak hold function. Audio Channel Loss Warning prevents errors during monitoring.

FRONT AND REAR PANEL AUDIO OUTPUT

FRONT AND REAR PANEL AUDIO OUTPUT

Monitor any two channels at once through the front audio output jack or rear line output jack.

LARGE ON AIR TALLY

LARGE "ON AIR" TALLY

  • Follows Red tally command
  • High / Low Intensity setting
  • Easy to see from long distances


  • EXTENSIVE MENU SYSTEM

    EXTENSIVE MENU SYSTEM

  • 9 user-assignable function keys
  • Rotary dial
  • Easy menu navigation

  • WHITE BALANCE Diagram

    WHITE BALANCE

    White balance adjustment is essential in order to render colors correctly. To display colors correctly, gray scale should maintain identical color temperature. The white balance for ORCHID monitors defaults to D65 (6500K) so the user does not need to adjust white balance. LCD monitors have color-matching issues because white balance can be affected by a change in luminance level. Our unique color management system solves this problem.

    ONE BUTTON COLOR CALIBRATION

    ONE BUTTON COLOR CALIBRATION

    The ORCHID operating system includes an Automatic White Balance function that allows a "One Button" calibration procedure when used with a Konica Minolta CA-210 color analyzer. All ORCHID Series LCD panels are calibrated at the factory to ensure color conformity between screens.

    OPTIONAL ACCESSORIES

    Side accessory hood accessory Rack Mount Kit Accessory

    OR-8HA

    Side Handle

    OR-9HO

    Discontinued - Sun Hood for 9-inch Orchid monitor

    OR-9RMK

    Rack Mount Kit for OR-901
    (mounts two units side-by-side)

    Battery Compatibility Chart
    OR-901-3GSDI specifications
    Display (Viewing Area) 9"
    Resolution 960 x 540
    Aspect Ratio 16:9
    Brightness (in cd/m²) 350
    Contrast Ratio 1000:1
    Available Input Types 3G-SDI x 2
    Available Audio Output (per screen) 2 Stereo (3.5mm - Front and Rear)
    Power Consumption 18W (1.5A)
    Power Supply DC 12V 4-Pin XLR
    Weight Approx. 4 lbs. (4.6 lbs. with Power Adapter)
    Dimensions 8.72"W x 7.21"H x 1.78"D
    Available Battery Adapter Configurations "AB" - (Anton/Bauer) / "VM" - (V-Mount) / "SB" - (Sony B series)
