Professional Monitors

17-inch Full Resolution Rack-mountable Desktop Monitor with Quad Input, and advanced IMD features. Quad 3GSDI inputs with active loop-through and auto format detection, MD Control via Ethernet or RS-485 serial data


6RU 17" Full Resolution Rack-mountable Desktop Monitor with Quad Input, and advanced IMD features

Owner's ManualQVW-1708-3G Spec Sheet QVW-1708-HDI Spec SheetDownload ImagesFirmware Upgrade (ZIP)
Optional Desktop Stand
Optional Desktop Stand
  • 1920 x 1080 Native Display (16 x 9)
  • Accepts Input Resolutions Up to 1920 x 1080P
  • IMD - In Monitor Display Functions
  • Area Markers
  • Hard Tally + Soft Tally
  • Network Control via Ethernet
  • Presence indicators for TC, CC (608/708), Audio
  • Bar Display for Embedded Audio, also Timecode Display
  • RS-485 in/out/host ports allow daisy-chaining IMD and display functions
  • Pixel-to-Pixel Mode
  • Compatible with CalMAN 5 Calibration Technology
  • IMD Control via Ethernet or RS-485 serial data
  • Status Display Shows True Format / Frame Rate
  • Rack Ears Included
  • In-field firmware update

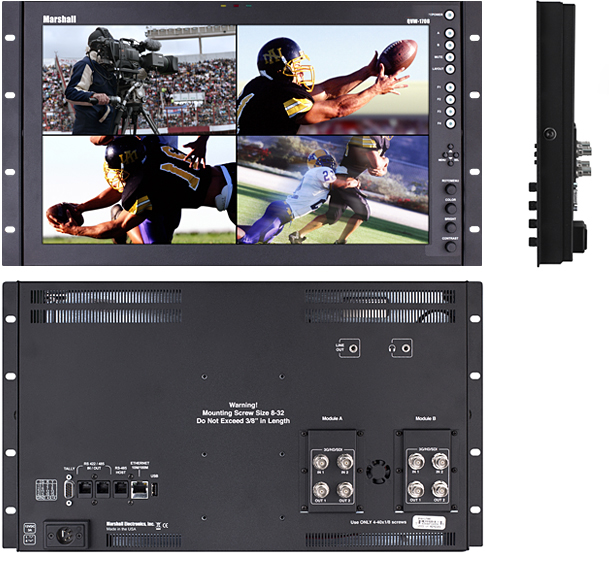

The QVW-1708-3G is part of Marshall Electronics' Quad Viewer series of rack mount monitors which can function as a single display supporting inputs or four separate displays in Quad View mode supporting inputs up to 1920 x 1080 in each quadrant.

• Convenient, intuitive front panel controls in addition to control via network

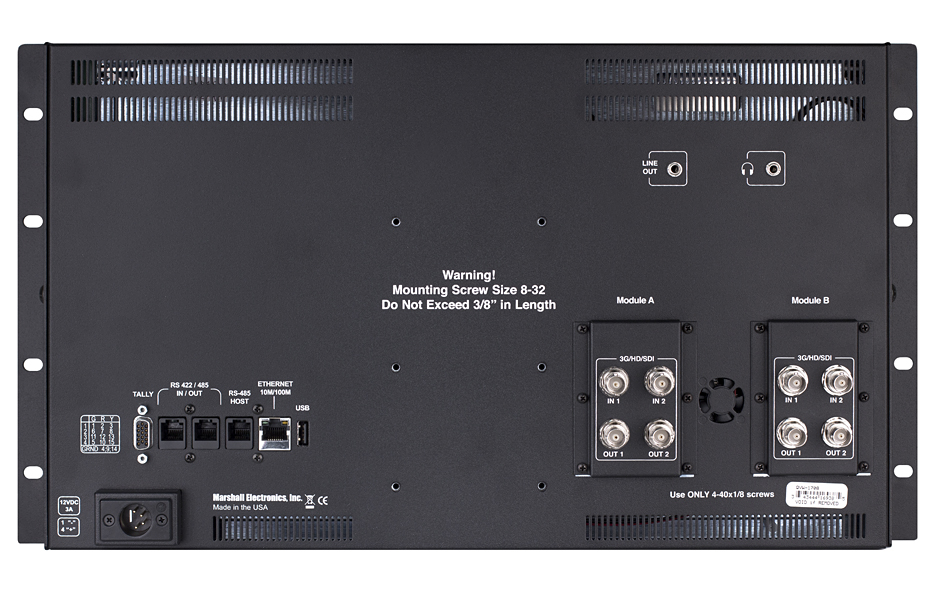

• Quad 3GSDI inputs with active loop-through and auto format detection

The QVW-17083-3G can be mounted in any standard EIA 19-inch equipment rack. The attached rack ears can be angled to provide the user control over the viewing angle. A VESA standard 75mm hole pattern also allosws custom mounting installations.

Quad-Viewer Feature

Allows viewing of 4 inputs on the screen at once. Each input source is scaled and positioned in real-time so that all 4 inputs can be seen. Besides the standard Quad layout, there are 3 other layouts (including Full Screen) to choose from:

quad-viewer configurations

QVW-1708-3G / QVW-1708-HDI specifications
PanelNumber of Panels1
Panel Size17.3”
Resolution1920 x RGB x 1080
Aspect Ratio16:9
Active Area381.888 x 214.812 mm
TypeLCD Panel
Brightness400 cd/m²
Color GamutYUV, RGB
Viewing Angles (CR>=10) 160° x 160°
Backlight type LED
Features Video Formats QVW-1708-3G - 1080p/1080i/720p/625i/525i
QVW-1708-HDI - 1080p/1080i/720p/480p/576p
Loss of Input CurtainYes
Color TemperatureD65, D55 and D93
Headphone JackYes
Audio BarsYes
IMD Functions Yes
Tally OSDYes
Blue-Only ModeYes
Closed CaptionYes
Pixel to PixelYes
Pre-set Gamma pointsYes
Modular Input Slot2
Re-clocked/Re-Shaped Yes
Video InputsQVW-1708-3G HD-SDI
QVW-1708-HDIHDMI Dual Input
Video Outputs QVW-1708-3GSD-SDI
QVW-1708-HDI N/A
Control FeaturesTally / GPITally
RS-485/422 w/ Loop-ThroughYes
Controls on front PanelYes
User-Defined Function ButtonsYes
RotoMenu™ ControlYes
Pivot AngleYes
Handles/Rack EarsYes
Power Voltage12 VDC
Consumption5 AMP@ 12VDC 60W Max
Power SwitchYes
Connector4-Pin XLR
ComplianceComplianceCE approve
Environmental Operating Temperature (C°) 0° C – 35° C
Storage Temperature (C°) -10° C – 50° C
Rack Unit dimensions 17.15" W x 10.45" H x 1.44" D
Weight (Main Body)9.35 Lbs
Vesa Mount Pattern75mm
* Input resolutions greater than 1920 x 1080 are scaled to fit the display's native resolution. Best scaling performance occurs with "progressive" vs. "PsF" input.
