The V-LCD15SB-AFHD-DT is a 15" high definition Broadcast LCD monitor with Marshall Electronics' proprietary SunBrite LCD panel. Specifically for outdoor applications or high levels of ambient light.


V-LCD15SB-AFHD-DT

Outdoor High Definition 15" LCD Monitor with all Digital/Analog HD/SD Inputs and Advanced Function Features

Owner's Manual Spec Sheet
Desktop LCD Monitor Digital/Analog HD/SD input
Proprietary technology boosts the efficiency of the backlight's light utilization while minimizing the surface reflection of ambient light. Designed specifically for outdoor applications and challenging viewing environments.
  • High Luminance Backlight
  • Low Reflective Properties
  • Wider color reproduction for richer colors
  • Crisper, sharper images (textual/graphical information)
  • Outstanding Front-of-Screen Performance
  • Wide Viewing Angle
  • Extended Temperature Rating
  • Low Power Consumption
  • High Resolution 1024 x 768 RGB Dots with 2.4 million pixels
  • Over 16.7 million colors
  • Bright 600 candelas per square meter (cd/m²) luminance produces enhanced image quality in diverse lighting and viewing conditions
  • 600:1 contrast ratio
  • Built-in Color Bars
  • 6 Frame Marker Overlays with Center Mark
  • 4:3 and 16:9 screen aspect ratios for DTV applications in HD and SD format
  • Easy-to-see three color tally indicators
  • Adjustment Settings Memory
  • Durable Metal Enclosure
  • Includes desktop stand
  • Standard Multi-format inputs:

  • HD-SDI (all formats)
  • SDI (ITU-R BT601 format)
  • Component Analog HD/SD
  • Composite Video NTSC/PAL
  • S-Video (Y/C)
  • DVI-I (all formats)
  • SXGA (128 x 1024) Computer Input (HD-15)

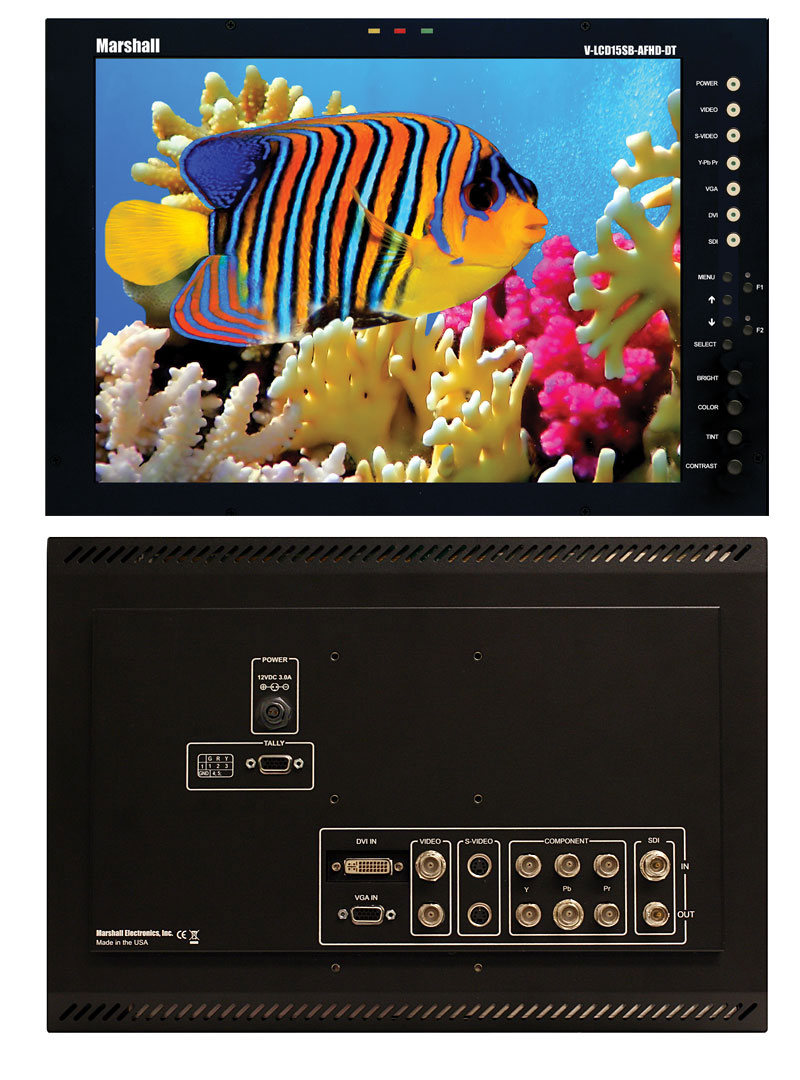

V-LCD15SB-AFHD-DT Monitor on display stand
V-LCD15SB-AFHD-DT
Shown with included desktop stand

The V-LCD15SB-AFHD-DT is a high resolution LCD display with 2.4 million pixels. It includes our Universal Input configuration and does not require any adapter boxes or expensive options. Standard inputs include active loop-through on each connection for HD-SDI/SDI, Y/C, and composite video with NTSC/PAL automatic recognition. There is also a multi-format connector for HD or SD analog component signals. For computer graphic applications, this unit also has a scalable SXGA input. Additional features include Zoom function and direct access for adjustment and selection functions.

This monitor can be wall or ceiling mounted with an optional VESA bracket. Desktop stand and universal power supply are included.


Super Transflective Outdoor Monitors


Outdoor Monitor Optical Surface technology

Marshall Electronics offers a full line of Super Transflective Outdoor Monitors, designed specifically for outdoor applications with high ambient light. Our technology minimizes surface reflection of both outdoor and indoor light, while featuring a much wider color reproduction range than typical transflective/reflective LCDs or even those with increased backlight performance. These outdoor super-transmissive LCDs provide improved visibility by producing high-contrast images and a wider viewing angle, even under diverse and challenging lighting environments! This innovative technology dramatically boosts the efficiency of the LCD backlight's light utilization, while maintaining extended temperature ratings and low power consumption for outdoor operation.


V-LCD15SB-AFHD-DT specifications
Panel Number of Panels 1
Panel Size 15.0" Diagonal
Resolution 1024 x RGB x 768
Aspect Ratio 4:3 Native
Active Area 304.128 x 228.096 mm
Type LCD Panel
Brightness 600 cd/m²
Contrast 600:1
Color Gamut YUV, RGB
Viewing Angles (CR>=10) 160° x 140°
Backlight type LED
Adjustable Backlight No
Features Video Formats 1080p/1080i/720p/625i/525i
Loss of Input Curtain Yes
Color Temperature D65, D55 and D93
Tally Yes
Pixel to Pixel Yes
Pre-set Gamma points Yes
Self-Sensing Yes
Re-clocked/Re-Shaped Yes
Input Connectors CVBS Yes
YPbPr Yes
SD-SDI Yes
HD-SDI Yes
S-Video Yes
VGA Yes
DVI-I Yes
Output Connectors CVBS Yes
YpbPr Yes
SD-SDI Yes
HD-SDI Yes
S-Video Yes
VGA No
Control Inputs Tally / GPI Tally
Input Status Display Yes
RS-485/422 w/ Loop-Through No
Ethernet No
Controls on front Panel Yes
User-Defined Function Buttons Yes
RotoMenu™ Control No
Pivot Angle Yes
Handles/Rack Ears Yes
Power Voltage 12 VDC
Consumption 3A @ 12VDC (36 W)
Power Switch Yes
Connector 2-Pin Twist Lock
Compliance Compliance CE approved
Environmental Operating Temperature (C°) 32°F to 120°F
Storage Temperature (C°) -4°F to120°F
Unit dimensions 15.25" W x 10.45" H x 1.77" D
Weight (Main Body) 8.1 lbs
Vesa Mount 75 mm
