V-LCD17HR is a 1920 x 1080 resolution, 17 inch budget Rack Mount or Desktop Monitor with 3G-SDI or Dual HD-SDI modules


V-LCD17HR

Budget 17-inch Rack Mount / Desktop Monitor with 3G-SDI or Dual HD-SDI

Owner's Manual (PDF)Spec Sheet (PDF)
Budget 17-inch Rack Mount Desktop Monitor
V-LCD17HR

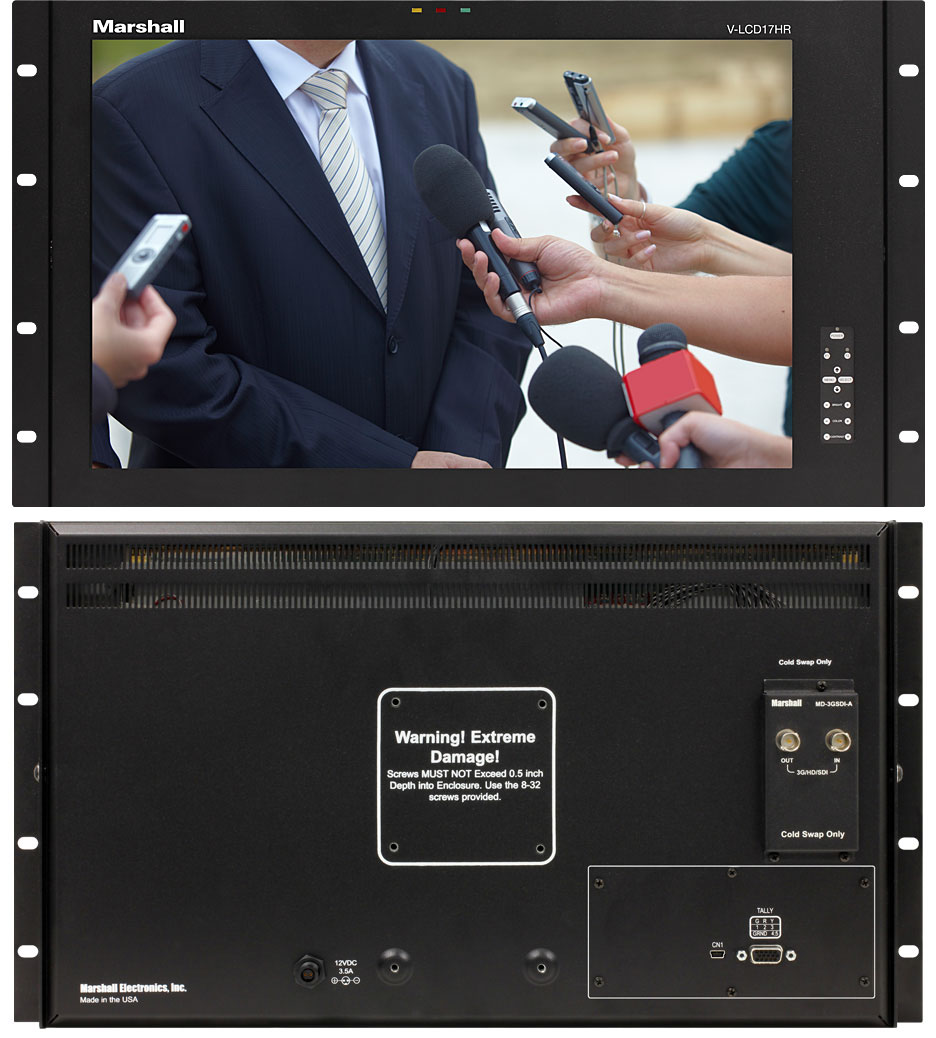

shown with desktop stand
  • 1920 x 1080 resolution
  • Budget 17-inch production / rack mount monitor
  • False Color Filter
  • Thin, robust mechanical design
  • Also available with dual input HD-SDI (V-LCD17HR-2HD)
  • Available with desktop stands (V-LCD17HR-3G-DT / V-LCD17HR-2HD-DT)
    • Available Models:
      • V-LCD17HR-3G (includes rack ears only)
      • V-LCD17HR-DVII (includes rack ears only)
      • V-LCD17HR-2HD (includes rack ears only)
      • V-LCD17HR-2HDI (includes rack ears only)
      • V-LCD17HR-3G-DT (includes desktop stand)
      • V-LCD17HR-DVII-DT (includes desktop stand)
      • V-LCD17HR-2HD-DT (includes desktop stand)
      • V-LCD17HR-2HDI-DT (includes desktop stand)

The V-LCD17HR is the perfect display for low-cost production or confidence monitoring. The V-LCD17HR includes a number of features such as Status Display, False Color Filter, Markers, Freeze Function, Color Temperature Presets, RGB Gain / Bias Adjust, Pixel-to-Pixel, Blue Gun, Hard Tally and user-definable function buttons. The V-LCD17HR can be ordered as a standard EIA 19-inch rack mount monitor with attached rack ears that can be angled to provide the user control over viewing angles. A VESA standard 75mm hole pattern also allows custom mounting installations.

Alternately, the V-LCD17HR can be ordered in desktop configurations (V-LCD17HR-3G-DT / V-LCD17HR-2HD-DT).

Available V-LCD17HR monitor configurations
V-LCD17HR-3G-DT 17" LCD DT Monitor with 3GSDI Input and Loop-Through
V-LCD17HR-2HD-DT 17" LCD Desktop Monitor with Dual HDSDI Input
V-LCD17HR-2HDI-DT 17" LCD RM Monitor with Dual HDMI Inputs

Additional Modules available for DVI and HDMI

     Click here for a list of additional modules »
V-LCD17HR specifications
Panel Number of Panels 1
Panel Size 17.3” Diagonal
Resolution 1920 x RGB x 1080
Aspect Ratio 16:9
Active Area 367.20 x 229.50 mm
Type LCD Panel
Brightness 300 cd/m²
Contrast 650:1
Color Gamut YUV, RGB
Viewing Angles (CR>=10) 160° x 150°
Backlight type LED
Adjustable Backlight Yes
Features Video Formats 1080p/1080i/720p/625i/525i
Loss of Input Curtain Yes
Color Temperature D65, D55 and D93
Tally Yes
False Color Yes
HDMI CSC Auto With HDMI Module
HDMI Ratio Auto With HDMI Module
Pixel to Pixel Yes
Pre-set Gamma points Yes
Self-Sensing Yes
Modular Input Slot 1
Re-clocked/Re-Shaped YES
Video Input Connectors
HDMI Dual Optional Module
3G-HDSDI Optional Module
Dual HD-SDI Optional Module
DVI-I Optional Module
Optical Optional Module
Video Output Connectors 3G-HDSDI Yes
Control Inputs Input Status Display Yes
Tally Yes
Mechanical Controls on front Panel Yes
User-Defined Function Buttons Yes
Pivot Angle Yes
Handles/Rack Ears Yes
Power Voltage 12 VDC
Consumption 3.5A @ 12VDC (42 W)
Power Switch Yes
Connector 2-Pin Twist Lock
Compliance Compliance CE approved
Environmental Operating Temperature (C°) 32°F to 104°F
Storage Temperature (C°) -4°F to120°F
Dimensions
Rack Unit dimensions 18.85"W x 10.40"H x 1.1"D
Weight (Main Body) 8.8 lbs
Extras Vesa Mount Pattern 75mm

False Color Filter

Color filter scale

The False Color filter is used to aid in the setting of camera exposure. As the camera Iris is adjusted, elements of the image will change color based on the luminance or brightness values. This enables proper exposure to be achieved without the use of costly, complicated external test equipment.

To best utilize this feature, you must understand the color chart and have a basic understanding of camera exposure. Normally, when shooting subjects like people, it is common practice to set exposure of faces to the equivalent of approximately 56 IRE. The False Color filter will show this area as the color PINK on the monitor. Therefore, as you increase exposure (open the IRIS), your subject will change color as indicated on the chart: PINK, then GREY, then a few shades of YELLOW. Overexposed subjects (above 101 IRE) on the monitor will be shown as RED. In addition, underexposed subjects will show as DEEP-BLUE to DARK-BLUE, with clipped-blacks indicated with a FUCHSIA-like color. Lastly, the color GREEN is used to indicate elements of the image that are approximately 45 IRE. This represents a "neutral" or "mid-level" exposure commonly used for objects (not people).


Filter display samples
OVEREXPOSED
Overexposed objects will display as RED
UNDEREXPOSED
Underexposed objects show as
DEEP-BLUE to DARK-BLUE
PROPERLY EXPOSED
Properly exposed objects will display elements of GREEN and PINK
