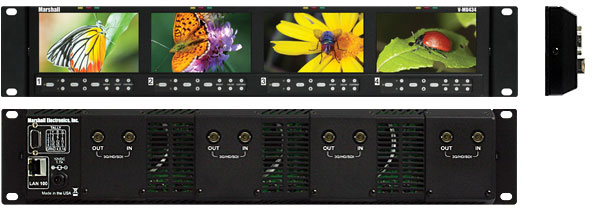

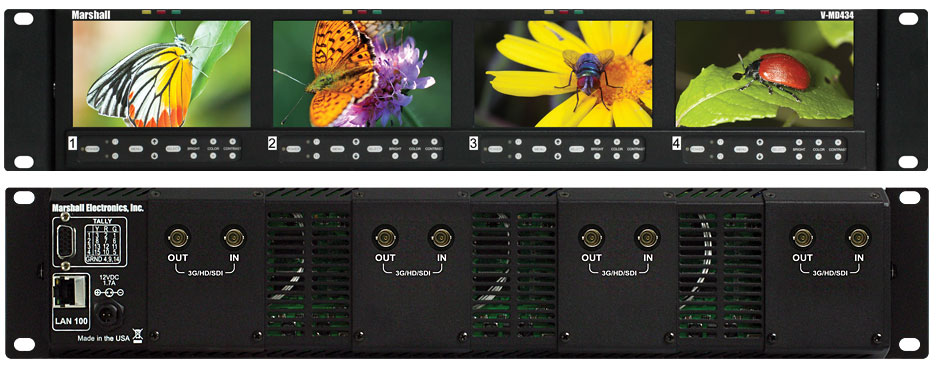

Quad 2RU 4.3 inch High Resolution LCD Rack Mount Monitor V-MD434-3GSDI has four 800 x 480 LCDs in one single configuration, along with excellent viewing angles. This modular monitor includes four 3G-SDI modules with loop-through, Status Display, False Color Filter, Markers, Freeze Function, Color Temperature Presets, RGB Gain / Bias Adjust, Pixel-to-Pixel, Blue Gun, Hard Tally, two user-definable function buttons, and more. A variety of optional input/output modules will be offered.


V-MD434-3GSDI

Quad 2RU 4.3" High Resolution LCD Rack Mount Monitor with Modular 3G-SDI Input/Output

Owner's Manual Spec Sheet
Input Modules sold separately

Marshall Electronics proudly presents the MD series of rack mount monitors that offer a flexible modular solution to system integration. These new rack-mountable monitors can be configured with a variety of video inputs that can be "swapped" or interchanged in the field based on your evolving needs and requirements. This eliminates the need to upgrade or replace equipment when a different input or application is required. This "future proof" solution provides flexibility and reassurance when necessary, especially in multi-monitor rack mount units.

The V-MD434-3GSDI offers four 800 x 480 LCDs in one single configuration, along with excellent viewing angles. The V-MD434 includes four 3G-SDI modules with loop-through, Status Display, False Color Filter, Markers, Freeze Function, Color Temperature Presets, RGB Gain / Bias Adjust, Pixel-to-Pixel, Blue Gun, Hard Tally, two user-definable function buttons, and more. A variety of optional input/output modules will be offered.

Marshall's MD monitors can integrate Telecast Fiber System's TeleCube™ Fiber-Optic HD/SDI transmission input/output modules. These new fiber modules deliver the industry's broadest range of digital rates while maintaining pristine signal quality that broadcasters and integrators demand.


V-MD434-3GSDI specifications
Panel Number of Panels 4
Panel Size 4.3” Diagonal
Resolution 800 x RGB x 480
Aspect Ratio 15:9 Native
Active Area 93.0 x 55.8 mm
Type LCD Panel
Brightness 200 cd/m²
Contrast 400:1
Color Gamut YUV, RGB
Viewing Angles (CR>=10) 65° x 65°
Backlight type LED
Adjustable Backlight Yes
Features Video Formats 1080p/1080i/720p/625i/525i
Loss of Input Curtain Yes
Color Temperature D65, D55 and D93
IMD Functions Yes
Tally Yes
False Color Yes
Peaking Filter No
HDMI CSC Auto No
HDMI Ratio Auto No
Pixel to Pixel Yes
Pre-set Gamma points No
Self-Sensing Yes
Modular Input Slot 1 Per panel
Re-clocked/Re-Shaped Yes
Video Input Connectors CVBS No
YPbPr No
SD-SDI Yes
HD-SDI Yes
3G-SDI Yes
HDMI No
DVI-I No
Optical No
Video Output Connectors CVBS No
YpbPr No
SD-SDI Yes
HD-SDI Yes
3G-SDI Yes
HDMI No
Control Inputs Input Status Display Yes
Tally / GPI Tally
RS-485/422 w/ Loop-Through No
Ethernet Yes
Controls on front Panel Yes
User-Defined Function Buttons Yes
RotoMenu™ Control No
Pivot Angle Yes
Handles/rack ears Yes
Power Voltage 12 VDC
Consumption 21 W
Power Switch Yes
Connector 2-Pin Twist-Lock
Compliance Compliance CE approved
Environmental Operating Temperature (C°) 32°F to 120°F
Storage Temperature (C°) -4°F to120°F
Rack Unit dimensions 19.12” W x 3.4” H x 1.73” D
Weight (Main Body) 2.52 lbs

Network Control

V-MD series rack LAN port built-in web serverEach V-MD series rack includes a LAN port with a built-in web server. This allows the operator to visually monitor and control any or all V-MD series units that are connected to the LAN. Any function that is addressable from the front panel of a V-MD series monitor can be accessed via Firefox® web browser -- even on a wireless device.** The rear panel LAN 100 port connects the unit to the LAN.

Once connected, the user simply locates the IP address of any one of the units connected to the LAN. This is accomplished by going to the MAIN MENU of any of the connected units and selecting the NETWORK CONFIGURATION submenu. This will then display the IP address of that unit. V-MD units are shipped with the DHCP mode enabled.

MD Network Control IP Address on screen sampleSimply type this IP address into the address bar of your browser and the home page for that unit will appear. It is possible to poll your LAN for all other MD units connected by accessing the NETWORK tab from the Top Menu.

MD Network Control Power and InputThe user can then control multiple networked MD monitors at once using a single browser page. The user may select which monitor(s) they wish to control and send commands to those particular monitors. The browser provides real-time status of any connected monitor, ensuring consistent signals / feeds and so forth.

False Color Filter

Color filter scale

The False Color filter is used to aid in the setting of camera exposure. As the camera Iris is adjusted, elements of the image will change color based on the luminance or brightness values. This enables proper exposure to be achieved without the use of costly, complicated external test equipment.

To best utilize this feature, you must understand the color chart and have a basic understanding of camera exposure. Normally, when shooting subjects like people, it is common practice to set exposure of faces to the equivalent of approximately 56 IRE. The False Color filter will show this area as the color PINK on the monitor. Therefore, as you increase exposure (open the IRIS), your subject will change color as indicated on the chart: PINK, then GREY, then a few shades of YELLOW. Overexposed subjects (above 101 IRE) on the monitor will be shown as RED. In addition, underexposed subjects will show as DEEP-BLUE to DARK-BLUE, with clipped-blacks indicated with a FUCHSIA-like color. Lastly, the color GREEN is used to indicate elements of the image that are approximately 45 IRE. This represents a "neutral" or "mid-level" exposure commonly used for objects (not people).


Filter display samples
OVEREXPOSED
Overexposed objects will display as RED
UNDEREXPOSED
Underexposed objects show as
DEEP-BLUE to DARK-BLUE
PROPERLY EXPOSED
Properly exposed objects will display elements of GREEN and PINK

IMD and Tally

Use the "Text Enable" function to turn the MD Text feature ON. This will cause the "Text String" to appear on the lower portion of the screen. This provides the user with a 16 character on-screen text string. The color, background (opacity), and alignment of text can also be managed by the operator. This same menu allows control of Tally Source. Tally lights (both LED and on-screen) can be enabled/disabled and also set to match "Text String" color.


Optional Input Modules (Type B modules)


MD-3GE-B - 3G/HD/SDI Input Module with Loop-Through
MD-HDSDIx2-B - Two-channel HD-SDI Input Module with switched output
MD-DVII-B - DVI-I Input Module

» Click here for more info on optional Input Modules
* Input modules are optional and available at additional cost. More input modules to be offered in the future.
