The V-R102DP-SD features our Completely Digital TFT-Megapixel™ high defi nition TFT/LCD system with 1.44 million pixels. Analog signals are digitized using an advanced 10 bit process with 4x over sampling and adaptive 5 line comb filter plus exacting color space conversion. Video is scaled to fit on screen in the highest resolution using a state of the art LSI that incorporates 6x6 pixel adaptive motion interpolation with precision Gamma correction. Additional features include Pixel-to-Pixel™ native resolution scaling, setup memory, Underscan, H/V Delay, adjustable color temperature, and Blue Gun.

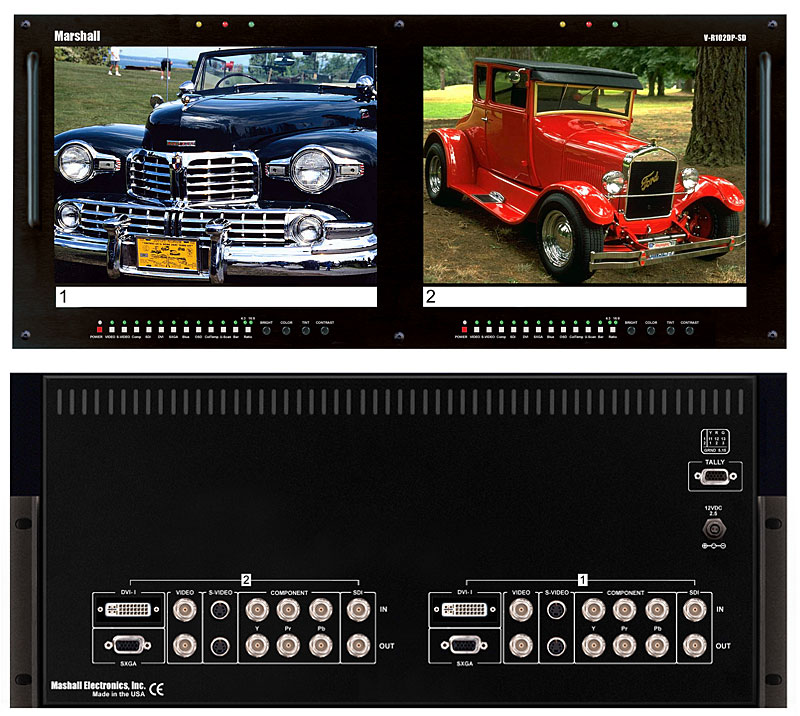

V-R102DP-SD

TFT-MegaPixel SDI Multiformat Dual Screen 10.4-Inch Monitor Set

Owner's Manual (PDF)

back light life icon
TFT-MegaPixel SDI Multiformat Dual Screen 10.4 inch Monitor Set

  • Large 10.4-inch screens 800x600 Dots
    (1.44 million RGB pixels)
  • Match Color Conversion
  • Adjustable Color Temperature
  • 5 Year / 50,000 hour backlight life
  • 10-bit Analog to Digital conversion
  • High resolution scaling
  • Wide viewing radius - 130° horizontal and
    vertical provides superior visibility.
  • 600 candelas per square meter (cd/m²) luminance produces enhanced image quality in varying light and viewing conditions
  • 500:1 ratio of contrast between black and
    white luminance values
  • 4:3 and 16:9 screen aspect ratios for DTV applications
  • Direct access for all adjustments
  • Three color tally indicators
  • On Screen Display (OSD)
  • Blue Screen for color adjustment
  • Adjustment Settings Memory
  • Underscan
  • Ready to Rack mount out of the box
  • Standard inputs:
  • SDI (ITU-BR601/SMPTE-259M)
  • Component analog (YCbCr) (YPbPr) for SD formats
  • Composite Video auto PAL/NTSC recognition
  • S-Video (Y/C)
  • DVI (Analog and Digital with HDCP)
  • PC up to SXGA (1280 x 1024)
  • Loop through of all video input signals

Our V-R102DP-SD provides up to 20% more viewing area than the competitors' 8.4-inch LCD or 8 and 9-inch CRT models yet occupies the same amount of rack space. Ready to rack mount in 5RU, this model is less weight and has lower power consumption when compared to similar CRT and LCD products.

The V-R102DP-SD features our Award Winning Digital TFT-MegaPixel system. Inputs are provided for SDI (Serial Digital Interface), SD Component Analog, Composite, Y/C, DVI Analog or Digital with HDCP, plus PC up to SXGA resolution (1280x1024).

Analog signals are digitized using an advanced 10-bit process, and all screen formats are scaled to fit on screen in the highest resolution using our proprietary program and state-of-the-art LSI with Match Color Conversion to emulate SMPTE-C phosphor of a CRT.


SPECIFICATIONS
Display (Viewing Area)
10.4 Inch diagonal (211.2mm W x 158.4mm H)
Resolution (Pixels)
800 Wide x 600 High (1.44 Million RGB Pixels)(262,000 colors)
Dot Pitch
.264mm square pixel
Brightness (in cd/m²)
600
Contrast Ratio
500:1
System
NTSC/PAL auto recognition
Inputs per panel (total)
1 (2) SDI,
1 (2) Composite,
1 (2) S-Video (Y/C),
1 (2) Component,
1 (2) DVI,
1 (2) PC-SXGA (1280 x 1024)
Dimensions
19.24" w x 8.67" h x 1.5" d (485.7mm x 220.22mm x 38.1mm)
Approx. Weight
7.2 lbs (3.27 kg)
Power Consumption
Approx. 50 Watts (5Amp 12 VDC Class 2 power supply included)
APPLICATIONS
  • Studio Monitor Wall
  • Remote/OB Van
  • EFP/ENG
  • Camera Shading

  • Fly Packs
  • VTR/DDR Replay
  • ISO Recording
