The V-R1041DP-DVI is a 10.4" high definition LCD monitor featuring our completely digital TFT-MegaPixel™ active matrix LCD platform. Weighing only 2.85 lbs, this monitor is ideal as a light-weight high resolution viewfinder or focus-assist monitor. The V-R1041DP-DVI can also be rack-mounted with an optional 4RU adapter, or used in a desktop configuration with optional desktop stand . Emulation of SMPTE-C/EBU color and adjustable color temperature enable the most precise color representation possible. Our proprietary digital signal processing features 10-bit A/D conversion of all analog signals, with 4X over-sampling and 5-line super-adaptive 2D comb filtering of composite signals. De-interlacing is performed using our HyperProcess™ algorithm with motion adaptive interpolation. Multi-format compatibility accommodates virtually all video formats including 480i/p, 720p, and 1080i standards. VGA and DVI inputs accept VESA standards allowing the display to be used as a computer monitor. Advanced features include aspect ratio settings, a variety of screen markers, underscan mode, blue-only mode, monochrome mode, H/V delay, and Pixel-to-Pixel™ mode.

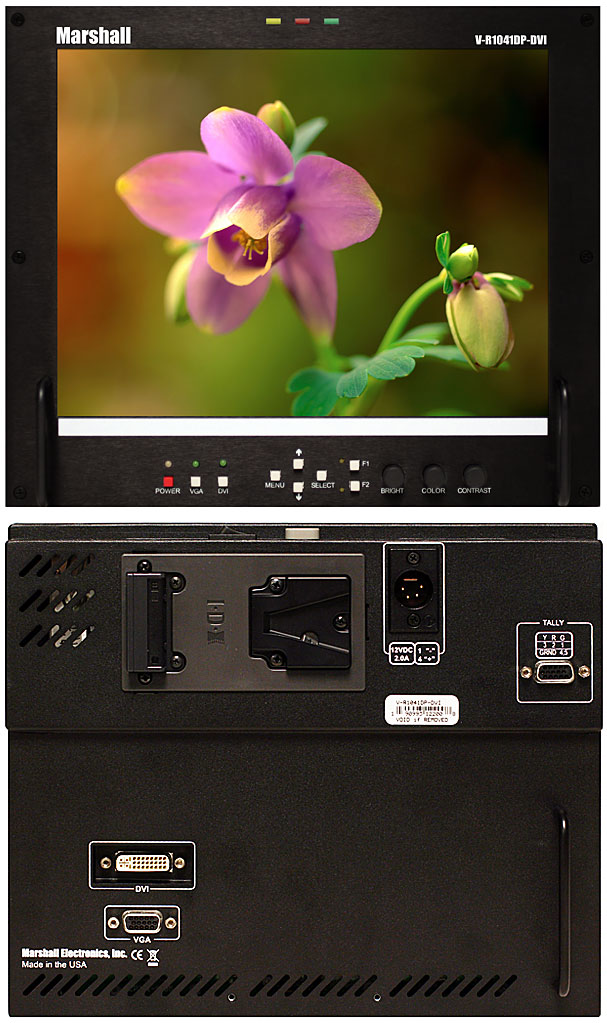

V-R1041DP-DVI

TFT-MegaPixel 10.4-Inch Field Monitor with DVI Input

Owner's Manual (PDF)
TFT-MegaPixel 10.4-Inch Field Monitor with DVI Input

  • Large 10.4-inch screen
  • 1024x768 Dots (2.4 million RGB pixels)
  • 100% digital processing
  • 5 Year / 50,000 backlight life
  • Wide viewing radius - 170°
  • 300 cd/m² luminance
  • 700:1 contrast ratio
  • Direct access for all adjustments
  • Durable metal enclosure
  • Configurable ¼ 20 Mounting
  • Operates on 12 VDC
  • AC-to-DC Power Supply Included
  • Optical grade polycarbonate
    screen cover

Optional Desktop Stand
Optional Desktop Stand
V-ST08
Our portable V-R1041DP-DVI is a unique solution for Professional IT, A/V and Multimedia applications. This field-durable display is low in weight and has low power consumption.

The V-R1041DP-DVI features our Award Winning Digital TFT-Megapixel system. Signals are input via a Female HD-15 connector for computer signals up to SXGA resolution (1280x1024) and DVI-I.

RGB signals are digitized using an advanced 10-bit process and all accepted resolutions are scaled to fit on each screen in the highest resolution using our proprietary program and state-of-the-art LSI.


Display (Viewing Area)
10.4 Inch diagonal (8.3" x 6.2") (211.2mm W x 158.4mm H)
Resolution (Pixels)
1024 Wide x 768 High (262,144 colors)
Dot Pitch
0.0685 (H) x 0.2055 (V) mm
Brightness (in cd/m²)
300
Contrast Ratio
700:1
Inputs
PC-SXGA (1280 x 1024) via HD-15 Female Connector and 1 DVI-D
Dimensions
10.25"w x 8.5" h x 2.5" d (260.4mm x 215.9mm x 38.1mm)
Approx. Weight
4 lbs (1.8 kg)
Power Consumption
App. 50 Watt (5 Amp 12 VDC Class 2 power supply included)
