The V-R1042-IMD-TE4U is a 10.4" LCD monitor with HD-SDI input and In-Monitor Display functionality – a cost-effective "all-in-one" solution for post-production houses, broadcasters, and mobile units. This fully integrated approach eliminates the need for additional or separate Under Monitor Displays and allows UMD information and tallies to be displayed directly within a Marshall flat panel monitor, while saving precious rack space. A variety of features are readily available including on-screen Video Time Code, three-color "Soft" Tallies, Audio Presence Indicator, and a new RotoMenu™ feature that allows fast, direct, and easy menu navigation.

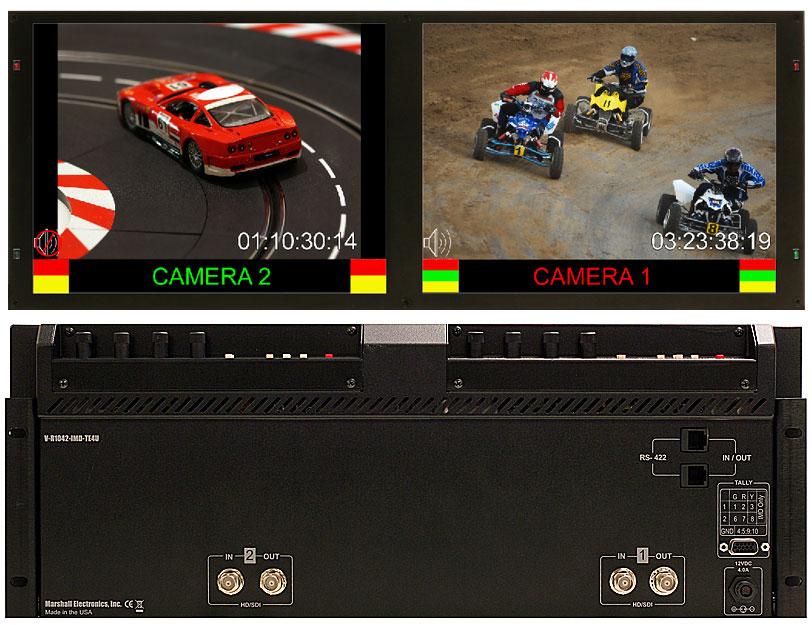

V-R1042- IMD-TE4U

4U Dual 10.4" 1024 x 768 Rack Mounted Monitor Set with HD-SDI inputs and In-Monitor Display features

Owner's Manual TV TECHNOLOGY review
of dual 10.4" IMD
In monitor display
Dual 10.4 inch 1024 x 768 Rack Mounted Monitor Set with HD-SDI inputs and In-Monitor Display features
  • No need for external Under Monitor Display --
    "all-in-one" In-Monitor Display solution
    without added depth
  • Supports the following protocols:
    Image Video / NVISION / TSL / MEI
  • 1024 x 768 RGB Dots with 2.4 million pixels
  • 16.7 million colors
  • Industry's first and only dual 10.4" monitor set that
    fits in just 4RU rack space
  • Unique RotoMenu™ feature for fast, direct,
    and easy menu navigation
  • 5 Year / 50,000 hour backlight life
  • High resolution scaling / high quality deinterlacing
  • Ultra-wide viewing radius -- 170 degree horizontal and vertical provides superior visibility
  • 300 cd/m² luminance produces enhanced image quality in varying light and viewing conditions
  • 700:1 ratio of contrast between black and white luminance values
    Ultra wide diagram
  • Three-color on-screen "soft" tally indicators (Red / Green / Amber)
  • Two LED color tally indicators (Red / Green)
  • On-Screen Audio Presence Indicator
  • On-Screen Video Time Code
  • RS-422 / 485 connection with loop-through for control communication / IMD functionality
  • Field upgradeable firmware capability
    via RS-422 / 485 port
  • Direct access for adjustments of brightness,
    contrast, and color
  • Multiple Frame Marker Overlays with Center Mark
  • Pixel-to-Pixel mode
  • Blue Gun for color adjustment
  • Adjustment Settings Memory

Marshall Electronics introduces the industry's first full lineup of LCD panels with In-Monitor Display functionality. The V-R1042-IMD-TE4U Truck Edition dual HD 10.4 monitor set is a cost-effective "all-in-one" solution for post production houses, broadcasters, and mobile units. This fully-integrated approach eliminates the need for additional or separate Under Monitor Displays and allows UMD information and tallies to be displayed directly within a Marshall flat panel monitor, while saving precious rack space. A variety of features are readily available including on-screen Video Time Code, three-color "Soft" Tallies, and Audio Presence Indicator. The Marshall IMD displays also introduce our RotoMenu™ feature which allows fast, direct, and easy menu navigation.

Marshall IMD monitors integrate easily with existing Tally systems and controllers, including Image Video, NVISION, TSL, and MEI (Marshall Electronics) protocols. This 4RU unit also ships ready to rack mount and provides up to 20% more screen when compared to our competitors' LCD and CRT models that occupy the same space. This is in addition to the benefits of low weight and power consumption when compared to similar CRT products and separate Under Monitor Display configurations. The V-R1042-IMD-TE4U is a perfect solution for large Video Wall applications and systems.

Each screen offers a single HD-SDI input with active loop-through capability. Additional features include ultra-wide viewing angles, adjustment settings memory, multiple Frame Marker Overlays, Pixel-to-Pixel mode, Blue Gun, and direct access for adjustment and selection functions. Can also be used as standalone displays with HD-SDI loop-through.


SPECIFICATIONS
Display (Viewing Area) 10.4 Inch diagonal (210.432mm W x 157.824mm H)
Resolution (Pixels) 1024 Wide x 768 High (16.7 million colors)
Dot Pitch 0.0685 (H) x 0.2055 (V) mm
Brightness (in cd/m²) 300
Contrast Ratio 700:1
System NTSC/PAL auto recognition
Inputs per panel 1 HD-SDI/SDI Multi-rate / Loop-through
Dimensions 9.64" W x 7" H x 1.73" D
Approx. Weight 3.1 lbs
Power Consumption App. 24 Watt (2.0A @ 12 VDC)

* Pricing does not reflect freight costs and applicable taxes and duties
* Pricing, specification and features are subject to change
