The Rack mounted and tiltable V-R102DP-2C represents leading edge technology in LCD imaging for broadcast and professional video applications featuring High Resolution, 1.2 megapixel, TFT screens with completely digital signal processing. NTSC and PAL composite video standards and signal types are accepted and displayed on each screen of this model. Analog signals are digitized using an advanced 10 bit process on each signal path with 4x over sampling and adaptive 5 line comb filter with exacting color space conversion. All video formats are scaled to fi t on screen in the highest resolution using a state of the art LSI that incorporates 4x4 pixel interpolations with precision Gamma correction to produce the best images available.


TFT-MegaPixel Dual Screen
10.4-Inch DVI Monitor Set

Owner's Manual (PDF)

back light life icon
TFT-MegaPixel Dual Screen
10.4 inch DVI Monitor Set

  • High Definition Resolution 10.4-inch 2.4 MegaPixel screen with 1024 x 768 resolution
  • 100% digital processing
  • 5 Year / 50,000 hour backlight life
  • High resolution scaling
  • Wide viewing radius - 130° horizontal and vertical provides superior visibility
  • 300 candelas per square meter (cd/m²) luminance produces enhanced image quality in varying light
    and viewing conditions
  • 700:1 ratio of contrast between black and white luminance values
  • results in excellent quality for moving images
  • Direct access for adjustments of brightness and contrast
  • Ready to Rackmount out-of-the-box
  • Standard inputs:
  • PC up to SXGA (1280x1024)
  • DVI-D

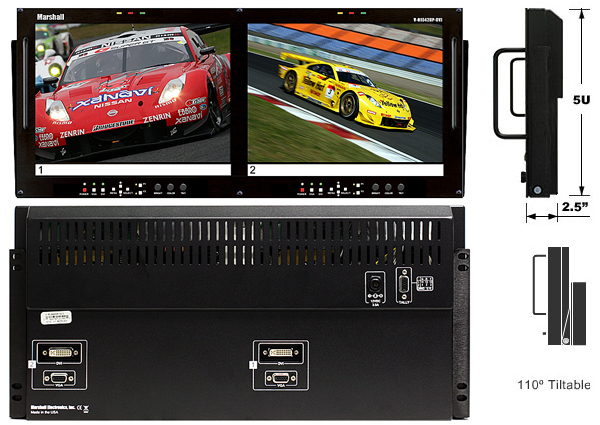

Our dual screen V-R1042DP-DVI is a unique solution for Professional IT, A/V and Multimedia applications. Ready to rackmount in 5RU, this model saves valuable rack space, is low in weight, and has low power consumption. Since it is only 1.65-inches deep, this monitor set is perfect for use in any EIA 19-inch relay or equipment rack.

The V-R1042DP-DVI features our Award Winning Digital TFT-MegaPixel system. Signals are input via a Female HD-15 connector for computer signals up to SXGA resolution (1280 x 1024) and DVI-D.

RGB signals are digitized using advanced 10-bit processing and all accepted resolutions are scaled to fit on each screen in the highest resolution using our proprietary program and state-of-the-art LSI.

Display (Viewing Area)
10.4 Inch diagonal (8.3" x 6.2") (211.2mm W x 158.4mm H)
Resolution (Pixels)
1024 Wide x 768 High (262,144 colors)
Dot Pitch
0.0685 (H) x 0.2055 (V) mm
Brightness (in cd/m²)
Contrast Ratio
Inputs per panel
1 PC-SXGA (1280 x 1024) via HD-15 Female Connector and 1 DVI-D
19.24" w x 8.67" h x 1.5" d (485.7mm x 220.22mm x 38.1mm)
Approx. Weight
7.2 lbs (3.27 kg)
Power Consumption
App. 50 Watt (5Amp 12 VDC Class 2 power supply included)
  • Multi Image Display Preview
  • Fly Packs
  • Security /Surveillance
  • Projector Confidence
  • Conference Room
  • AV Center
