The V-R171-4P is designed to fit in a EIA standard 19" rack. It requires 8 rack units of vertical space and is secured with eight screws. It may be necessary to center the unit up or down so that it does not touch any adjacent units when the unit is tilted up or down.


17" Rack Mountable LCD Monitor with Built-in Quad Splitter and Sequential Switcher

Owner's Manual (PDF)

  • High Resolution LCD panel - 1280 x 1024 pixels
  • Unique Ultra Wide Viewing Angle LCD Panel - 170 degrees in any direction
  • Bright 250 candle luminance
  • Built-in Quad Splitter/Sequential Switcher
  • Software driven 16:9 to 4:3 ratio switch
  • Compact design fits in EIA standard rack 8U high
  • Unique 180 degree tilt adjustment while
    mounted in rack
  • Available in NTSC or PAL format

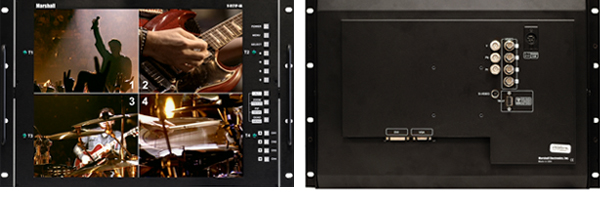

The V-R171P-4A is a 17" LCD rack mounted unit that features a built-in Quad Splitter with Sequential Switcher. This high resolution LCD panel has a pixel count 1280 x 1024, capable of producing nearly 17 million colors, and fits in a standard 19" rack 8U high. The Quad Splitter allows all of the four channels to appear on the monitor simultaneously either using the full screen or picture-in-picture mode. Other features include digital freeze and zoom functions as well as 16:9 aspect ratio via an on-screen menu. For added flexibility, this unit can accommodate 4 composite video, 1 S-Video. 1 DVI, or 1 SXGA for computer monitoring (S-Video, DVI, and SXGA inputs are only available in full screen mode). The unit includes power supply and owner's manual

Display (Viewing Area) 17" (13.30" × 8.75 ")
Resolution (Pixels) 1280H × 1024V
Dot Pitch 0.264mm × 0.264mm
Brightness (in cd/m²) 250
System NTSC - V-R171P-4 / PAL - V-R171P-4-PAL
Inputs 4 Composite, 1 S-Video, 1 DVI, 1 SXGA
Dimensions 19.125"W × 13.80"H × 2.5"D
Approx. Weight 13 lbs
Power Consumption 12 VDC, 3.0 Amps
