V-R173-IMD-3GTE
High Resolution Full HD 1920 x 1080 Monitor with 3GSDI input, In-Monitor Display Features and Truck Edition Enhancements
Spec Sheet- IMD - In Monitor Display Provides Tally and Text on-screen
- Eliminates External Under Monitor Displays - Saves Rack Space and Complexity
- Supports Image Video / TSL / MEI protocols
- "Truck Edition" enhancements save rack space and simplify installation
- Unique RotoMenu™ for "no fumbling" fast, direct, and easy menu navigation
- High Resolution 1920 x 1080 display
- High quality scaling / de-interlacing
- Supports 16.7 million colors
- 400 cd/m² luminance produces enhanced image quality in varying light and viewing conditions
- 600:1 contrast ratio
Special Features

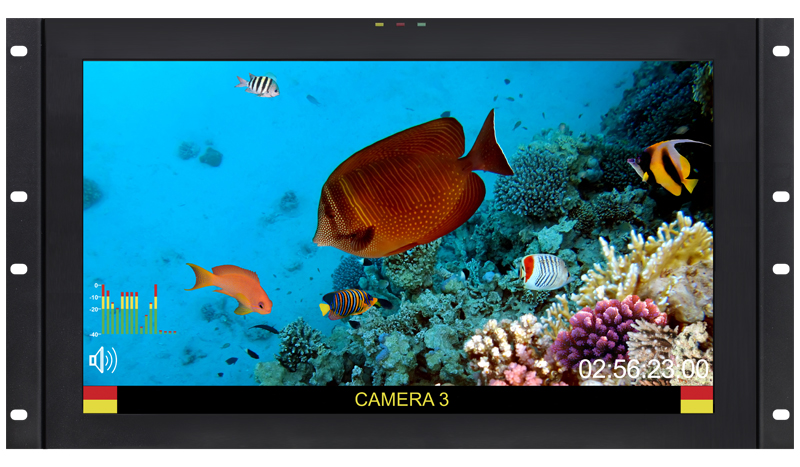

- Three-color on-screen "soft" tally indicators (Red / Green / Yellow)
- Three-color LED "hard" tally indicators (Red / Green / Yellow)
- On-Screen Audio Bars Display up to 16 Channels
- On-Screen Time Code and Closed Captioning Display
- RS-422 / 485 port with loop-through for monitor control and IMD functionality
- Field upgradeable firmware capability
- Direct controls for brightness, contrast, and color
- Multiple Frame Marker Overlays with Center Mark
- Pixel-to-Pixel mode to check image detail
- Blue-only Mode for color adjustment
- Adjustment Setting Memory
- Easy mounting with included rack ears, VESA mount or optional desk stand
V-ST15
Optional Desktop Stand

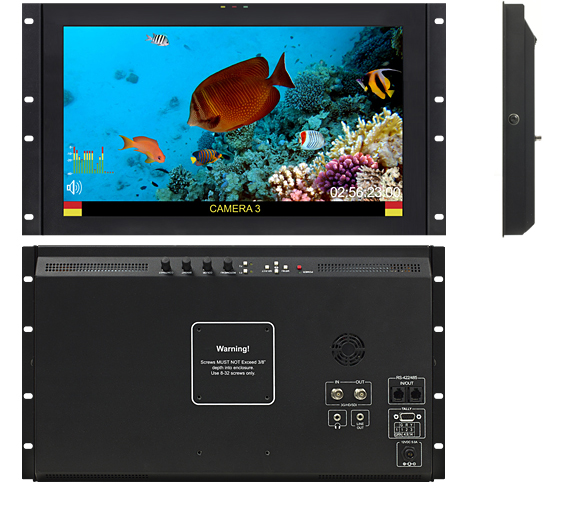

The Marshall V-R173-IMD-3GTE Truck Edition 17.3” monitor is a cost-effective "all-in-one" solution for post production houses, broadcasters, and mobile units. This fully-integrated approach eliminates the need for additional or separate Under Monitor Displays and allows UMD information and tallies to be displayed directly within the Marshall flat panel monitor, while saving precious rack space. A variety of features are readily available including on-screen Video Time Code, Closed Captioning, audio level bars. Audio de-embedding via headphone or Line Out connectors. The Marshall IMD displays also feature our RotoMenu™ easy menu navigation using a single control which avoids turning on the lights to see menu keys.
Panel | Number of Panels | 1 |
Panel Size | 17.3” Diagonal | |
Resolution | 1920 x 1080 | |
Aspect Ratio | 16:9 | |
Active Area | 381.888 x 214.812 mm | |
Type | LCD Panel | |
Brightness | 400 cd/m² | |
Contrast | 600:1 | |
Viewing Angles | 160°H x 140°V | |
Backlight type | LED | |
Features | Video Formats | 1080p/1080i/720p/625i/525i |
Color Temperature | D65, D55 and D93 | |
IMD Functions | Yes | |
Tally | Yes | |
Pixel to Pixel | Yes | |
Closed Caption | Yes | |
Pre-set Gamma points | Yes | |
Input Self-Sensing | Yes | |
Audio Bars | Yes | |
Embedded Audio with SDI | Yes | |

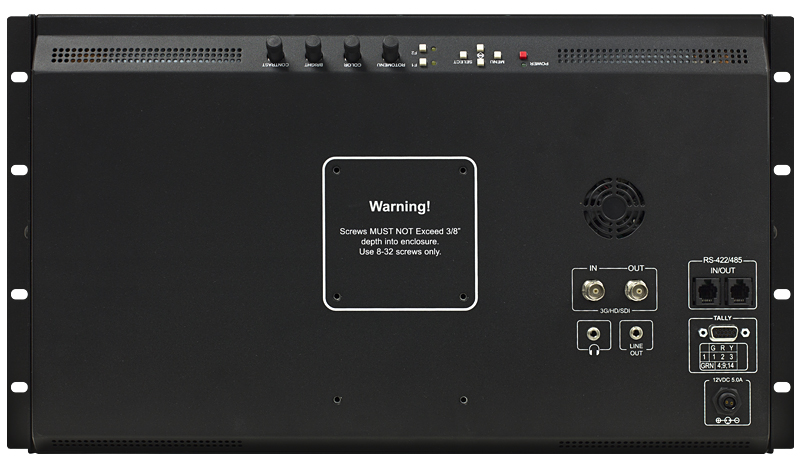

Video Connectors | 3G-SDI with active loop-through - compatible with HDSDI/SDI | Yes |
Control Inputs | Tally / GPI | Yes |
RS-485/422 w/ Loop-Through | Yes | |
Ethernet | No | |
Controls on top for low profile design | Yes | |
User-Defined Function Buttons | Yes | |
RotoMenu™ Control | Yes | |
Pivot Angle | Yes | |
Handles/Rack Ears - removable, included | Yes | |
Power | ||
Consumption | 5.0A max @ 12VDC (60 watts) | |
Power Switch | Yes | |
Connector Type | 2-Pin Twist Lock Male | |
Compliance | Compliance | CE approved |
Environmental | Operating Temperature (C°) | 32°F to 104°F |
Storage Temperature (C°) | -4°F to 120°F | |
Rack Unit dimensions | 18.74” W x 10.45” H x 1.46” D | |
Weight (Main Body) | 8.20 lbs | |
Vesa Mount Pattern | 75mm |
