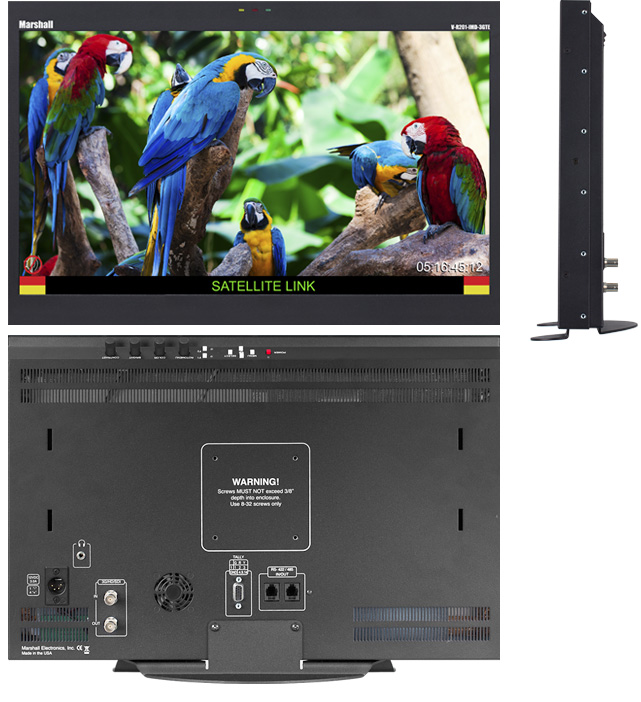

V-R201-IMD-3GTE - 20-inch 1600 x 900 Desktop / Rack Mount Monitor with 3GHD-SDI input and In-Monitor Display features


20" 1600 x 900 Desktop / Rack Mount Monitor with 3G HD-SDI input and In-Monitor Display features

Owner's Manual Spec Sheet
In monitor display


Optional VESA MOUNT STANDVESA mount stand
(Part #VP-LCD171H-ST-01)

optional fixed stand for the monitor Fixed stand
(Part #V-ST15)
  • No need for external Under Monitor Display -- "all-in-one" In-Monitor Display solution
  • Supports the following protocols: Image Video / NVISION / TSL / MEI
  • High Resolution 1600 x RGB x 900
  • Unique RotoMenu™ feature for fast, direct, and easy menu navigation
  • High resolution scaling / high quality interlacing
  • Ultra-wide viewing angles
  • 250 cd/m² luminance produces enhanced image quality in varying light and viewing conditions
  • 1000:1 ratio of contrast between black and white luminance values
  • Three-color on-screen "soft" tally indicators (Red / Green / Amber)
  • Three LED color tally indicators (Red / Green / Amber)
  • On-Screen Audio Presence Indicator
  • On-Screen Video Time Code
  • RS-422 / 485 connection with loop-through for control communication / IMD functionality
  • Field upgradeable firmware capability via RS-422 / 485 port
  • Direct access for adjustments of brightness, contrast, and color
  • Multiple Frame Marker Overlays with Center Mark
  • Pixel-to-Pixel mode
  • Blue Gun for color adjustment
  • Adjustment Settings Memory

The V-R201-IMD-3GTE 20-inch monitor is a cost-effective "all-in-one" solution for post production houses, broadcasters, and mobile units. This fully-integrated approach eliminates the need for additional or separate Under Monitor Displays and allows UMD information and tallies to be displayed directly within a Marshall flat panel monitor, while saving precious rack space. A variety of features are readily available including on-screen Video Time Code, three-color "Soft" Tallies, and Audio Presence Indicator. The Marshall IMD displays also introduce our RotoMenu™ feature which allows fast, direct, and easy menu navigation.

Marshall IMD monitors integrate easily with existing Tally systems and controllers, including Image Video, NVISION, TSL, and MEI (Marshall Electronics) protocols. This 6RU unit also ships ready to rack mount and can be wall or ceiling mounted with an optional VESA adapter.

This is in addition to the benefits of low weight and power consumption when compared to similar CRT products and separate Under Monitor Display configurations. The V-R201-IMD-3GTE is a perfect solution for large Video Wall applications and systems. This unit also offers a single 3GHD-SDI input with active loop-through capability. Additional features include ultra-wide viewing angles, adjustment settings memory, multiple Frame Marker Overlays, Pixel-to-Pixel mode, Blue Gun, and direct access for adjustment and selection functions. Can also be used as a standalone display with 3GHD-SDI loop-through.

V-R201-IMD-3GTE specifications
Display (Viewing Area) 20 inches diagonal (16:10 aspect ratio)
Resolution (Pixels) 1600 x 900
Active Area 462.8 x 272.0 mm
Brightness (in cd/m²) 250
Color Gamut YUV, RGB
Video Formats 1080p/1080i/720p/625i/525i
Contrast Ratio 1000:1
Input Connectors SD-SDI
Output Connectors SD-SDI
Control Inputs Tally / GPI
RS-485/422 w/ Loop-Through
User-Defined Function Buttons
RotoMenu™ Control
Handles/Rack Ears
Power Voltage - 12VDC
Consumption - 3 Amps @36 Watts
Power Switch - Yes
Connector - 4-Pin XLR
Dimensions 18.32" W x 12.17" H x1.66" D
Approx. Weight 9.1 lbs.
Power Consumption 5.0A @ 12VDC (60 W)
