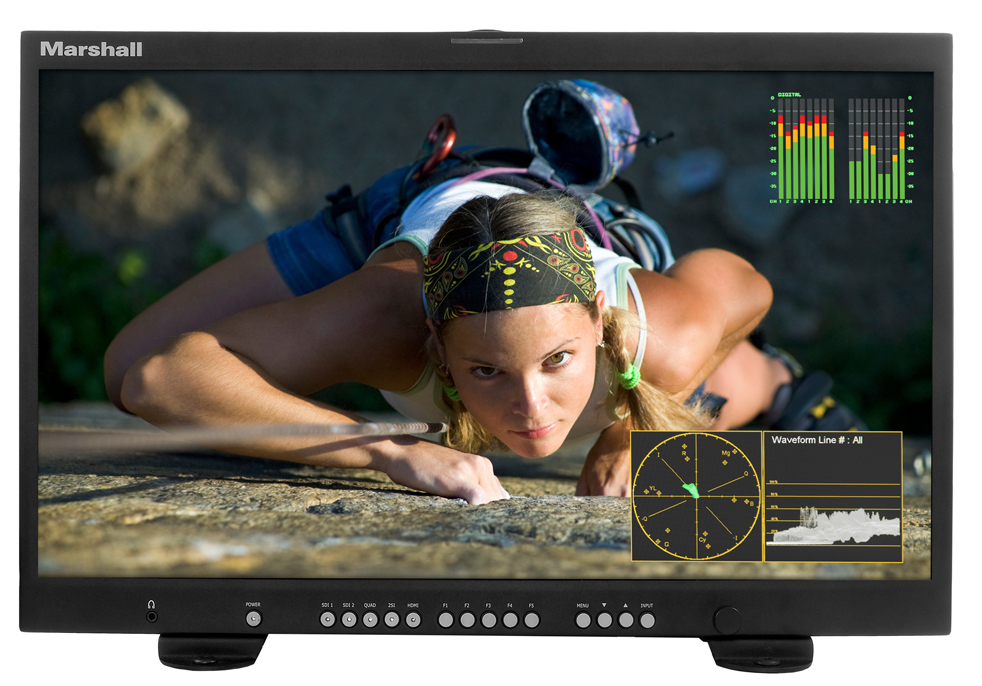

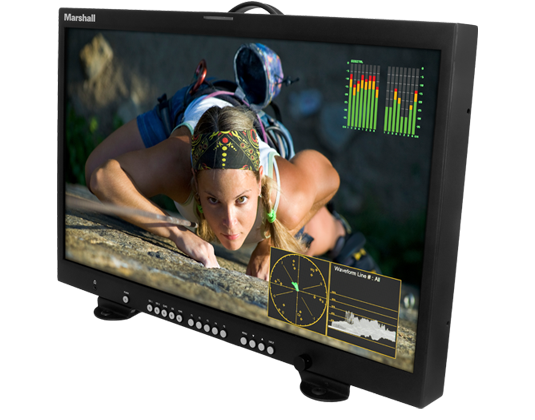

The Marshall V-R241-4K offers stunning color performance with a wide variety of built-in features for professional video production, broadcast, and Pro AV applications. The V-R241-4K has a beautiful 24-inch UHD panel with wide viewing angle that can display resolution inputs all the way up to 4K.
Versatile enough for any video production set, while equally at home in the studio for post, the Marshall V-R241-4K can follow any professional video workflow from initial capture to final mastering. Great for use in commercial work, on-set production, cinema, live video broadcasts, and a wide range of AV applications.
- UHD/4K support via 12G SDI, Quad 3G SDI, Interleaved 2SI, and HDMI 2.0
- Displays all HD, UHD, and 4K resolutions (4096 x 2160 letterbox)
- Supports frame rates from 23.98 to 60 fps
- Color gamut presets for REC 709 and DCI P3 "Cinema"
- Supports HLG and SMPTE 2084 HDR
- Timecode display for embedded VITC and LTC (SDI input)
- Close Caption display for 708 and converted 608 captions (SDI Input)
- Built-in confidence speakers confirm presence of embedded audio

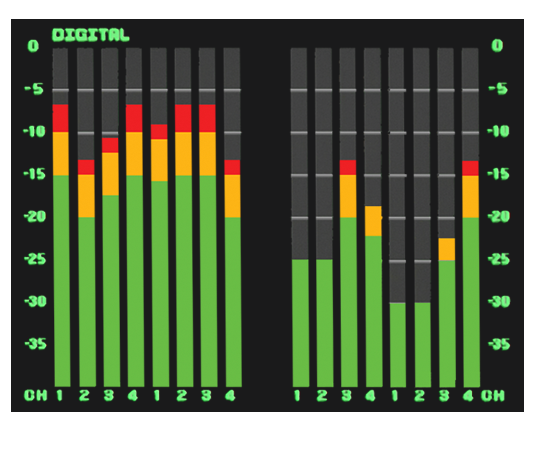

- Audio bar displays 1 - 16 channels (SDI) or channel pair (HDMI)
- IMD (In Monitor Display) compatible with TSL or Image Video tally controls

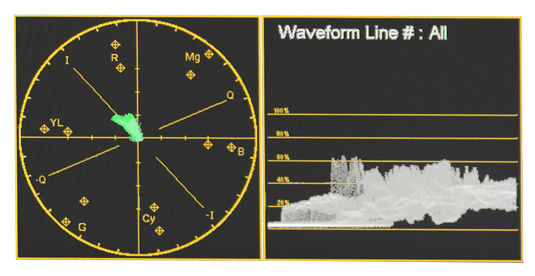

- Waveform/Vector displays either full frame or line-by-line analysis
(12G UHD/4K or 3G HD) - Eco-friendly with extremely low power consumption in standby mode and remote wake
| Panel | ||
| Panel Size | 20.74 x 11.59" / 527.04 mm x 294.46 mm | |
| Resolutions | 3840x2160 (23.98/24/25/29.97/30/50/59.94/60p), 2048x1080p (24/25), 1920x1080p (50/60/30psf/25psf/24psf/30/25/24), 1920x1035i (60/59.94),1920x1080i (50/59.94/60), 1280x720p (24/25/30/50/59.94/60),480i(59.94),576i(50) HDMI: 480p / 720p / 1080p / 2160p |
|
| Aspect Ratio | Full Screen, 16:9, 4:3 | |
| Active Area | 23.8"/ 604.7mm Diagonal | |
| Type | LCD Panel | |
| Brightness | 350 cd/m² | |
| Color Processor | 10 bit color Processor | |
| Contrast | 1000:1 | |
| Viewing Angles (CR>=10) | 170° x 170° | |
| Cabinet Dimensions | 23.08 x 14.88 x 2.71" / 586.43 x 378.0 x 69.0 mm | |
| Weight | 26.45 lb / 12 kg | |
| Control | Front Panel Controls | Power/Standby Input selection: SDI 1, SDI2, 2SI Mode, Quad mode, HDMI Five User Programmed Buttons Menu Navigation Buttons Plus quick access to audio Volume and standard picture controls |
| Remote Controls | Deep menu functions via Ethernet and hand-held remote. Serial RS-232/422 port and GPI Input for IMD, Tally and more | |
| Back Light | Type | Light Emitting Diode |
| LED Life | 30,000 hrs | |

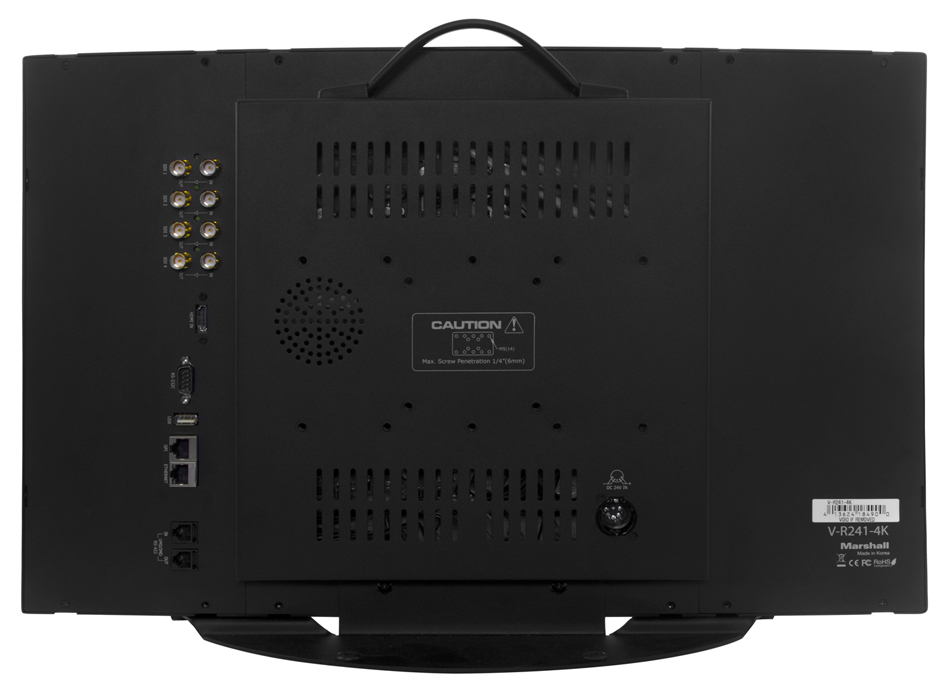

| SDI Inputs | Video Connectors | BNC x 4 with Loop Out Inputs 1 & 2 support up to 12G SDI, Inputs 3 & 4 up to 3GSDI Use as independent inputs or combined for Quad HD or 2SI UHD modes |
| HDMI Input | HDMI x 1 | |
| Power | DC Power | 24 VDC ±10% |
| DC Connector | XLR-5M (pin 1,2 = Ground, pin 4,5 = + 24) | |
| AC Power | 100-240 VAC, 50/60 Hz | |
| AC Power Connector | IEC 320-C14 3 pin Male |
