The V-R241-IMD-3G integrates easily with existing Tally systems and controllers, including Image Video, TSL, an MEI protocols. This low profile unit benefits from low weight and power consumption when compared to similar CRT products and separate Under Monitor Display configurations. The V-R241-IMD-3G is a perfect solution for video applications and systems. The V-R241-IMD-3G offers a single HD-SDI/SDI input with active loop-through capability. Additional features include ultra-wide viewing angles, color temperature adjustment, adjustment settings memory, frame markers, Pixel-to-Pixel mode, Blue Only mode, and user-definable function buttons. The V-R241-IMD-3G can also be used as a standalone display with HD-SDI loop-through.

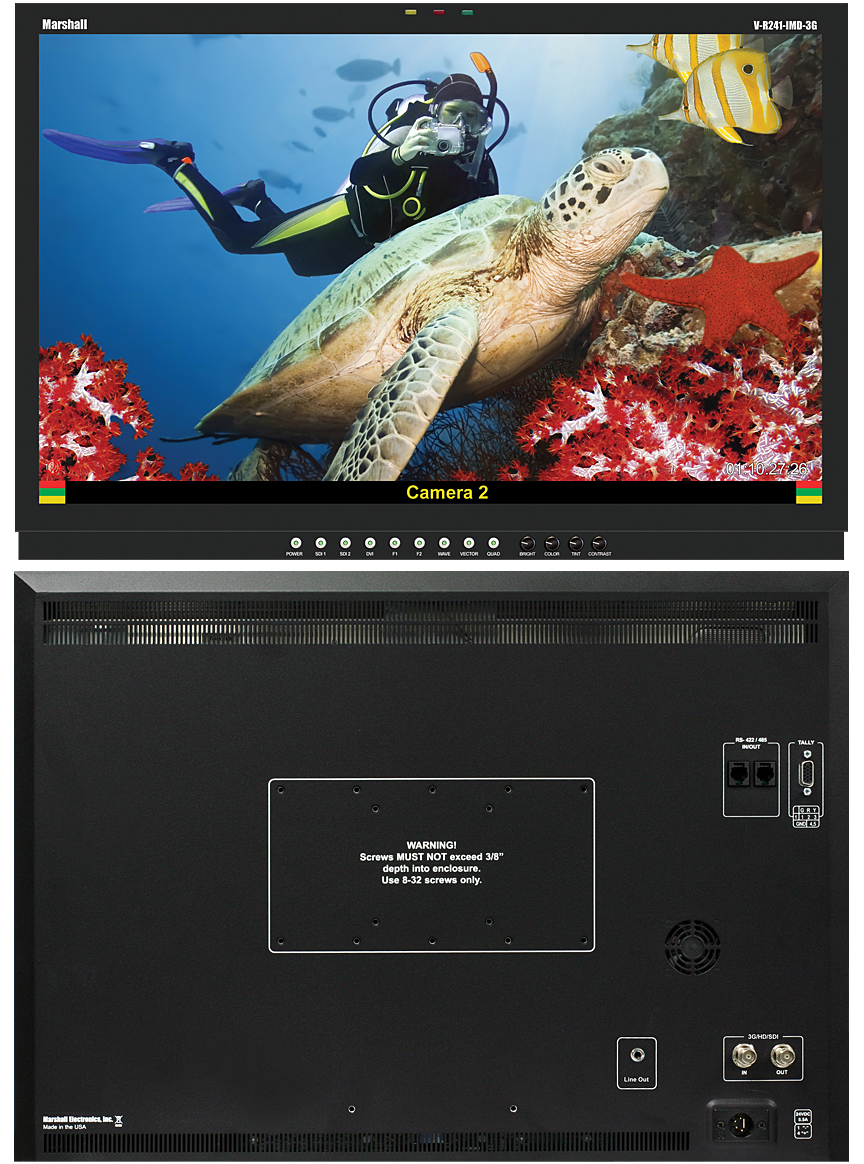

V-R241-IMD-3G

24" 1920 x 1200 Desktop / VESA Mount Monitor with 3G-SDI Video Input and In-Monitor Display features

Owner's Manual (PDF) Spec Sheet (PDF)
Desktop / VESA Mount Monitor with 3G-SDI Video Input and In-Monitor Display features
  • No need for external Under Monitor Display -- "all-in-one" In-Monitor Display solution without added depth
  • Supports the following protocols: Image Video / NVISION / TSL / MEI
  • High Resolution 1920 x 1200 panel
  • Unique RotoMenu™ feature for fast, direct, and easy menu navigation
  • High resolution scaling / high quality deinterlacing
  • 400 cd/m² luminance produces enhanced image quality in varying light and viewing conditions
  • 1000:1 ratio of contrast between black and white luminance values
  • Three-color on-screen "soft" tally indicators (Red / Green / Amber)
  • Three LED color tally indicators (Red / Green / Amber)
  • On-Screen Audio Presence Indicator
  • On-Screen Video Time Code
  • Direct access for adjustments of brightness, contrast, and color
  • Multiple Frame Marker Overlays with Center Mark
  • Pixel-to-Pixel mode
  • Blue Gun for color adjustment
  • Adjustment Settings Memory
  • 3G Format support
  • GPI function support
  • Audio Bars on screen
  • Headphone and Line Out Jacks (not all monitors have both)
  • Closed Caption Support (608 and 608 Comp)

Desktop Stand Accessory
Included Desktop Stand
V-ST23-32
Marshall Electronics introduces the industry's first full lineup of In-Monitor Displays. The V-R241-IMD-3G 24" monitor is a cost-effective "all-in-one" solution for post production houses, broadcasters, and mobile units. This fully-integrated approach eliminates the need for additional or separate Under Monitor Displays and allows UMD information and tallies to be displayed directly within a Marshall flat panel monitor, while saving precious rack space. A variety of features are readily available including Audio Bars on screen, on-screen Video Time Code, three-color "Soft" Tallies, and Audio Presence Indicator. Marshall IMD displays also offer a RotoMenu™ feature which allows fast, direct, and easy menu navigation.

Marshall IMD monitors integrate easily with existing Tally systems and controllers, including Image Video, NVISION, TSL, and MEI (Marshall Electronics) protocols. This unit also ships ready to rack mount and can be wall or ceiling mounted with an optional VESA adapter. This is in addition to the benefits of low weight and power consumption when compared to similar CRT products and separate Under Monitor Display configurations.

This unit also offers a single 3G-SDI input with active loop-through capability. Additional features include wide viewing angles, adjustment settings memory, multiple Frame Marker Overlays, Pixel-to-Pixel mode, Blue Gun, and direct access for adjustment and selection functions. Can also be used as a standalone display with 3G-SDI loop-through.

V-R241-IMD-3G specifications
Panel Number of Panels 1
Panel Size 24.1” Diagonal
Resolution 1920 x RGB x 1200
Aspect Ratio 16:10
Active Area 518.4 x 324.0 mm
Type LCD Panel
Brightness 400 cd/m²
Contrast 1000:1
Color Gamut YUV, RGB
Viewing Angles 178° x 178°
Backlight type LED
Adjustable Backlight No
Features

Video Formats 1080p/1080i/720p/625i/525i
Loss of Input Curtain Yes
Color Temperature D65, D55 and D93
IMD Functions Yes
Tally Yes
False Color No
Peaking Filter No
Pixel to Pixel Yes
Closed Caption Yes
Pre-set Gamma points Yes
Self-Sensing Yes
Audio Bars Yes
Embedded Audio with SDI Yes
Video
Input Connectors
CVBS No
YPbPr No
SD-SDI Yes
HD-SDI Yes
3G-SDI Yes
HDMI No
DVI-I No
Optical No
Video Output Connectors CVBS No
YpbPr No
SD-SDI Yes
HD-SDI Yes
3G-SDI Yes
HDMI No
Control Inputs
Tally / GPI Yes
RS-485/422 w/ Loop-Through Yes
Ethernet No
Controls on Front Yes
User-Defined Function Buttons Yes
RotoMenu™ Control Yes
Handles/Rack Ears No
Power Voltage 24 VDC
Consumption 5.5A @ 24VDC (132 W)
Power Switch Yes
Connector 4-Pin XLR Connector
Compliance Compliance CE approved
Environmental Operating Temperature (C°) 32°F to 104°F
Storage Temperature (C°) -4°F to120°F
Dimensions

Unit dimensions 21.86" x 15.47" x 2.14"
Weight (Main Body) 13.28 lbs
Vesa Mount Pattern 75 mm and 100 mm
