The V-R261-DLW features an In-Monitor Display (IMD) with the ability to display on-screen text and tally in three colors. IMD text, color, and alignment can be assigned to each screen locally using menu options. Alternately, IMD text and tally can be remotely controlled via the RS-422/485 serial interface using several industrystandard protocols, including TSL v4.0 and Image Video. Multiple V-R261-DLW monitors can be looped together and each addressed individually via the protocol. All menu features of the V-R261-DLW can also be controlled via the Marshall Network Controller box using MEI protocol.


26" Full Resolution Desktop Dual Link / Waveform Monitor with IMD (In-Monitor Display)

Owner's Manual (PDF)Spec Sheet (PDF)
24 inch Full Resolution Desktop and Rack Mount Dual Link

The 26" V-R261-DLW monitor includes Dual Link with Waveform & Vectorscope. These new models incorporate a 10-bit "no compromise" video path along with one of the industry's first monitors equipped with 3G capability. In Quad-View mode, the monitors break the screen into four quadrants and display Audio Bars, a Waveform Monitor, Vectorscope, and live video simultaneously. Both models have two inputs supporting 3G / HD / SDI and Dual Link. A DVI input supports all HDMI modes and DVI to 170MHz.

Additional features include IMD protocol support for TSL, NVISION, Image Video, and MEI (Marshall Electronics) tally control systems, remote firmware update via RS-485, tri-color hard and soft tally, and Safety Marker configurations. Other display features include full CEA-608-B and CEA-708-B Closed Captioning.

1920 x 1200 Full Resolution 26" Panel

The V-R261-DLW features an all-digital full resolution 1920x1200 display. The LCD panel features a brightness of 400 cd/m² and a 1000:1 contrast ratio making it ideal in a variety of environments and lighting conditions.

Multi mode, Vectorscope and Waveform Monitor mode

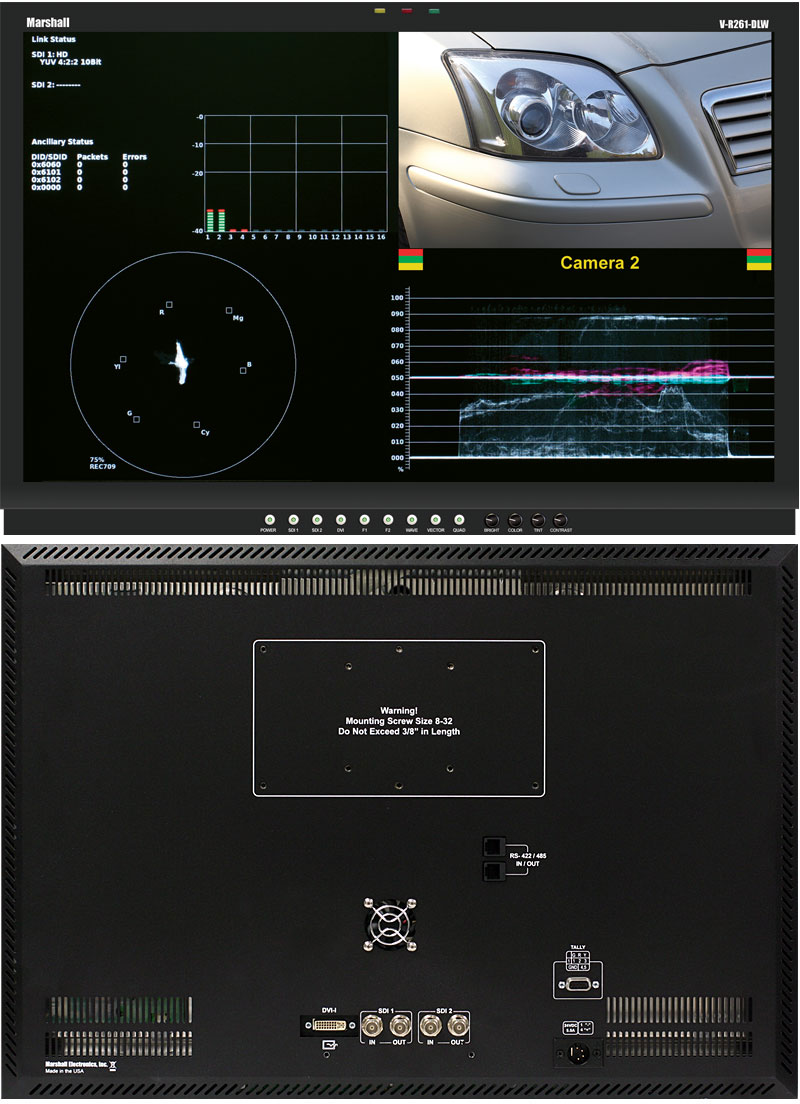

The DLW monitor series includes a real-time Waveform monitor and Vectorscope along with support for SDI, HD-SDI, 3G-SDI and Dual Link SDI. With the monitor in Multi mode, the monitor will break into four quadrants and display Signal Input information (Link Status), Embedded Audio levels, a Waveform monitor, a Vectorscope and live video simultaneously. Additional layouts provide the ability to view the Waveform monitor, Vectorscope, SDI Link status and Video individually.

Closed Captioning Decoding

The DLW monitor allows for decoding of Closed Captioning in the EIA-608 or EIA-708.

In-Monitor Display

In-Monitor Display allows on-screen text and tally indication, controlled locally or remotely via a variety of industry standard protocols.

OSD Features (On-Screen Display)

Embedded time code and an embedded audio presence indicator can be displayed on the screen in a variety of configurations. Closed Caption presence indication is also provided for 608/708 captions.

Advanced Features

Color temperature adjustment, aspect ratio settings, blue-only mode, and monochrome mode are a few of the advanced features allowing the V-R261-DLW to be at home in any broadcast environment. Pixel-to-Pixel mode also allows native display of any incoming image format.

Four User-Definable Function Buttons

Four user-definable function buttons allow quick access to numerous settings and features including aspect ratio, monochrome mode, color temperature, and more.


feature display for waveform monitors


The built-in waveform monitor can be displayed in various aspect ratios, positions, and transparency options. The waveform monitor displays YUV/RGB in both Overlay and Parade modes.


The built-in Vectorscope allows users to monitor color gamut range in real time. It displays in various sizes, positions, and transparency options.


De-embeds and displays up to 16 channels of audio using sixteen 40-segment tri-color Audio Meters with user-adjustable reference levels


  • 2 x 3G-SDI inputs with loop-through and SD-SDI, HD-SDI, & 3G-SDI support. SDI inputs can be used in tandem to do dual link
  • 1 x DVI-I input: supports digital DVI, HDMI (without audio), Analog video (RGB, YPbPr) to 162MHz


  • 10-bit image processor
  • 4x3 and 16x9 aspect ratios
  • High quality motion adaptive deinterlacer
  • Time-code (LTC / VITC)
  • 608/708 closed captioning
  • Waveform monitor
  • Vectorscope
  • Ancillary data window
  • 16 channels of audio metering (SDI inputs only)
  • Standard Marshall IMD processing
  • RotoMenu controlled OSD
  • Two programmable function buttons
  • System statistics monitoring in OSD
  • Variety of markers


  • Hard TALLY (Red, Yellow, Green LEDs)
  • Soft TALLY (in IMD)
  • RS-485 interface supports Marshall, Image Video and TSL protocols
  • System supports color calibration
  • RS-485 based firmware update
V-R261-DLW specifications
Panel Number of Panels 1
Panel Size 25.54" Diagonal
Resolution 1920 x RGB x 1200
Aspect Ratio 16:10
Active Area 528 mm x 375.6mm
Type LCD Panel
Brightness 400 cd/m²
Contrast 1000:1
Color Gamut YUV, RGB
Viewing Angles (CR>=10) 178° x 178°
Backlight type LED
Adjustable Backlight No
Features Video Formats 1080p/1080i/720p/625i/525i
Loss of Input Curtain Yes
Color Temperature D55,65,93
OverLay Position Yes
IMD Functions Yes
Tally Yes
Closed Caption Yes
Waveform Yes
Vectorscope Yes
Blue-only mode Yes
Self-Sensing Yes
Re-clocked/Re-Shaped Yes
Input Connectors SD-SDI Yes
3G-SDI Yes
Output Connectors SD-SDI Yes
3G-SDI Yes
Control Inputs Tally / GPI Tally
RS-485/422 w/ Loop- Through Yes
Ethernet No
Controls on front Panel Yes
User-Defined Function Buttons Yes
RotoMenu™ Control Yes
Pivot Angle Yes
Handles/Rack Ears Yes
Embedded audio from SDI Yes
Input Status Display Yes
Audio Meters Yes
Power Voltage 24 VDC
Consumption 115 W
Power Switch Yes
Connector 4-Pin XLR Connector
Compliance Compliance CE approved
Environmental Operating Temperature (C° ) 32° F to 104° F
Storage Temperature (C°) -4°F to120°F
Rack Unit dimensions 23.3" W x 16.29" Hx x2.14" D
Weight (Main Body) ~17.5 lbs.
Vesa Mount 75mm/200mm
